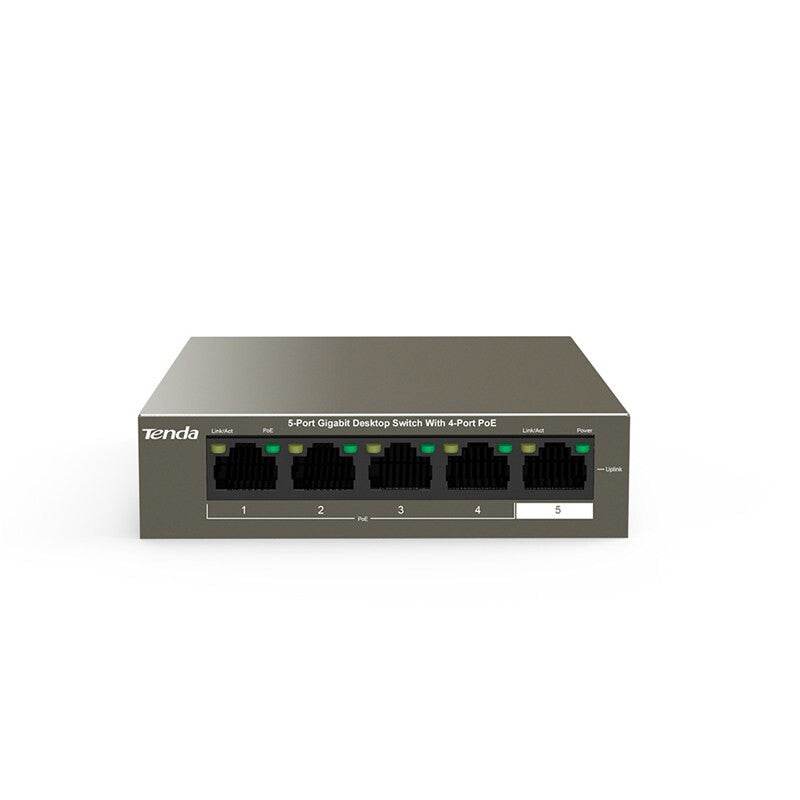

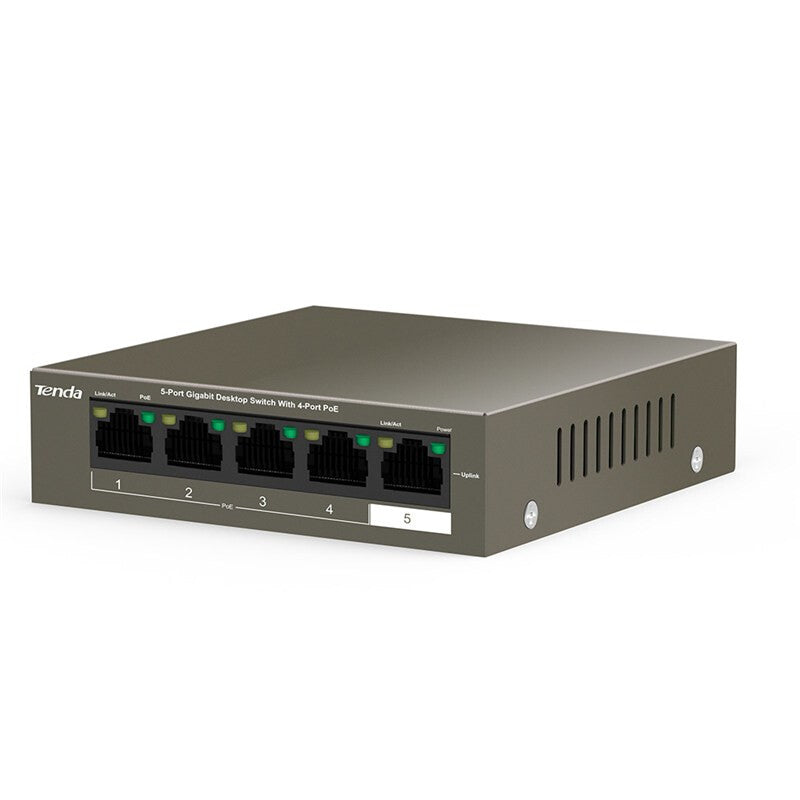

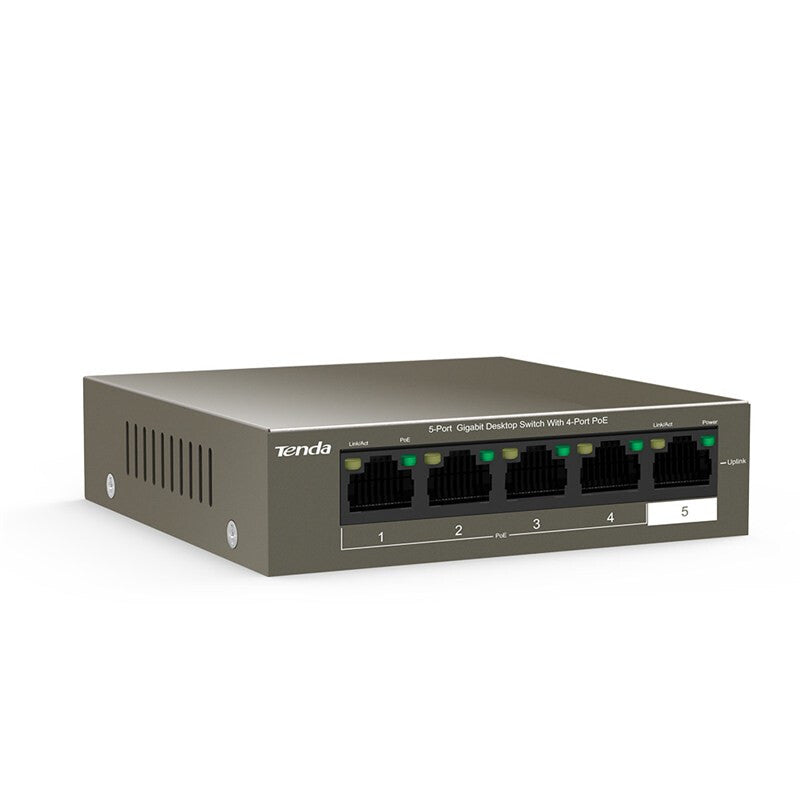

5-Port Gigabit Desktop Switch with 4-Port PoE
TEG1105P-4-63W is a Tenda PoE switch that offers 5*10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3 at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to APs, IP cameras, and IP phones and exchange data with them through CAT5 cables. It also provides simple management modes such as VLAN to help reduce cabling costs of IP terminals like APs and IP cameras.
Lead security transmission power supply to a new height
TEG1105P-4-63W 5-Port Gigabit Desktop Switch with 4-Port PoE 6KV Port Lightning Protection | Maximum PoE Output Power 58W PoE power up to 30W for each PoE port.
One-Key VLAN

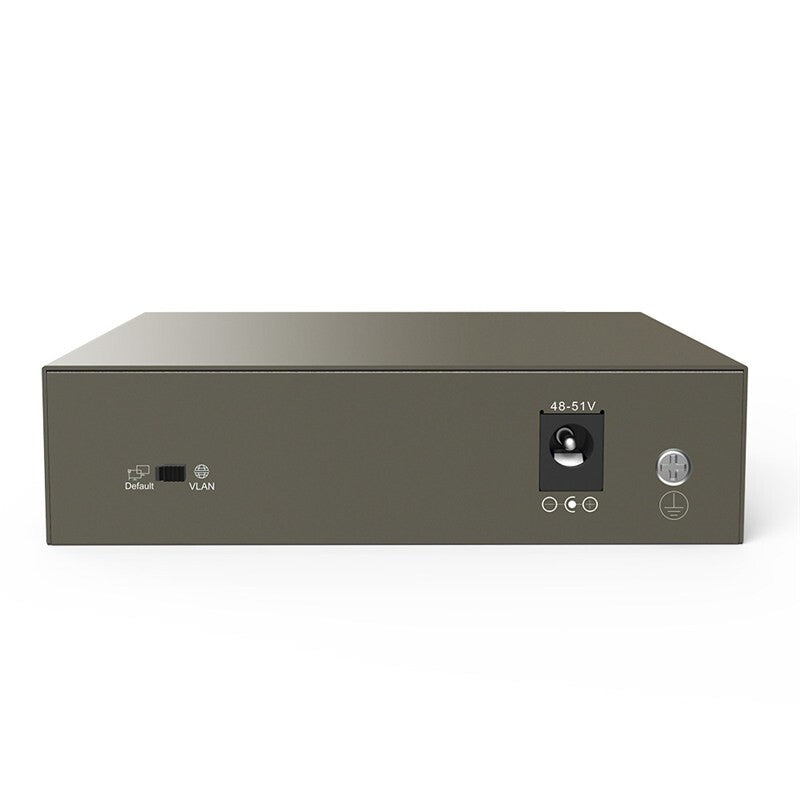

If "VLAN mode" is enabled, Port 1-4 will be isolated respectively but can communicate with the port 5. Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing.
6KV lighting protection PoE switch is the real monitoring private switch
In real project, APs or cameras are usually installed in outdoor or a higher position, which also increases the camera and PoE switches the probability of lightning shock. The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have professional lightning protection design - up to 6KV port and power supply thunder prevents, with two levels of protection design respectively, effectively restrain the power of lightning from cable, which is equivalent to give the entire network monitoring system with a security fence, The test standard is much higher than the national CE request. In thunderstorms weather, it can also provide monitoring network stable and reliable services and protect the images transmission normally.
58W PoE power supply
Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30 W. The ports can be used to supply power to and exchange data with APs and IP cameras.
| Management features |
|---|
| Switch type |
Unmanaged |
| Switch layer |
L2 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
5 |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported |
Cat5 |
| Broadcast storm control |
Yes |
| VLAN support |
Yes |
| Data transmission |
|---|
| MAC address table |
2048 entries |
| Switching capacity |
10 Gbit/s |
| Forwarding rate |
7.44 Mpps |
| Store-and-forward |
Yes |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Black |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (max) |
63 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
PoE+ |
| Power over Ethernet plus (PoE+) ports quantity |
4 |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
58 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
100 mm |
| Depth |
100 mm |
| Height |
26 mm |
