24-Port Gigabit Ethernet Switch, IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, full-duplex & flow control, NMA auto-negotiation, UPnP, 8K MAC Address Table, 10/100/1000Mbps, 48Gbps Backplane Bandwidth, 24x RJ45

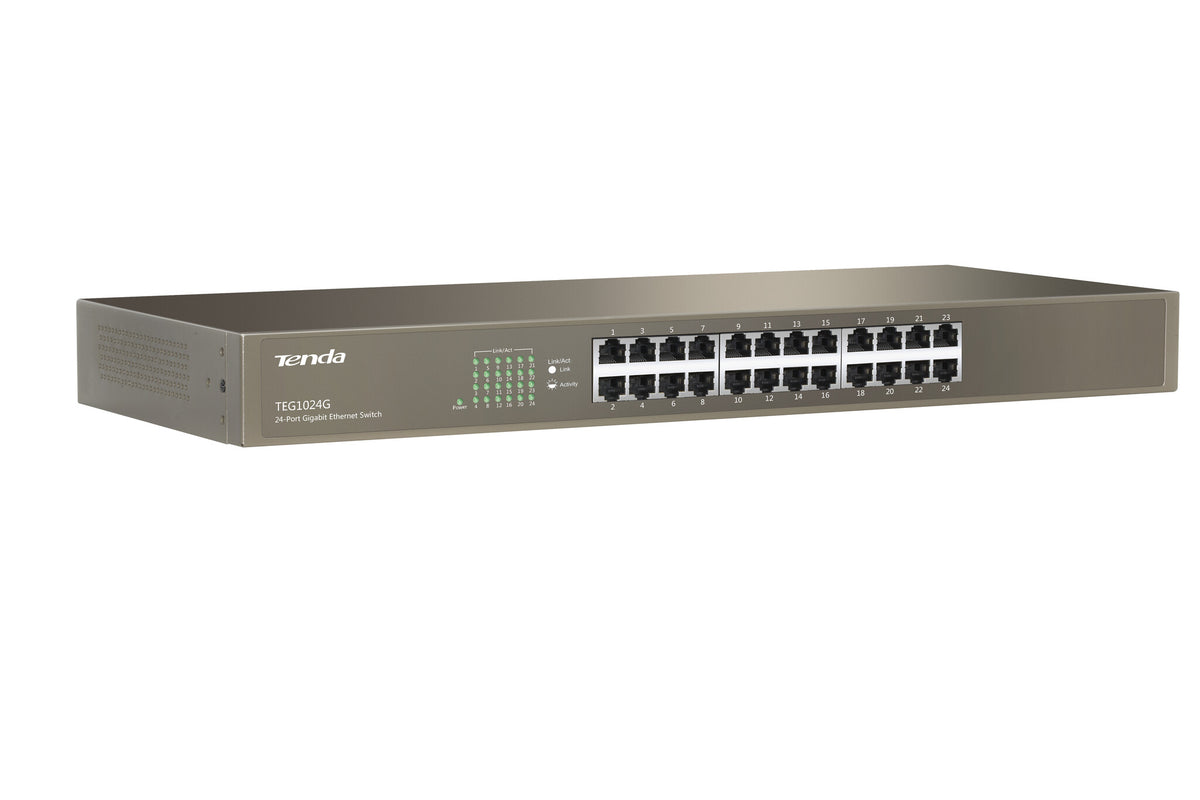

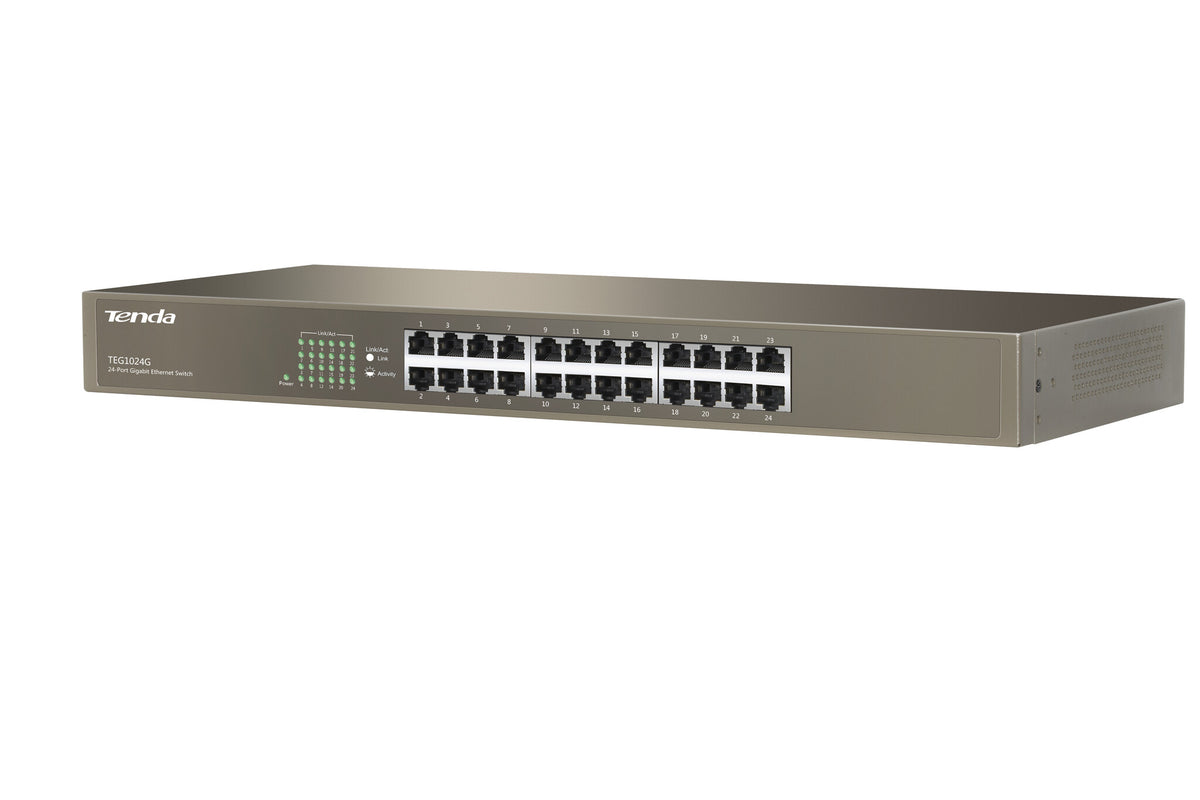

The TEG1016G and TEG1024G are 16 and 24 port 1U rack-mountable Gigabit switches respectively. They support auto MDI/MDIX and store-and-forward switching. The TEG1016G has a 32Gbps backplane bandwidth while the TEG1024G has a 48Gbps backplane bandwidth. These switches are ready for deployment in server rooms or offices with a need to keep serious network traffic flowing.
- Complies with IEEE 802.3x full-duplex and flow control.
- NMA auto-negotiationSupports UPnP.
- Provides 16 (TEG1016G)/24 (TEG1024G) auto-negotiation 10/100/1000Mbps LAN ports.
- Supports auto MDI/MDIX.
- Non-blocking.
- Store-and-forward switchingIntegrated 8000 MAC address table.
- Internal power supply.
- Standard 19” rack-mountable metal case.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Gigabit Ethernet (copper) ports quantity |
24 |
| ExpressCard slot |
No |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Maximum data transfer rate |
1 Gbit/s |
| Security |
|---|
| MAC address filtering |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Blue |
| Housing material |
Metal |
| LED indicators |
Link, Power |
| Certification |
CE, RoHS |
| Power |
|---|
| Input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Dimensions (WxDxH) |
208 x 440 x 44 mm |
| Connectivity technology |
Wired |
| Bandwidth |
48 Gbit/s |
| Size (imperial) |
48.3 cm (19") |
| Networking features |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Wi-Fi |
No |
| Power LED |
Yes |
| Input frequency |
50/60 Hz |
