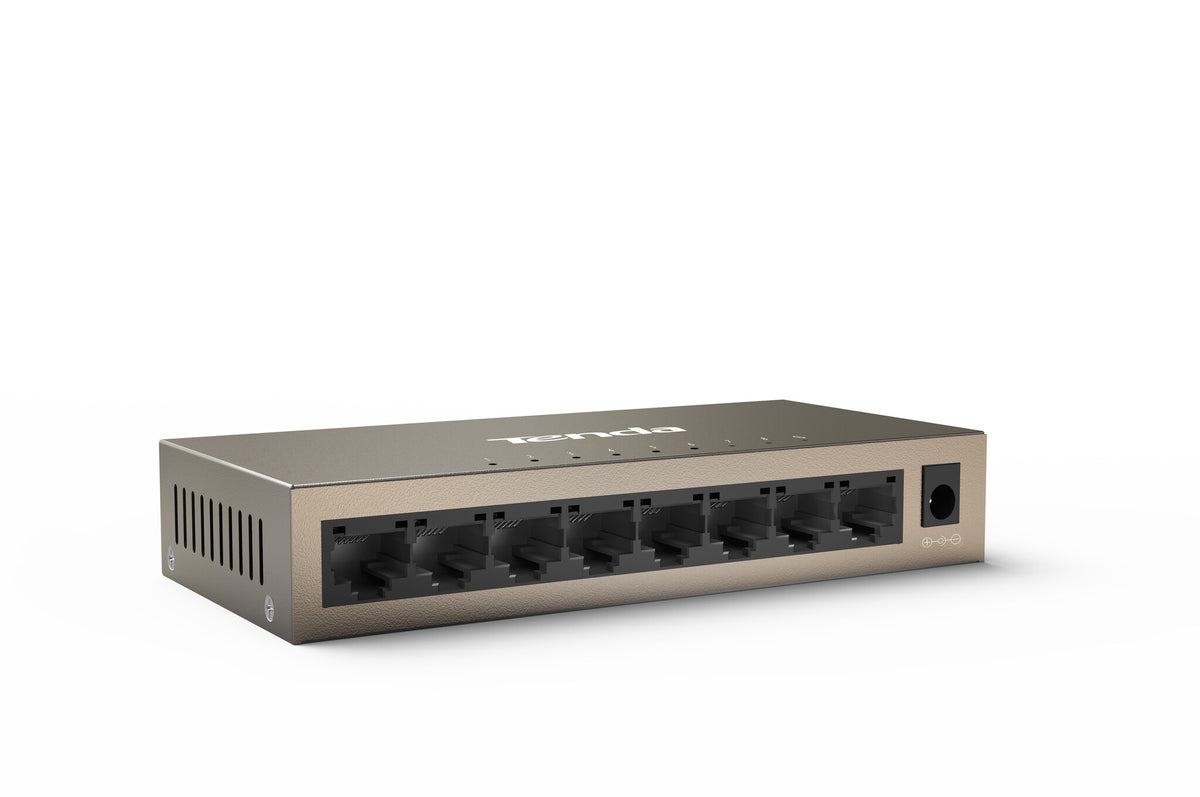

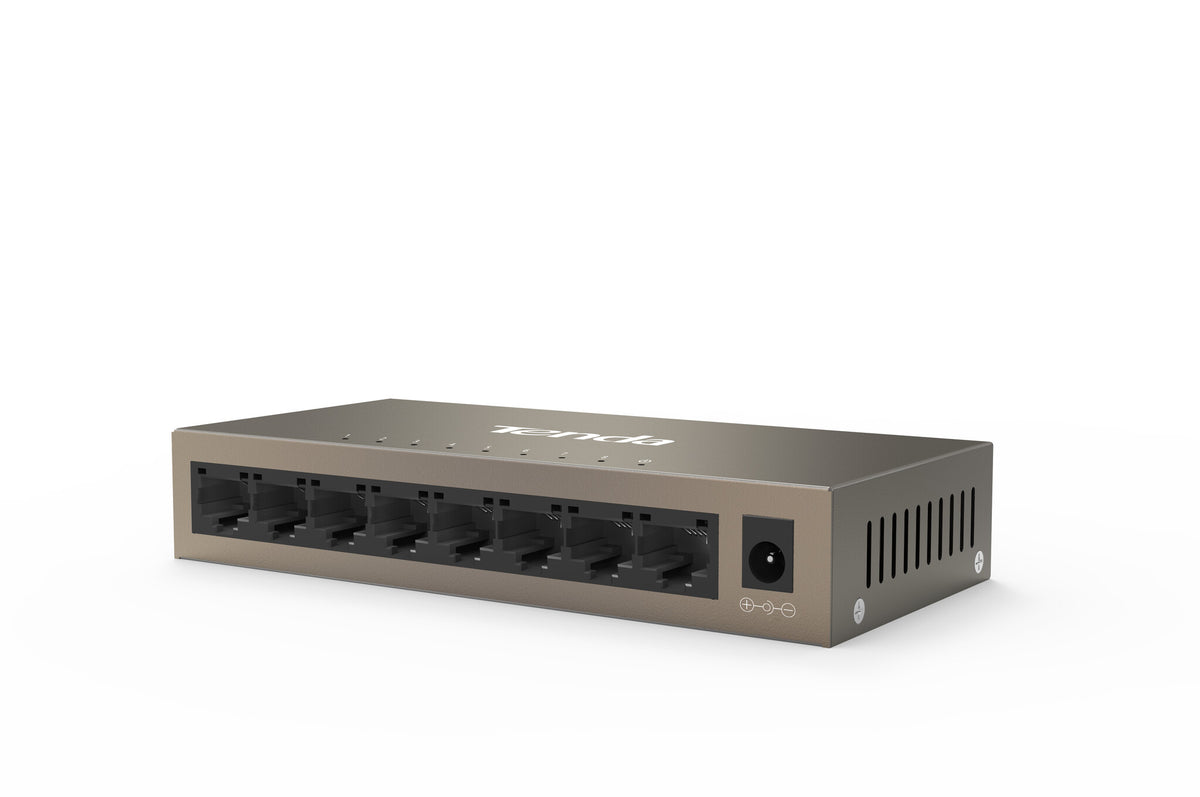

TEG1008M
TEG1008M is a high-performance 8-port full Gigabit desktop Ethernet switch designed for Tenda's high-speed cascading scenarios for small and medium-sized surveillance, small and medium-sized businesses. Designed with a mini steel shell, it does not take up space and has a strong heat dissipation. Provides 8 10/100/1000 Mbps auto-negotiation ports, which increases transmission rate by 10 times, improves large file forwarding rate, and effectively solves problems such as video jams and picture loss in high-definition surveillance environments. The TEG1008M supports desktop/wall mount installation, plug and play, no setup, easy to use, and is ideal for improving network performance.
Gigabit Speed
8 gigabit ports ensure the speed of the transmission of large files and improve transmission efficiency.
Support 9-12V DC Input
9-12V DC input design,support centralized power supply and monitor power supply.
Wallmount & Plug-n-play
support desktop and wallmount,plug-n-play,easy to use.

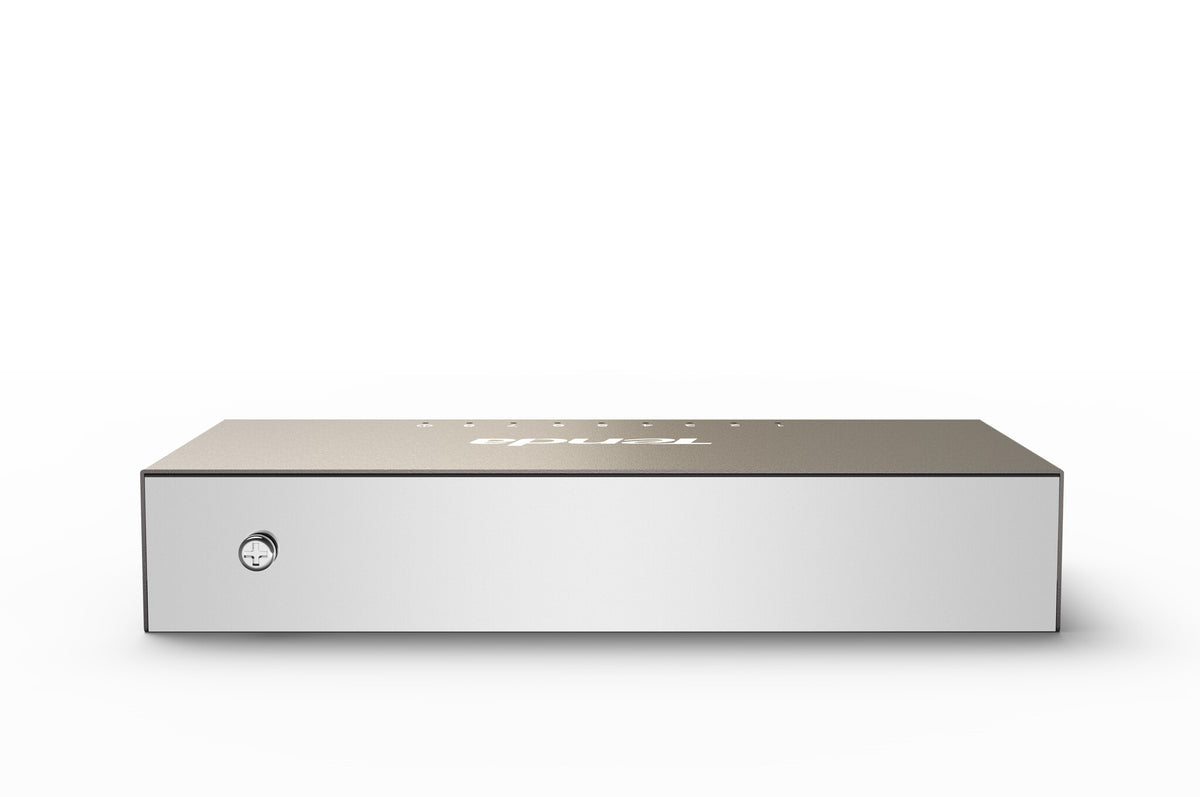

Metal Sheel , Stable Operation
Full-metal & larger shell ensure effective cooling.
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Cable types supported |
Cat5, Cat5e |
| MAC address auto-aging supported |
Yes |
| MAC address auto-learning supported |
Yes |
| Data transmission |
|---|
| MAC address table |
4000 entries |
| Switching capacity |
16 Gbit/s |
| Store-and-forward |
Yes |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Packet forwarding rate (100 Mbps) |
148800 pps |
| Packet forwarding rate (1 Gbps) |
1488000 pps |
| Design |
|---|
| LED indicators |
Yes |
| Certification |
CCC, CE , FCC |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Power |
|---|
| Power supply included |
Yes |
| AC input voltage |
190 - 240 V |
| AC input frequency |
50 - 60 Hz |
| DC input voltage |
9 - 12 V |
| Power consumption (typical) |
5 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
140 mm |
| Depth |
66.5 mm |
| Height |
25.3 mm |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
