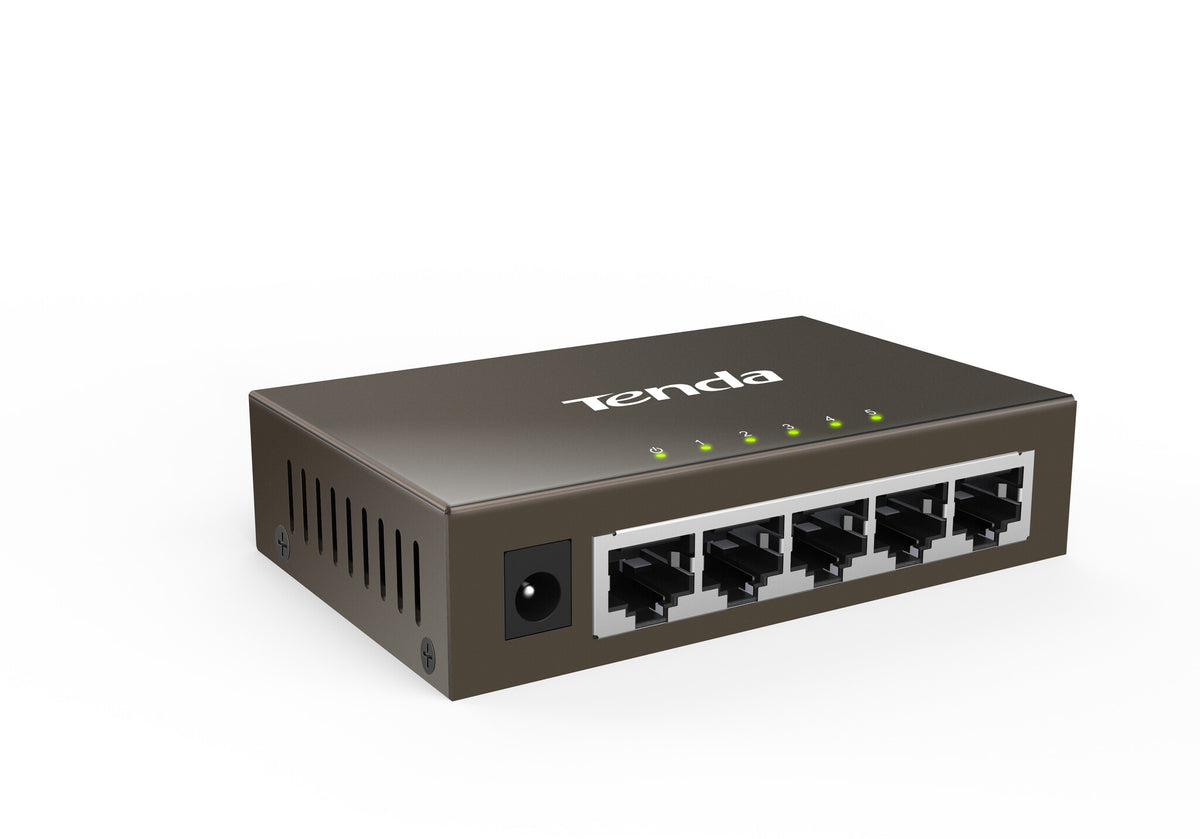

5x 10/100/1000Mbps RJ45, auto MDI/MDIX, 6KV lightning protection, 2K MAC Table, 10Gbps
Lightning protection for ports
Integrated with professional a lightning protection circuit that offers 6KV lightning protection to each port to effectively prevent lightning-induced current from damaging the ports or switch, so as to ensure the surveillance system stability.
Extraordinary heat dissipation
A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability, heat dissipation performance, ensuring stable switch operation, a long service life, and more reliable outdoor security surveillance.
Stay connected for 7x24
5x 10/100/1000Mbps auto-negotiation RJ45 ports that support line-speed forwarding and large-capacity cache, ensuring smooth surveillance video playback and stable data transmission for 7x24.
User-friendly design

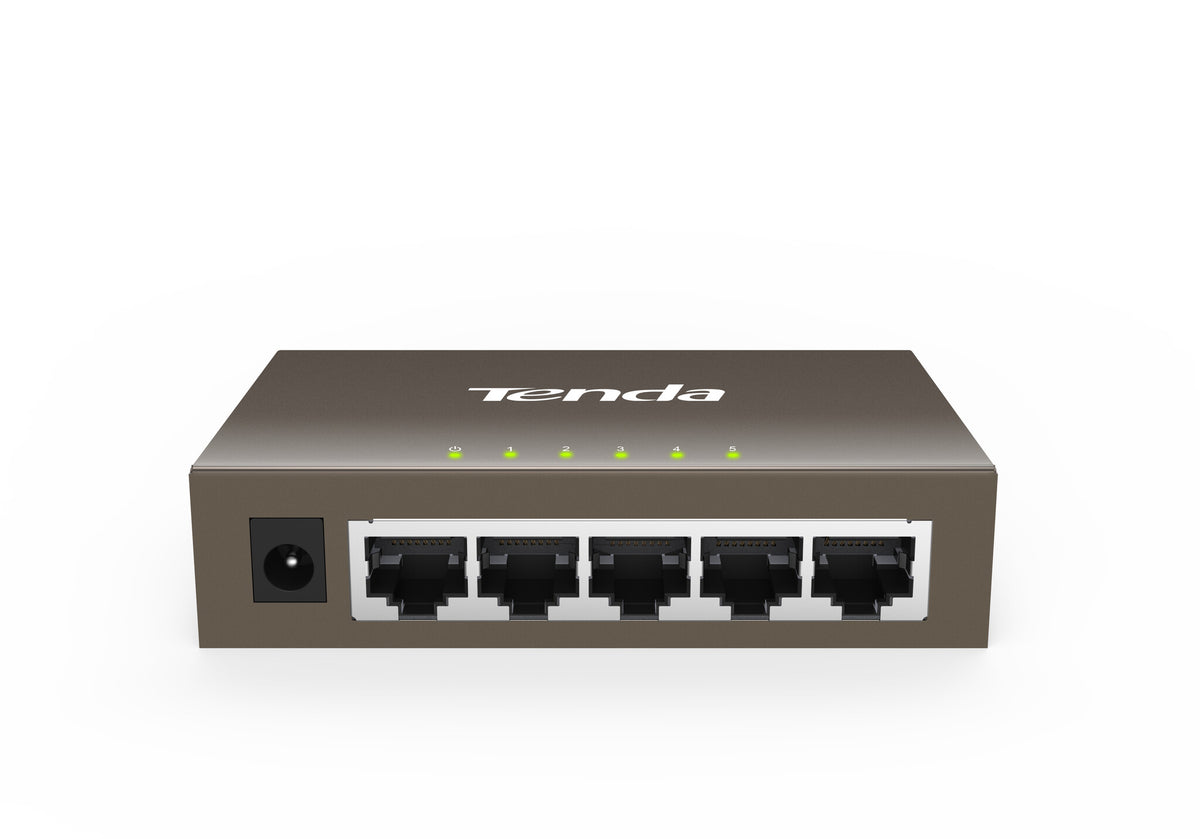

RJ45 ports and LED indicators are located on the same side and aligned vertically for more intuitively showing network status. The RJ45 ports and the power port are designed in the same orientation to reduce the mounting space requirement, allowing the switch to fit into the slimmest outdoor weak current box.
| Packaging content |
|---|
| Manual |
Yes |
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
100BASE-TX, 100BASE-T |
| Cable types supported |
Cat5, Cat5e |
| MAC address auto-learning supported |
Yes |
| Auto MDI/MDI-X |
Yes |
| Data transmission |
|---|
| MAC address table |
2000 entries |
| Switching capacity |
10 Gbit/s |
| Jumbo frames support |
Yes |
| Jumbo frames |
15000 |
| Packet forwarding rate (10 Mbps) |
14881 pps |
| Packet forwarding rate (100 Mbps) |
148810 pps |
| Packet forwarding rate (1 Gbps) |
1488100 pps |
| Security |
|---|
| Access Control List (ACL) |
Yes |
| Design |
|---|
| Rack mounting |
No |
| Stackable |
Yes |
| Product colour |
Grey |
| Certification |
CE, FCC, RoHS |
| Performance |
|---|
| Plug and Play |
Yes |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Output voltage |
5 V |
| Output current |
0.6 A |
| Power consumption (typical) |
2.5 W |
| Surge protection voltage |
6 kV |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
100 mm |
| Depth |
64 mm |
| Height |
25 mm |
| Packaging data |
|---|
| Package width |
102 mm |
| Package depth |
81 mm |
| Package height |
84 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
