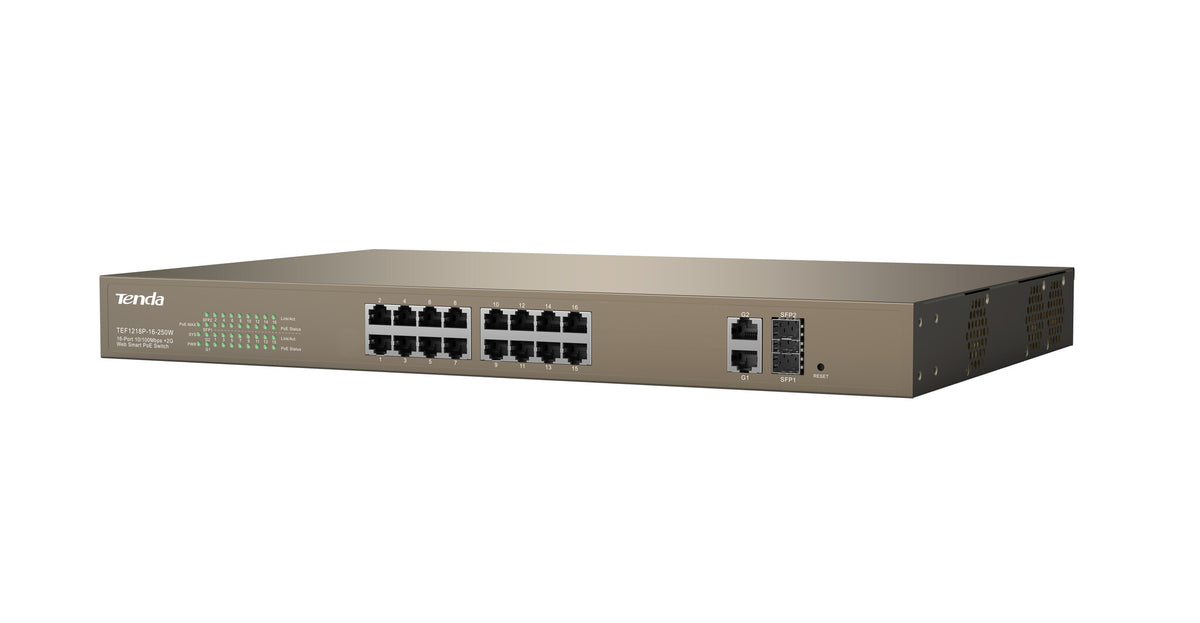

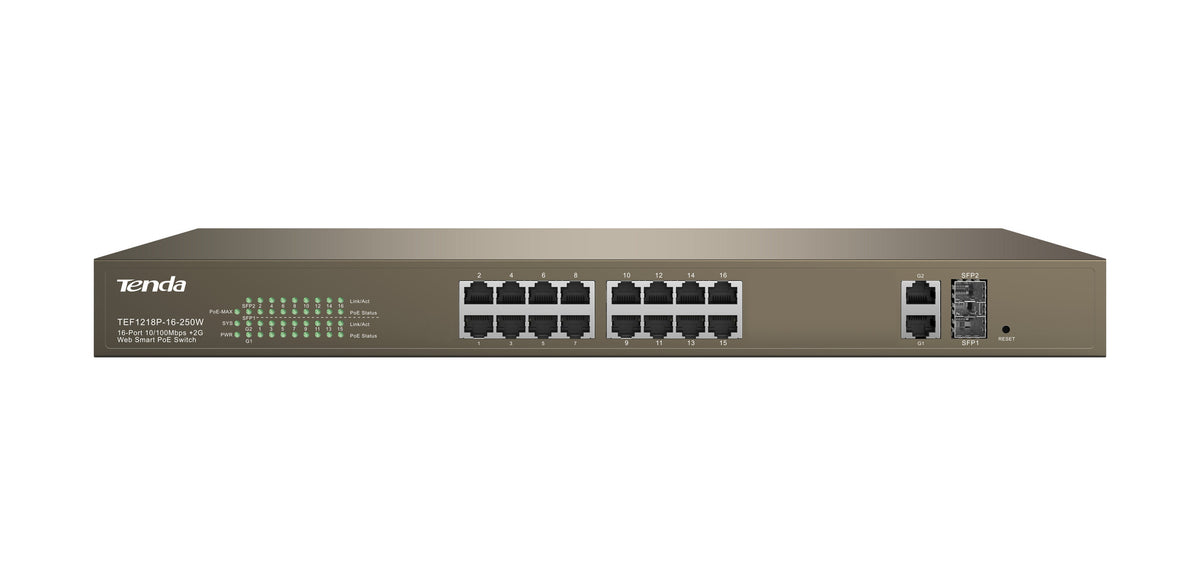

Tenda TEF1218P-16-250W network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Lead security transmission power supply to a new height

6000V Port Lightning Protection | long distance transmission |
Maximum PoE Output Power 230W | PoE power up to 40W for each PoE port

6KV lighting protection PoE switch is the real monitoring private switch

In real monitoring project, cameras are often installed in outdoor or a higher position, which also increases the camera and PoE switches the probability of lightning shock .The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF12 series switches have professional lightning protection design -up 6 kv port and power supply thunder prevents, with two levels of protection design respectively, effectively restrain the power of lightning from cable, which equivalent to give the entire network monitoring system with a security fence. The test standard is much higher than the national CCC request. In thunderstorms weather, it can also provide monitoring network stable, reliable service, protect the images transmission be normal.

Up to 250 meters long distance transmission beyond hundred meters transfer limit

Due to the complex monitoring environment, when making cabling and networking,it very often to encounter the problem of inadequate network transmission distance, the distanceof each camera terminal to the monitoring center is different, some only a few meters, some hundred metres, while others are more than kilometers.Tenda TEF12 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the existing twisted pair hundreds meters transmission limit ;Provide gigabit linked light port , can meet the demand of transmition to a few tens of kilometers.

The total PoE power is 230W, 16 mouth full load power supply is enough

The machine total PoE power is 230W, can support 16 mouth full PoE power supply; One Port POE supply is 40 w, PoE power supply can meet the full football machine and other power supply equipment neeeds; Eight core power supply design, network power consumption reduced to half, highly reduce the power loss of the inferior cable, make sure the camera get electricity and stability
