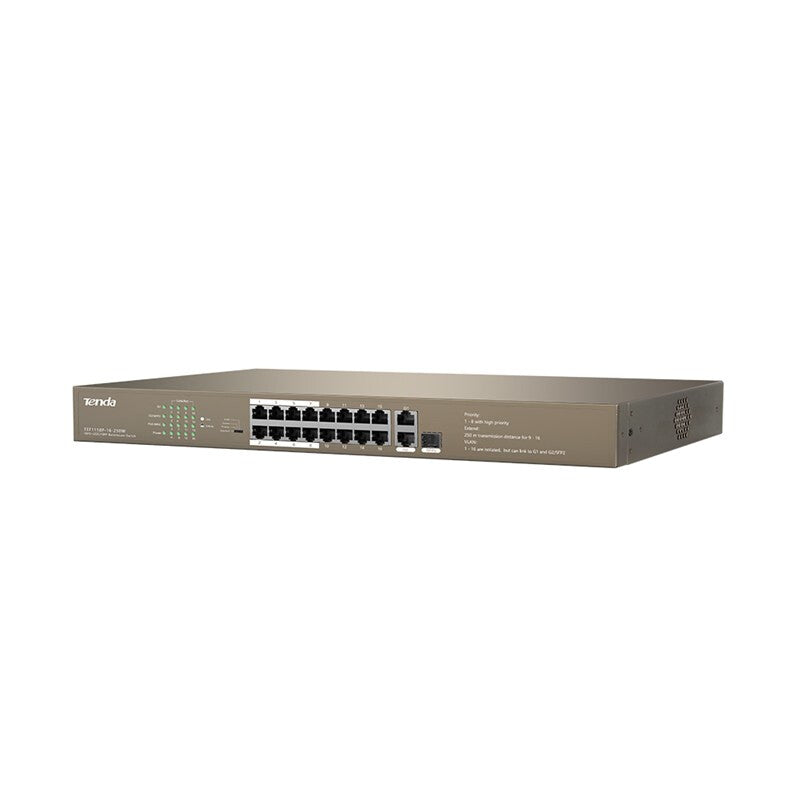

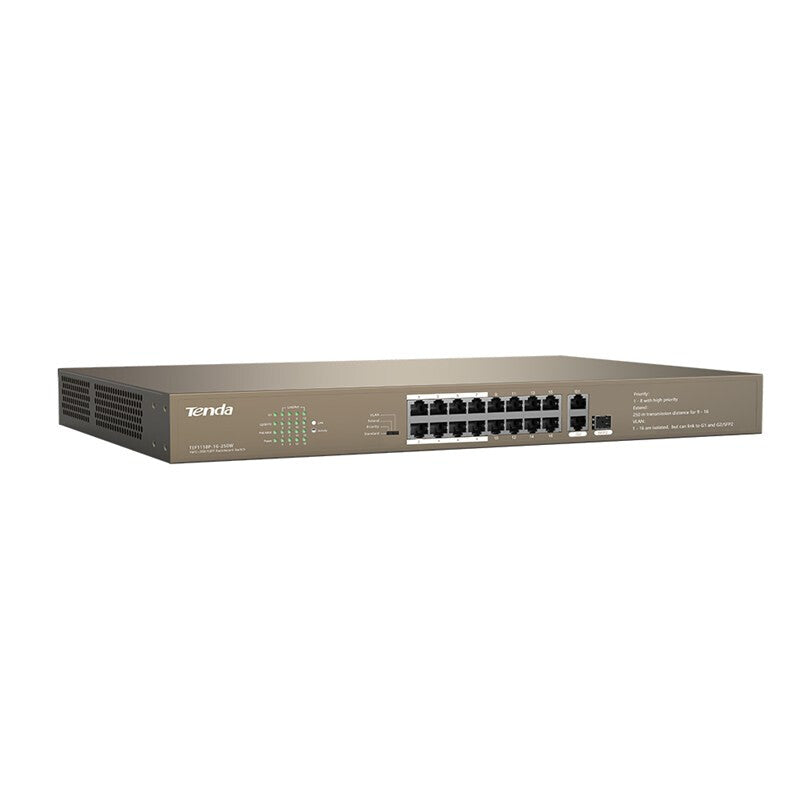

Tenda TEF1118P-16-250W network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

TEF1118P-16-250W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 250 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.

GE&SFP uplink ports ，Large Buffer of Nearly 3M
With one 10/100/1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fiber module TEG311SM, the switch supports a maximum transmission distance up to 20km.

6KV Excellent Lightning Protection
The switch offers various safety and protection types, including 6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc, and these greatly protect the switch from being damaged by thunderstorm. Besides, it supports wide voltage input, AC：100-240V~50/60Hz.

Cascading with 6 Devices
Can Support IP Surveillance Project of up to 96 Cameras
In the number of about 100 terminals accessed to the network, cascading 6 devices through the G1、G2/SFP2 can achieve up to 96-channel monitoring, according to the project , it supports 300W/500W IPCaccessed and ensure stable video transmission withoutbreaking up.If the both ends of devices are connected to the NVR, the video can be watched locally.

4 Modes for Different Networks
Standard mode, Port-based Priority mode, Port-based VLAN mode and Extend mode make TEF1118P-16-250W be able to deal with different networks，special for small & Medium-sized IP surveillance & WI-FI coverage project.

Mode 1 : Standard Mode
This is the default working mode of TEF1118P-16-250W. In the mode, all ports can communicate with each other independently.

Mode 2： Port-based Priority Mode
In this mode, ports 1 to 8 have higher priority than other ports, and all ports can communicate with each other. When the switch is connected to multiple IP cameras, you are recommended to use this mode for better smooth transmission with the key IP cameras connected to higher priority ports, and connect the 2 uplink ports (G1，G2/SFP2) to uplink devices (such as NVR or Router).

Mode 3：Port-Based VLAN Mode
In this mode, ports 1 to 16 can communicate with uplink ports (G1，G2/SFP2) , but can’t communicate with each other. You can use this mode to isolate broadcaststorm and prevent ARP virus and DHCP sproofing.

Mode 4: Extend Mode
Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1118P-16-250W can support 250 meters data transmission in the Extend mode, which can save the cost of your project with less devices used.
