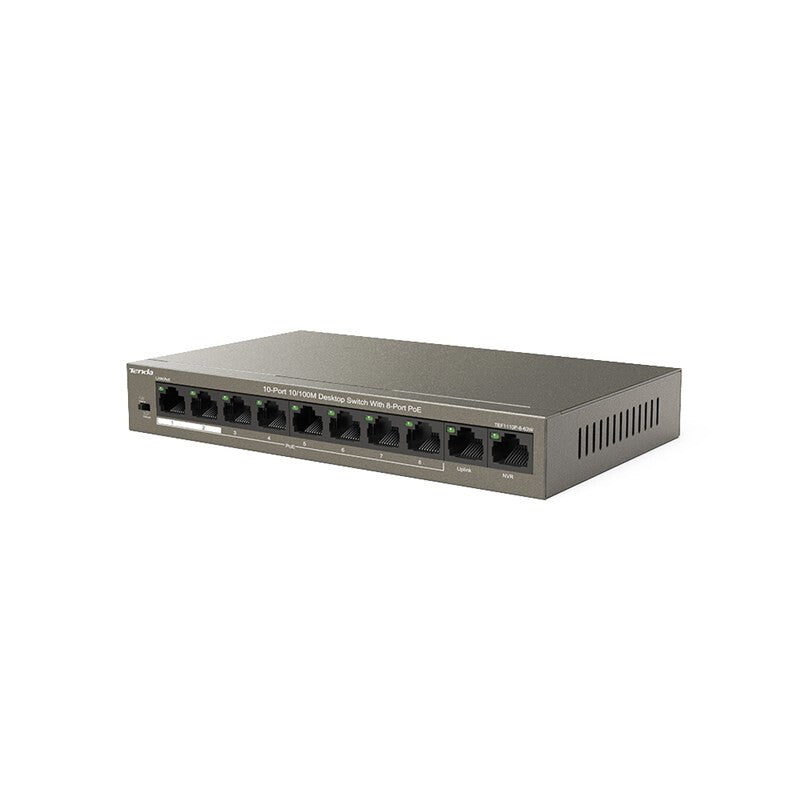

TEF1110P-8-63W, 10x 10/100 Mbps RJ-45, 1.6 Gbps, 177.5x104x26 mm
TEF1110P-8-63W is an unmanaged PoE switch with 2 uplink ports, independently designed by Tenda. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. Featured with extend mode, One-key VLAN and QoS functions, TEF1110P-8-63W is a ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.
Dual uplink port, more convenient for connecting Router and NVR
TEF1110P-8-63W is an unmanaged PoE switch with 2 uplink ports that can connect with Router & NVR. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 58W, and 30 W for a single port. TEF1110P-8-63W is an ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.
Up to 250 meters long distance transmission under the Extend Mode，beyond hundred meters transfer limitation
Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1110P-8-63W can support 250 meters data transmission under the Extend mode, which can save the cost of your project with less devices used.
Excellent lightning Protection
TEF1106P-4-63W supports professional lightning protection of 6KV for uplink ports & 4KV for power, which can protect the switch from the inductive lightning strike coming from the thunderstorm weather.
QoS Priority design makes the key video data to be prioritized
1-2 ports support QoS Priority function, and it will prioritize them when meeting network congestion, which can ensure the network stable and fluent transmission of the surveillance video without breaking up.
What's Special for TEF1110P-8-63W : One-key Port VLAN Setup
With Extend mode on, port 1-8 are isolated from each other, but can still communicate with the 2 uplink ports. These function can enable the switch to isolate broadcast storm, and improve LAN security and data transmission.
| Management features |
|---|
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX |
| Full duplex |
Yes |
| MAC address auto-learning supported |
Yes |
| VLAN support |
Yes |
| Data transmission |
|---|
| MAC address table |
1000 entries |
| Switching capacity |
1.6 Gbit/s |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Packet forwarding rate (100 Mbps) |
148800 pps |
| Design |
|---|
| Product colour |
Black |
| LED indicators |
Activity, Link, Power |
| Power |
|---|
| DC input voltage |
51 V |
| Input current |
1.25 A |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
63 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
177.5 mm |
| Depth |
104 mm |
| Height |
26 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
