Tenda TEF1110P-8-102W network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

TEF1110P-8-102W has the network extension technology. Based on the original twisted pair, it can support up to 250 meters long distance transmission, breaking the hundred meters transfer limit. With 6KV lightning protection, it is the real monitoring private switch. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum power supply of 30W to each port and 99W to the whole device. Meanwhile, it provides dual gigabit uplink port to meet the needs of more equipment cascading and access.

Lead security transmission power supply to a higher level

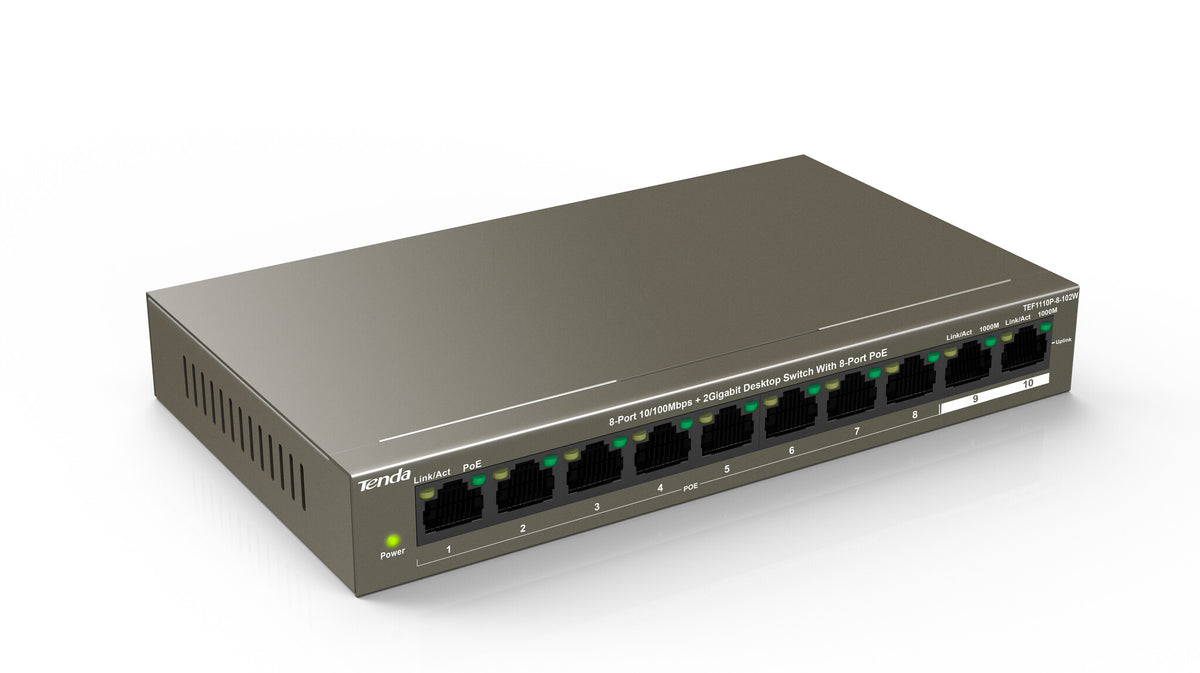

TEF1110P-8-102W 8-Port10/100Mbps+2 Gigabit Desktop Switch With 8-Port PoE
6KV Port Lightning Protection | long distance transmission
Maximum PoE Output Power 99W | PoE power up to 30W for each PoE port

PoE+ and Dual Gigabit Uplink
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. Machine PoE maximum output power of 99W, single-port maximum output power of 30W. The two gigabit uplink ports are capable for cascade connection of more devices.

Up to 250 meters long distance transmission, beyond hundred meters transfer limit
Due to the complex monitoring environment, when making cabling and networking, it is usual to encounter the problem of inadequate network transmission distance, the distance of each camera terminal to the monitoring center is different, some are only a few meters, some are hundred metres, while others are more than kilometers.
Tenda TEF12 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the transmission limit of the existing twisted pair only for one hundred meters ; Provide gigabit linked SFP port, can meet the demand of transmission to a few tens of kilometers.

6KV lighting protection PoE switch is the real monitoring private switch
In real monitoring project, cameras are often installed outdoor or in a higher position, which also increases the probability of lightning shock toward the cameras and PoE switches . Therefore, some of the equipments may be damaged and even the whole local area network (LAN) may be paralyzed.Tenda TEF11 series switches have professional lightning protection design – 6kV port and power supply thunder prevents. These two protection design can effectively inhibit the lightning current from the network cable and power supply, which is equivalent to add a security Walls to the entire network monitoring system. And the test standards are far higher than the requirements of the state CCC. In the thunderstorms, the monitoring network can also provide stable and reliable services to the monitoring network and ensure the normal transmission of the images.
