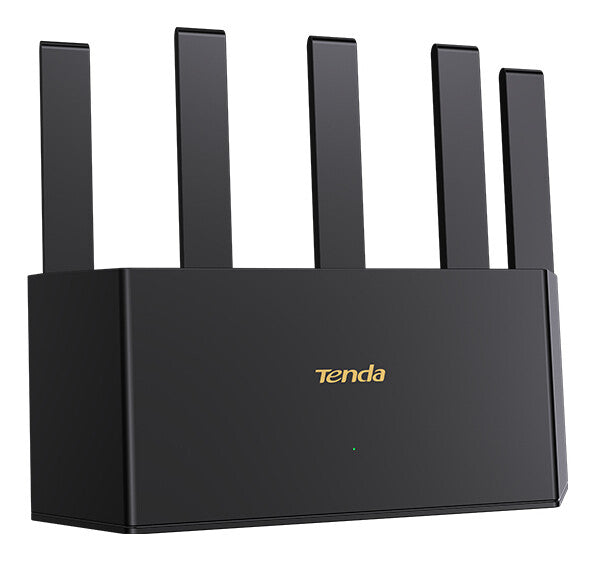

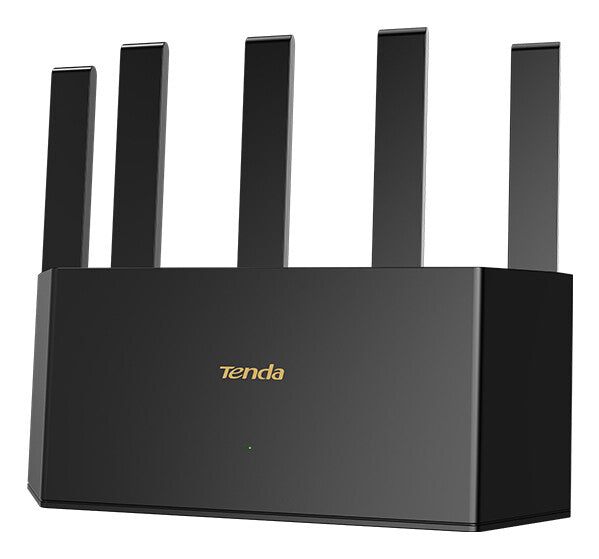

TE3L v1.0 BE3600 Dual Band Gigabit Wi-Fi 7 Router
The TE3L uses the latest Wi-Fi 7 technology, with dual-band concurrent rates up to 3600Mbps（5GHz：2882Mbps，2.4GHz 688Mbps). With a dual-core CPU and a 6nm Wi-Fi chip,this router ensures a stable and seamless network experience. Equipped with five high-gain antennas and five built-in FEMs, our Wi-Fi 7 router offers enhanced wall penetration and extended transmission range. It supports the Wi-Fi+ Mesh function to effortlessly provide comprehensive coverage in large households. It also supports a variety of special functions such as NFC one-touch networking, WAN/LAN port auto-negotiation and intelligent diagnosis,easily meeting the needs of various internet scenarios.
For Electronics, Buy New, Not Old
Router Preferred 3600
New mobile phones already support Wi-Fi 7, and new laptops also support Wi-Fi 7. If you want your new device to enjoy Wi-Fi7 high-speed network, You need a Wi-Fi 7 router!
Wi-Fi 7 Faster than Ever
Adopt the new generation Wi-Fi 7 technology, dual-band concurrent rate up to 3570Mbps. The unique Multi-Link Operation technology of Wi-Fi 7, combined with terminal devices also supporting Wi-Fi 7, bringing a new network experience with higher throughput and lower latency than ever before, galloping in the Wi-Fi 7 Era.
Five antennas
Strong Wi-Fi on the go
TE3L uses five high-gain omni-directional antennas, equipped with five built-in FEMs, Wi-Fi signal coverage 80-110㎡. If the house is larger, you can add another unit, one-click signal expansion using the Mesh+ function, achieve whole-home Wi-Fi coverage.
Support for OpenVPN & WireGuard for Advanced Security
The TE3L enables seamless VPN connectivity for all your home devices, without the need for additional software. It supports both secure VPN and regular internet connections simultaneously, providing comprehensive network protection and unmatched flexibility.
Visible coverage, Superior usability
With Xtra Range™ 2.0 technology, 5G Wi-Fi signal coverage can be extended by another 4.5m or through one more wall, maintain Wi-Fi access even when you are in a corner with weak signal.
6nm advanced process chip
Stable coverage
TE3L uses a 6nm advanced process chip with higher integration, lower power consumption and heat generation, significantly improves the stability of Wi-Fi signal transmission, smoother networking experience.
Large memory
Smooth connectivity for all family members
For a better user experience, TE3L prioritizes performance over cost reduction, equipped with 512MB large memory, 4 times larger than a Wi-Fi 6 router with 128M memory, with a powerful CPU, data transmission efficiency is significantly improved; Combined with the MRU technology unique to the Wi-Fi 7 protocol, multiple people watching videos and playing games at the same time smoothly.
One-Touch Wi-Fi Connection with NFC
Unique NFC password-free function, simply requiring the visitor's phone to be close to the dedicated NFC sticker to connect to the Wi-Fi.
Parental Control
Maintain control over children's online time and behavior, and cultivate children's healthy habit of surfing the Internet.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| WAN connection type |
RJ-45 |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) |
3570 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) |
2882 Mbit/s |
| WLAN data transfer rate (second band) |
688 Mbit/s |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X |
Yes |
| Port forwarding |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Static route |
Yes |
| VPN support |
IPSec, PPTP, L2TP |
| Mobile network |
|---|
| Mobile network generation |
Not supported |

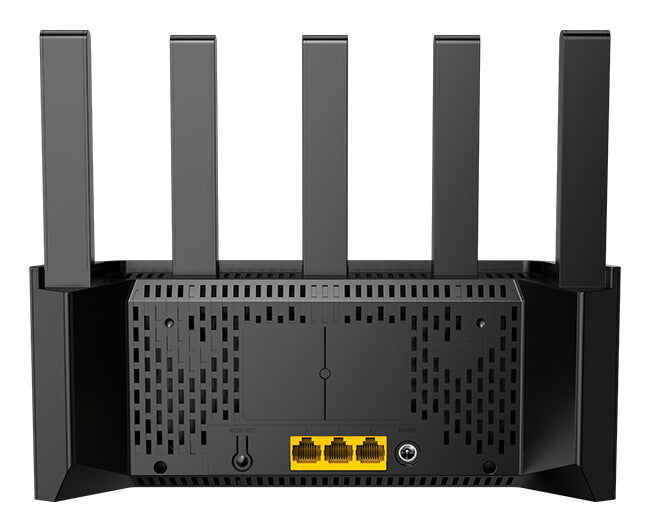

| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
3 |
| USB port |
No |
| DC-in jack |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Bandwidth control |
Yes |
| Reset button |
Yes |
| Intelligent Mesh technology |
Yes |
| MIMO |
Yes |
| MU-MIMO technology |
Yes |
| Security |
|---|
| Security algorithms |
WPA2-PSK, WPA3-SAE |
| Firewall |
Yes |
| Guest access |
Yes |
| Filtering |
Yes |
| URL filtering |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| DHCP server |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Supported network protocols |
IPv4, IPv6 |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
Black |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antennas quantity |
5 |
| Features |
|---|
| Built-in processor |
Yes |
| Processor frequency |
1000 MHz |
| Processor cores |
2 |
| Internal memory |
512 MB |
| Power |
|---|
| Power source type |
DC |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Output voltage |
12 V |
| Output current |
1 A |
| External power adapter |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
200 mm |
| Depth |
244 mm |
| Width |
56 mm |
| Packaging data |
|---|
| Number of products included |
1 pc(s) |
