Tenda SKU SG105

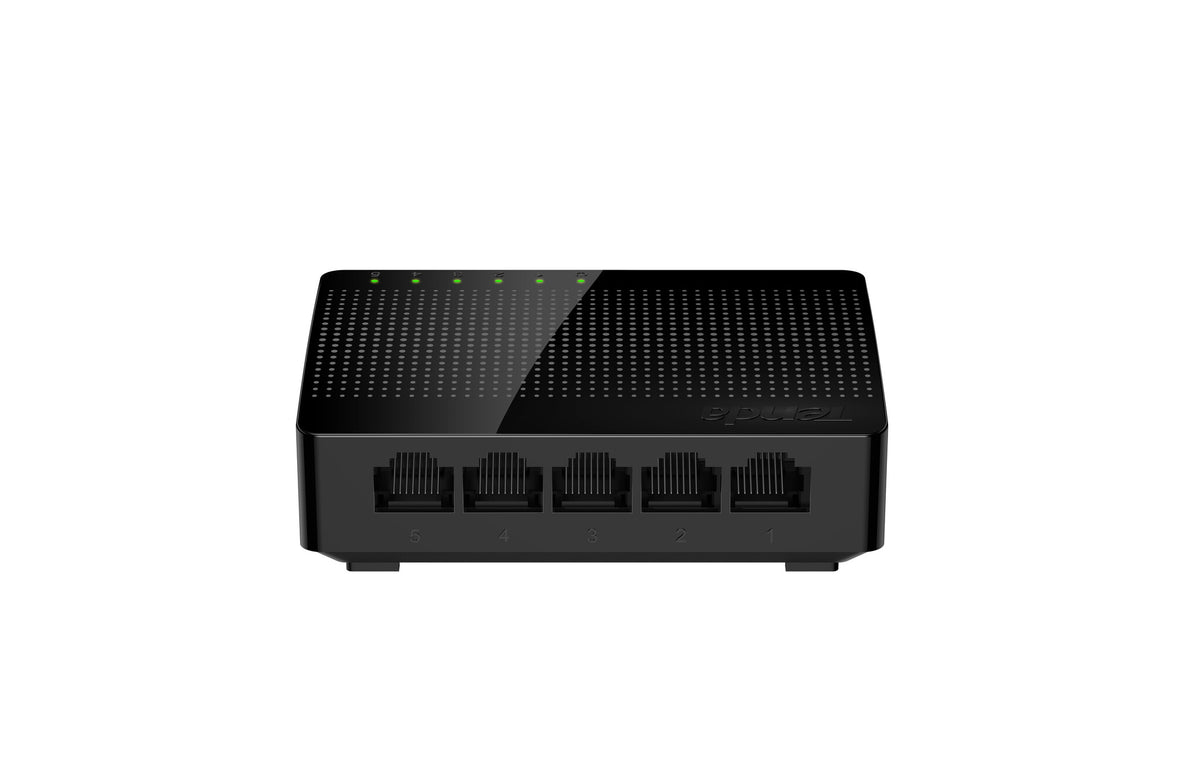

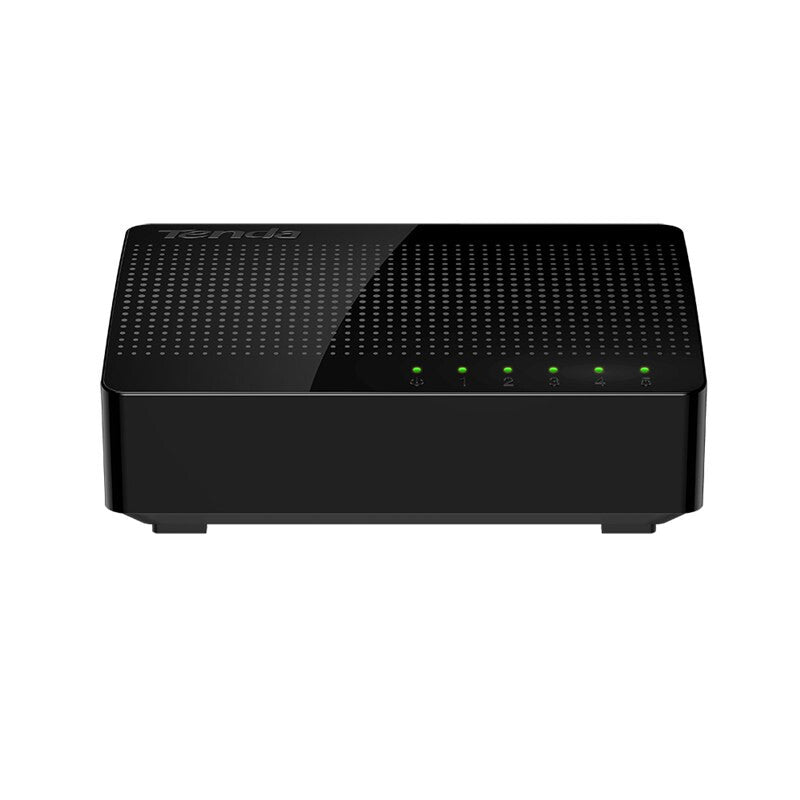

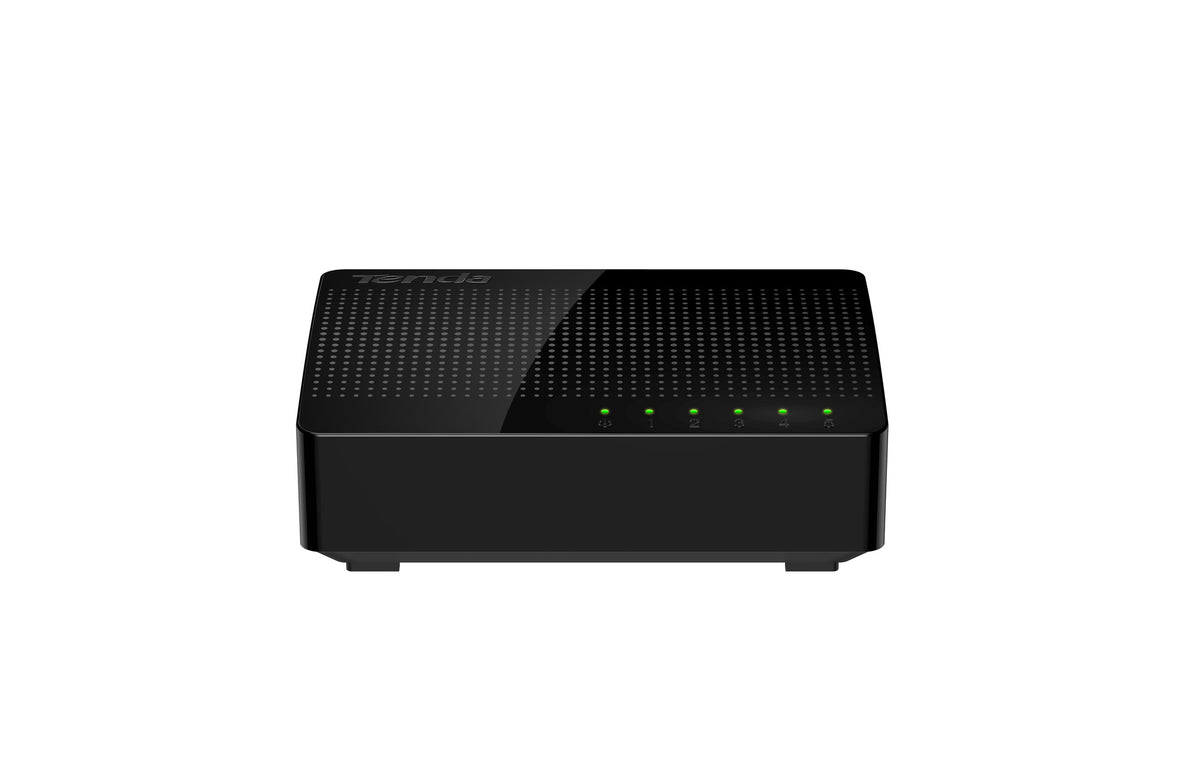

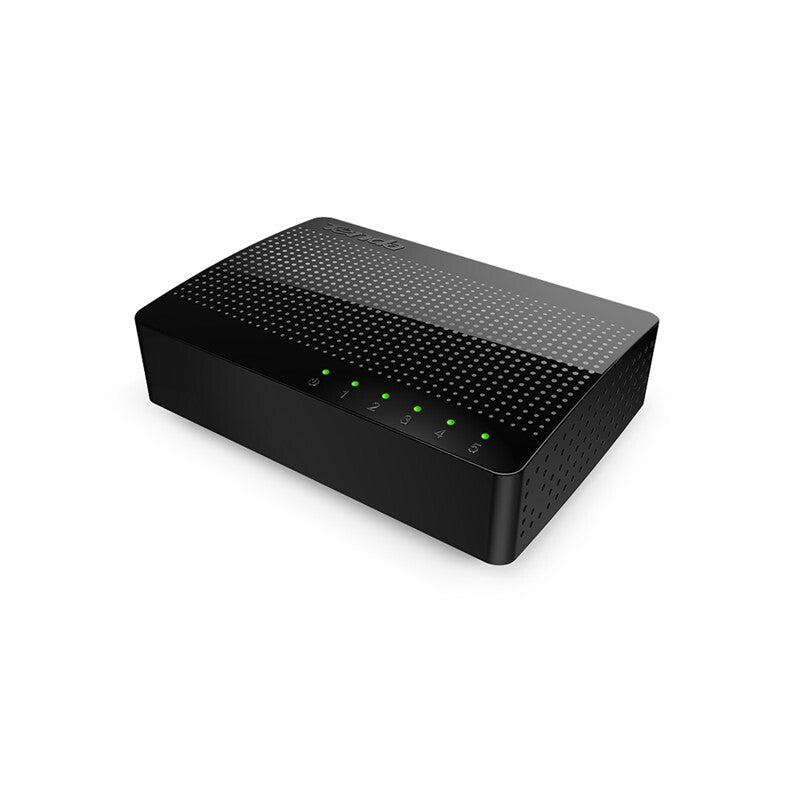

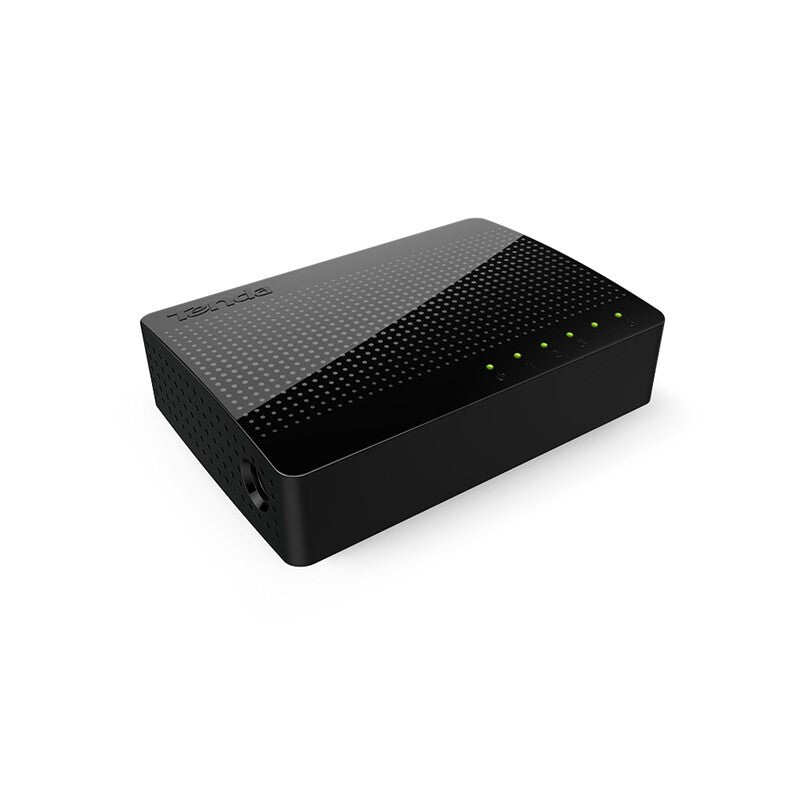

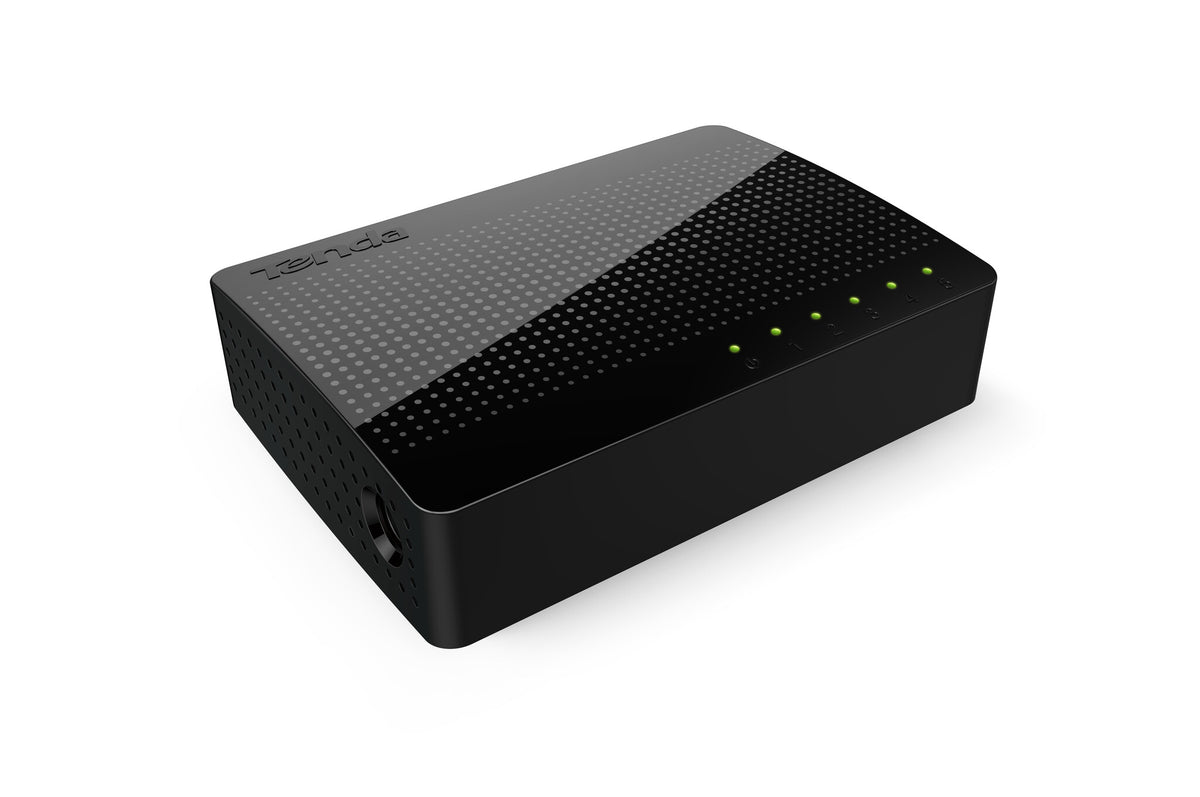

Tenda SG105 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

R 164.86Incl. VAT

In stock

Delivery Nationwide delivery. Cost and time shown at checkout.
Returns 7-day returns on unopened items. Refund policy

Overview

5 x 10/100/1000 Mbps, auto MDI/MDIX, IEEE 802.3/u/x/ab, CDMA/CD

Uninterrupted Gaming & HD Video Streaming
5-Port Gigabit Desktop Switch SG105.

What it does
SG105 is a 5-Port Gigabit Desktop SOHO switch. It provides 5 10/100/1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. Compared with a 100M switch, it enhances transmission speed up to 10 times, eliminating the bottleneck of cascading bandwidth. It supports desktop installation and wall-mounting. Without configuration, it can be played once plugged.
With the stable connectivity and easy-to-use features, it is perfectly fit for the networking of school dormitories, small offices, home offices and Video Surveillance.

Main Features
- 5* 10/100/1000Mbps auto-negotiation ports;
- Auto MDI/MDIX simplifies networking and maintenance;
- Full wire speed forwarding ensures a smooth network experience;
- Flow control for full duplex and backpressure for half duplex avoids frame dropping as port blocked;
- Adopts store-and-forward mechanism and provides 2K MAC address table;
- 15K Jumbo frame improves the forwarding speed of large data;
- Adopts green and environmental ABS material, improving heat resistance and heat dissipation;
- Allows IP camera accessing and provides a running and clear image;
- Desktop and wall mounting simplify installation.

Gigabit speed, video transmission in seconds
Gigabit speed: In full duplex mode, the transmission speed can be 2000Mbps, 10x speed of fast ethernet , and data packets are forwarded at full wire speed.

Stay online for 7*24 hours and no packet loss
With store and forwarding mode, MAC address auto learning and auto aging , SG105 can transfer data without loss to ensure stable and blazing fast Wired network performance.

Stylish and exquisite design
SG105 is nice and small and won't take up much desk or floor space. With desktop or wall-mounting design design , you can put SG105 anywhere as you want and move flexibly. It comes in a pretty dome-shaped pattern Plastic case. It will fit equally well in any desktop decor. Not only for Wired network use, SG105 also can be a home ornament.

Plug and play, no configuration required
SG105 is nice and small and won't take up much desk or floor space. With desktop or wall-mounting design design , you can put SG105 anywhere as you want and move flexibly. It comes in a pretty dome-shaped pattern Plastic case. It will fit equally well in any desktop decor. Not only for Wired network use, SG105 also can be a home ornament.

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 5
Power connector DC-in jack
Network
Networking standards IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported Cat3, Cat5, Cat5e
Full duplex Yes
MAC address auto-aging supported Yes
MAC address auto-learning supported Yes
Auto MDI/MDI-X Yes
Data transmission
MAC address table 4000 entries
Switching capacity 10 Gbit/s
Store-and-forward Yes
Jumbo frames 15000
Packet forwarding rate (10 Mbps) 14880 pps
Packet forwarding rate (100 Mbps) 148800 pps
Packet forwarding rate (1 Gbps) 1488000 pps
Design
Rack mounting No
Stackable No
Product colour Black
LED indicators Activity, Link, Power
Certification CE, FCC, RoHS
Performance
Maximum cable length 100 m
Power
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Output voltage 5 V
Output current 0.6 A
Power consumption (typical) 2.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 96 mm
Depth 66 mm
Height 23 mm
Packaging data
Quick start guide Yes
AC adapter included Yes
Logistics data
Harmonized System (HS) code 85176990

Specifications

BrandTenda
TypeNetwork Switches
SKUSG105
Barcode6932849431162,0885397270706,885397270706
