PoE, Gigabit Ethernet, 30W
What It Does

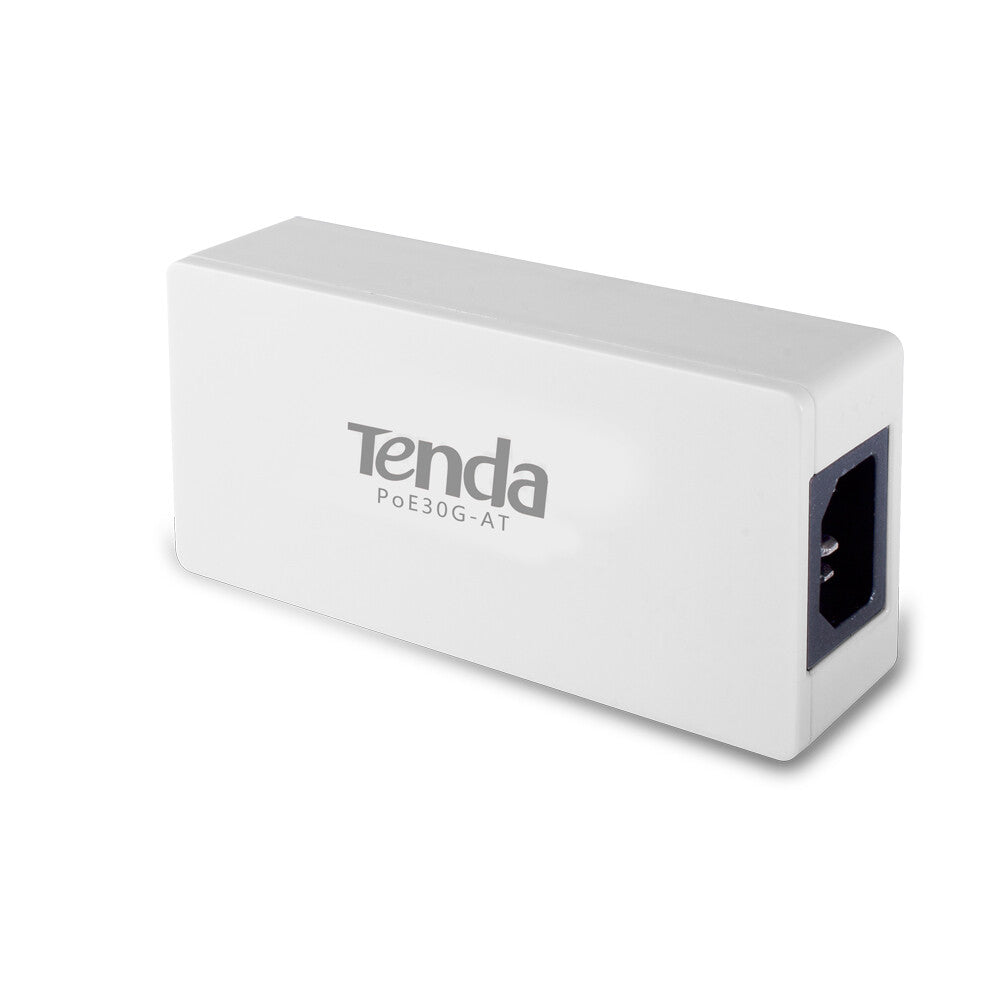

PoE30G-AT PoE Injector delivers up to 30W output power per port. By using this device, both data and electrical power can be simultaneously delivered through a single CAT5 (or better) Ethernet cable to a non-PoE Ethernet-enabled device, eliminating the trouble to connect it to an outlet nearby with an external power cord. You can connect it to a wireless AP, Web cam (IP Camera), IP telephone, or other devices for the purpose of reducing installation cost and improving your network performance.
PoE Feature:
- Support IEEE802.3af, IEEE802.3at standard;
- Auto-detects and provide power supply to PD equipment which compliant with IEEE802.3af at standard;
- Power consumption one port up to 30W.
Interface Features:
- Compliant with IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3af,IEEE802.3at Ethernet standard;
- 2 RJ-45 Gigabit ports support 10/100/1000Mbps connecting rate;
- Date&Power Out port support PoE.
Product Features:
- Integrated design and easy installation;
- Plug and play, no need to setup;
- GE transmission rate for wide use.
Fireproofing Features:
- Fireproofing level of case up to 94V0.
| Certificates |
|---|
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Network |
|---|
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base‑T(X) |
| Power over Ethernet (PoE) |
Yes |
| Features |
|---|
| LED indicators |
Yes |
| Certification |
CE, FCC, ROHS |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power consumption (typical) |
30 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
131 x 60 x 33 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044095 |
