802.11ac, IP65, MU-MIMO, 2.4/5GHz, Web UI
Professional outdoor casing design
Fit for various extreme environments

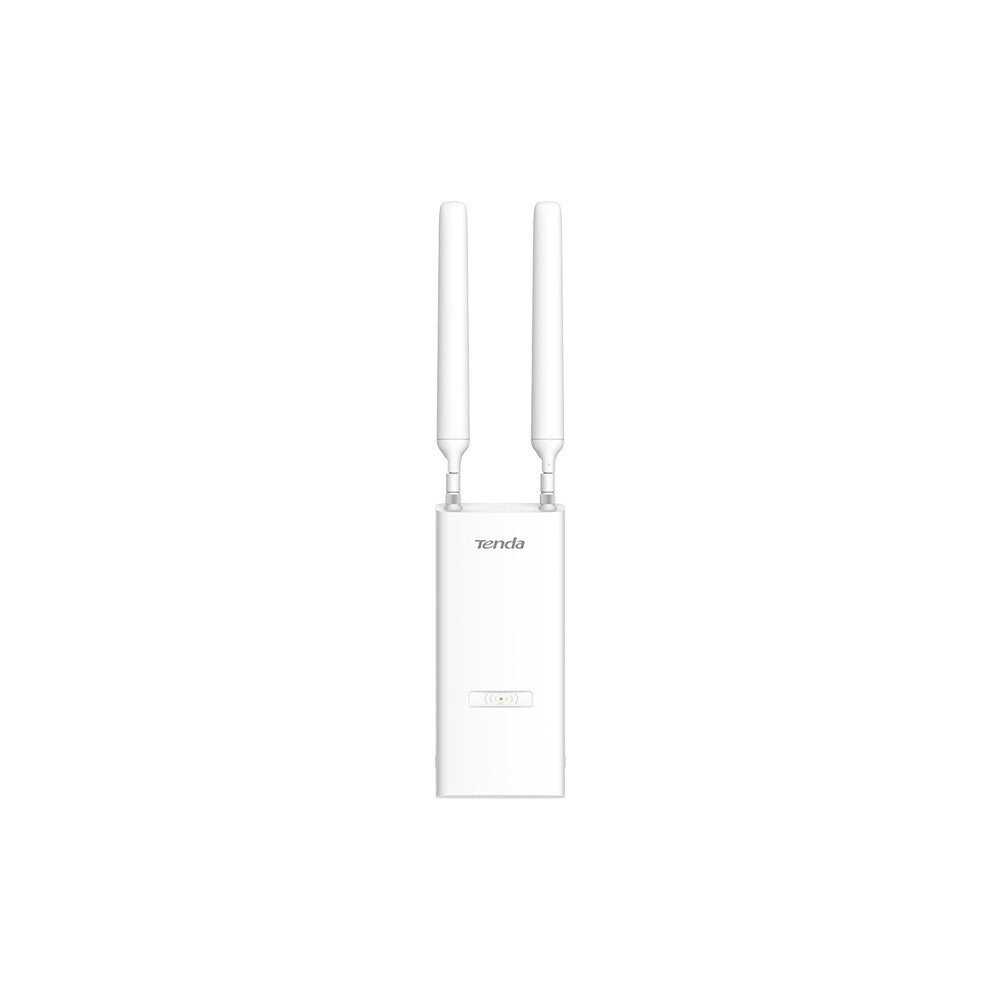

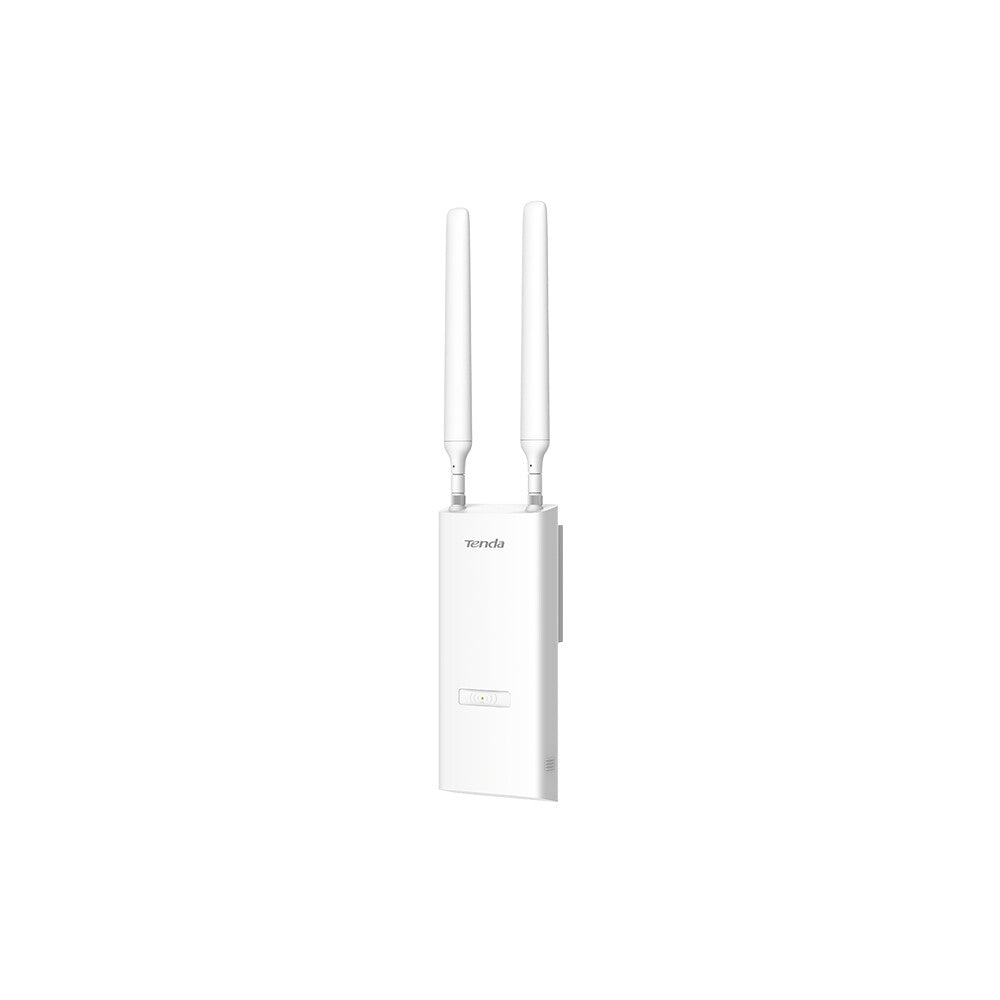

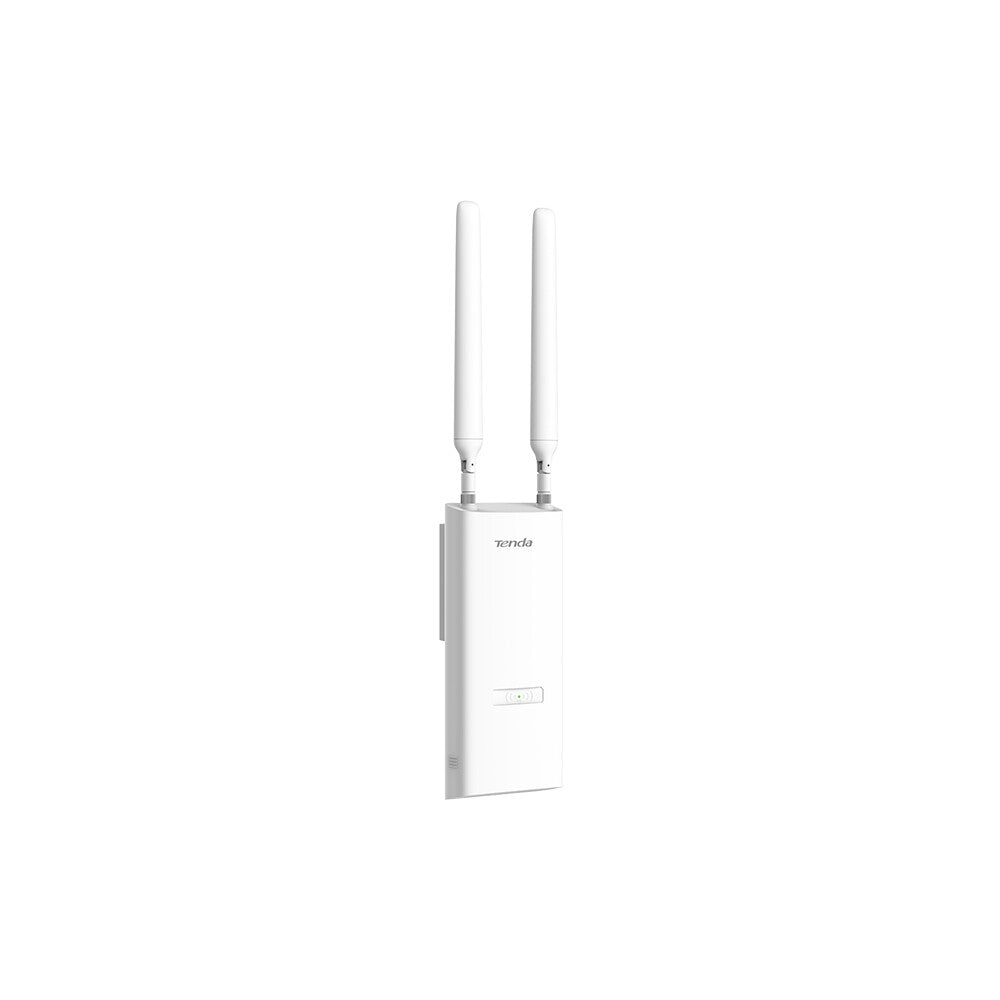

The gigabit dual-band indoor/outdoor access point OAP1200 offers a concurrent data rate as high as 1167 Mbps. Equipped with 2 omni-directional high-gain antennas, OAP1200 provides a maximum coverage radius of 200 meters. OAP1200 can be installed either on the wall or around a pole. OAP1200 can meet different requirements by connecting antennas of different specifications to the standard RP-SMA connectors. With the IP65 enclosure, OAP1200 is designed for wireless coverage in factories, warehouses and other harsh outdoor environments.
Durable IP65 enclosure for outdoor Wi-Fi applications
Professional materials and design guarantee an IP65 enclosure for OAP1200 in harsh environments both indoors and outdoors.
IEEE 802.11ac Wave2 and MU-MIMO
Powered by MU-MIMO technology, a single OAP1200 can communicate with multiple wireless clients at the same time, letting you enjoy higher throughput and better experience.
Dual-band for more connected clients
OAP1200 allows clients that support either 2.4 GHz or 5 GHz band, or both, to connect to it at the same time, tripling the quantity of connected clients compared with traditional single-band AP.
High-gain omni-directional antennas
Equipped with two 5 dBi high-gain omni-directional antennas, OAP1200 provides a maximum coverage radius of 200 meters. OAP1200 can meet different requirements by connecting antennas of different specifications to the standard RP-SMA connectors.
Built-in RF for intelligent optimization
Featuring various anti-interference algorithms, the built-in RF enables OAP1200 to evenly allocate bandwidth resources for multiple users, filter interference, and optimize data rate, offering you a guaranteed signal strength and reliable wireless experience.
VLAN tagging for SSID
OAP1200 allows you to set multiple SSIDs and add VLAN tags for SSIDs, thus protecting your network.
PoE 802.3af and Passive PoE power supply supported for easy deployment
OAP1200 adopts PoE 802.3af and passive PoE dual power supply design. You can power it on with the 24V 0.5A adapter included in the package or by a PoE switch.
| Features |
|---|
| 2.4 GHz |
Yes |
| 6 GHz |
No |
| 5 GHz |
Yes |
| Maximum data transfer rate |
867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Cabling technology |
10/100/1000Base-T(X) |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Spread spectrum method |
OFDMA |
| Fast roaming |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
Tagged VLAN |
| BeamForming |
Yes |
| Security |
|---|
| Security algorithms |
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Access Control List (ACL) |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Syslog |
Yes |
| Firmware upgradeable |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Power over Ethernet (PoE) |
Yes |
| Power consumption (max) |
11.5 W |
| Design |
|---|
| Placement |
Pole, Wall |
| Product colour |
White |
| International Protection (IP) code |
IP65 |
| Reset button |
Yes |
| LED indicators |
Yes |
| Antenna |
|---|
| Antenna type |
External |
| Antennas quantity |
2 |
| Weight & dimensions |
|---|
| Width |
83 mm |
| Depth |
42.1 mm |
| Height |
194.7 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-30 - 50 °C |
| Storage temperature (T-T) |
-30 - 70 °C |
| Storage relative humidity (H-H) |
10 - 90% |
