16-ch, Up to 8MP, HDMI, VGA, 80 Mbps, iOS/Android, 8 RJ45, 10Mbps/100Mbps, SATA 3.0 Up to 10 TB,

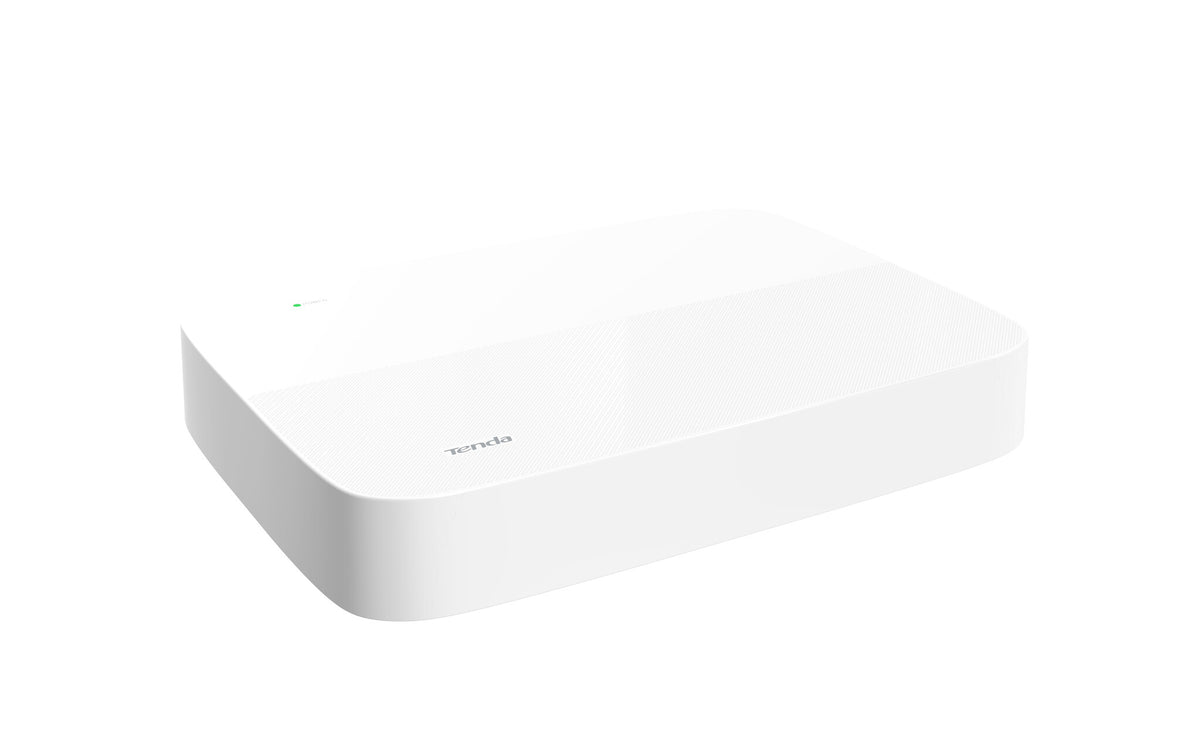

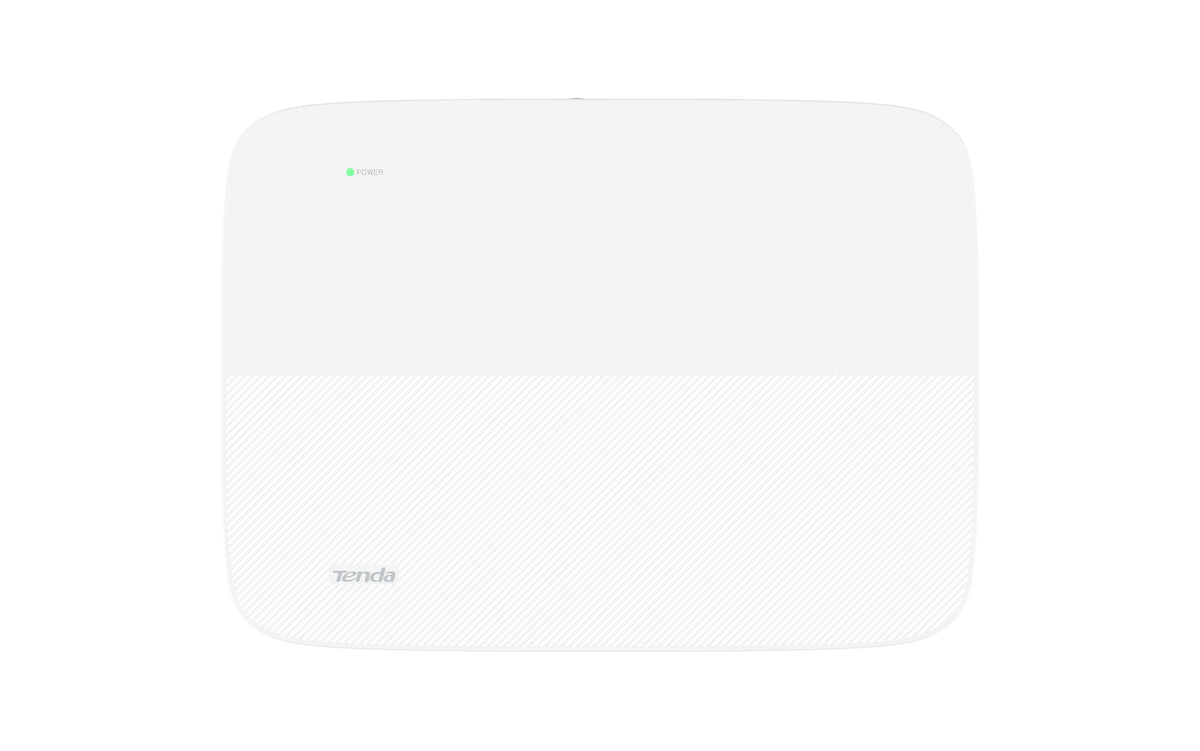

N6P-16H 16 Channel PoE HD Network Video Recorder
N6P-16H PoE HD Network Video Recorder supports PoE power supply, plug and play, 4K UHD recording and output, HDD bad sector isolation, channel cloud storage, H.265 high-performance video compression and monitor video viewing on TDSEE App. It is suitable for such scenarios as single-family houses, shops, restaurants, offices, factories and farms, providing you efficient and convenient monitoring management.
4K UHD, Ultra-long Distance Transmission
Restaurant | Shop | Single-family | House | Office | School | Farm
Power over Ethernet, 250m Long-Distance Transmission
Power supply and network transmission can be realized with only one Ethernet cable that supports 250 m long-distance transmission, which requires no switch, power adapter or PoE relay. This greatly simplifies the networking.
4K UHD Monitoring Image Captures Clear and Delicate Monitoring Details
4K UHD camera connected and 4K high-definition HDMI output with up to 3840 x 2160 resolution provides you clear images with more details even when zoomed.
Plug and Play Without Further Configuration
Network Video Recorder will automatically search and add the camera connected to the PoE port,then you can see monitor images without further configuration.
HDD Bad Sector Isolation for Stable Storage of Recordings
The intelligent file storage system can automatically detect, identify and skip the bad sector to store recordings on the HDD, and make the monitoring storage more stable.
Dual Storage Both HDD and Cloud Storage,
Recording Safe and with Backup
Network Video Recorder supports 10 TB large capacity HDD for a long recording period and channel cloud storage, and you will not missing any important recording.
H.265+ Highly-effective Storage to Save HDD Space
Powered by H.265+ smart encoding and decoding technology, with high storage utilization and lower monitoring costs, the storage space and bandwidth reduced by 50% compared with H.265
Bandwidth Usage Saved by 50 %↓
Recording Storage Space Saved by 50 %↓
Smart Power Control,
4 KV High Lightning Protection Standard
Built-in smart power management chip to prevents over-run of device, and with 4KV high standard lightning protection to improve system stability and extend the service life.
Remote Alarm on TDSEE App
You can view the monitor videos on your mobile phone anytime and anywhere. Alarm messages are pushed in time to notify you abnormal situations in real time.
| Performance |
|---|
| Video input channels |
16 channels |
| Video recording modes |
720p, 1080p, 2160p |
| Maximum resolution |
3840 x 2160 pixels |
| Auto-negotiation |
Yes |
| Audio formats supported |
G.711 A-law, G.711 μ-law, G.726 |
| Video formats supported |
H.264, H.264+, H.265, H.265+ |
| Backup function |
Yes |
| Output bandwidth |
80 Mbit/s |
| Input bandwidth |
80 Mbit/s |
| Maximum frame rate |
60 fps |
| Wireless LAN features |
|---|
| Wi-Fi |
No |
| Hard drive |
|---|
| Number of HDDs supported |
1 |
| Maximum storage capacity |
10 TB |
| HDD interface |
SATA III |

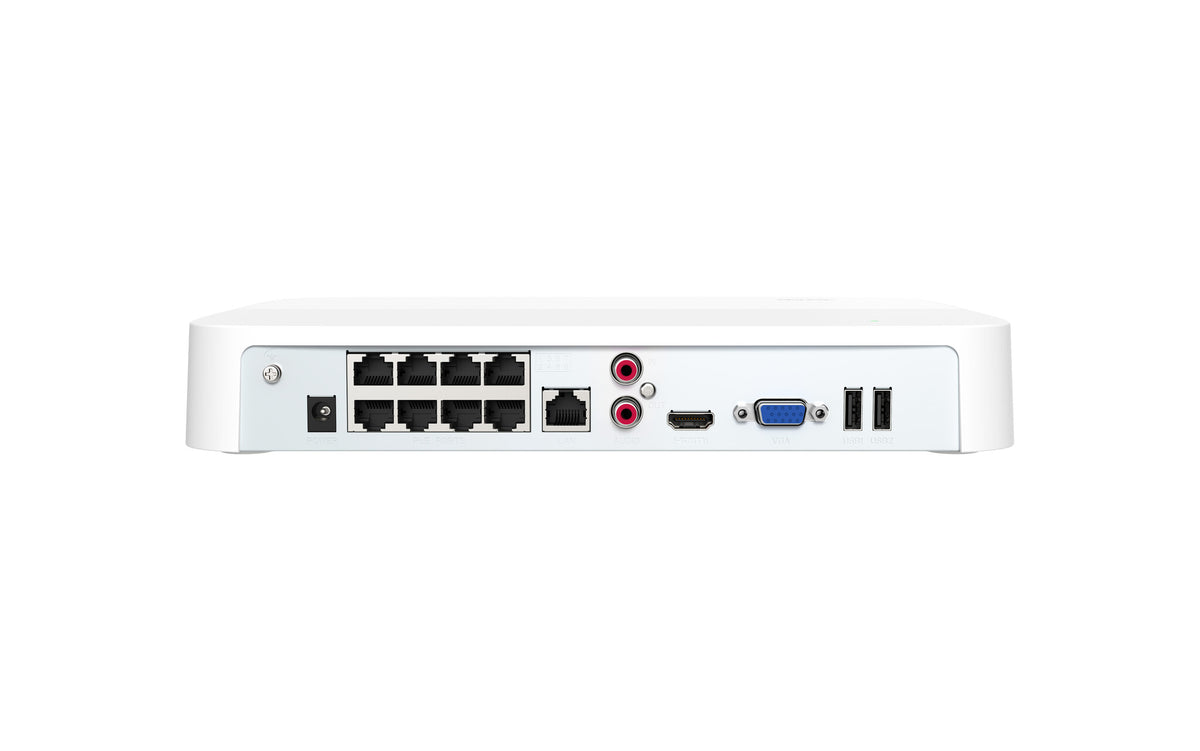

| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
8 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
8 |
| Ethernet WAN |
Yes |
| HDMI output |
Yes |
| HDMI ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) output ports |
1 |
| Audio RCA inputs |
1 |
| Audio RCA outputs |
1 |
| SATA revision |
3.0 |
| Audio output |
1-ch, RCA (2.0 Vp-p, 10kΩ) |
| DC-in jack |
Yes |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Supported network protocols |
HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS |
| Features |
|---|
| Product colour |
White |
| LED indicators |
Power |
| Certification |
CCC, CE, FCC, RoHS |
| Power |
|---|
| Power over Ethernet (PoE) power per port |
70 W |
| Output voltage |
48 V |
| Output current |
1.875 A |
| System requirements |
|---|
| Mobile operating systems supported |
Android, iOS |
| Browser supported |
Chrome, Edge, Opera |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-30 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Technical details |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Width |
284 mm |
| Depth |
207 mm |
| Height |
43 mm |
| Weight |
780 g |
