85x85x166mm, 2560x1440, 3D, 50 M, IP66, IPV4

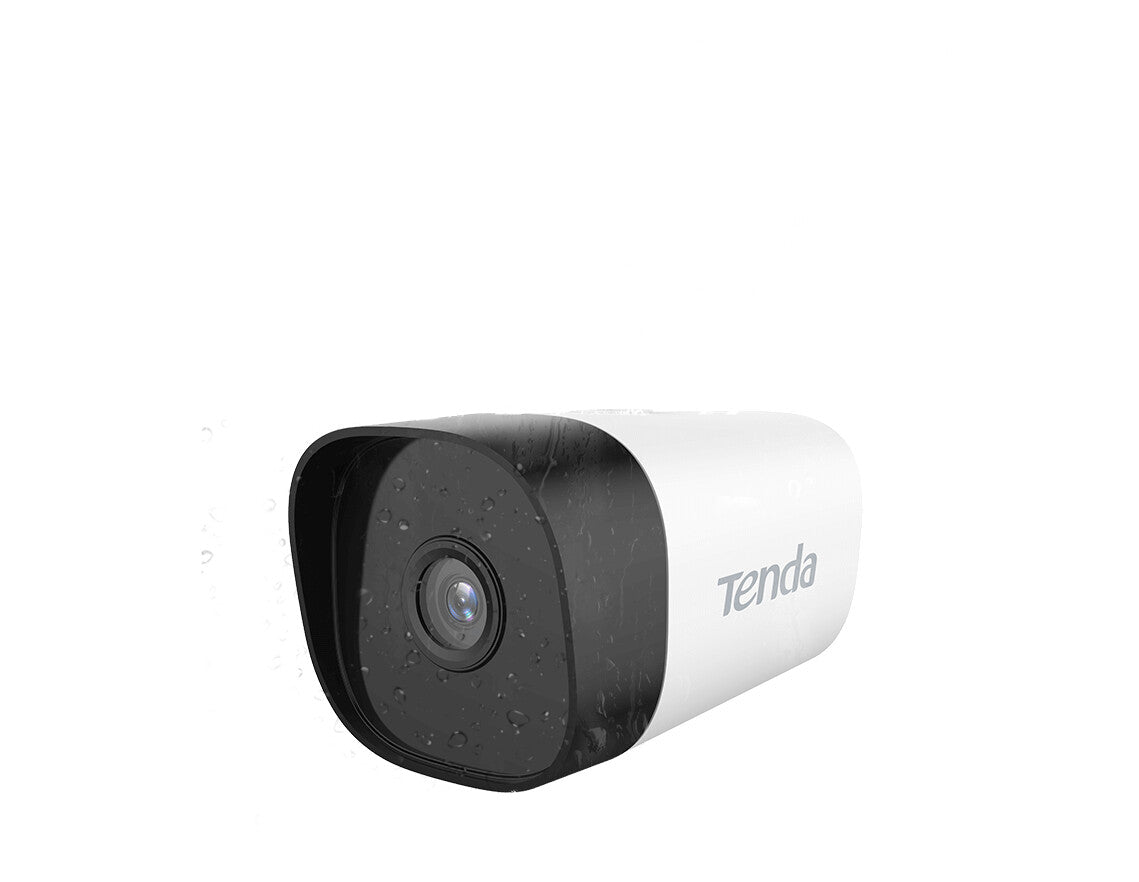

The Bullet Security Camera IT7-PRS is a high-performance 4MP (2560x1440) engineering camera that integrates such functions as infrared night vision, motion detection, remote audio pickup and PoE power supply. It is commonly used in indoor and outdoor monitoring scenarios, such as factories, courtyards, shops, buildings, and some SMB projects, where contractors can also use their mobile phones for remote real-time monitoring.
Clear Monitoring Details from 4MP UHD Images
Equipped with a high-performance CMOS image sensor, the camera can display 4MP UHD images (2560*1440) with more monitoring details.
Connect To the PoE Network Video Recorder (NVR) for Small Networking
For such small monitoring scenarios as small shops and restaurants.Monitoring requirements can be met by simply connecting the camera to the PoE NVR.
Connect To the PoE Switch for Medium and Large Networking
For such medium and large monitoring scenarios as markets, industrial zones and car parks, you can connect the camera to the PoE switch for networking.
Audio Pickup Over 5 m, Sync Audio and Video
With an inbuilt highly sensitive microphone which supports remote audio pickup over 5 m, the camera can sync audio and video.
Compatible With NVRs of Other Brands With ONVIF Supported
It can be used with mainstream NVRs in the market, featuring high compatibility.
Remote Control for Light of Heart
The camera supports remote control on the app to view real-time monitoring. Once the camera detects an abnormal event, it will push the alarm notification remotely.
H.265 Coding Technology for Smooth Video and Efficient Data Storage
Compared with H.264, the new-generation H.265 saves 50% in video data size, which further smoothes the videos with band width saved and saves the data storage space.
IP66 Waterproof and Dustproof
With IP66 waterproof and dustproof design, the camera can withstand rainy, sunny, stormy, and even snowy weathers.
Whole Day Monitoring to Adapt to Multiple Monitoring Scenarios
Equipped with four high-power infrared lights, the camera has a night vision distance up to 50 m and can easily adapt to the outdoor environment.
Wall-Mounting/Ceiling-Mounting
The camera can be either wall-mounted or ceiling-mounted, quite flexible and convenient.
| Performance |
|---|
| Type |
IP security camera |
| Placement supported |
Outdoor |
| Connectivity technology |
Wired |
| Certification |
CE
RoHs
FCC |
| Design |
|---|
| Form factor |
Bullet |
| Mounting type |
Ceiling/wall |
| Product colour |
Black, White |
| International Protection (IP) code |
IP66 |
| Image sensor |
|---|
| Sensor type |
CMOS |
| Lens system |
|---|
| Number of lenses |
1 |
| Lens diameter |
4 mm |
| Maximum aperture number |
2.2 |
| Night vision |
|---|
| Night vision |
Yes |
| Night vision distance |
50 m |
| LED type |
IR |
| Video |
|---|
| Maximum resolution |
2560 x 1440 pixels |
| Total megapixels |
4 MP |
| Video formats supported |
H.264, H.265 |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Region of Interest (ROI) encoding |
Yes |
| Digital Wide Dynamic Range (DWDR) |
Yes |
| Back Light Compensation (BLC) |
Yes |
| Audio |
|---|
| Built-in microphone |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Bluetooth |
No |
| Supported network protocols |
RTSP, HTTP, DHCP, DDNS, ONVIF |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Video motion detection |
Yes |
| Power |
|---|
| Power source type |
PoE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Storage relative humidity (H-H) |
3 - 95% |
| System requirements |
|---|
| Mobile operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Width |
85 mm |
| Depth |
166 mm |
| Height |
85 mm |
| Packaging content |
|---|
| Number of cameras |
1 |
| Manual |
Yes |
| Waterproof connector |
Yes |
