2.4GHz, 5 GHz, 300Mbps, 10/100/1000 Base-TX port

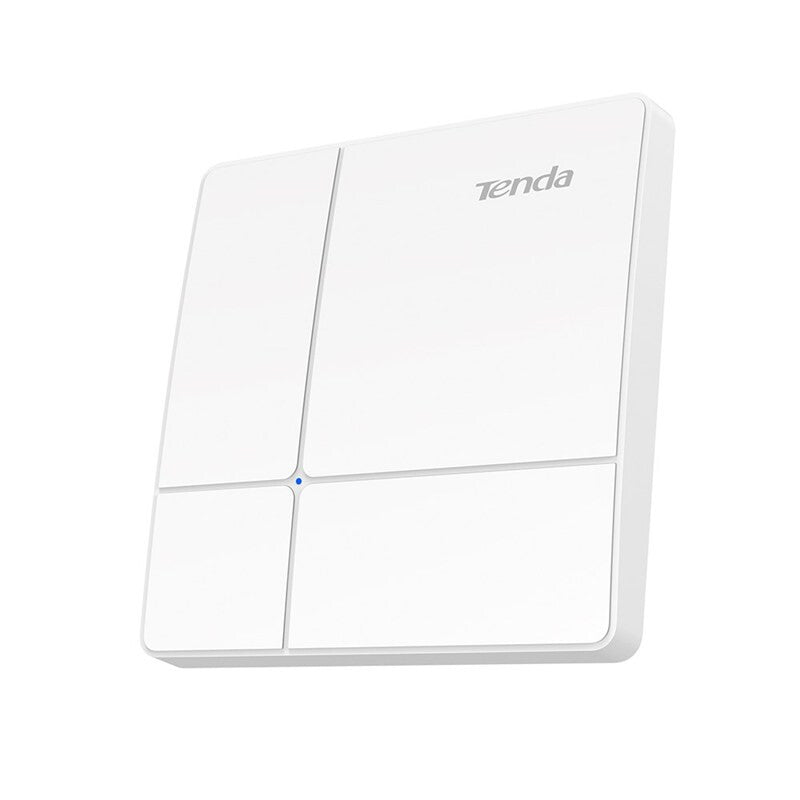

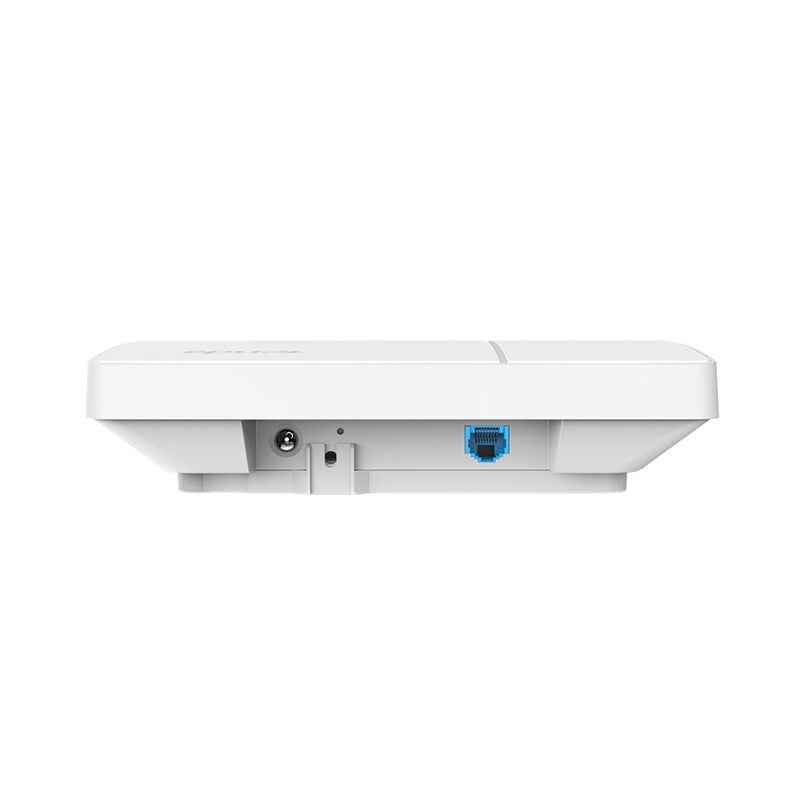

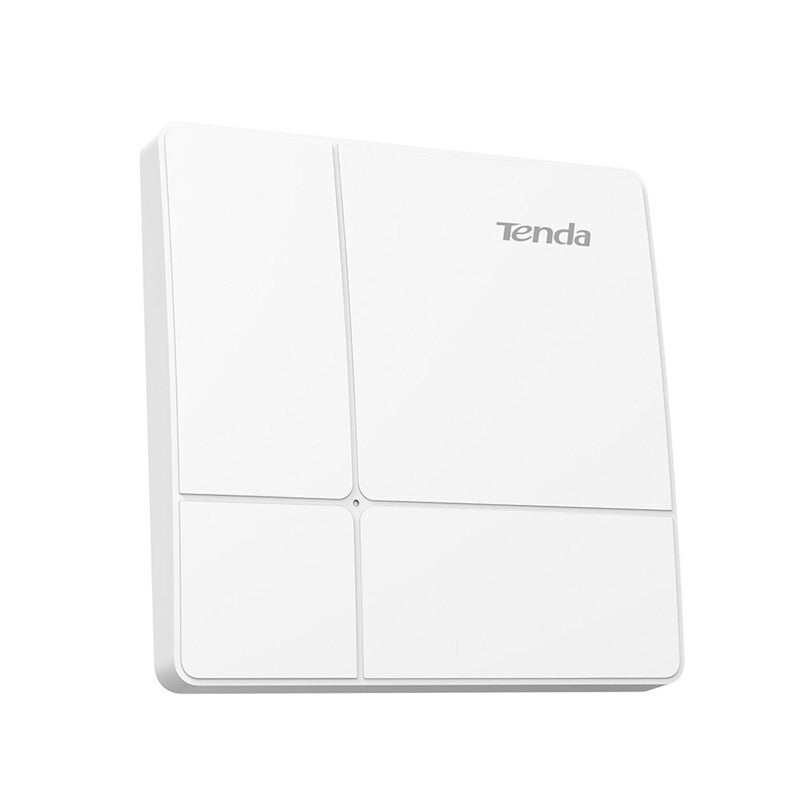

i24 is a gigabit dual-band ceiling access point that compliant with IEEE 802.11ac Wave 2, and offers a concurrent data rate up to 1167 Mbps. Powered by MU-MIMO technology, letting you enjoy better experience. And the built-in omni-directional antennas broaden the wireless coverage of a single AP. In addition, you are allowed to adjust its transmit power as required using the web UI, and use an IEEE 802.3at-compliant PoE sourcing equipment to power on it, achieving long-distance power supply without tampering your existing grid network. You are also allowed to use Tenda access controllers (AC) to configure and manage multiple i24 in a centralized manner.
| Features |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Bandwidth |
24 GHz |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| VLAN support |
Yes |
| Security |
|---|
| Security algorithms |
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering |
Yes |
| Protocols |
|---|
| DHCP server |
Yes |
| DHCP client |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Output voltage |
12 V |
| Output current |
1 A |
| Power consumption (max) |
11.5 W |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
System |
| Certification |
CE\FCC\RoHS |
| Antenna |
|---|
| Antennas quantity |
2 |
| Antenna gain level (max) |
2 dBi |
| Weight & dimensions |
|---|
| Width |
178 mm |
| Depth |
178 mm |
| Height |
38 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-10 - 45 °C |
| Storage temperature (T-T) |
-30 - 70 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
