802.11 a/b/g/n/ac, 2.4 / 5 GHz, 300 / 867Mbps, 4 x 6 dBi, 1 x WAN, 3 x Gigabit LAN

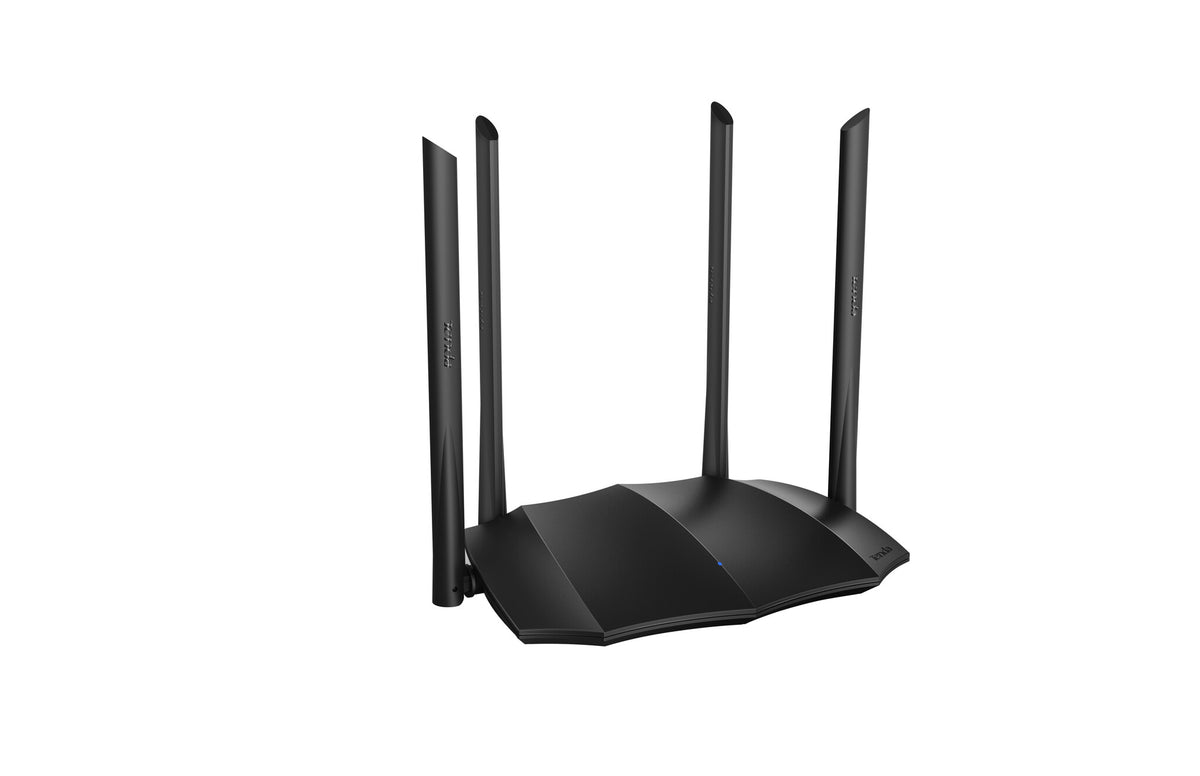

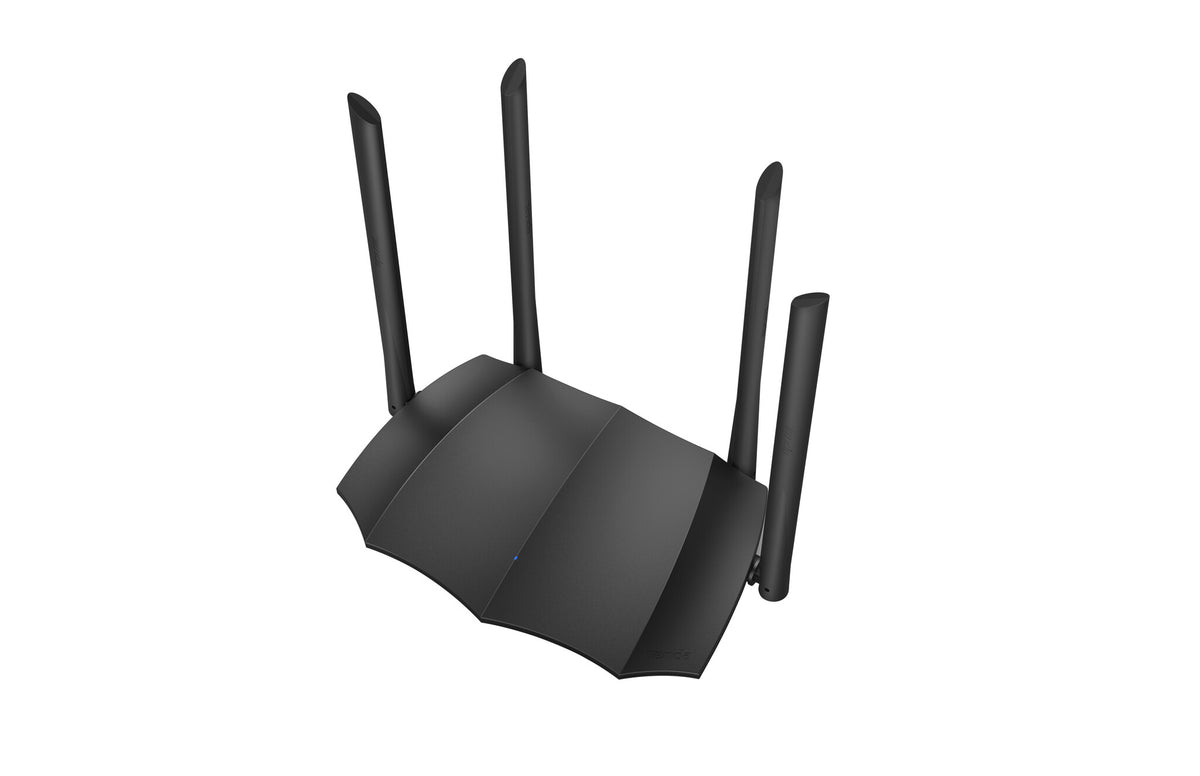

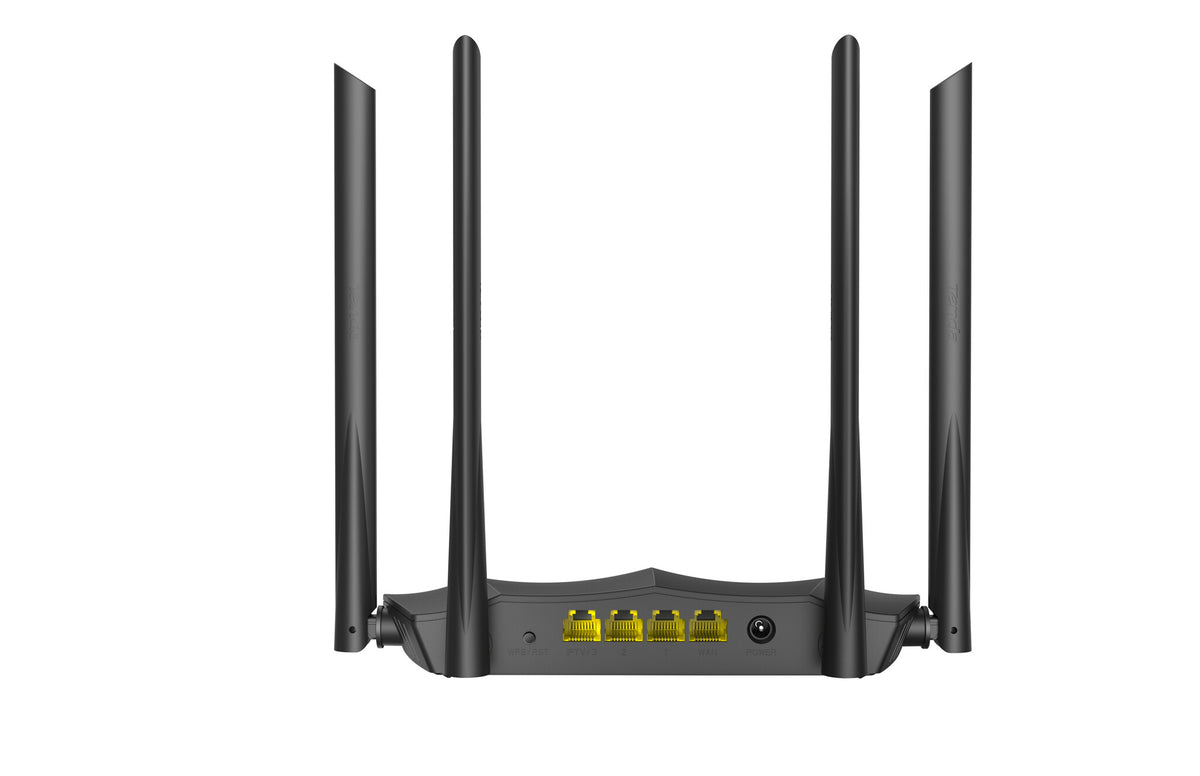

AC8 is a dual band gigabit wireless router specially designed for family with fibre access.Equipped with gigabit ports to support up to 1000 Mbps bandwidth access. The dual band provide 1167Mbps frequency, fully utilise the gigabit fibre.This router is equipped with 28nm 1 GHz CPU to provide better performance. The integrated dual-band technology combines both 2.4GHz and 5GHz under one Wi-Fi name; The 5GHz frequency band is set as priority and faster signal frequency would be allocated to you automatically by our dynamic optimization system. New designed 6 dBi antennas,meet the coverage requirement for small and medium household. AC8 also support broadband account automatic transfer and other features.
AC1200 Dual-band Gigabit Wireless Router
Designed with full gigabit ports, support up to 1000 Mbps bandwidth access,Dual-band provide 1167 Mbps access, fully utilise the gigabit fibre.
Smart Traffic Prioritisation
The integrated dual-band technology combines both 2.4GHz and 5GHz under one Wi-Fi name;The 5GHz frequency band is set as priority and the faster signal frequency would be allocated to you automatically by our dynamic optimization system.
4*6dBi External Dual Band Antennas,Cover 90 Square Meters and Penetrate Two Layer of Walls
Designed with 4*6dBi external dual band antennas, combined with Beamforming signal tracing technology, the Wi-Fi signal is aggregated into a beam directly towards users' device to ensure the best experience.
Smart Traffic Prioritisation
Automatically analyze the surrounding internet environment, automatically optimize the Wi-Fi channel/bandwidth, avoid interference, and provide constant optimal performance.
Support IPv6, Avoid Virus Attach
The IP address is randomly assigned by the operator. It is difficult to be attacked by viruses. Protect your online transaction; Also,AC8 simplify the data transmission, which would reduce the processing time and the delay, provide better gaming experience.
Get Internet Access with No More Installation
Change the router, do not remember the account password? New routing settings are complicated to install?AC8 is equipped with the latest account password migration function, just connect the WAN port of the old router to the LAN port of AC8, and automatically copy the broadband account password when power is on, eliminating the trouble of installation settings.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
867 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Port forwarding |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Static route |
Yes |
| Mobile network |
|---|
| 4G |
No |
| 3G |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| Web-based management |
Yes |
| Reset button |
Yes |
| WPS push button |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall |
Yes |
| Access Control List (ACL) |
Yes |
| Firewall security |
Forbid WAN PING from internet |
| System event log |
Yes |
| DMZ support |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| DHCP server |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
Black |
| Indication light |
Yes |
| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antenna gain level (max) |
6 dBi |
| Antennas quantity |
4 |
| Features |
|---|
| Firmware upgradeable |
Yes |
| Certification |
CE, FCC, CCC, SRRC |
| Power |
|---|
| Power source type |
AC |
| AC input voltage |
200 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Output voltage |
9 V |
| Output current |
1 A |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
33.6 mm |
| Depth |
127 mm |
| Width |
200 mm |
| Packaging data |
|---|
| Package type |
Box |
| Number of products included |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
