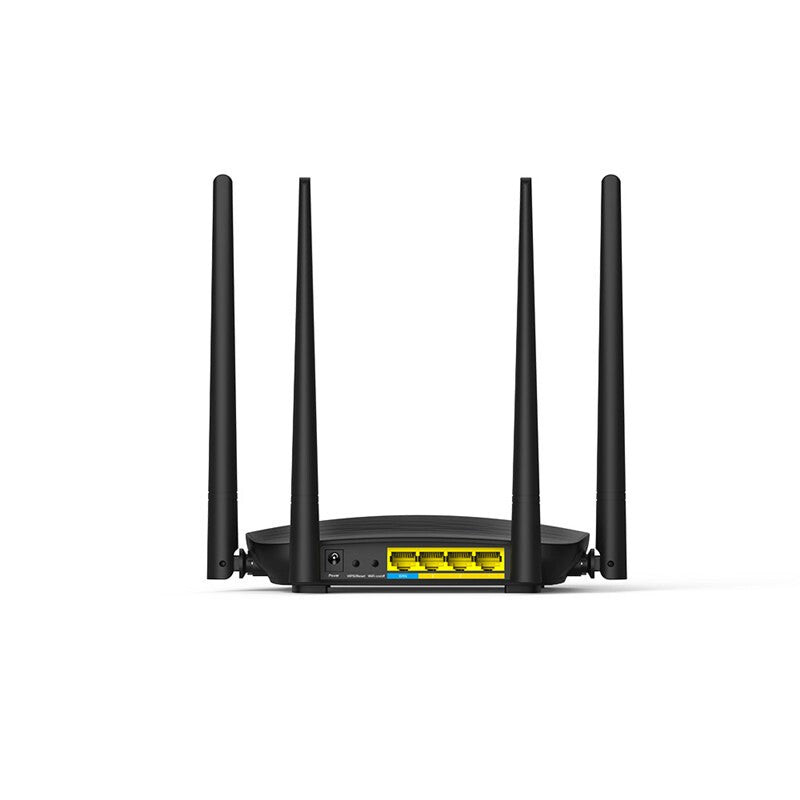

AC1200 Smart Dual-Band WiFi Router
AC5 AC1200 Smart Dual-Band WiFi Router.Migration of ISP User Name and Password, Four 5dBi dual-band omni-directional antennas,1 GHz CPU / MU-MIMO / Beamforming+ technology, Remote management via Tenda WiFi App.Equipped with a 1 GHz high-frequency CPU made with 28nm process, AC5 outperforms ordinary routers. Stable and fast internet connection lets you enjoy smooth 4K HD videos and online games without delay.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
1167 Mbit/s |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Cabling technology |
10/100Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Port forwarding |
Yes |
| VPN support |
L2TP/PPTP/IPSec |
| Mobile network |
|---|
| 4G |
No |
| 3G |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
3 |
| USB port |
No |
| Memory card slot(s) |
No |
| DC-in jack |
Yes |
| Management features |
|---|
| Reset button |
Yes |
| WPS push button |
Yes |
| Security |
|---|
| Security algorithms |
WPA-PSK, WPA2-PSK, WPS |
| Firewall |
Yes |
| Guest access |
Yes |
| DoS attack prevention |
Yes |
| Filtering |
Yes |
| MAC address filtering |
Yes |
| System event log |
Yes |
| DMZ support |
Yes |
| Protocols |
|---|
| DHCP server |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
Black |
| Indication light |
Yes |
| LED indicators |
LAN, System, WAN, WLAN |
| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
4 |
| Features |
|---|
| Built-in processor |
Yes |
| Processor frequency |
1000 MHz |
| Firmware upgradeable |
Yes |
| Certification |
CE/FCC/RoHS |
| Power |
|---|
| Power source type |
DC |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Output voltage |
9 V |
| Output current |
1 A |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
