2.4 / 5 GHz, 802.11 a/b/g/n/ac, 300 / 867Mbps, 4 x 5 dBi, MU-MIMO, 3 x Gigabit LAN, 1 x Gigabit WAN, 350 g
AC10 leads the way in next generation routers, offering dual-band Gigabit wireless with all-new 802.11ac Wave 2.0 Wi-Fi. Its powerful 1GHz CPU and 128MB DDR3 provide the best performance in both 2.4GHz and 5GHz. The 5GHz band works at up to 867Mbps, while the 2.4GHz frequency tops 300Mbps, serving an incredible combined bandwidth of 1167Mbps.

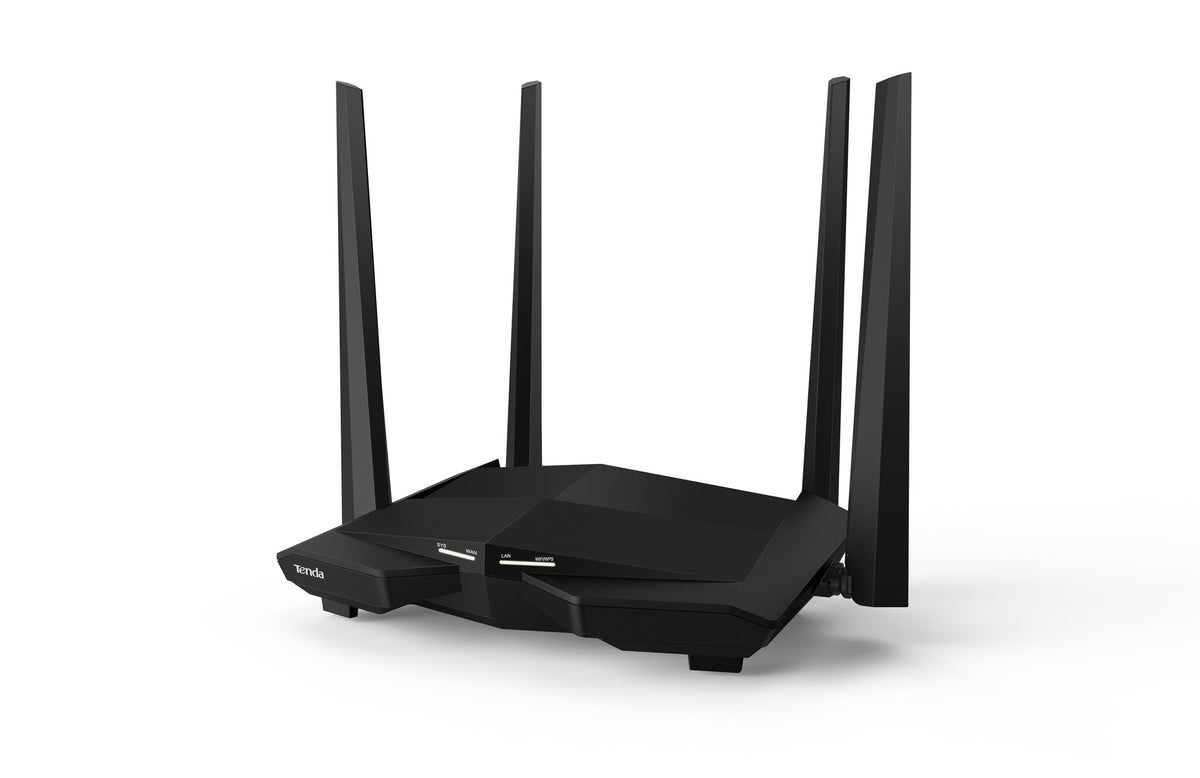

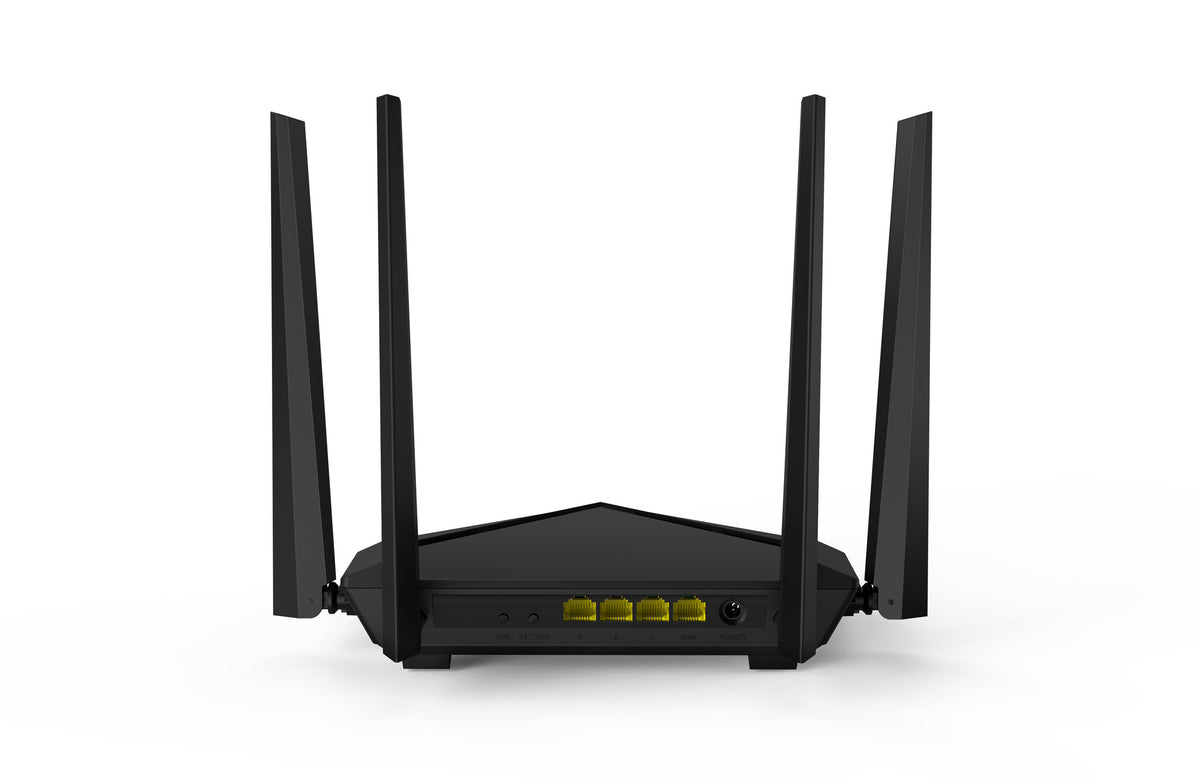

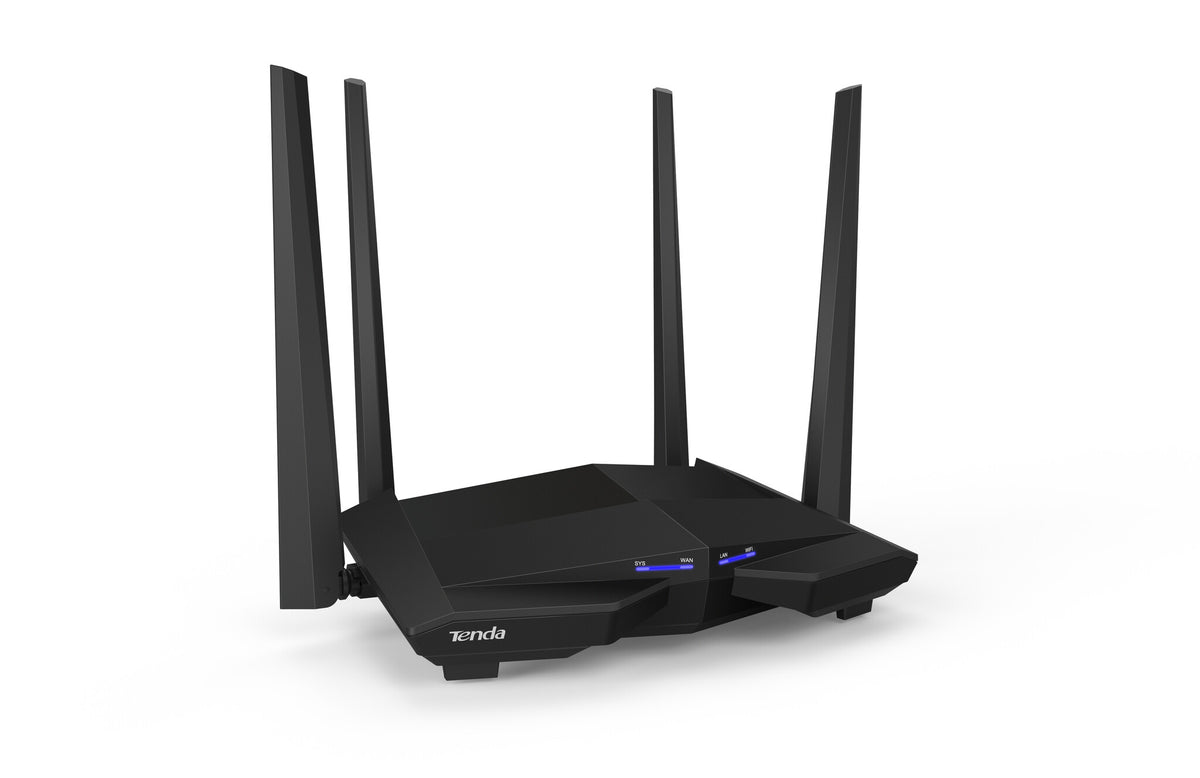

AC10
AC1200 Smart Dual-band Wireless Router
Gigabit Ports/4*5dBi Omnidirectional Antennas/2.4G and 5G Wireless Enhanced Module/
MU-MIMO/Beamforming+/APP Management
With 1 GHz CPU made with 28 nm process, AC10 manifests excellent capacity on data processing and energy conservation.
It works well with optical fiber with bandwidth ranging from 50 M, 100 M, 200 M to even 1000 M, allowing you to enjoy smooth HD videos and games.
All Gigabit ports for full play of your ever-increasing bandwidth of optical fiber
AC10 is a high-performance WiFi router designed with full Gigabit WAN and LAN ports,removing the bottleneck of wired ports speed when working with faster bandwidth of optical fiber.
Strong dual band WiFi signal for multi-wall penetration
With the new generation 802.11ac wave 2.0 standard, AC10 offers a concurrent dual band data rate of as high as 1167 Mbps. Wireless signal boosting technology both on 2.4 GHz and 5 GHz bands broadens your WiFi coverage, and Beamforming+ technology makes WiFi signal of AC10 outstanding behind multiple walls.
Innovative MU-MIMO technology
With innovative MU-MIMO, the breakthrough of the new generation 802.11 ac standard,AC10 can communicate with multiple devices at a time, shortening latency and improving quantities of connected devices.
Four clean-cut antennas for stronger WiFi signal and wider WiFi coverage
AC10 boasts four 5 dBi omni-directional antennas. With leading accordion wire design, multiple oscillators and scientific bevel, AC10 balances the signal field and gain, providing you with stronger WiFi signals.
Configuration-free for quick setup
What if you forget your PPPoE user name or password, or you cannot login to the web UI of the router for setup? AC10 can eliminate your concern by migrating your PPPoE user name and password from your original router.
Tenda WiFi app for your smart life
Tenda WiFi app allows you to upgrade online, manage your network and devices remotely and get a real-time understanding of usage of your router, making life simple and easy.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| WAN connection type |
RJ-45 |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
867 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Port forwarding |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Static route |
Yes |
| VPN support |
PPTP Client, PPTP Server, L2TP Client |
| Mobile network |
|---|
| 4G |
No |
| 3G |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
3 |
| USB port |
No |
| Memory card slot(s) |
No |
| DC-in jack |
Yes |
| Management features |
|---|
| Reset button |
Yes |
| WPS push button |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA-PSK, WPA2, WPA2-PSK, WPS |
| Firewall |
Yes |
| Firewall security |
Forbid UDP Flood Attack, Forbid TCP Flood Attack, Forbid ICMP Flood Attack, Forbid WAN Ping from Internet, PPTP Pass Through, L2TP Pass Through, IPSec Pass Through |
| Filtering |
Yes |
| MAC address filtering |
Yes |
| System event log |
Yes |
| DMZ support |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| DHCP server |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
Black |
| Indication light |
Yes |
| LED indicators |
LAN, System, WAN, WLAN, WPS |
| On/off switch |
Yes |
| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
4 |
| Transmit power |
23 dBmW |
| Features |
|---|
| Certification |
CE, FCC, RoHS, BSMI, NCC, EAC, IC |
| Power |
|---|
| Power source type |
DC |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Output voltage |
12 V |
| Output current |
2 A |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Weight & dimensions |
|---|
| Weight |
350 g |
| Height |
70 mm |
| Depth |
390 mm |
| Width |
198 mm |
| Packaging data |
|---|
| Package width |
198 mm |
| Package depth |
390 mm |
| Package height |
70 mm |
| Package weight |
810 g |
| Package type |
Box |
| Number of products included |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
