1x10/100/1000Mbps RJ45, 2x 5dBi, dual-band, 5GHz (11ax) & 2.4GHz, 123x72x47.5mm

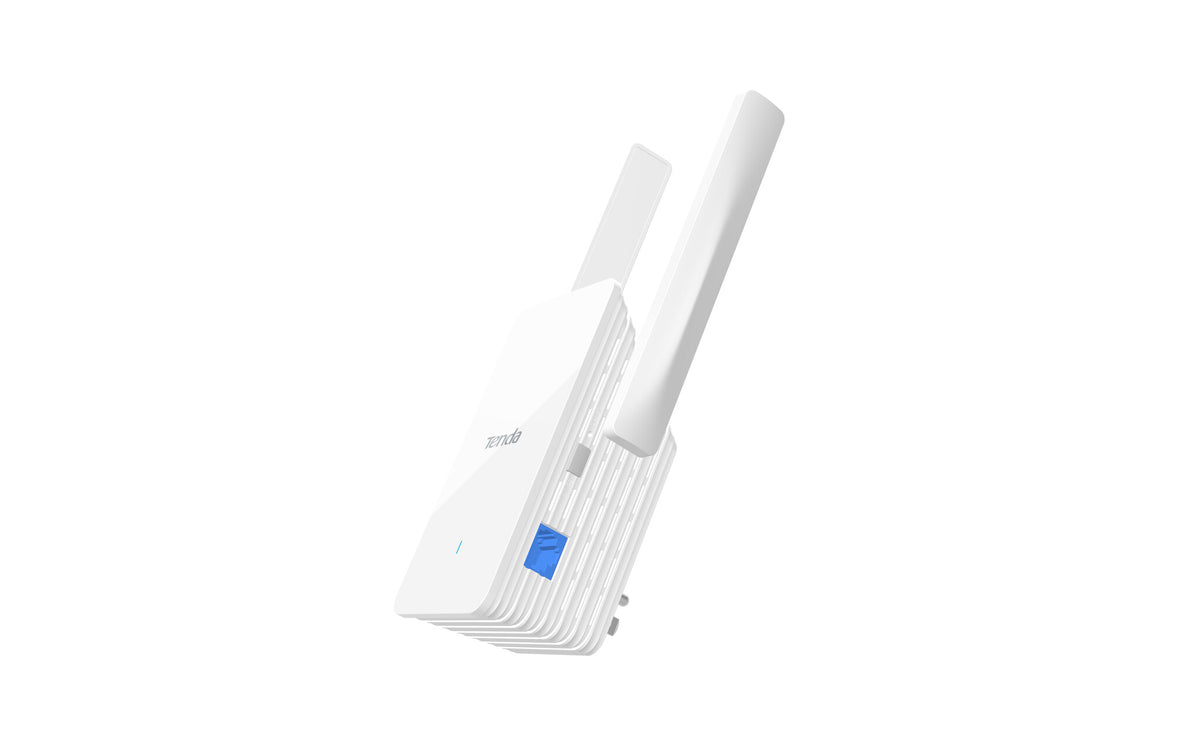

A33 AX3000 Wi-Fi 6 Range Extender
A33 is a dual-band AX3000 Wi-Fi 6 range extender designed for large houses, with 5GHz wireless speed to 2402Mbps and 2.4 GHz wireless speed up to 574 Mbps. The performance of the A33 is more outstanding compared with the AX1800 WiFi6 extender. A33 is equipped with 2*5dBi high-gain antennas, which can significantly improve signal reception and coverage. The function of the automatic pop-up window setting page with the external smart signal light greatly enhances the user's setting experience. A33 provides an external gigabit ethernet port wired connection for set-top boxes, PC, video game consoles and smart TVs, etc., making the connection more flexible.
Ultra-Speed With AX3000 Wi-Fi 6
A33 supports 160MHz bandwidth for dramatically faster wireless connections. With a total networking speed of about 2976Mbps.
Extending Wi-Fi Without Dead Zone
2 * 5dBi external dual-band antennas to expand wireless network, efficiently delivering superspeed and seamless connectivity to every corner of your home.
More Devices, Low latency
Improving the network utilization rate with MU-MIMO and supports simultaneous communication with 25+ wireless terminals.
Easy to Setup
Enjoy high-speed Wi-Fi where you want it by simply plugging the A33 Extender into the wall plug.
Flexible Backhaul Connection
A33 not only supports Wi-Fi extending mode, but also establishes Ethernet backhaul with on-wall Ethernet sockets to create a wired connection between A33 and router.
Network Bridge with Smart LED Indicator
Find the best point for Wi-Fi bridge then improve the quality of signal extension with smart LED indicators.
| Data transmission |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| Antenna |
|---|
| Antenna design |
External |
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
2 |
| Wireless LAN features |
|---|
| Wi-Fi |
Yes |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
2402 Mbit/s |
| Frequency band |
5/2.4 GHz |
| Signal strength |
20 dBm |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology |
10/100/1000Base-T(X) |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired & Wireless |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Security algorithms |
WPA-PSK, WPA2-PSK, WPA3 |
| WPS push button |
Yes |
| Features |
|---|
| Product type |
Network repeater |
| Product colour |
White |
| Power LED |
No |
| Reset button |
Yes |
| Power |
|---|
| Power consumption (typical) |
11 W |
| DC output current |
1 A |
| DC output voltage |
12 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Certification |
FCC |
| Weight & dimensions |
|---|
| Width |
123 mm |
| Depth |
72 mm |
| Height |
47.5 mm |
