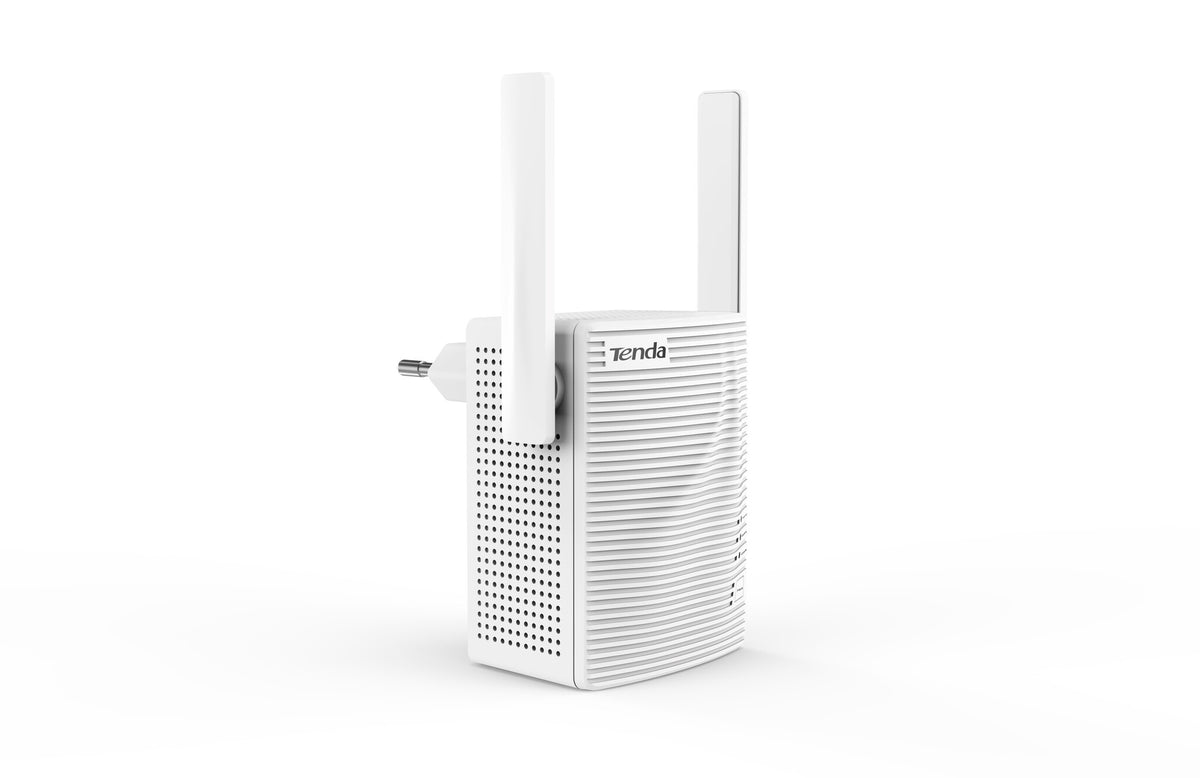

AC1200 Dual Band WiFi Repeater
Works Well with Optical Routers for Strong Wall Penetration Capacity on 5 GHz Band
Ordinary 11AC routers performs poorly on wall penetration on 5 GHz band. With A18 to repeat 5 GHz WiFi network, data transmission rate on 5 GHz band can be up to 867 Mbps, giving a full play to your 100 Mbps optical broadband. By resolving the weakness of WiFi coverage on 5 GHz band, A18 brings you with fast internet experience at home.
Scan Quality Channel Automatically for Stable, Reliable and Fast Internet Experience
Equipped with high quality PCB dual band antennas, the radio frequency distance between antennas of A18 has been improved to um. Each antenna provides both 2.4 GHz and 5 GHz WiFi networks, and extends WiFi networks both on 2.4 GHz and 5 GHz bands . A18 can automatically select high quality channel for you when signal fluctuates, and keeps your devices online even in the move by switching to the network with stronger signals automatically.

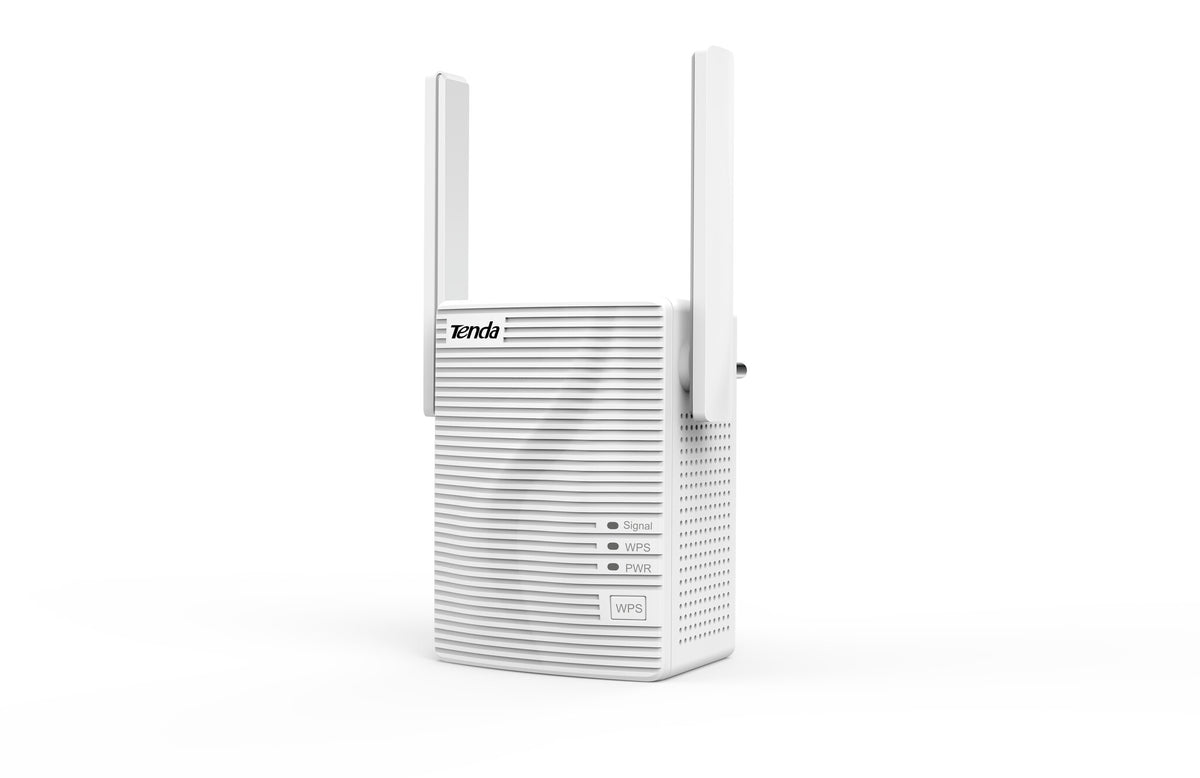

Visual Signal LED Guides You to Find the Best Position
Guided by the color of Signal LED, you can easily find the best position for your repeater according to your actual network environment. Blue indicates good connection , and red indicates bad connection.
Configure Your Repeater via Smart Phones/Tablets
Simplicity is practical. You can configure your repeater via smart phones or Tablets
01. Connect your smart phone or tablets to the SSID of A18.
02. Start a web browser, go to re.tenda.cn,and set up your login password (optional)
03. Select a WiFi network to extend, and enter its WiFi password. Configuration is done

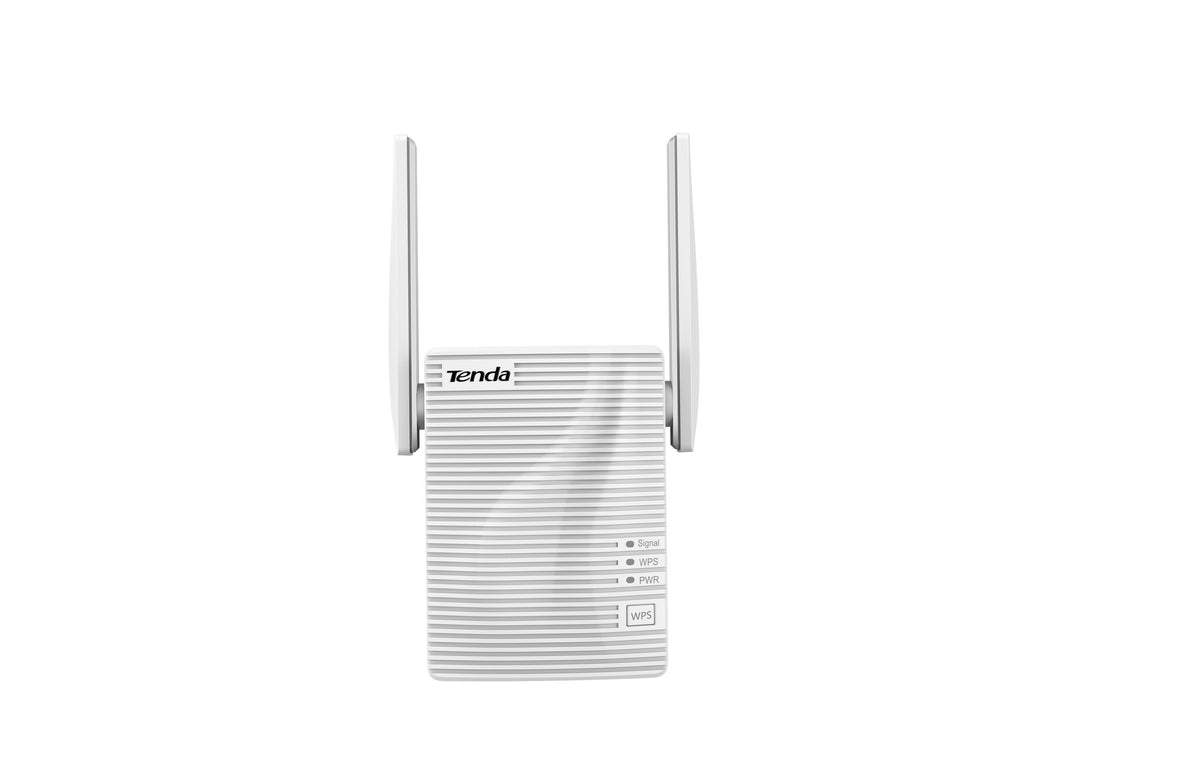

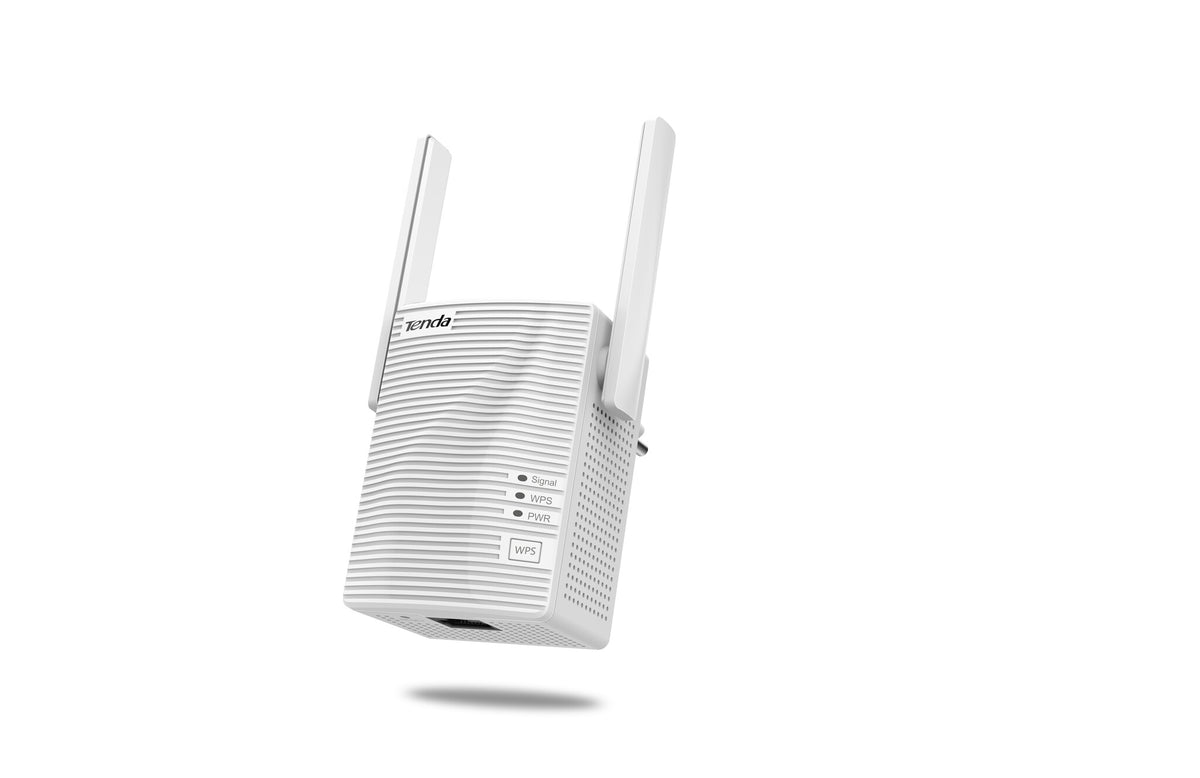

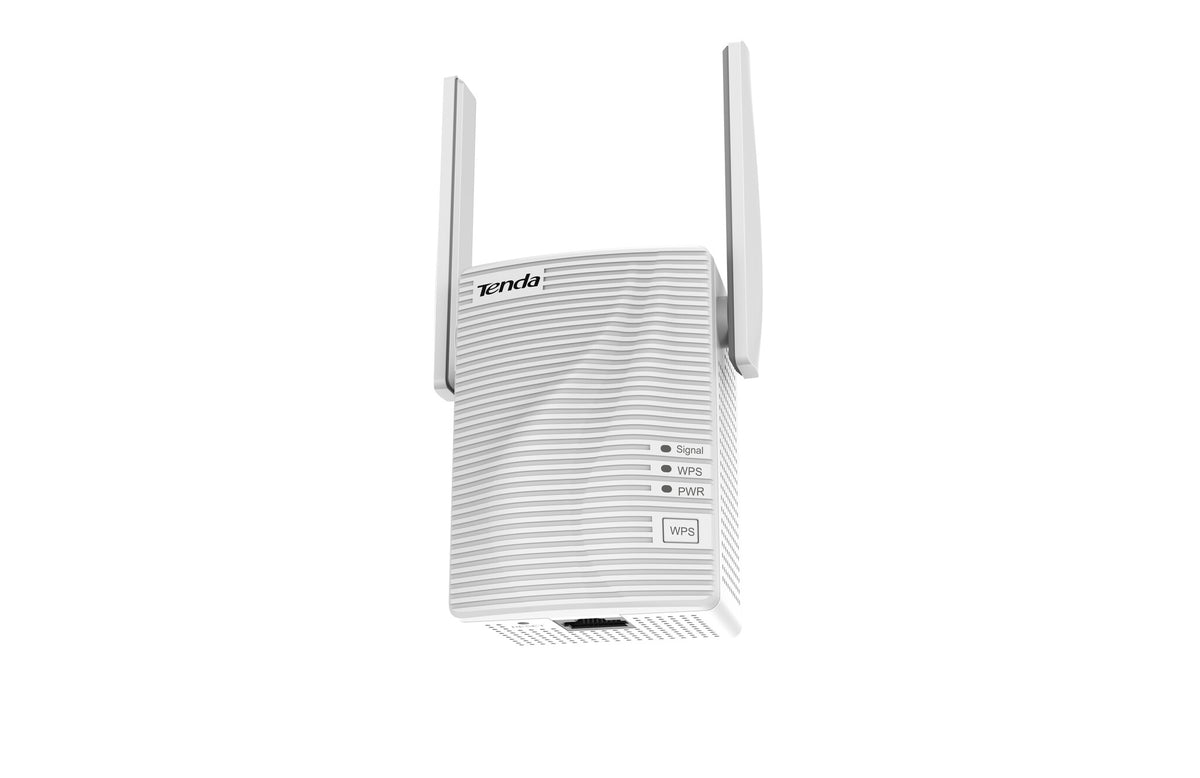

Elegant and Compact Appearance
Featured with a small size, it is easy for you to plug A18 into your electrical outlet.

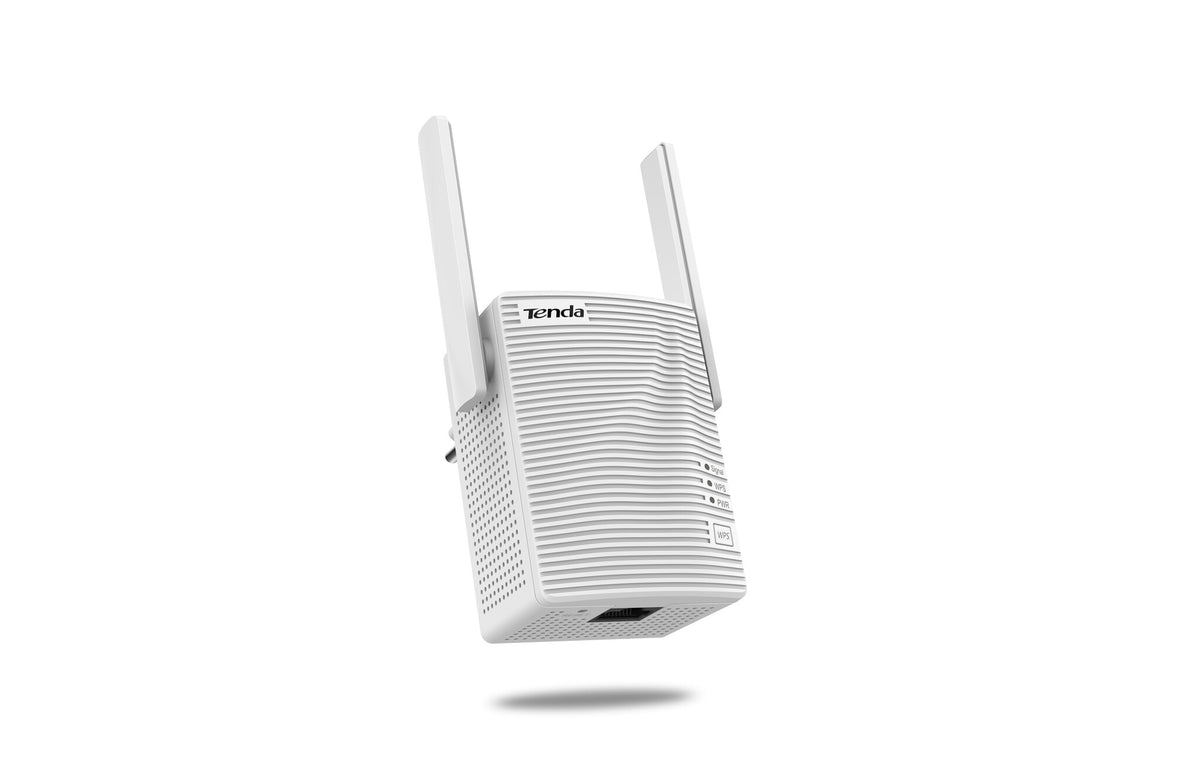

One More 100 Mbps LAN port for Wired Extension
Signal is full but the internet is still inaccessible? Want to watch online TV programs on a LCD TV with LAN port but without WiFi adapter?
A18 can relieve you from these two painstaking. By connecting the Ethernet cable from your router to the LAN port of A18, you can extend your existing WiFi network in wired manner. To watch online TV programs, you just need to connect the LAN port of A18 that has extended successfully to the LAN port of your LCD TV.
More functions
Hide SSID, Extend your existing WiFi network via WPS button, Mix WPA/WPA2 encryption mode
- Hide SSID
- WPS Function
- Encryption Mode
| Data transmission |
|---|
| Maximum data transfer rate |
867 Mbit/s |
| Supported data transfer rates |
11, 54, 300, 867 Mbps |
| Antenna |
|---|
| Antenna |
External |
| Antenna design |
Omni-directional |
| Antenna gain level (max) |
2 dBi |
| Antennas quantity |
2 |
| Wireless LAN features |
|---|
| Frequency band |
2.412 - 2.484, 5.15 - 5.25 GHz |
| Transmission gain |
12 - 16 dB |
| Channels quantity |
2 channels |
| Receiver sensitivity |
-97 dBm, -76 dBm, -74 dBm, -72 dBm, -95 dBm, -63 dBm |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology |
10/100Base-T(X) |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired & Wireless |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Security algorithms |
SSID, WPA-PSK, WPA-TKIP, WPA2-PSK |
| WPS push button |
Yes |
| Management features |
|---|
| DHCP server |
Yes |
| Features |
|---|
| Product type |
Network repeater |
| Product colour |
White |
| LED indicators |
Power, Signal strength, WPS |
| Power LED |
Yes |
| Reset button |
Yes |
| Internal memory |
64 MB |
| Power |
|---|
| Power source type |
DC |
| DC input voltage |
9 V |
| Power consumption (typical) |
2.8 W |
| Power consumption (max) |
5.2 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
58 x 48 x 80 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
