AMD Ryzen V1780B, 8 GB DDR4 ECC UDIMM, 32 GB (16 GB x 2), 17.3 kg
Built for reliability
Redundant power
Redundant power supplies ensure maximum server uptime by preventing single-point power failures.
High-availability
Pair two identical devices with Synology High Availability and enable automatic minute-level failover between both devices in the event one server fails
Network redundancy and load balancing

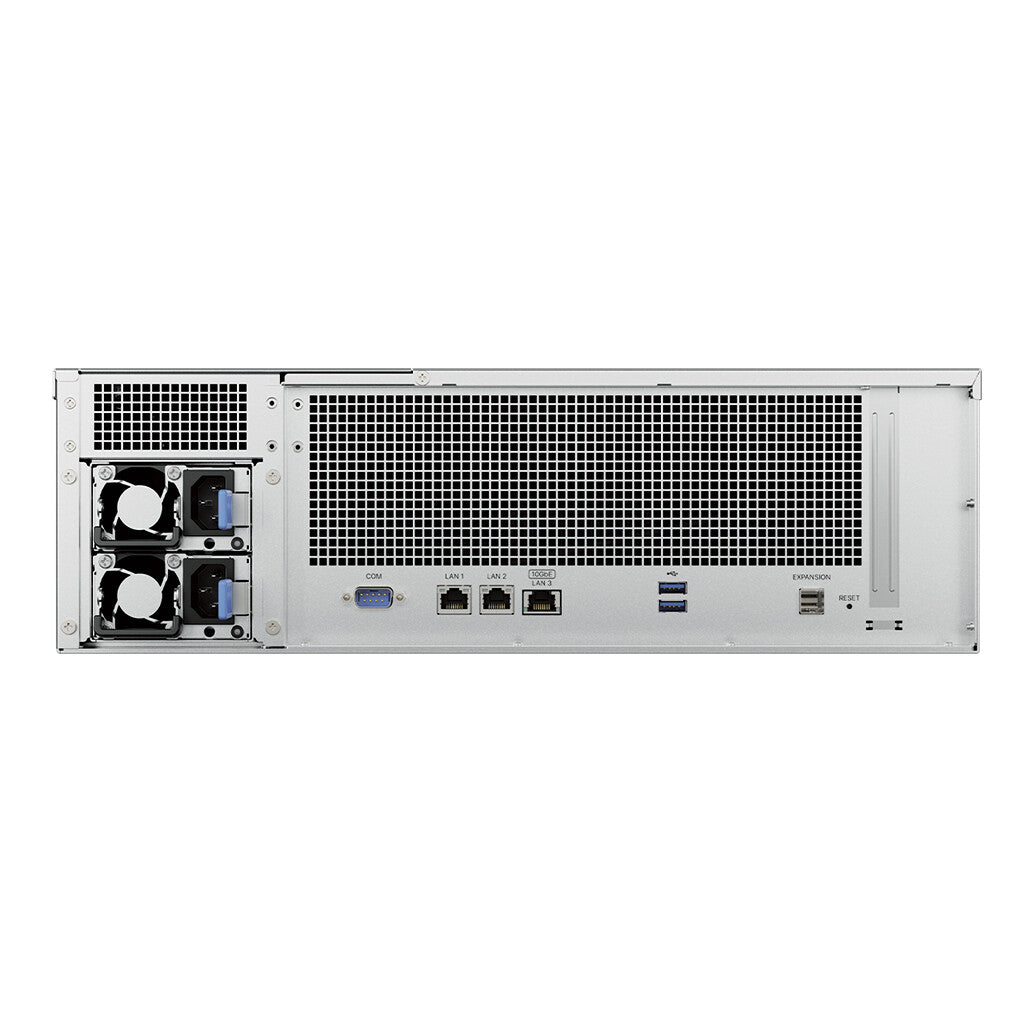

Built-in 1x 10GbE and 2x 1GbE ports can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform tile access, sharing, and synchronization across multiple locations.
Centralized monitoring and management
Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.
Hard drives designed for Synology
See how Synology hard drives deliver reliability, consistent performance, and simplified system management through deep hardware-software integration.
| Storage |
|---|
| Storage drives installed |
No |
| Number of storage drives supported |
28 |
| Supported storage drive types |
HDD & SSD |
| Storage drive interface |
Serial ATA |
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor model |
V1780B |
| Processor frequency |
3.35 GHz |
| Processor boost frequency |
3.6 GHz |
| Memory |
|---|
| Internal memory |
8 GB |
| Internal memory type |
DDR4 |
| Maximum RAM supported |
32 GB |
| ECC |
No |
| Memory slots |
2 |
| Memory form factor |
SO-DIMM |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
3 |
| USB port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Design |
|---|
| Chassis type |
Rack (3U) |
| Cooling type |
Active |
| Product colour |
Grey |
| Number of fans |
3 fan(s) |
| Fan diameter |
8 cm |
| LED indicators |
Alarm, Status |
| Performance |
|---|
| Type |
NAS |
| Device class |
Large Enterprise Business |
| Backup function |
Yes |
| Backup features |
Cloud |
| Noise level |
49.6 dB |
| Reset button |
Yes |
| Software |
|---|
| Operating system installed |
Synology DSM |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Weight & dimensions |
|---|
| Width |
482 mm |
| Depth |
656.5 mm |
| Height |
132.3 mm |
| Weight |
17.3 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
8 - 80% |
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Other features |
|---|
| Compliance certificates |
BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, UKCA, VCCI |
