37" VA, (1920 x 540), 700 nit, 6.5ms, 4000:1, HDMI, DP, USB, WiFi, LAN, 70 W, 923.3 x 277.6 x 44.8 mm
Engage customers with versatile display
With flexibility in installation orientation and powerful visual technology that delivers truly eye-catching images in a slim design - Samsung SHR-B Stretch Displays are the ideal and versatile display solution to meet virtually any need.
Stretch display
Make the most of your space with SHR-B Stretch Displays. 16:4.5 wide screen stretched display allows you to maximise space and effectively deliver content - even in small, narrow spaces.
700nit brightness
Deliver vibrant, realistic images and offer an incredible visual experience to your customers. Featuring brightness levels of up to 700nit, these displays deliver clear, rich images in a wide variety of lighting conditions.
Slim depth
Featuring a slim profile with a depth of only 44.8mm, the SHR-B Stretch Display helps you to maximise available space. This enables the display to be installed in areas where space is limited.
Tizen 4.0
SSSP is an all-in-one solution that helps simplify installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

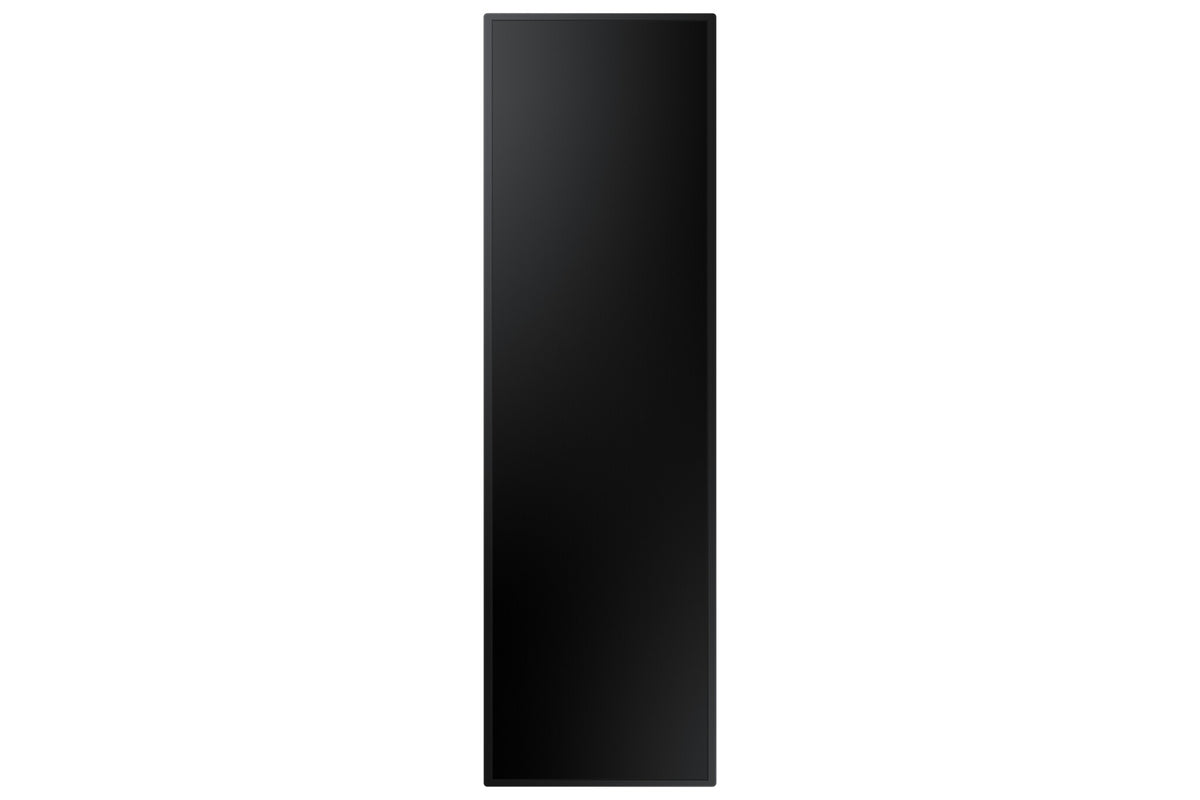

Pivoting functionality
With pivoting functionality along with image rotation software that can change image orientation from portrait to landscape, enjoy display flexibility. Images do not require rotation in image editing software to make them appear correctly in a different orientation.
Display UHD Content
SHR-B Stretch Displays provide an impressive 4K UHD viewing experience, when four compatible units are combined due to daisy chain technology. Deliver eye-catching messages in incredible clarity for great impact.
| Display |
|---|
| Display diagonal |
94 cm (37") |
| Display technology |
LCD |
| Panel type |
VA |
| Display resolution |
1920 x 540 pixels |
| Display brightness |
700 cd/m² |
| Touchscreen |
No |
| Response time |
6.5 ms |
| Contrast ratio (typical) |
4000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.47 x 0.47 mm |
| Pixel frequency (max) |
48 MHz |
| Vertical scan range |
47 - 63 Hz |
| Horizontal scan range |
33.6 - 36.6 kHz |
| Haze rate |
28% |
| Ports & interfaces |
|---|
| HDMI ports quantity |
2 |
| HDMI version |
2.0 |
| DVI port |
No |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.2 |
| USB port |
Yes |
| USB ports quantity |
1 |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Wi-Fi |
Yes |
| Number of speaker outputs |
1 |
| RS-232 interface |
Yes |
| Remote (IR) input |
1 |
| Design |
|---|
| Product design |
Panorama design |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Panel mounting interface |
400 x 200 mm |
| Bezel width (top) |
9.8 mm |
| Bezel width (side) |
7.9 mm |
| Bezel width (bottom) |
9.8 mm |
| Performance |
|---|
| Purpose |
Universal |
| HDCP version |
2.2 |
| HDCP |
Yes |
| Power |
|---|
| Power consumption (typical) |
70 W |
| Power consumption (standby) |
0.5 W |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
52 kWh |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Energy efficiency scale |
A to G |
| Computer system |
|---|
| Internal storage capacity |
8 GB |
| Operating system installed |
Tizen 4.0 |
| Weight & dimensions |
|---|
| Display width |
923.3 mm |
| Display depth |
44.8 mm |
| Display height |
277.6 mm |
| Display weight |
6.3 kg |
| Packaging data |
|---|
| Package width |
1112 mm |
| Package depth |
122 mm |
| Package height |
363 mm |
| Package weight |
8.4 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| General |
|---|
| Product family |
SHR-B |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Other features |
|---|
| RS-232 output ports |
1 |
| RS-232 input ports |
1 |
