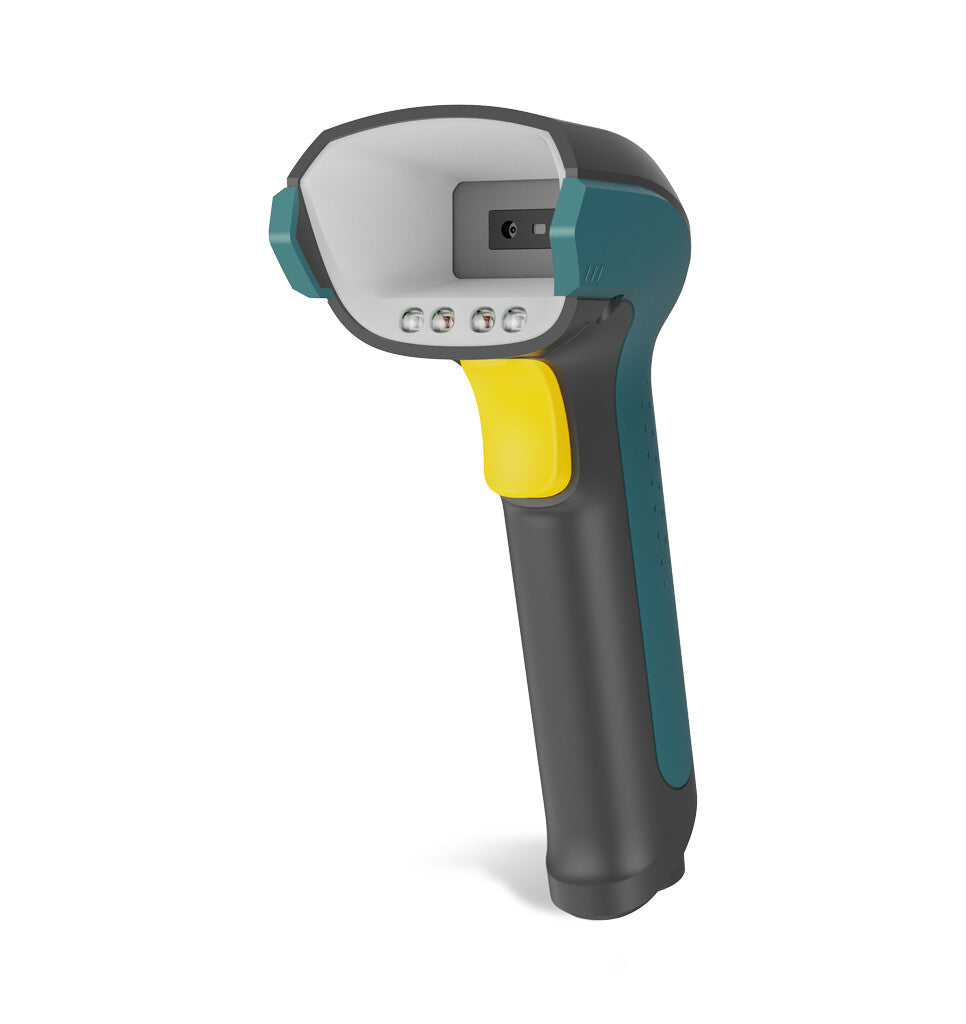

Lophius AI Bluetooth, 1280 x 800 CMOS, 2900 mAh, 218g, 1.8m, IP64, IP42
The NVH220 Lophius AI Bluetooth is a reliable and cost-effective solution designed with ergonomics and a user-friendly interface in mind. It features AI-powered barcode detection and auto-learning capabilities, allowing it to accurately decode a wide range of barcodes in industrial applications, including Direct Part Marking (DPM), even on challenging surfaces. Plus, with Bluetooth 5.0, the Lophius provides fast wireless communication and data transmission over distances of up to 150 meters.
AI-Powered Scanning Technology.
The NVH220 Lophius AI BT is equipped with Newland’s UIMG and AI-Powered Barcode Detection scanning technologies. These advanced systems enable rapid, accurate, and reliable decoding of both 1D and 2D barcodes, even when they are damaged or distorted, as well as on reflective and curved surfaces. AI-powered devices utilize computer vision and self learning to interpret barcodes accurately. They efficiently analyze images to detect, locate, and read barcodes. The NVH220 Lophius AI BT excels in challenging conditions, demonstrating advanced decoding performance and providing a reliable scanning solution that functions flawlessly in any situation.
High-Performance DPM Scanning
The NVH220 Lophius AI BT is distinguished by its outstanding ability to decode DPM barcodes, including those created using laser part marking and dotting techniques. Equipped with an upgraded dual-core processing platform, the NVH220 offers enhanced performance while consuming less power. This results in faster and more stable decoding, as well as improved image capture.
Robust by Design.
The NVH220 Lophius AI BT is built for durability, featuring a robust design that can endure challenging conditions. Its high-protection construction and IP64-sealed housing ensure reliable performance, even in environments with dust and water exposure, as well as after repeated drops from heights of up to 1.8 meters.
Advanced Illumination.
The NVH220 Lophius AI BT features both red and blue direct illumination and white diffuse lighting. These lighting options can be easily activated using the auto-learning function button located on the top of the device. With this feature, the NVH220 automatically adjusts brightness and light source to optimize barcode decoding, even on challenging materials. This includes reflective surfaces, curved shapes, varied backgrounds (ranging from low to high contrast), and different barcode colors.
Reliable Data Transmission.
The NVH220 Lophius AI BT, equipped with Bluetooth 5.0, ensures fast wireless communication with low latency. This stable and reliable connection supports data transmission over a range of up to 150 meters, providing all-day flexibility and efficiency on the work floor.
| Scanning |
|---|
| Type |
Handheld bar code reader |
| Scanner type |
1D/2D |
| Sensor type |
CMOS |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Data Matrix, Micro QR Code, PDF417, QR Code |
| Linear (1D) barcodes supported |
AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Composite, ISBN, ISBT 128, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI-Plessey, Plessey, Standard 2 of 5, UPC-A, UPC-E |
| Laser guide |
Yes |
| Trigger mode |
Auto-induction, Continuous, Manual |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| 2D resolution (min) |
0.07163 mm |
| 1D resolution (min) |
0.03175 mm |
| Horizontal field of view |
33° |
| Vertical field of view |
22° |
| Wavelength |
650 nm |
| Tilt reading angle |
0 - 360° |
| Pitch reading angle |
-50 - 50° |
| Yaw reading angle |
-50 - 50° |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired & Wireless |
| Standard interfaces |
Bluetooth, RS-232, USB |
| Wireless range |
150 m |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
5.0 |
| Performance |
|---|
| Product colour |
Black, Dark Grey |
| International Protection (IP) code |
IP64 |
| Protection features |
Drop resistant, Dust resistant, Water resistant |
| LED indicators |
Yes |
| Buzzer |
Yes |
| Print contrast |
15% |
| Built-in processor |
Yes |
| Processor cores |
2 |
| Vibration function |
Yes |
| Programming function |
Yes |
| Certification |
FCC,RoHS 2.0,IEC 60825,IEC 62471,CCC,CE,ISO 16750 |
| Power |
|---|
| Power source type |
Battery |
| Power consumption (typical) |
1.4 W |
| Battery capacity |
2900 mAh |
| Number of reads per charge |
60000 |
| Battery life |
17 h |
| Charging time |
3 h |
| AC adapter output voltage |
5 V |
| Power consumption |
370 mA |
| Weight & dimensions |
|---|
| Width |
68 mm |
| Depth |
86 mm |
| Height |
180 mm |
| Base dimensions (WxDxH) |
103 x 127 x 123 mm |
| Base weight |
217 g |
| Weight |
218 g |
| Packaging data |
|---|
| External power adapter |
Yes |
| Stand included |
Yes |
| Charging base |
Yes |
| Cables included |
USB |
| Operational conditions |
|---|
| Drop resistance |
1.8 m |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-20 - 50 °C |
| Technical details |
|---|
| Battery included |
Yes |
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
