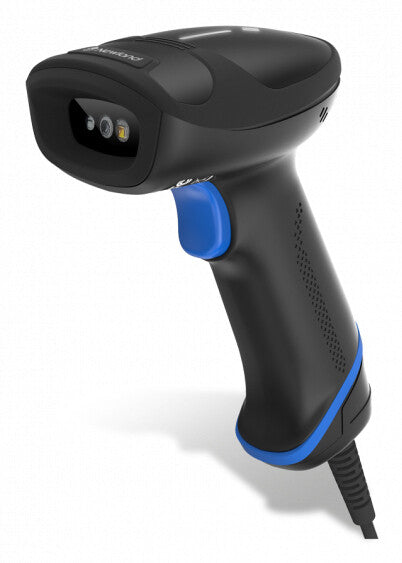

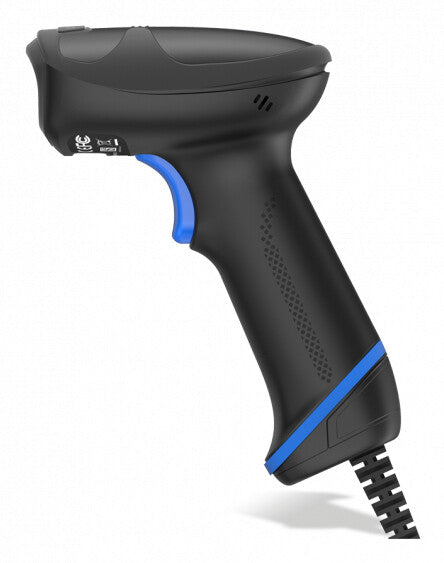

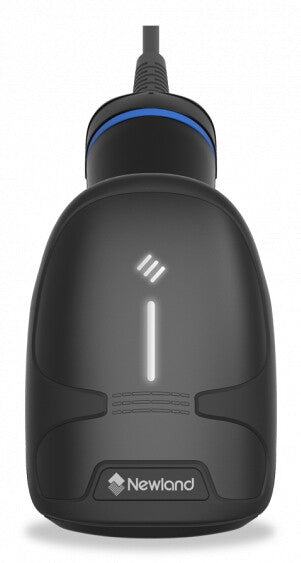

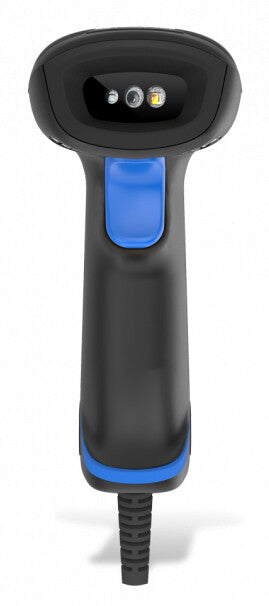

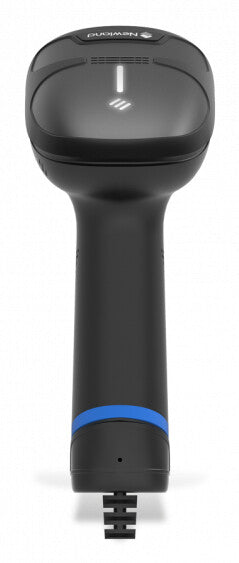

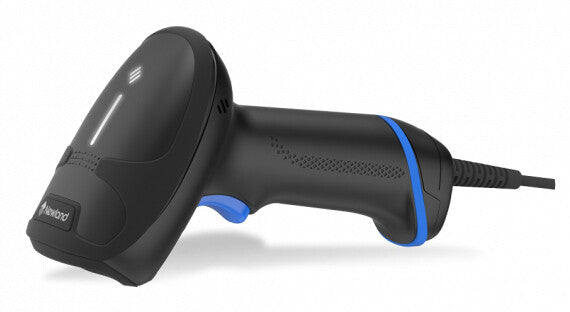

HR33 Marlin Corded, 1D & 2D, IP52, Acuscan + smart adjustable stand (NLS-STD23-33-SA)
The legacy continues with the latest HR33 Marlin Corded, which offers effortless barcode capture thanks to Newland EMEA decoding technology. Cutting-edge scanning and decoding are showcased in a design that represents premium quality to become Newland’s best ever handheld 2D barcode reader so far. The HR33 Marlin Corded features a light and ergonomic design, making it the ideal companion for high-intensity scanning.
Performance and Elegance
The HR33 Marlin boasts a stylish design that is not only well-balanced and comfortable to hold but also looks great. It is an example of Newland taking pride in matching performance with beauty.
Adaptable to your needs.
The HR33 Marlin is the first in the portfolio to include advanced Scripting for programming intricate commands. Easyset is still available to those familiar with the program, but adding Scripting allows even finer detail, making the HR33 Marlin series the best in class.
High Performance
The HR33 Marlin Corded has a laser aimer for accurate barcode scanning and a megapixel sensor to capture various types of barcodes, even if they are damaged or distorted. This makes it ideal for high-density workloads.
Acuscan
Laser aiming with Acuscan is an optional feature that allows you to hone in on the code you want, even if barcodes are printed closely together.
Hands-free Scanning
The HR33 Marlin Corded scanner offers various hands-free scanning stand options. The first option is the intelligent adjustable auto-sense stand, which can be adjusted from an upright position to a flat one, making it suitable for desktop and wall-mounted use. The second option is the gooseneck stand, which provides a flexible design to adjust to your preferred scanning distance and angle.
Be confident with Newland
The HR33 Marlin’s IP52 and 1.5m drop specification are backed up with a trustworthy 5-year warranty. Select the HR33 with confidence, knowing that Newland has created a scanner that’s up for the job no matter the environment.
| Scanning |
|---|
| Type |
Handheld bar code reader |
| Scanner type |
1D/2D |
| OCR types supported |
China Travel Permit OCR, Chinese ID Card, Passport OCR |
| Sensor type |
CMOS |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Code 1, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Linear (1D) barcodes supported |
AIM-128, China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Composite, GS1 DataBar, GS1 DataBar Coupon, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 2 of 5, UPC-A, UPC-E |
| Laser guide |
Yes |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| Horizontal field of view |
48° |
| Vertical field of view |
30° |
| Tilt reading angle |
0 - 360° |
| Pitch reading angle |
0 - 60° |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Standard interfaces |
RS-232, USB |
| USB 2.0 ports quantity |
1 |
| Performance |
|---|
| Product colour |
Black |
| International Protection (IP) code |
IP52 |
| LED indicators |
Yes |
| Buzzer |
Yes |
| Print contrast |
15% |
| Vibration function |
Yes |
| Certification |
IEC62471, IEC60825 |
| Power |
|---|
| Power source type |
USB |
| Power consumption |
281 mA |
| Weight & dimensions |
|---|
| Width |
95 mm |
| Depth |
68 mm |
| Height |
166 mm |
| Weight |
140 g |
| Operational conditions |
|---|
| Drop resistance |
1.5 m |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-20 - 60 °C |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
