Newland

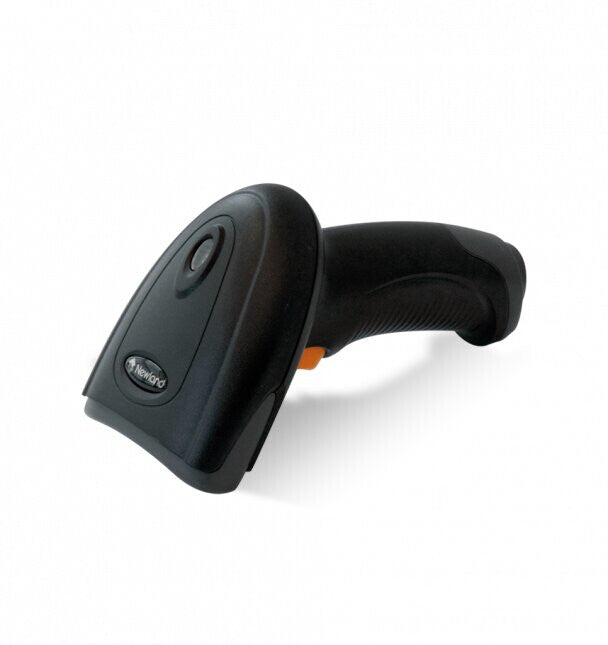

Newland HR11 Aringa Handheld bar code reader 1D LED Black

R 966.00
R 966.00
R 966.00
Shipping calculated at checkout.

Sorry, it's out of stock.

But we can let you know when it's back in.

Out of stock
Red LED, 40-480 mm aiming, Trigger, 300 scans/sec, USB, 101 x 68 x 145 mm, 120 g

With operational streamlining in mind, the HR11 Aringa ensures increased efficiency and operator comfort for intensive handheld scanning. Its compact housing is durable (1.5m drop rate) and lightweight (120g). The ergonomic design is sure to reduce user fatigue and maximize operator comfort for everyday intensive handheld scanning.

The HR11 Aringa ensures operator comfort and productivity for intensive handheld scanning.
With operational streamlining in mind, the HR11 Aringa ensures increased efficiency and operator comfort for intensive handheld scanning. Its compact housing is durable (1.5m drop rate) and lightweight (120g). The ergonomic design is sure to reduce user fatigue and maximize operator comfort for everyday intensive handheld scanning.

Value for money.
The HR11 Aringa is compact & ergonomic in design, making it comfortable in use during daily operations. It delivers outstanding scanning performance with a 2500-pixel linear imager and offers an excellent user experience at an affordable price.

Ergonomic design.
Blending ergonomics and aesthetics in its design, the HR11 Aringa ensures operator comfort and productivity for intensive handheld scanning.

Scanning from paper and screen.
Equipped with Newland’s NLDC technology (1D decoder chip), the HR11 Aringa is optimized for fast scanning of 1D barcodes printed on paper or displayed on screen to support the diverse requirements of Retail scanning and emerging applications including O2O (Online2Offline).

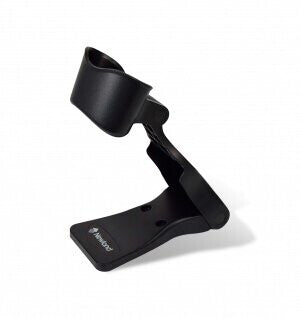

Foldable smart stand available.
A foldable smart stand is available for the HR11 Aringa, allowing you to quickly switch between hand-held scanning and hands-free scanning.

Application scenarios.
Retail, O2O, pharmacy, cosmetics & drug stores, smaller sized grocery stores, tobacco kiosks and in a ticketing booth for reading and validating mobile or paper tickets.

1D CCD Handheld Reader (black surface) with USB cable, autosense, incl. foldable smart stand (SET).

Scanning
Maximum scan width 18 cm
Pitch reading angle -60 - 60°
Tilt reading angle -70 - 70°
Wavelength 620 nm
Light levels (direct sunlight) 0 - 100000 lx
Read rate (max) 300 reads/s
Working distance 48 cm
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Matrix 2 of 5, Plessey, UPC-A, UPC-E
Sensor type LED
Scanner type 1D
Type Handheld bar code reader
Ports & interfaces
Standard interfaces USB
Connectivity technology Wired
Performance
Certification FCC Part15 Class B，CE EMC Class B, IEC62471,KC
Buzzer Yes
Keys quantity 1 keys
Protection features Drop proof, Electrostatic Discharge (ESD) protection
International Protection (IP) code IP42
Housing material Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Product colour Black
Power
Power consumption 70.4 mA
AC adapter output voltage 100 - 240 V
Input frequency 50 - 60 Hz
Input voltage 5 V
Power consumption (typical) 0.352 W
Power source type DC
Weight & dimensions
Weight 120 g
Height 145 mm
Depth 101 mm
Width 68 mm
Packaging data
Cables included USB
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Technical details
Compliance certificates RoHS
