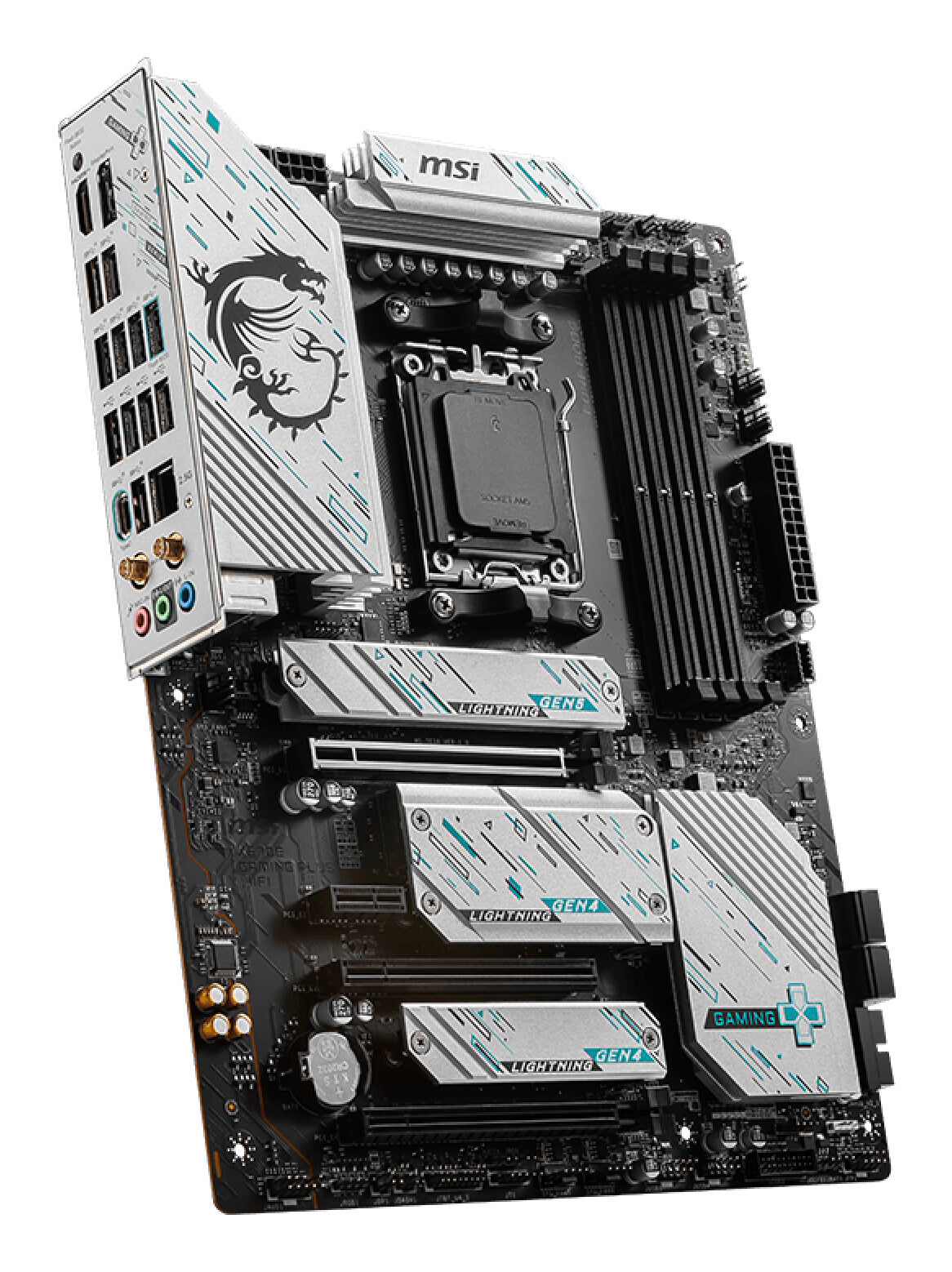

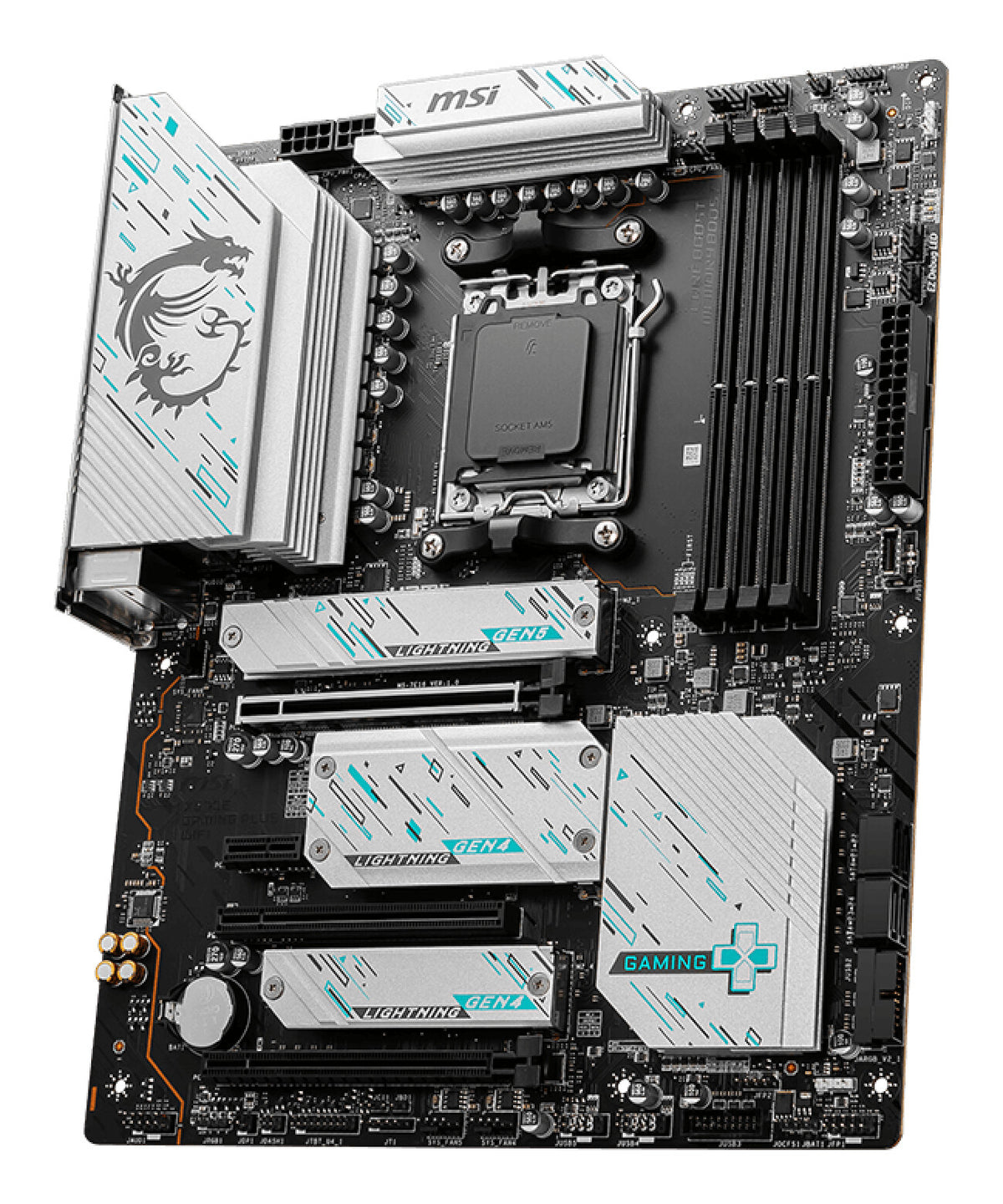

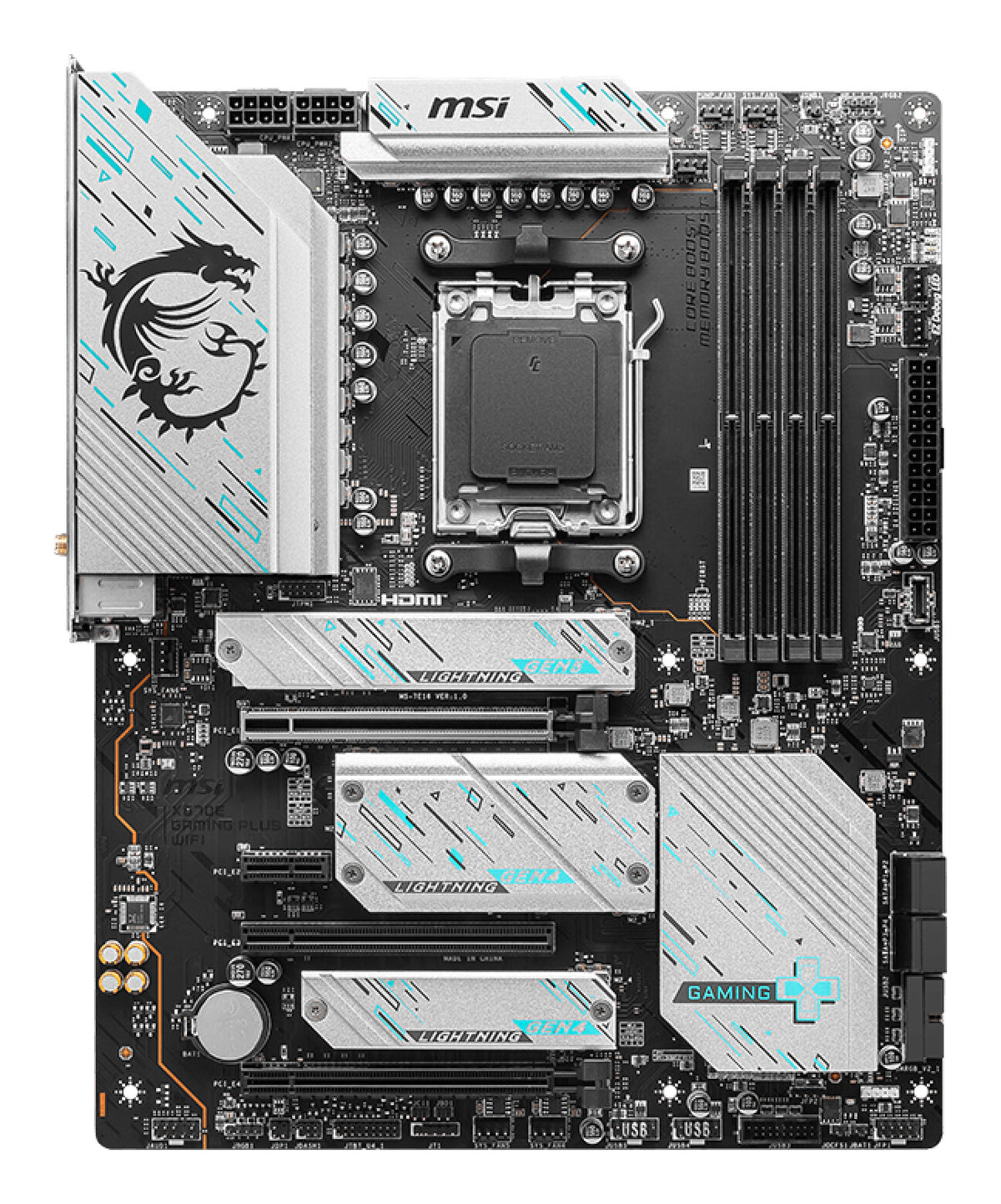

4x DDR5, 1x HDMI, 1x DisplayPort, 4x M.2, X670E, Wifi, AM5, ATX
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM5 |
| Memory |
|---|
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
Non-ECC |
| Maximum internal memory |
192 GB |
| Storage controllers |
|---|
| Supported storage drive interfaces |
M.2, SATA III |
| RAID support |
Yes |
| RAID levels |
0, 1, 10 |
| Graphics |
|---|
| On-board graphics card |
No |
| Internal I/O |
|---|
| USB 2.0 connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Number of SATA III connectors |
4 |

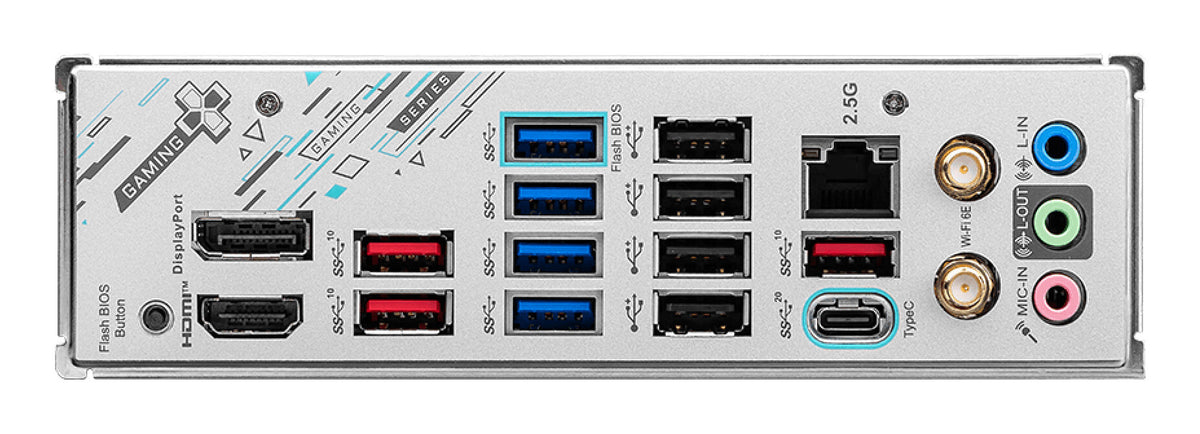

| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| S/PDIF out port |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| LAN controller |
Realtek RTL8125-BG |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X670 |
| Audio chip |
Realtek ALC897 |
| Audio output channels |
7.1 channels |
| Product colour |
Aluminium, Black |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Expansion slots |
|---|
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
2 |
| Number of M.2 (M) slots |
4 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| ACPI version |
6.4 |
| System Management BIOS (SMBIOS) version |
3.5 |
| Weight & dimensions |
|---|
| Width |
243.8 mm |
| Depth |
304.8 mm |
