4 X DDR5 8200 (OC) MT/s, Socket AM5, Wi -Fi 7, 5 GBE LAN, 3 X M.2, 4x SATA 6G, ATX, 14+2+1 digital power phases

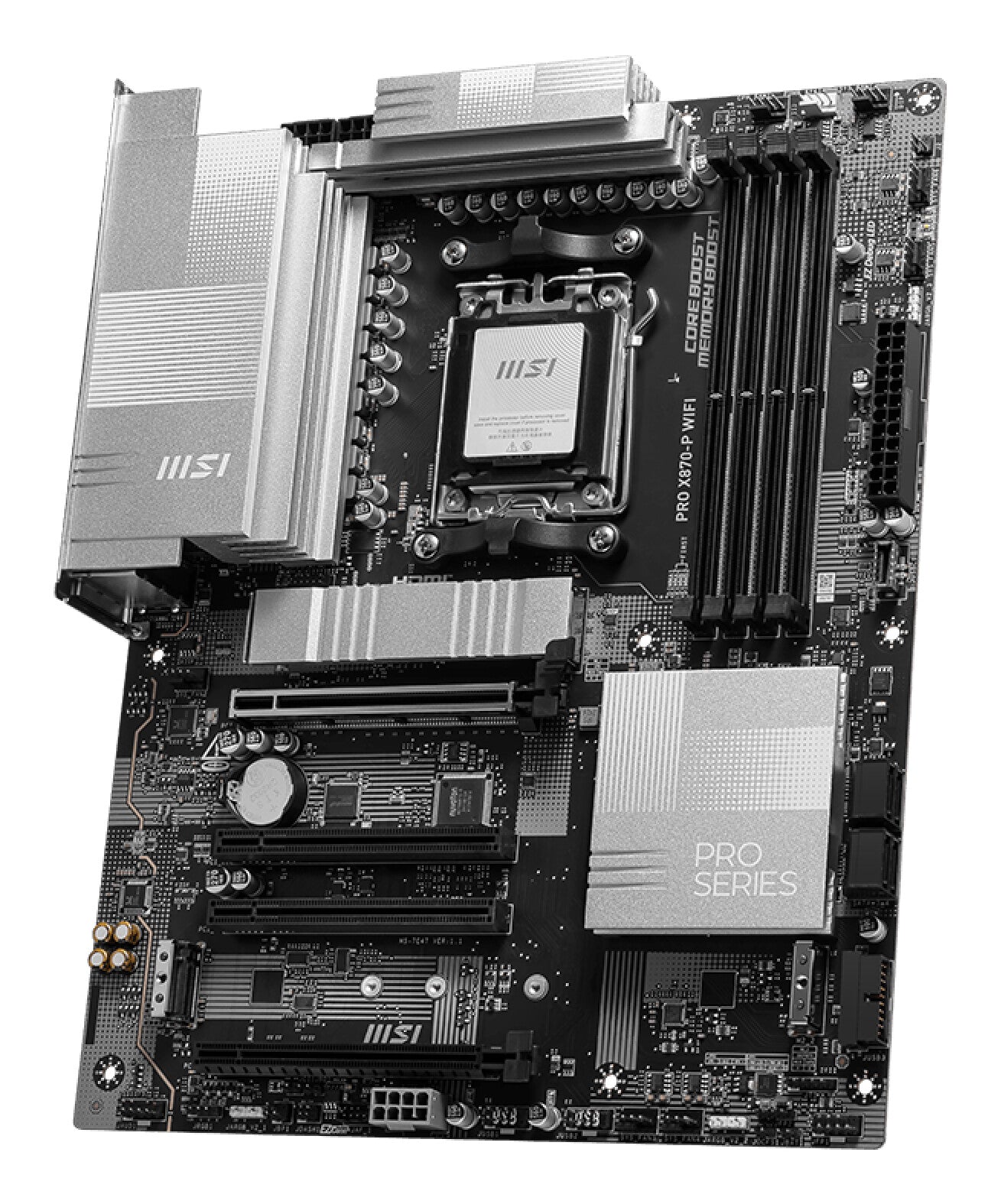

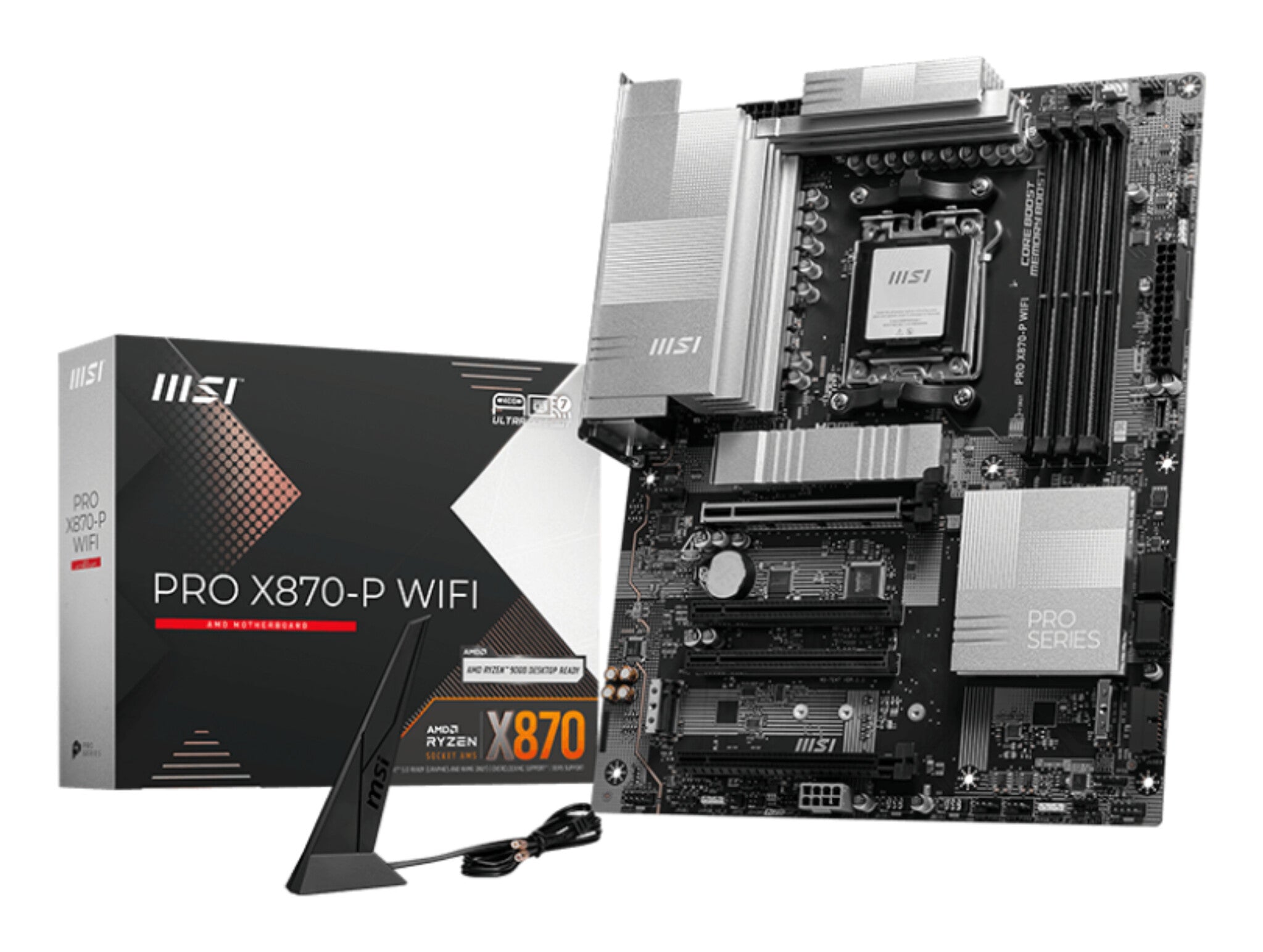

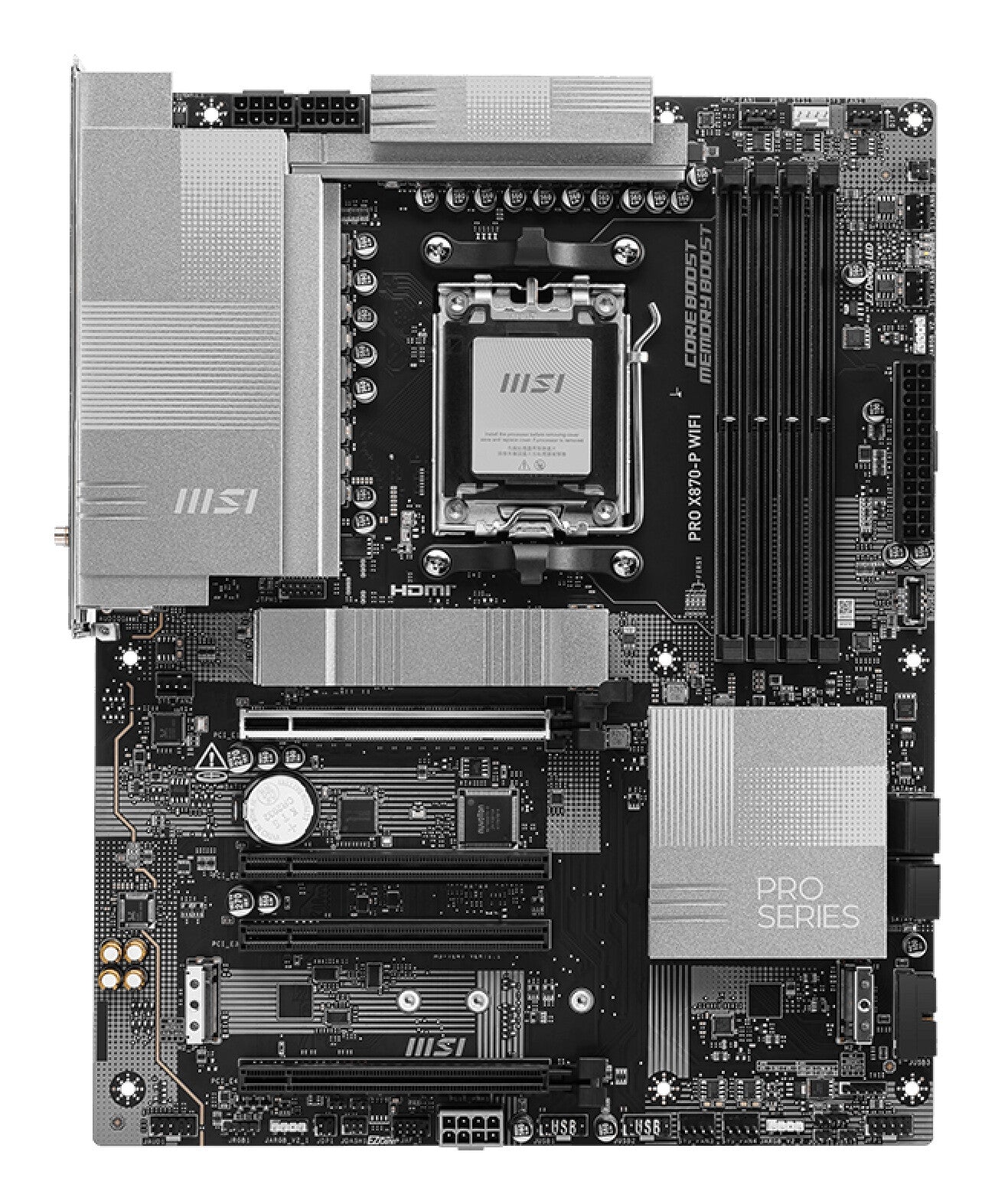

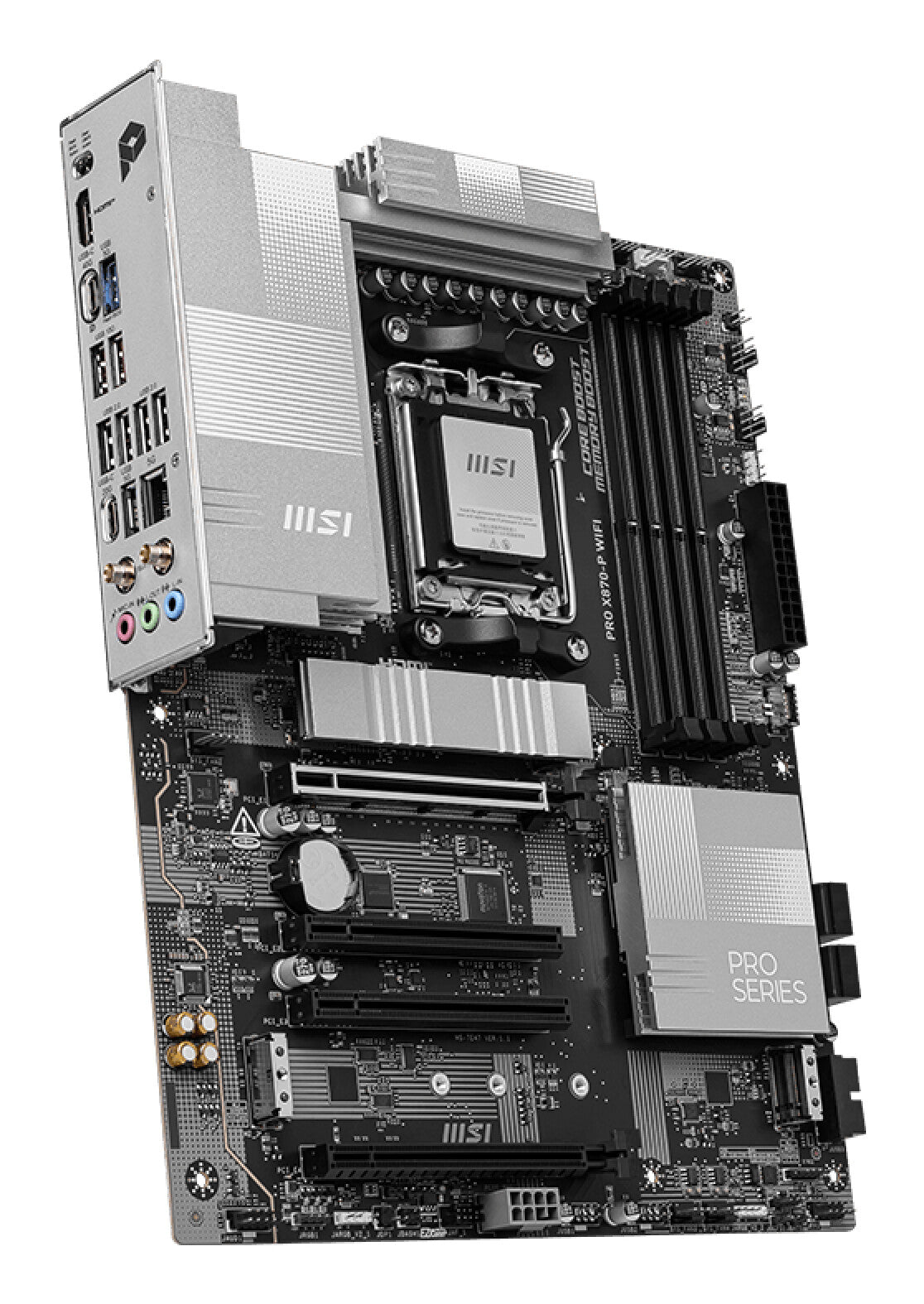

PRO X870-P WIFI
PRO X870-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+2+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, PRO X870-P WIFI is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM5 |
| Compatible processor series |
AMD Ryzen™ 7 |
| Supported processor sockets |
Socket AM5 |
| Maximum internal memory supported by processor |
256 GB |
| Memory |
|---|
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
Non-ECC |
| Supported memory clock speeds |
4800,5600,8200 MHz |
| Supported memory clock speed (max) |
8200 MHz |
| Maximum internal memory |
256 GB |
| Storage controllers |
|---|
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| Number of storage drives supported |
4 |
| Number of HDDs supported |
7 |
| RAID support |
Yes |
| RAID levels |
0, 1 |
| Graphics |
|---|
| On-board graphics card |
No |
| Internal I/O |
|---|
| USB 2.0 connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Number of SATA III connectors |
4 |
| Total number of SATA connectors |
4 |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |

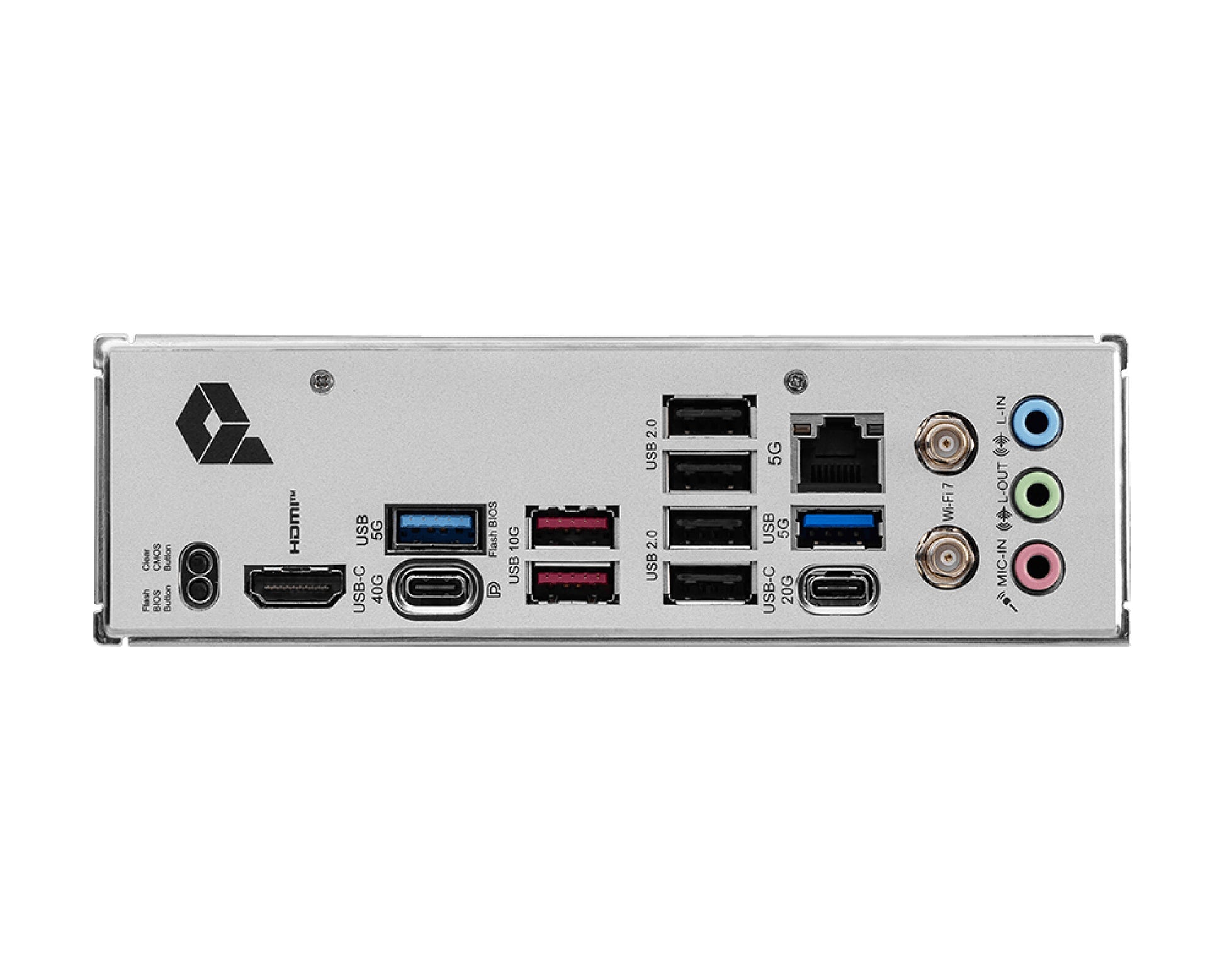

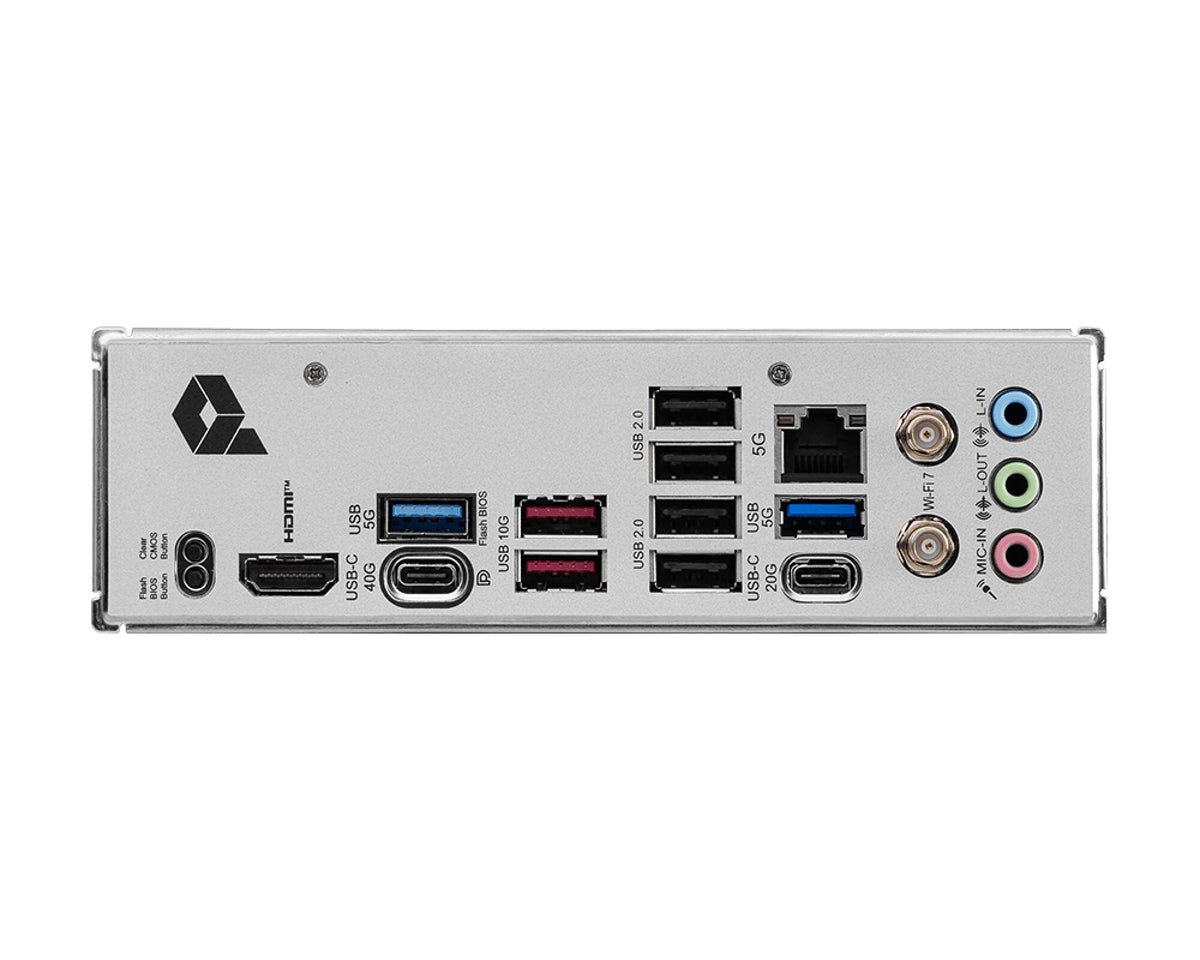

| Rear panel I/O ports |
|---|
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
2 |
| Microphone in |
Yes |
| S/PDIF out port |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
5 Gigabit Ethernet |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X870 |
| Audio output channels |
7.1 channels |
| Product colour |
Black |
| PC health monitoring |
CPU, Fan, Temperature, Voltage |
| Windows operating systems supported |
Windows 11 x64 |
| Expansion slots |
|---|
| PCI Express x16 slots |
4 |
| Number of M.2 (M) slots |
3 |
| Weight & dimensions |
|---|
| Width |
243.8 mm |
| Depth |
304.8 mm |
