AMD Radeon RX 6650 XT, 8GB GDDR6, 128 bit, 1750MHz, PCI Express 4.0, 1 x HDMI (2.1), 3 x DP (1.4a), DirectX 12 Ultimate, OpenGL 4.6, VR, 175W

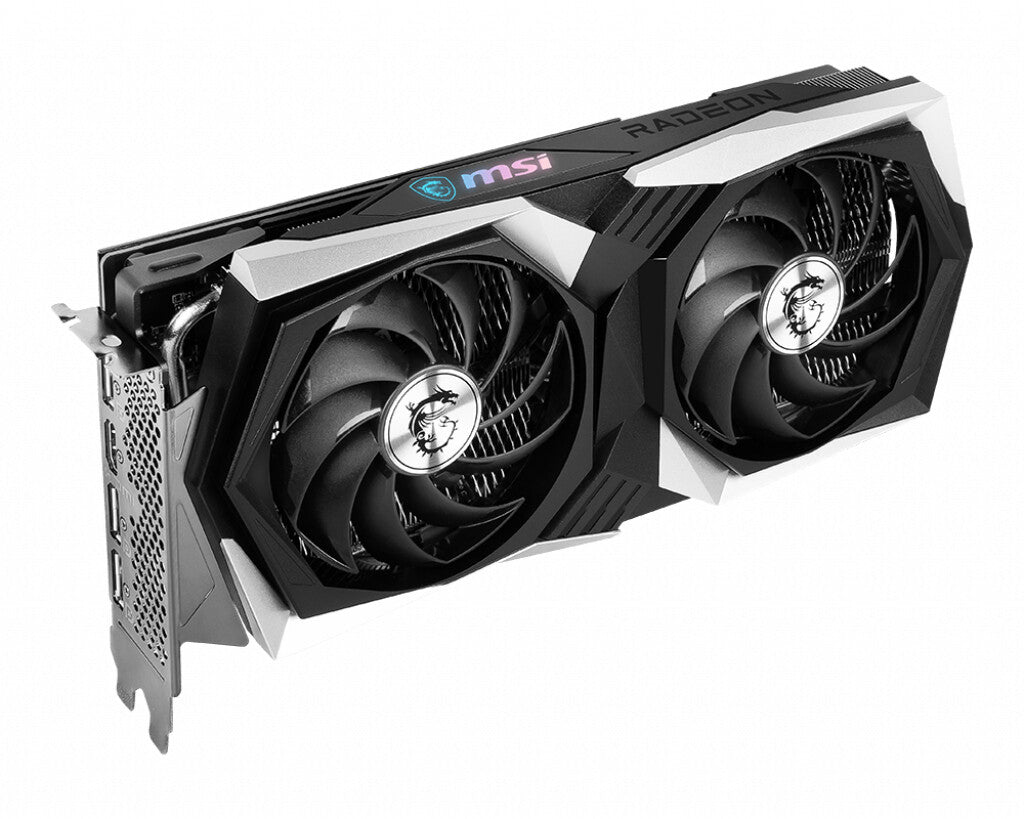

LIGHT 'EM UP
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
WE KEEP IT COOL AND QUIET
The TWIN FROZR 8 thermal system has been designed for efficiency. Expect a perfect balance of cool and quiet for more fun during endless gaming sessions.
TEAMWORK MAKES THE DREAM WORK

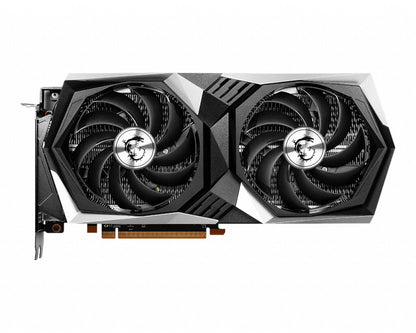

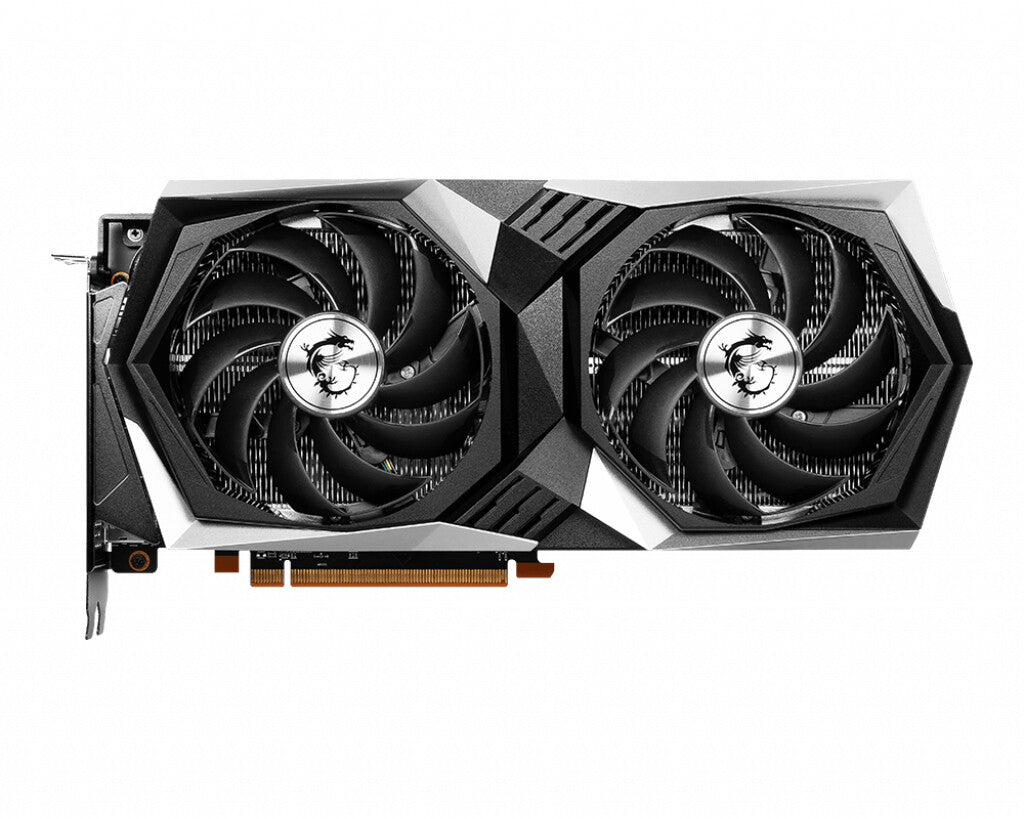

TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with an outer ring design link that focuses airflow into the updated TWIN FROZR 8 cooling system.
TOTALLY COOL CORE PIPES
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
SHHHH…SILENCING HEATSINK DESIGN
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
TOUGH ENOUGH TO BACK YOU UP!
GAMING has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through the Custom PCB.
Better Safe Than Sorry
Additional fuses built into the custom PCB provide additional layers of protection against electrical damage.
Forged from Enhanced Materials
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.
BEND THE RULES, NOT THE CARD

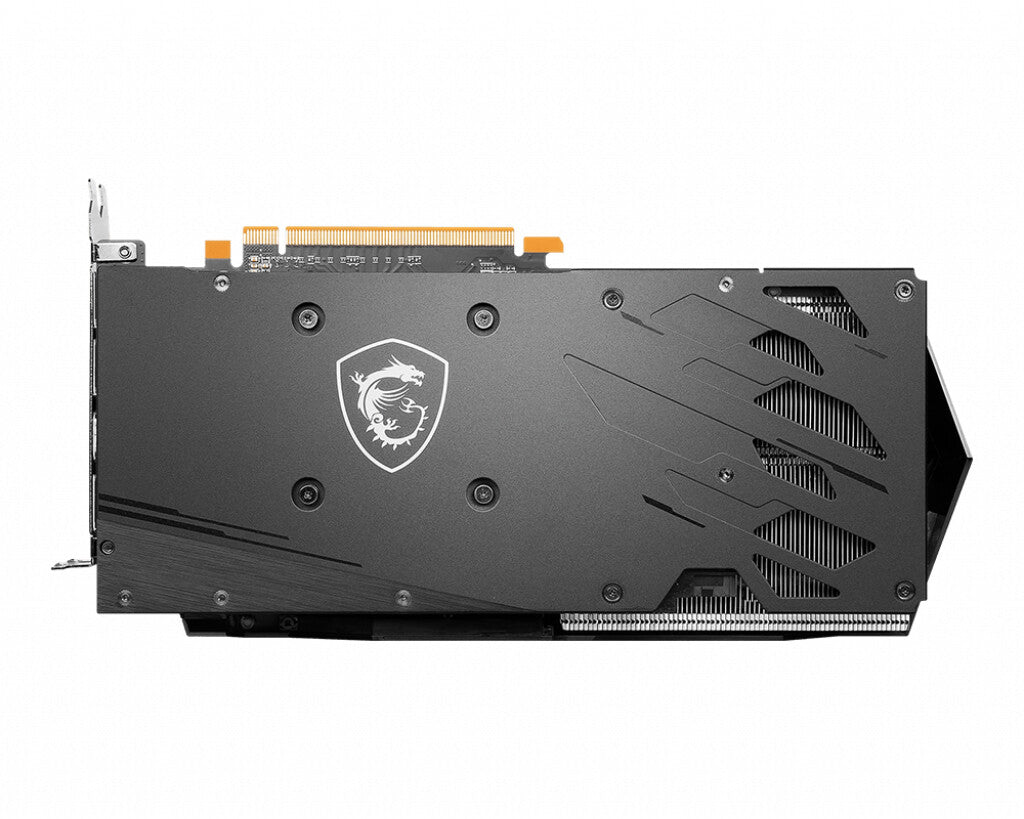

Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
Bringing It All Together
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
| Processor |
|---|
| Graphics processor family |
AMD |
| Graphics processor |
Radeon RX 6650 XT |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
No |
| Processor boost clock speed (OC mode) |
2694 MHz |
| Processor boost clock speed (Gaming mode) |
2523 MHz |
| Stream processors |
2048 |
| Maximum displays per videocard |
4 |
| Parallel processing technology support |
Not supported |
| Memory |
|---|
| Discrete graphics card memory |
8 GB |
| Graphics card memory type |
GDDR6 |
| Memory bus |
128 bit |
| Memory clock speed |
1750 MHz |
| Ports & interfaces |
|---|
| Interface type |
PCI Express 4.0 |

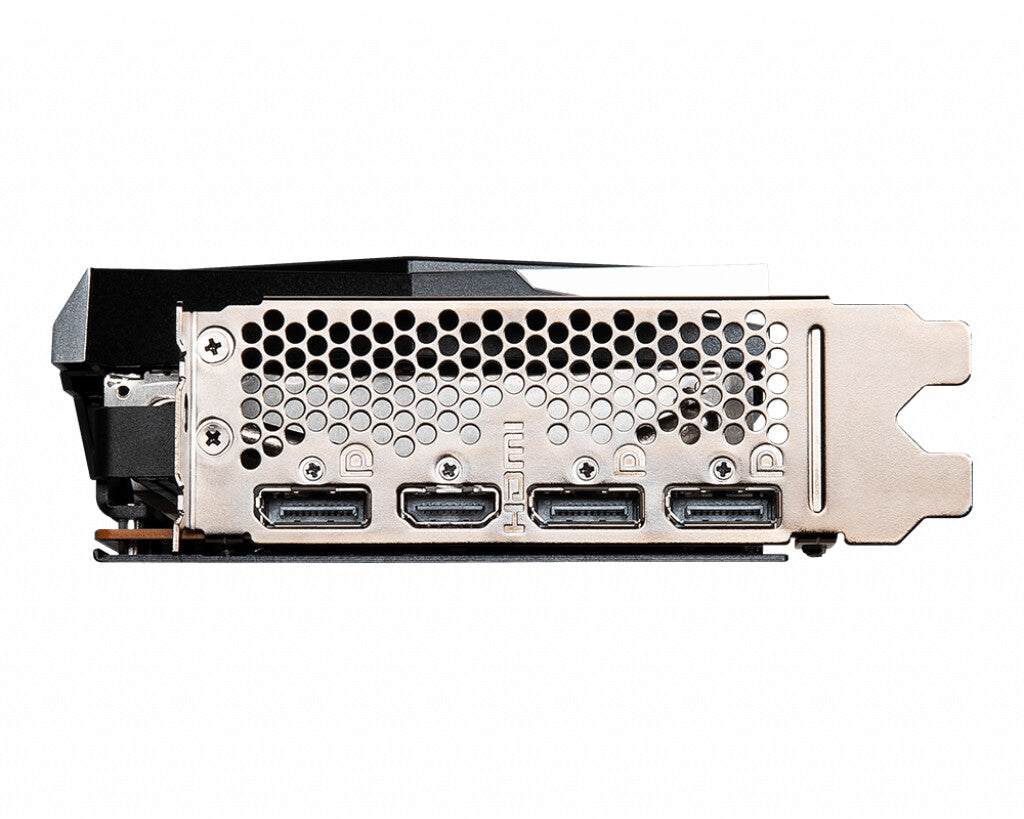

| HDMI ports quantity |
1 |
| DisplayPorts quantity |
3 |
| HDMI version |
2.1 |
| DisplayPort version |
1.4a |
| Performance |
|---|
| TV tuner integrated |
No |
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| Virtual Reality (VR) ready |
Yes |
| HDCP |
Yes |
| Dual Link DVI |
No |
| AMD FreeSync |
Yes |
| Design |
|---|
| Cooling type |
Active |
| Cooling technology |
MSI TORX Fan 4.0 |
| Number of fans |
2 fan(s) |
| Product colour |
Black, Silver |
| Power |
|---|
| Minimum system power supply |
500 W |
| Power consumption (typical) |
175 W |
| Supplementary power connectors |
1x 8-pin |
| Weight & dimensions |
|---|
| Weight |
894 g |
| Length |
278 mm |
| Height |
130 mm |
| Depth |
51 mm |
| Packaging data |
|---|
| Package type |
Box |
| General |
|---|
| Product family |
GAMING |
