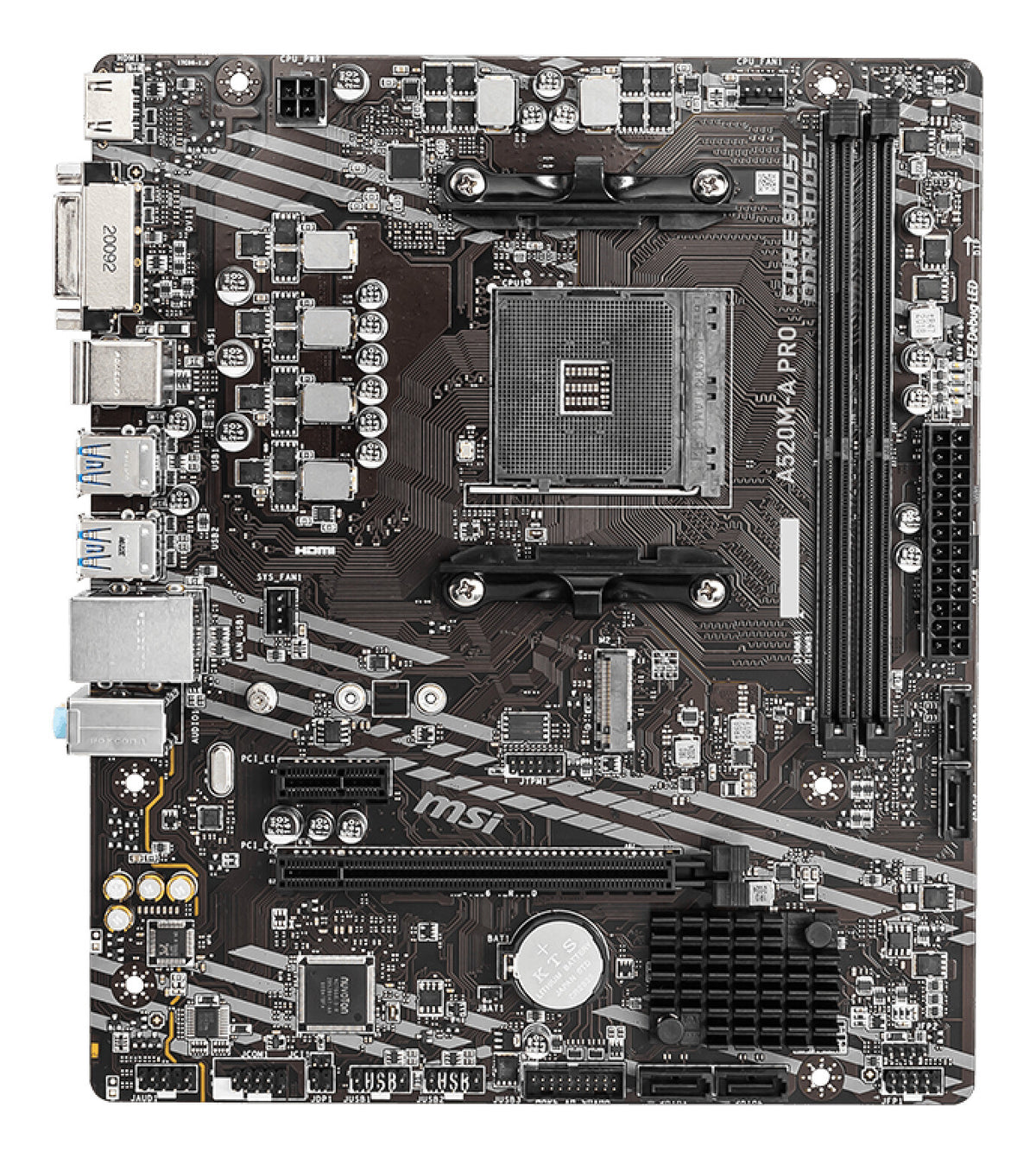

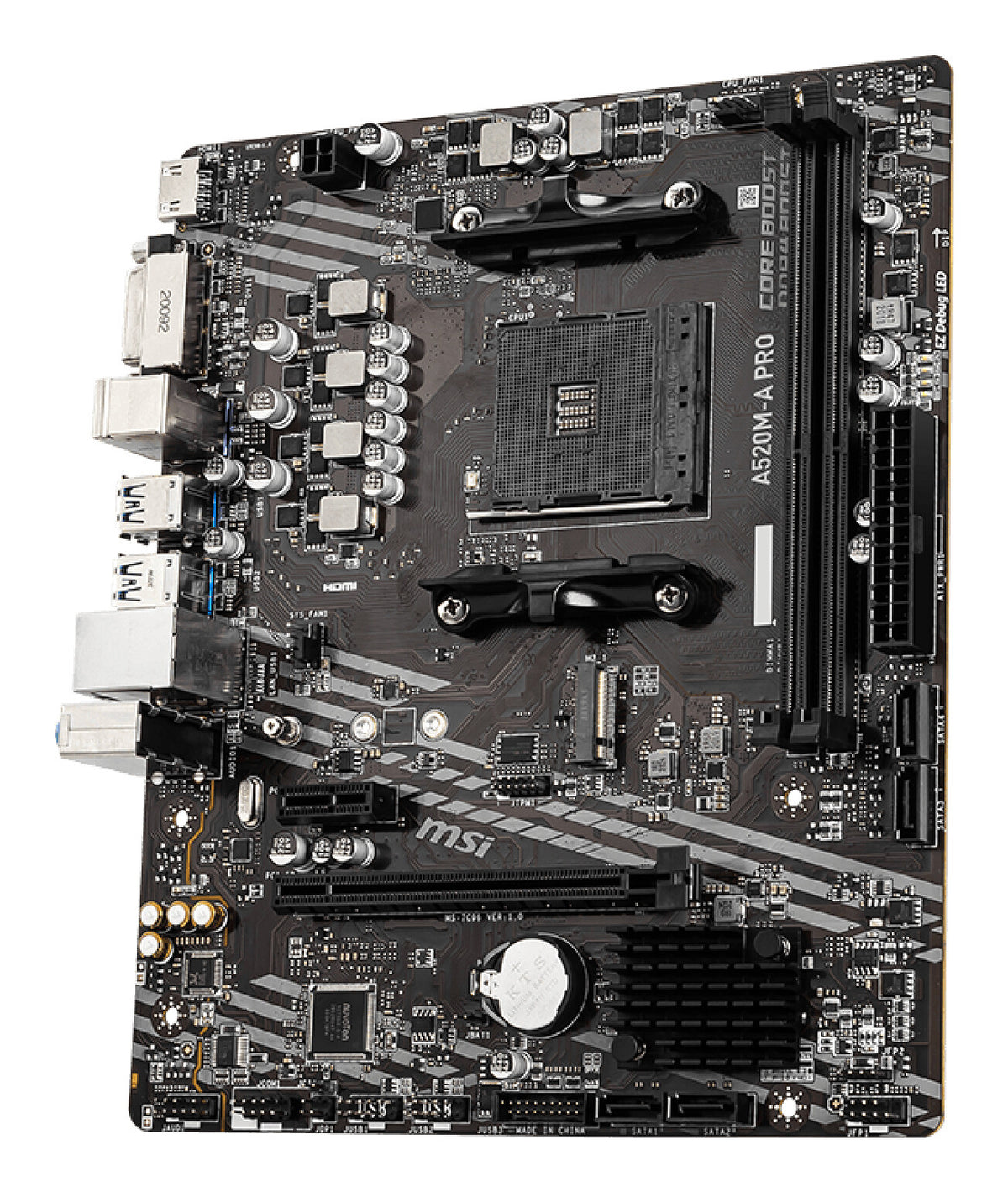

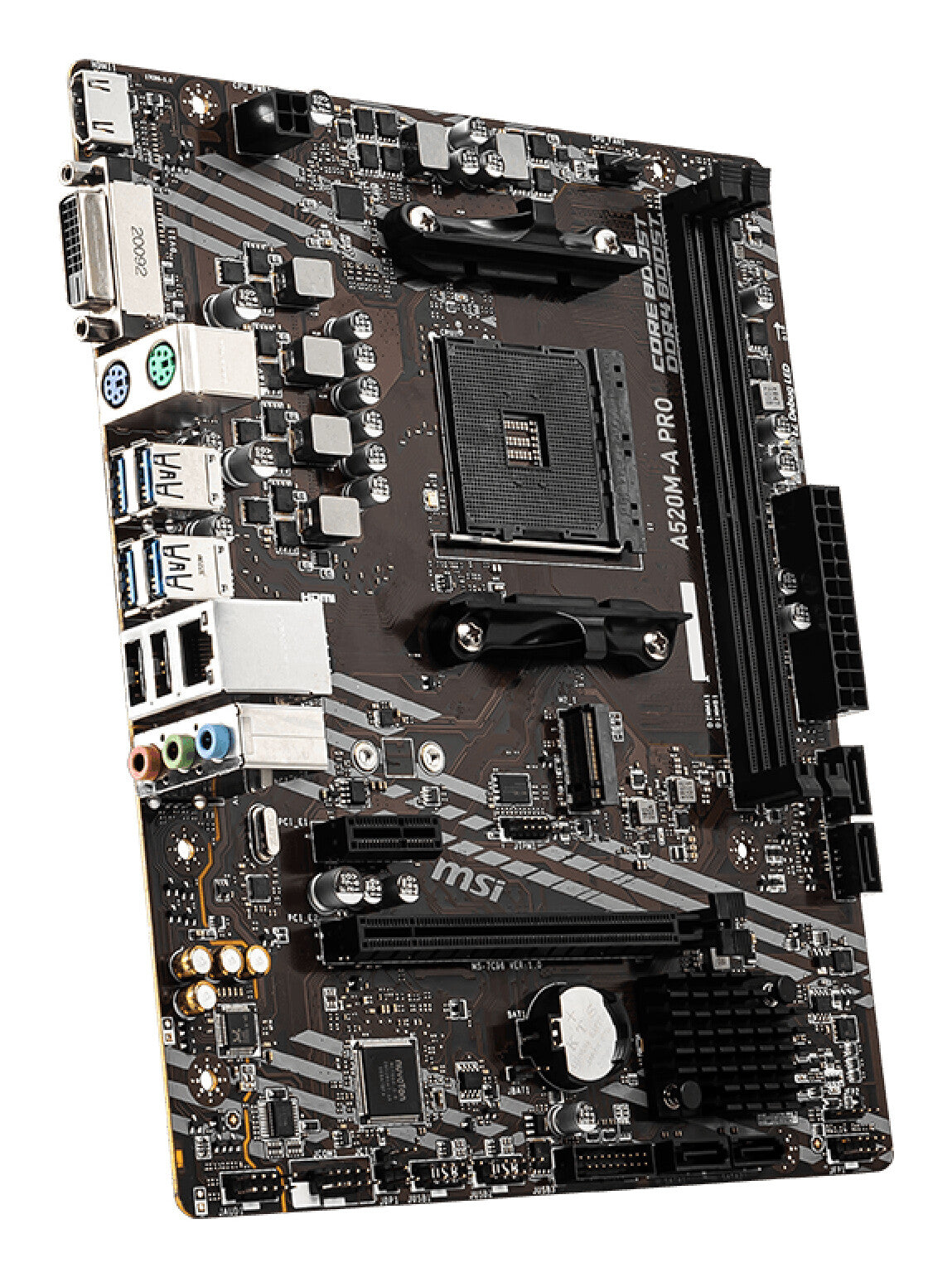

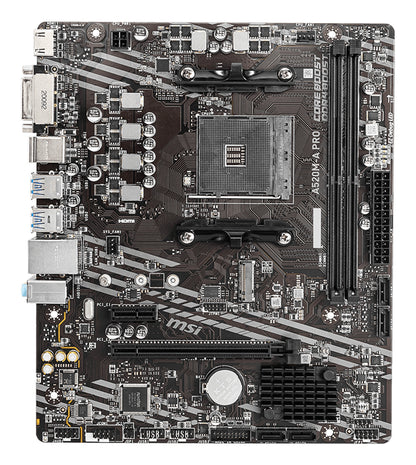

AMD A520, 2x DDDR4, VGA, DVI-D, HDMI, SATA III, M.2, USB 3.2, 1G LAN, Micro-ATX, 244x220 mm
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FULLY FAN CONTROL
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
EZ DEBUG LED
Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.
DOUBLE ESD PROTECTION
ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
USB 3.2 GEN 1
Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM4 |
| Compatible processor series |
AMD Ryzen 3000 Series |
| Maximum number of SMP processors |
1 |
| Memory |
|---|
| Supported memory types |
DDR4-SDRAM |
| Number of memory slots |
2 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
ECC & Non-ECC |
| Supported memory clock speeds |
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
| Maximum internal memory |
64 GB |
| Unbuffered memory |
Yes |
| Storage controllers |
|---|
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
PCI Express 3.0, SATA |
| Number of storage drives supported |
5 |
| Number of HDDs supported |
5 |
| RAID support |
Yes |
| RAID levels |
0, 1, 10 |
| Graphics |
|---|
| On-board graphics card |
No |
| Maximum resolution |
4096 x 2160 pixels |
| Number of displays supported |
2 |
| Internal I/O |
|---|
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of chassis fan connectors |
2 |
| Chassis intrusion connector |
Yes |
| Rear panel I/O ports |
|---|
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| DVI-D ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| LAN controller |
Realtek RTL8111H |
| Wi-Fi |
No |
| Top Wi-Fi standard |
Not available |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD A520 |
| Audio chip |
Realtek ALC892 |
| Audio output channels |
7.1 channels |
| Product colour |
Black |
| Number of mounting holes |
8 |
| Expansion slots |
|---|
| PCI Express x1 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| Number of M.2 (M) slots |
1 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Width |
236 mm |
| Depth |
200 mm |
| Height |
60 mm |
| Other features |
|---|
| Weight |
698 g |
