8 10/100/1000Mbps, IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD, 127 x 60.3 x 22 mm
More Efficient Transmission

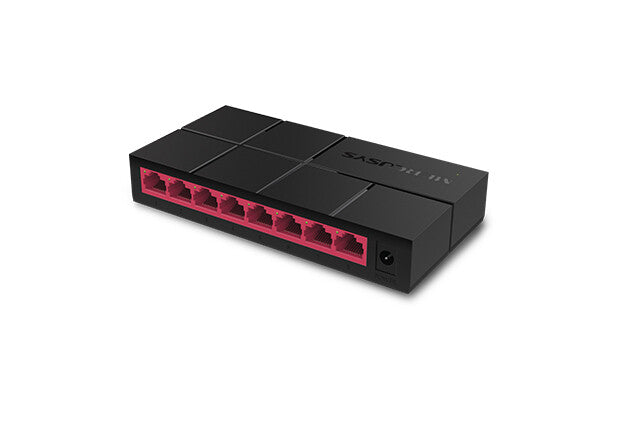

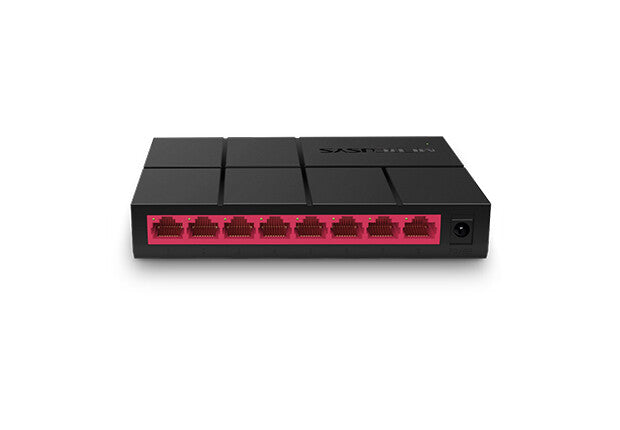

8-Port 10/100/1000 Mbps Desktop Switch

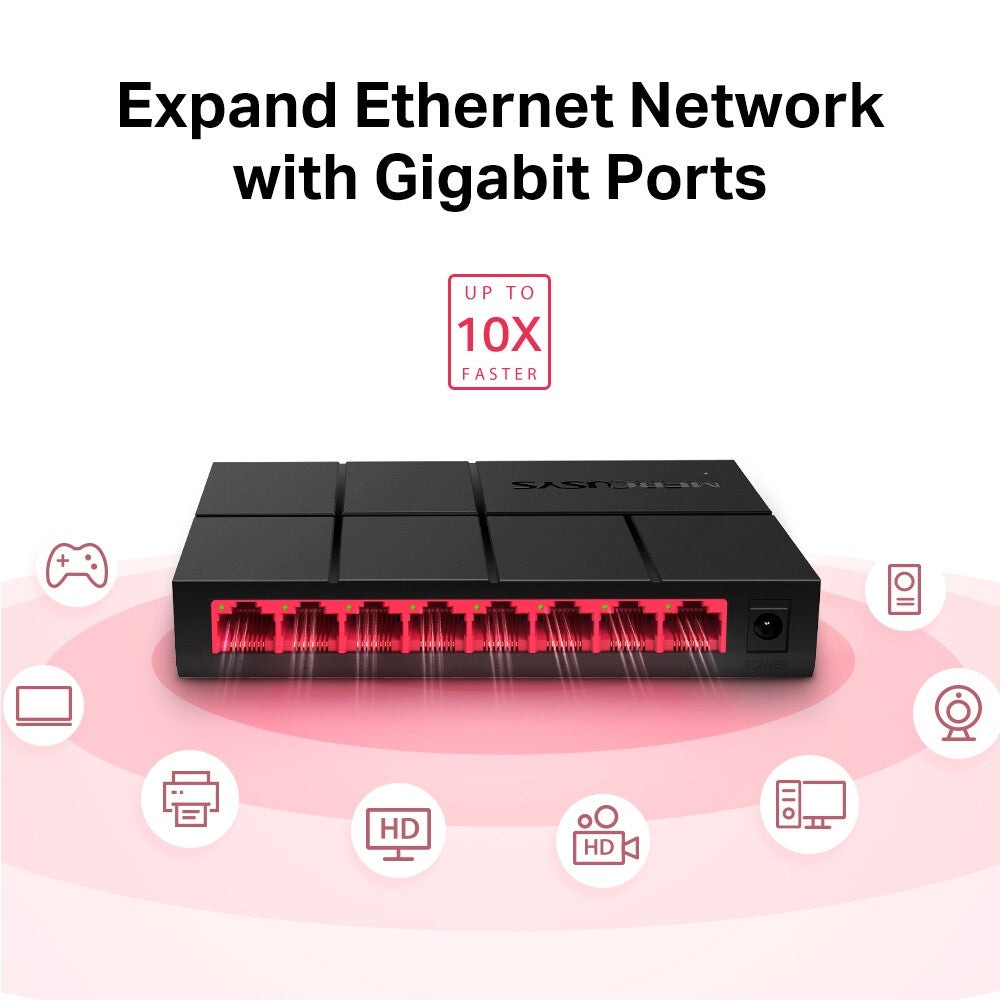

Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS108G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.
Cool, Ultra-Compact Design
A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS108G sits anywhere in your home without taking up too much space.

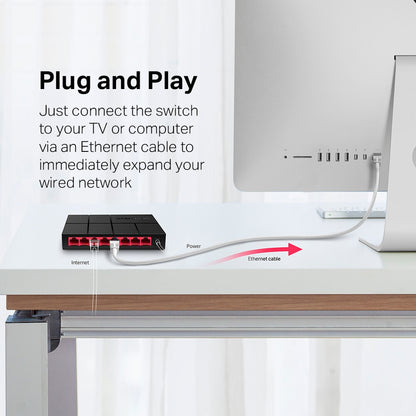

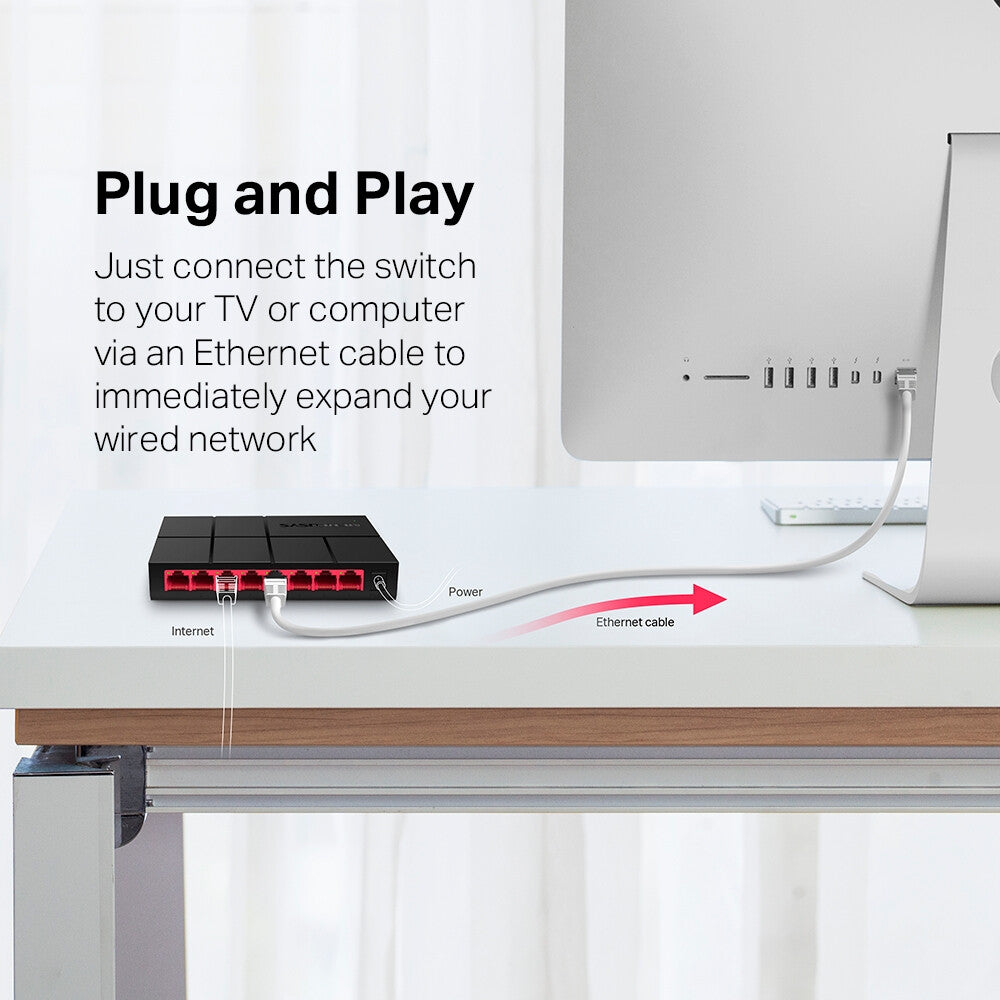

Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS108G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Power connector |
DC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Half duplex |
Yes |
| Full duplex |
Yes |
| Auto-negotiation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Data transmission |
|---|
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Design |
|---|
| Rack mounting |
No |
| Stackable |
No |
| Product colour |
Black |
| LED indicators |
LAN, Power |
| Power |
|---|
| Power source |
DC |
| Power supply included |
Yes |
| Input current |
0.6 A |
| Input voltage |
9 V |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Weight & dimensions |
|---|
| Width |
144.8 mm |
| Depth |
72.3 mm |
| Height |
25 mm |
| Packaging data |
|---|
| Package width |
149 mm |
| Package depth |
93 mm |
| Package height |
62 mm |
| Package weight |
250 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
