Intel Core Ultra 7 255U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 5.2GHz, 12MB Intel Smart Cache, 2x 16GB SODIMM DDR5-5600, 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 16" WUXGA (1920x1200) IPS 400nits 45% NTSC 60Hz, Intel Graphics, Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT5.3, Windows 11 Pro

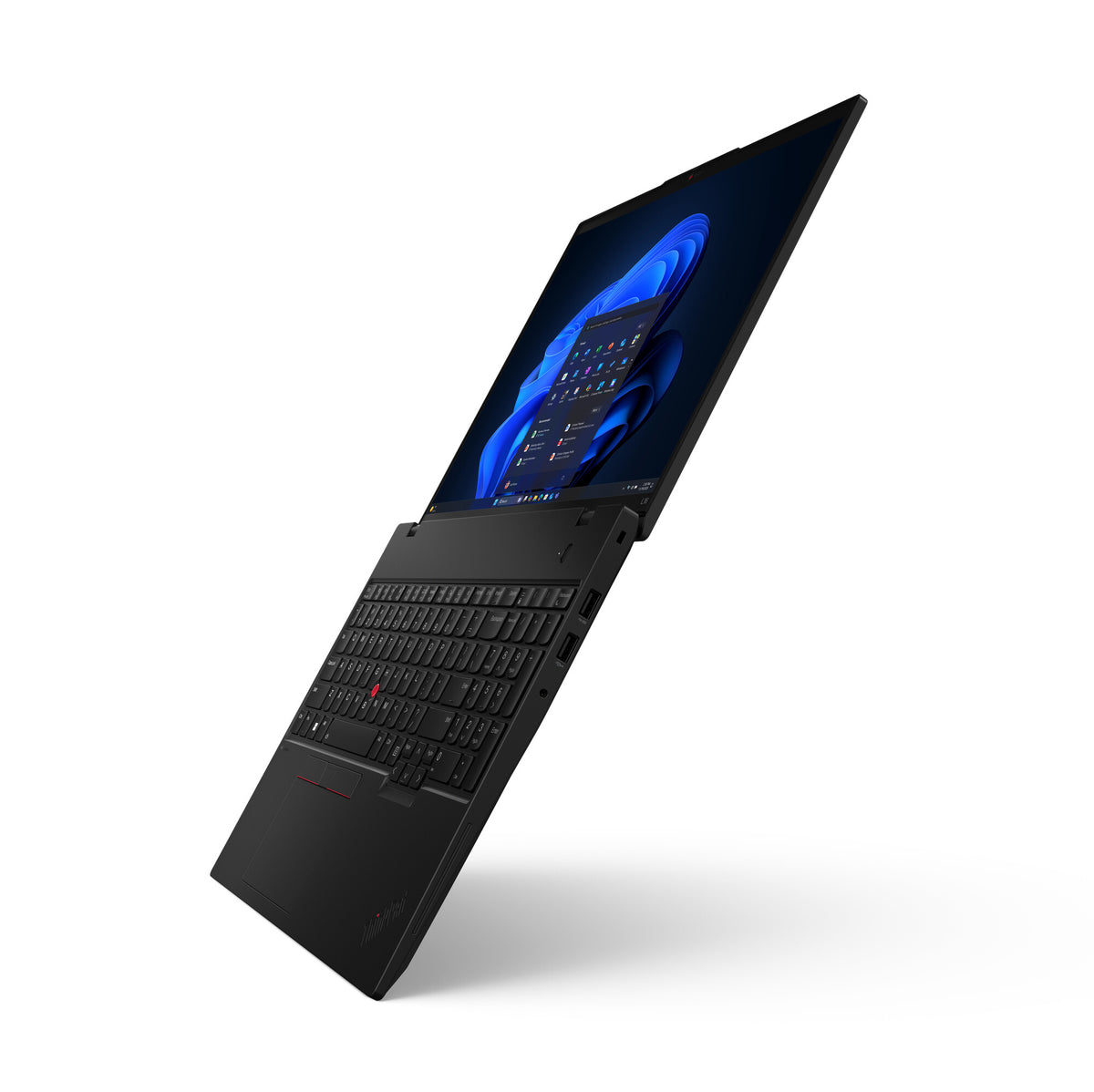

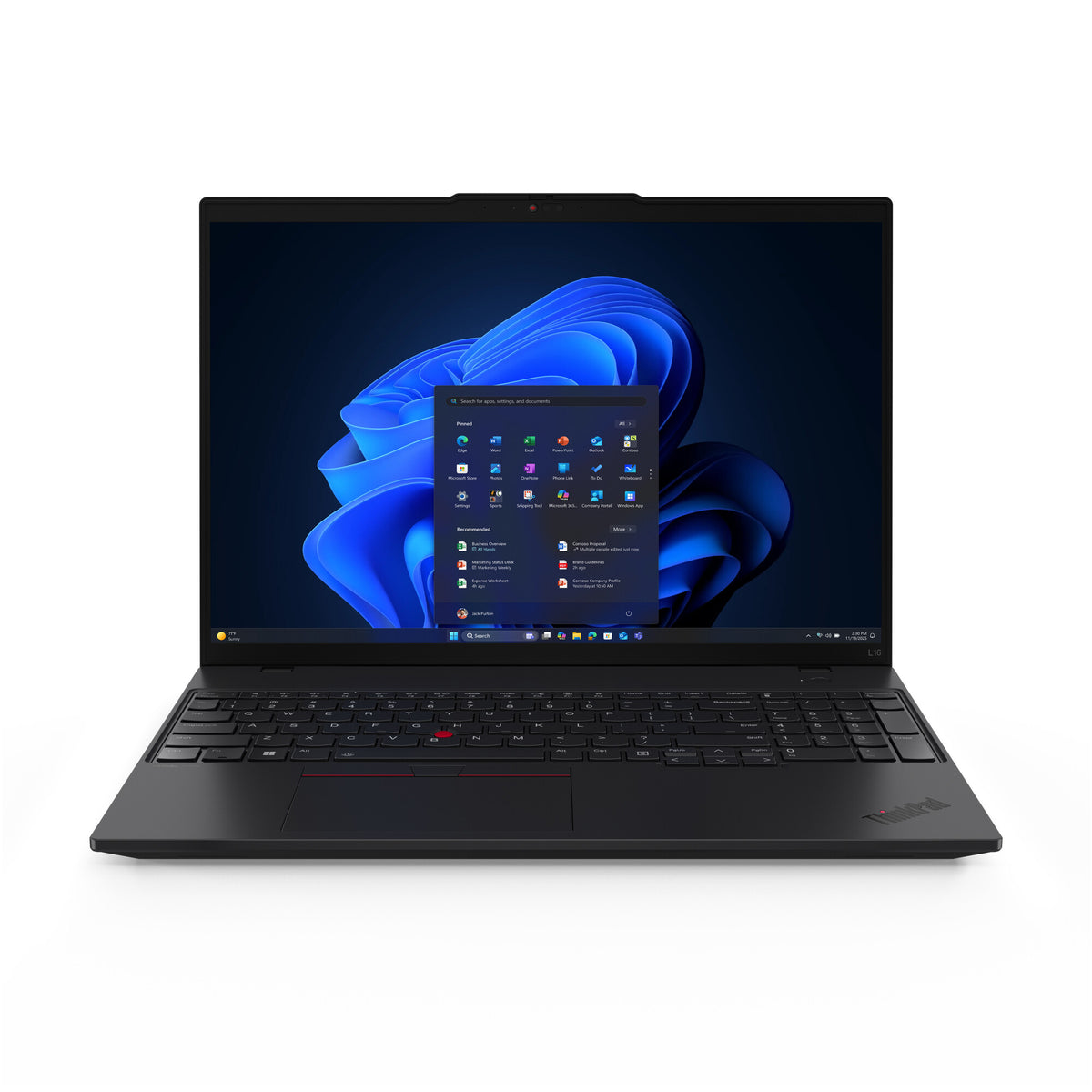

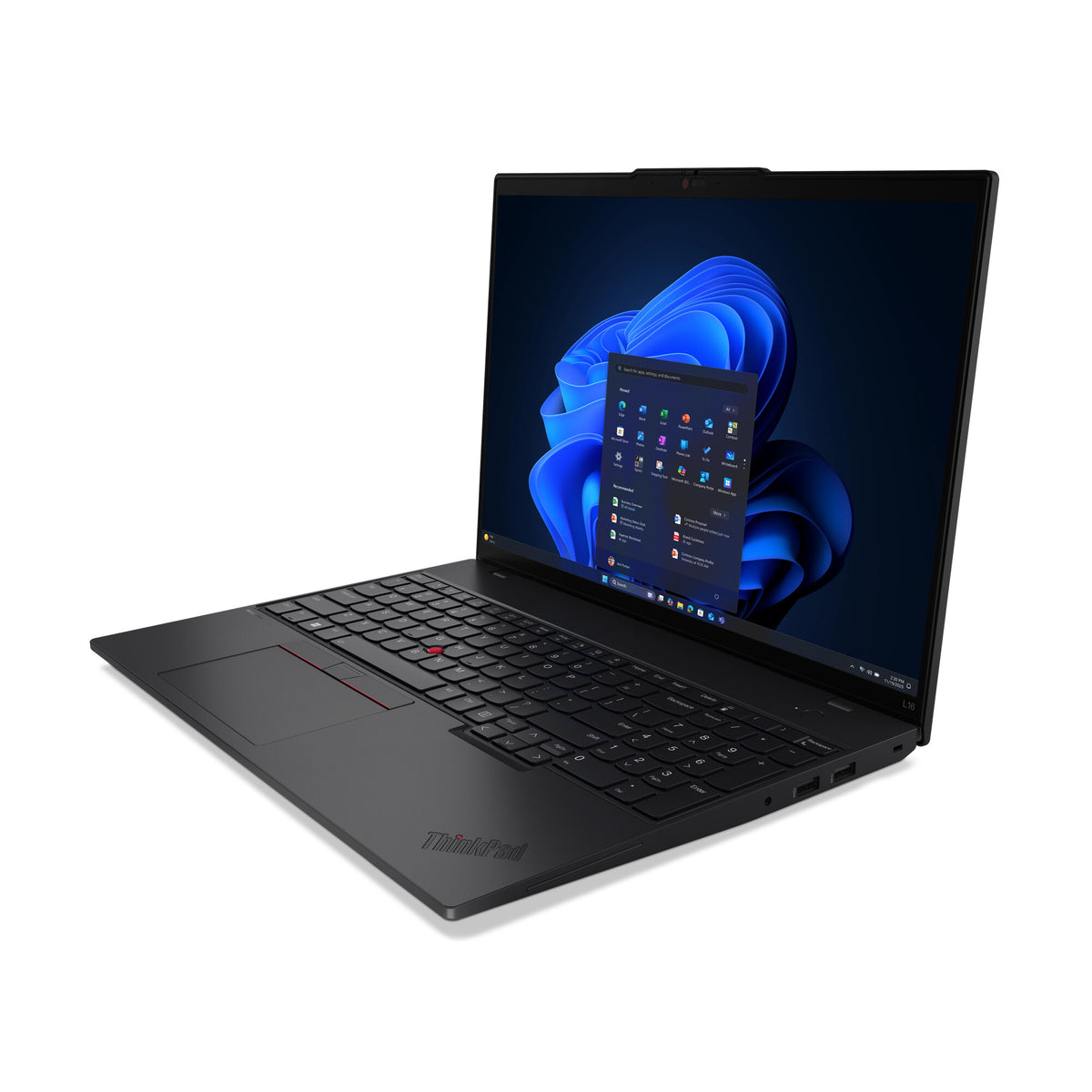

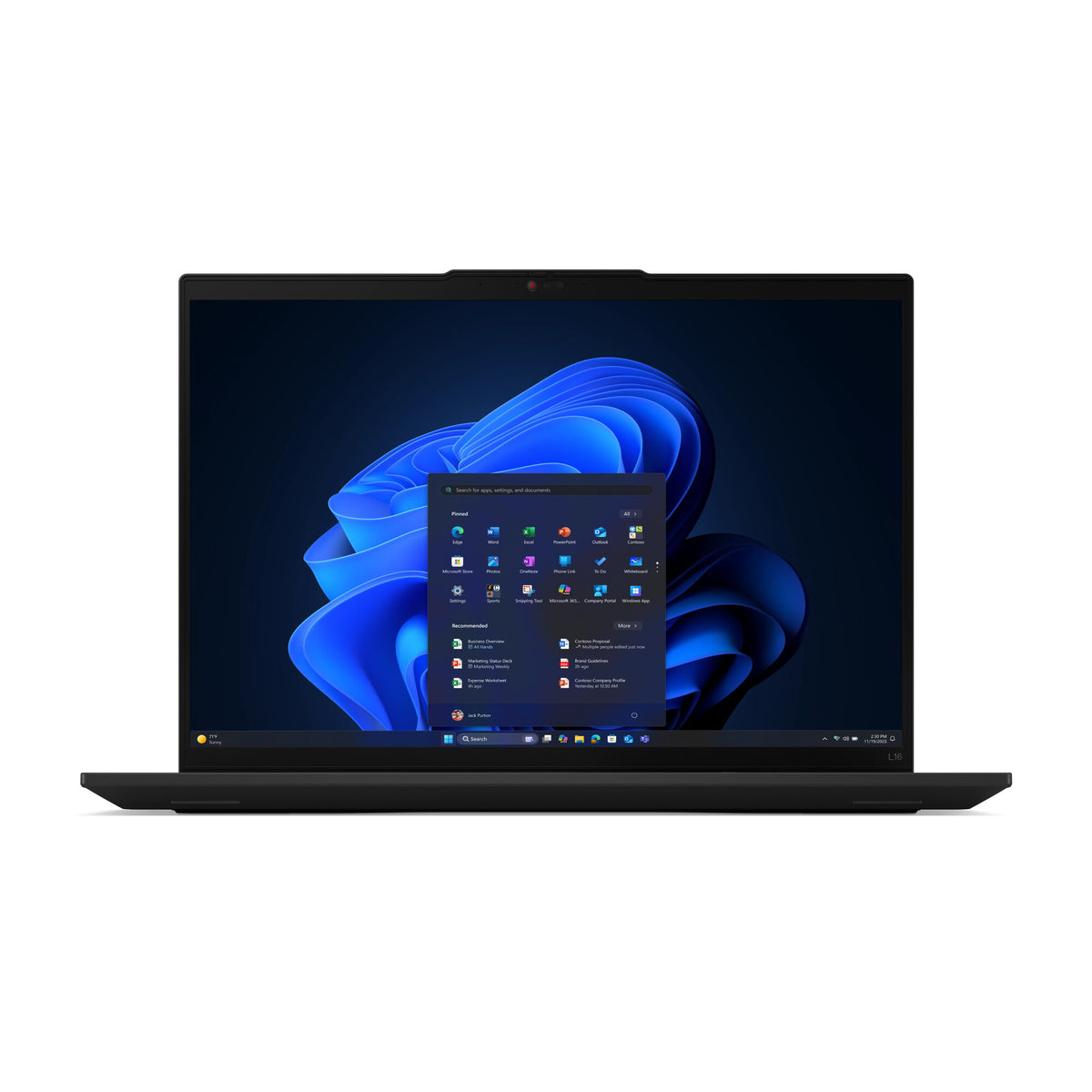

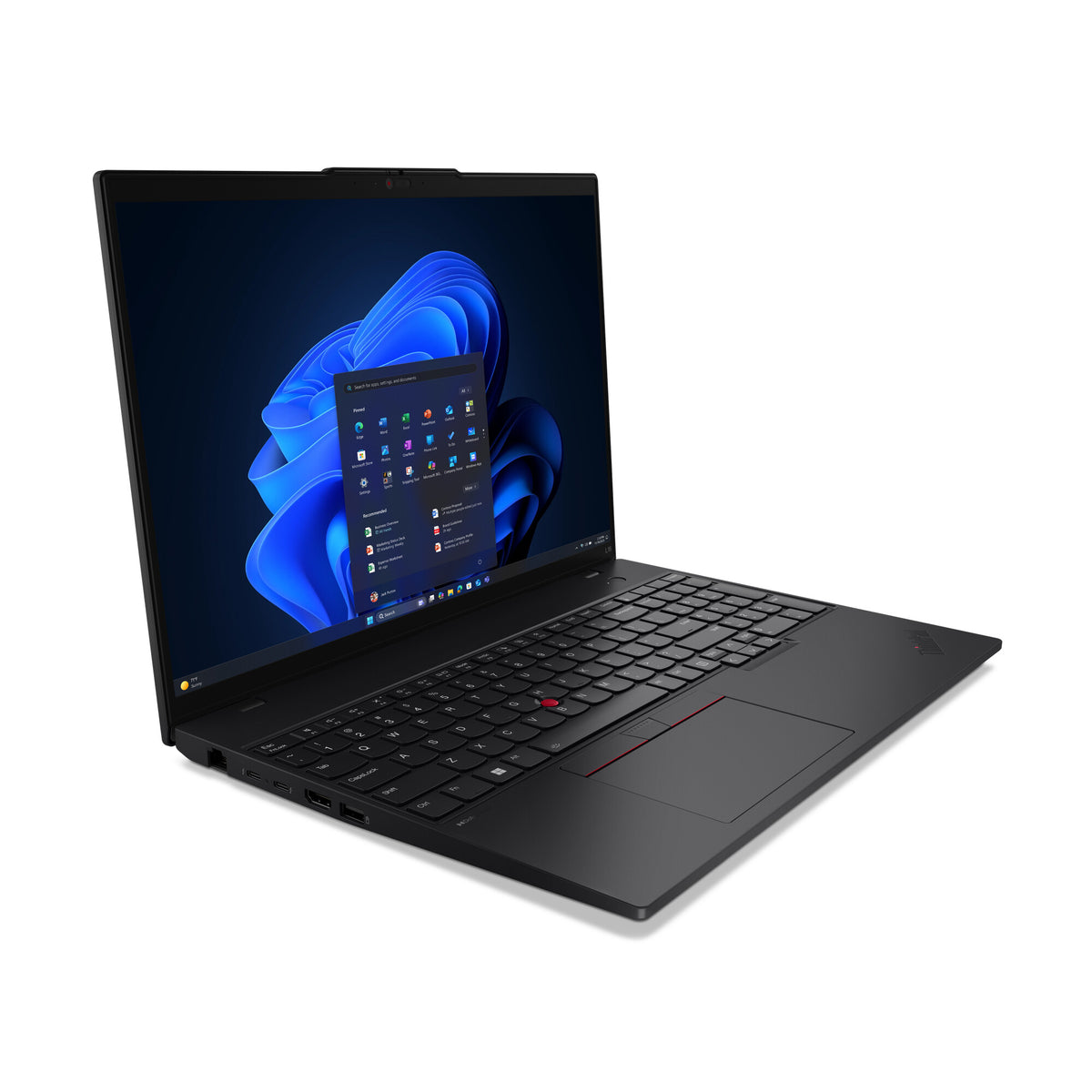

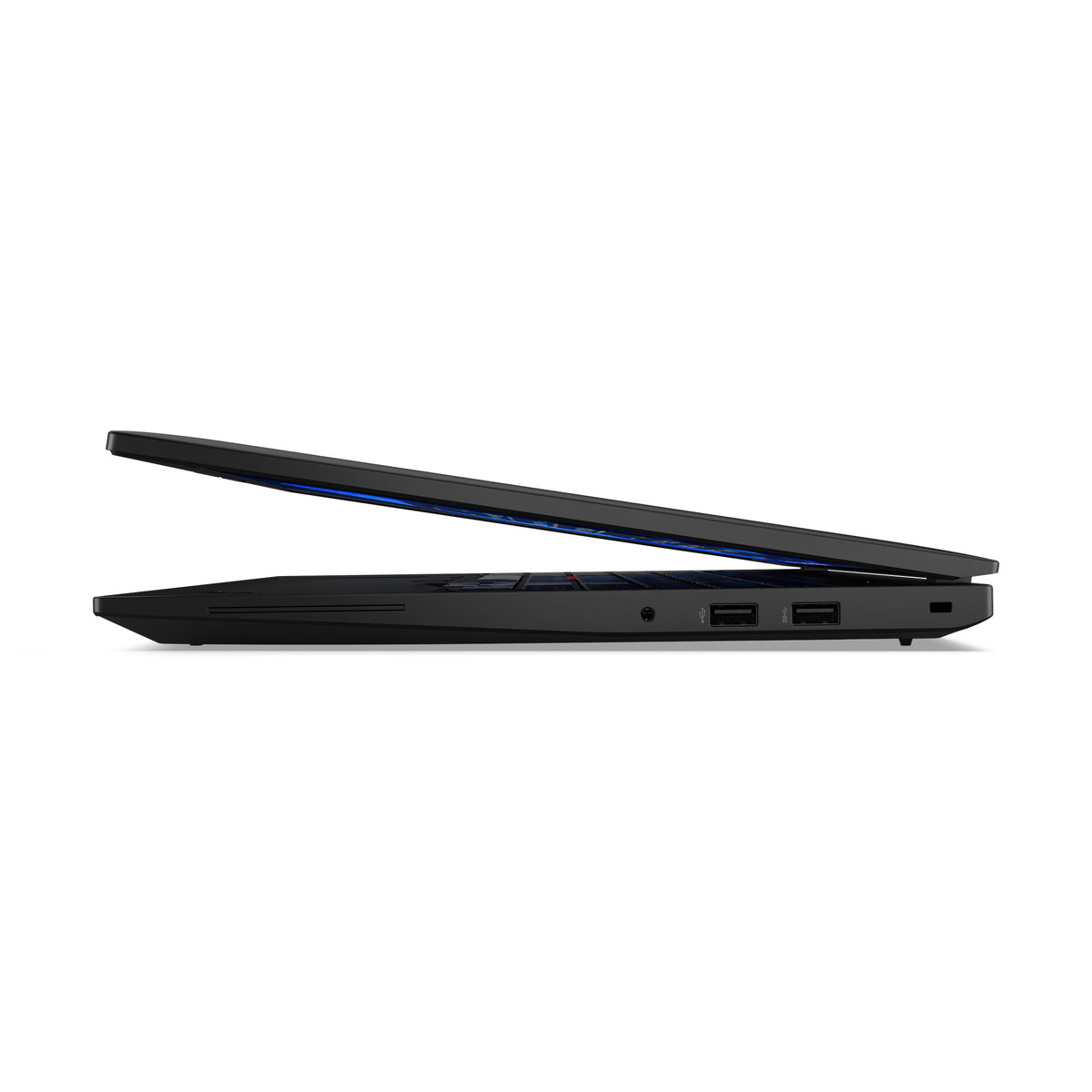

LENOVO ThinkPad L16 Gen 2 |Ultra 7-255U|BLACK|16'' WUXGA|32GB DDR5 (2xSD)|1TB PCIe SSD|LTE|3yr OSS|WIN11 Pro
| Design |
|---|
| Product type |
Laptop |
| Product colour |
Black |
| Form factor |
Clamshell |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Display |
|---|
| Display diagonal |
40.6 cm (16") |
| Display resolution |
1920 x 1200 pixels |
| Touchscreen |
No |
| HD type |
WUXGA |
| Panel type |
IPS |
| LED backlight |
Yes |
| Native aspect ratio |
16:10 |
| Anti-glare screen |
Yes |
| Display brightness |
400 cd/m² |
| Colour gamut |
45% |
| RGB colour space |
NTSC |
| Maximum refresh rate |
60 Hz |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel Core Ultra 7 |
| Processor model |
255U |
| Processor cores |
12 |
| Processor threads |
14 |
| Memory |
|---|
| Internal memory |
32 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory form factor |
SO-DIMM |
| Memory clock speed |
5600 MHz |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
64 GB |
| Storage |
|---|
| Total storage capacity |
1 TB |
| Storage media |
SSD |
| Total SSDs capacity |
1 TB |
| Number of SSDs installed |
1 |
| SSD capacity |
1 TB |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD form factor |
M.2 |
| Optical drive type |
No |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Discrete graphics card model |
Not available |
| On-board GPU manufacturer |
Intel |
| On-board graphics card family |
Intel® Graphics |
| On-board graphics card model |
Intel® Graphics |
| Audio |
|---|
| Audio chip |
Senary SN6147 |
| Number of built-in speakers |
2 |
| Speaker power |
2 W |
| Number of microphones |
2 |
| Built-in microphone |
Yes |
| Camera |
|---|
| Front camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Infrared (IR) camera |
Yes |
| Privacy camera |
Yes |
| Privacy type |
Privacy shutter |
| Network |
|---|
| Mobile network connection |
Yes |
| Mobile network generation |
4G |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Antenna type |
2x2 |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Near Field Communication (NFC) |
No |
| WWAN |
Installed |
| WWAN controller |
Quectel EM061K-GL, 4G LTE CAT6, with Embedded eSIM |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Combo headphone/mic port |
Yes |
| USB Power Delivery |
Yes |
| USB Sleep-and-Charge |
Yes |
| Performance |
|---|
| Motherboard chipset |
Intel SoC |
| Keyboard |
|---|
| Pointing device |
ThinkPad UltraNav |
| Keyboard language |
English |
| Keyboard backlit |
Yes |
| Numeric keypad |
Yes |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Battery |
|---|
| Battery capacity |
46.5 Wh |
| Power |
|---|
| AC adapter power |
65 W |
| Required charging power (max) |
65 W |
| Required charging power (min) |
15 W |
| USB Type-C charging port |
Yes |
| Security |
|---|
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Smart card reader |
No |
| Fingerprint reader |
Yes |
| Windows Hello |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Certificates |
|---|
| Certification |
ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Weight & dimensions |
|---|
| Weight |
1.79 kg |
| Width |
357.2 mm |
| Depth |
253.4 mm |
| Height (front) |
1.1 cm |
| Height (rear) |
1.97 cm |
| General |
|---|
| Product family |
ThinkPad |
| Other features |
|---|
| AC adapter included |
Yes |
