Kingston Technology

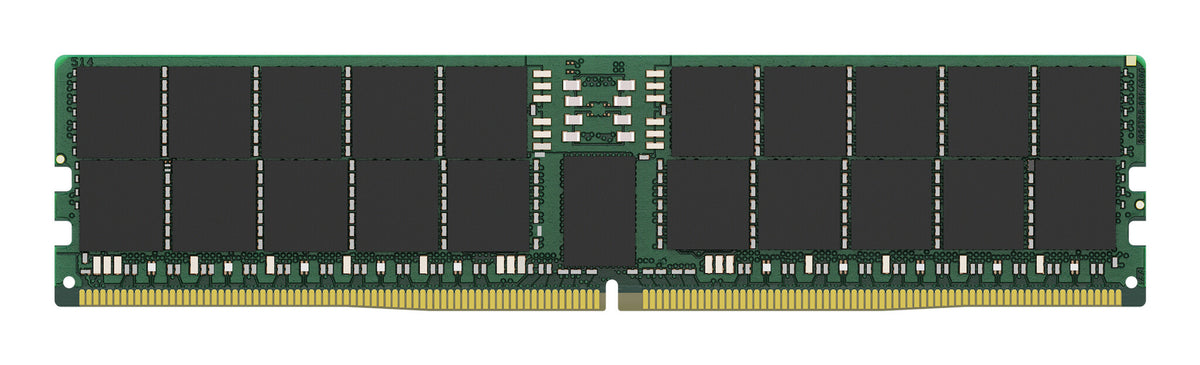

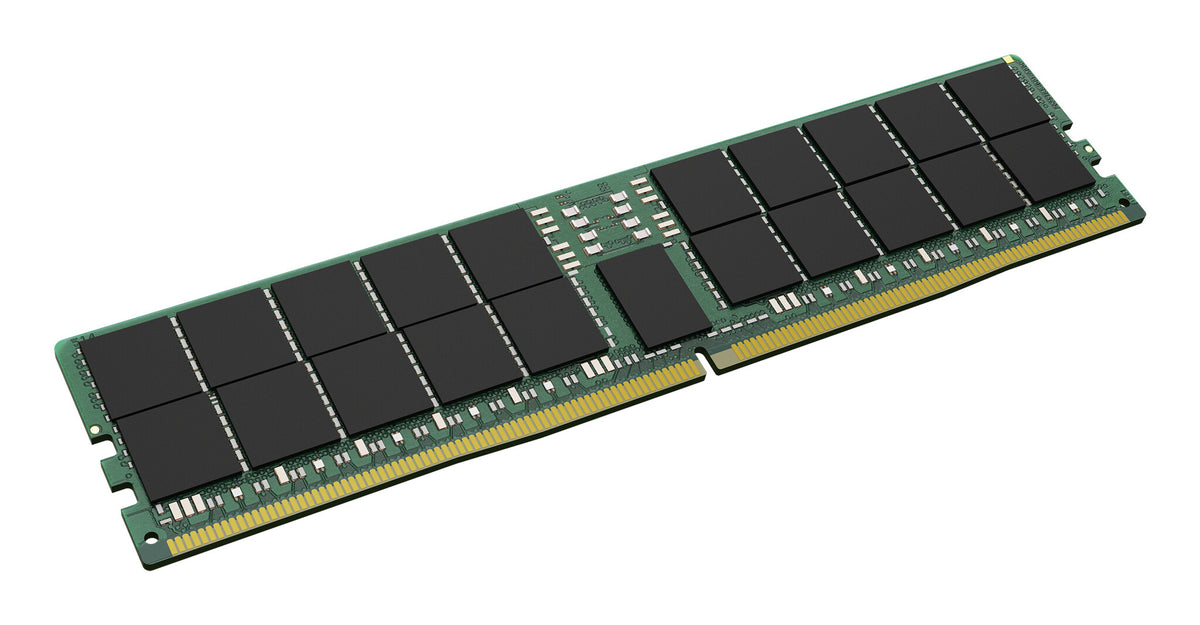

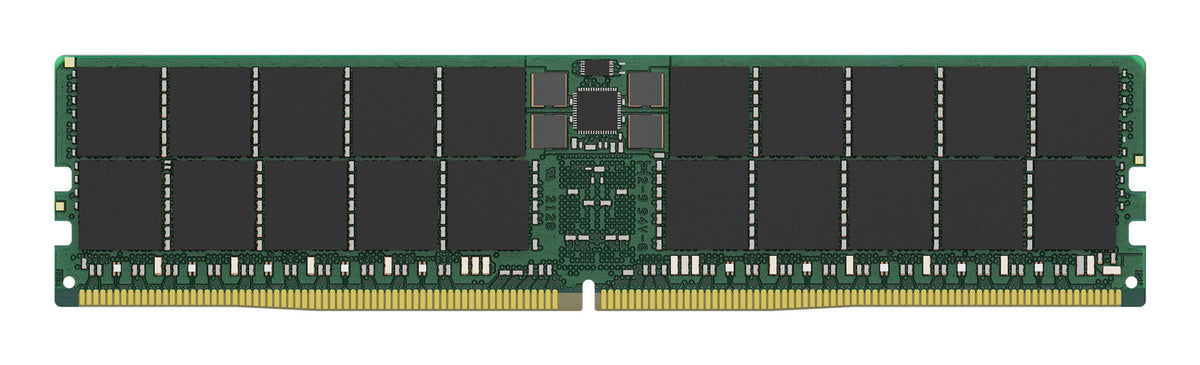

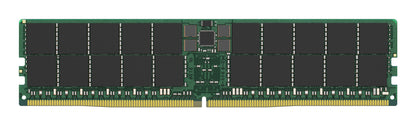

Kingston Technology KSM64R52BD4-64MD memory module 64 GB 1 x 64 GB DDR5 6400 MT/s 288-pin DIMM

R 56,716.62

KSM64R52BD4-64MD

Out of stock
R 56,716.62
R 56,716.62
Shipping calculated at checkout.

Incl VAT

Sorry, it's out of stock.

But we can let you know when it's back in.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

    64GB, DDR5 6400MT/s, ECC, Registered, DIMM, CL52, x80, 2RX4, 1.1V, 288-pin, 16Gbit, Micron D

    Kingston's KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

    Features
    Buffered memory type Registered (buffered)
    Internal memory 64 GB
    Memory layout (modules x size) 1 x 64 GB
    Internal memory type DDR5
    Component for PC/Server
    Memory form factor 288-pin DIMM
    ECC No
    On-Die ECC Yes
    CAS latency 52
    Memory data transfer rate 6400 MT/s
    Memory ranking 2
    Memory voltage 1.1 V
    Module configuration 8192M x 80
    Row cycle time 48 ns
    Refresh row cycle time 295 ns
    Row active time 32 ns
    SPD profile Yes
    Programming power voltage (VPP) 1.8 V
    Lead plating Gold
    JEDEC standard Yes
    Operational conditions
    Operating temperature (T-T) 0 - 95 °C
    Storage temperature (T-T) -55 - 100 °C
    Technical details
    Compliance certificates RoHS
    Sustainability
    Doesn't contain Halogen
    Weight & dimensions
    Width 133.3 mm
    Height 31.2 mm
