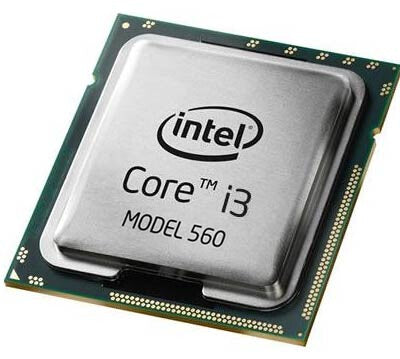

Intel® Core™ i3-560 Processor
(4M Cache, 3.33 GHz)
Smart performance starts here
The Intel® Core™ i3 processor family with Intel® HD Graphics delivers a revolutionary new architecture for an unparalleled computing experience.
As the first level in Intel's new processor family, the Intel Core i3 processor is the perfect entry point for a fast, responsive PC experience.
This processor comes equipped with Intel HD Graphics, an advanced video engine that delivers smooth, high-quality HD video playback, and advanced 3D capabilities, providing an ideal graphics solution for everyday computing.
A smart choice for home and office, the Intel Core i3 processor also features Intel® Hyper-Threading Technology, which enables each core of your processor to work on two tasks at the same time, delivering the performance you need for smart multitasking. Do not let too many open applications slow you and your PC down. Get smart performance now.
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel® Core™ i3 |
| Processor generation |
Intel® Core™ i3 |
| Processor model |
i3-560 |
| Processor base frequency |
3.33 GHz |
| Processor cores |
2 |
| Processor socket |
LGA 1156 (Socket H) |
| Processor lithography |
32 nm |
| Cooler included |
Yes |
| Component for |
PC |
| Processor series |
Intel Core i3-500 Desktop Series |
| Processor threads |
4 |
| System bus rate |
2.5 GT/s |
| Processor operating modes |
64-bit |
| Processor cache |
4 MB |
| Processor cache type |
Smart Cache |
| L3 cache speed |
3.33 GHz |
| Thermal Design Power (TDP) |
73 W |
| VID Voltage Range |
0.65 - 1.4 V |
| Compatible chipsets |
Intel® H55 Express, Intel® H57 Express, Intel® P55 Express, Intel® Q57 Express |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Processor codename |
Clarkdale |
| Processor code |
SLBY2 |
| Processor ARK ID |
50177 |
| Generation |
5th Generation |
| Memory |
|---|
| Maximum internal memory supported by processor |
16 GB |
| Memory types supported by processor |
DDR3-SDRAM |
| Memory clock speeds supported by processor |
1066,1333 MHz |
| Memory channels |
Dual-channel |
| Graphics |
|---|
| On-board graphics card |
Yes |
| On-board graphics card model |
Intel® HD Graphics |
| On-board graphics card base frequency |
733 MHz |
| Number of displays supported (on-board graphics) |
2 |
| Features |
|---|
| Thermal Monitoring Technologies |
No |
| Idle States |
Yes |
| Execute Disable Bit |
Yes |
| Market segment |
Desktop |
| Maximum number of PCI Express lanes |
16 |
| PCI Express slots version |
2.0 |
| PCI Express configurations |
1x16, 2x8 |
| Number of Processing Die Transistors |
382 M |
| Processing Die size |
81 mm² |
| Number of Graphics & IMC Die Transistors |
177 M |
| Graphics & IMC Die Size |
114 mm² |
| Supported instruction sets |
SSE4.2 |
| Physical Address Extension (PAE) |
Yes |
| Graphics & IMC lithography |
45 nm |
| CPU configuration (max) |
1 |
| PCI Express CEM revision |
2.0 |
| Embedded options available |
No |
| Export Control Classification Number (ECCN) |
3A991 |
| Commodity Classification Automated Tracking System (CCATS) |
NA |
| Processor special features |
|---|
| Intel® Smart Cache |
Yes |
| Intel Dual Display Capable Technology |
Yes |
| Intel FDI Technology |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel Trusted Execution Technology |
No |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
No |
| Intel® Turbo Boost Technology |
No |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel Demand Based Switching |
No |
| Intel® vPro™ Platform Eligibility |
No |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel 64 |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| General |
|---|
| Product series |
i3 |
| Product family |
Core |
| Operational conditions |
|---|
| Tcase |
72.6 °C |
| Packaging data |
|---|
| Package width |
81 mm |
| Package depth |
114 mm |
| Package height |
102 mm |
| Package weight |
338 g |
| Package type |
Box |
| Technical details |
|---|
| Processor cache |
4096 KB |
| Product type |
Processor |
| Supported memory types |
DDR3-SDRAM |
| Product name |
Intel Core i3-560 (4M Cache, 3.33 GHz) |
| Processor core voltage |
0.6500-1.4000 V |
| Born on date |
Q3'10 |
| Product family |
Previous Generation Intel Core i3 Processor |
| Last change |
63903513 |
| Processor brand name |
Intel Core i3 |
| Bus type units |
GT/s |
| Bus bandwidth |
2.5 |
| Bus speed |
2.5 GT/s |
| Maximum memory |
16.38 GB |
| Status |
Discontinued |
| Launch date |
Q3'10 |
| Logistics data |
|---|
| Harmonized System (HS) code |
8542310001 |
| Weight & dimensions |
|---|
| Processor package size |
37.5 x 37.5 mm |
| Other features |
|---|
| Intel® Virtualization Technology (Intel® VT) |
VT-x |
| Cache memory |
4 MB |
| Maximum internal memory |
16.38 GB |
| Compatibility |
Intel S3420GPLC, S3420GPLX, S3420GPV, S3420GPRX, SR1630GP, SR1630HGP, SR1630GPRX, SR1630HGPRX |
