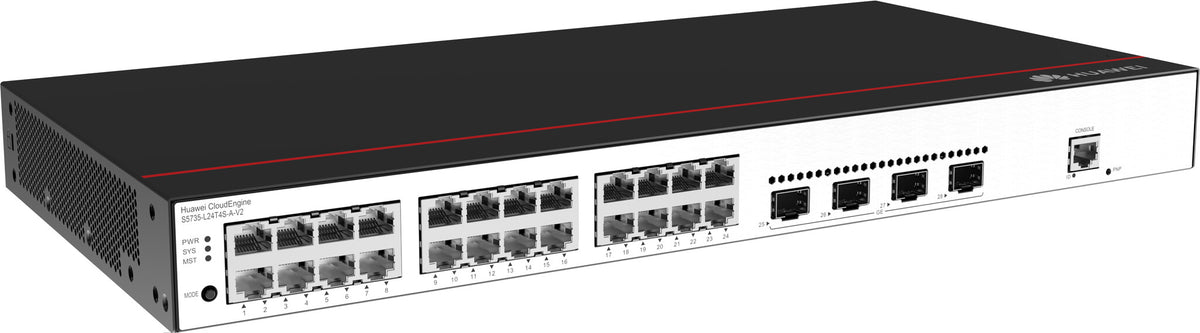

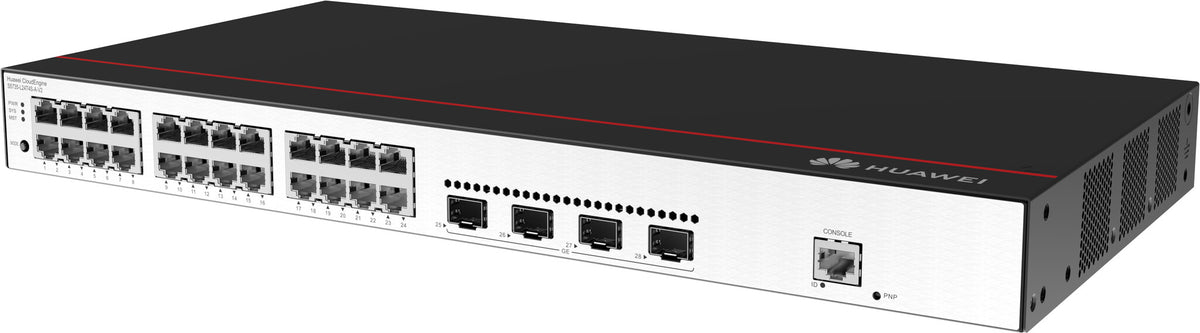

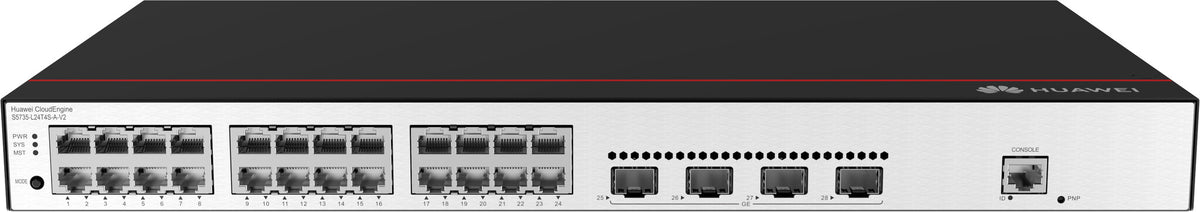

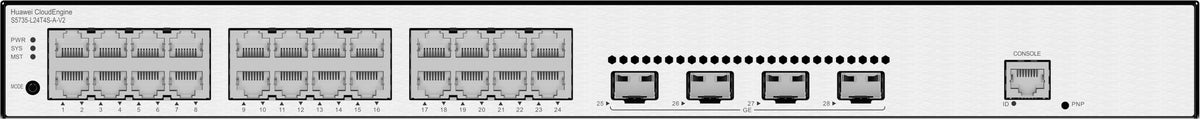

24x RJ-45, 4x SFP, 56 Gbps switching capacity, 1U, VLAN, Static route
Based on the next-generation high-performance hardware and Huawei's unified software platform, the CloudEngine S5735-L-V2 series switches feature flexible Ethernet networking, various security control methods, and easy O&M.
These switches support multiple Layer 3 routing protocols, provide higher performance, and offer more service processing capabilities, making them ideal for various industries, such as healthcare, retail, mining, and Internet.
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L3 |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity |
4 |
| Console port |
RJ-45 |
| Network |
|---|
| Networking standards |
IEEE 802.1x |
| 10G support |
No |
| IP routing |
Yes |
| MAC address auto-aging supported |
Yes |
| MAC address auto-learning supported |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
IP subnet–based VLAN, MAC address-based VLAN, Multiple VXLAN (MUX VLAN), Policy-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs |
4094 |
| Data transmission |
|---|
| Switching capacity |
56 Gbit/s |
| Forwarding rate |
51 Mpps |
| Static route |
Yes |
| Security |
|---|
| Access Control List (ACL) |
Yes |
| MAC address entries |
Blackhole MAC address entries, Dynamic MAC address entries, Static MAC address entries |
| Protocols |
|---|
| Routing protocols |
OSPF, OSPFv3, RIP-1, RIP-2, RIPng |
| Design |
|---|
| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
Black, Silver |
| LED indicators |
Yes |
| Airflow direction |
Side-to-side airflow |
| General |
|---|
| Product family |
CloudEngine |
| Performance |
|---|
| Internal memory |
2048 MB |
| Flash memory |
1000 MB |
| Noise level |
35 dB |
| Mean time between failures (MTBF) |
619770 h |
| Power |
|---|
| Power source |
AC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
26.37 W |
| Power consumption (max) |
34.04 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 5000 m |
| Non-operating altitude |
0 - 5000 m |
| Heat dissipation |
89.98 BTU/h |
| Weight & dimensions |
|---|
| Width |
442 mm |
| Depth |
220 mm |
| Height |
43.6 mm |
| Weight |
2.32 kg |
| Packaging data |
|---|
| Package width |
550 mm |
| Package depth |
360 mm |
| Package height |
90 mm |
| Package weight |
3.44 kg |
