4.3" LCD, 2MP, M1, 0.2 s/U, Wi-Fi, RJ-45, TAMPER, Wiegand, RS-485, USB, PoE, 12 VDC, IP65, Linux

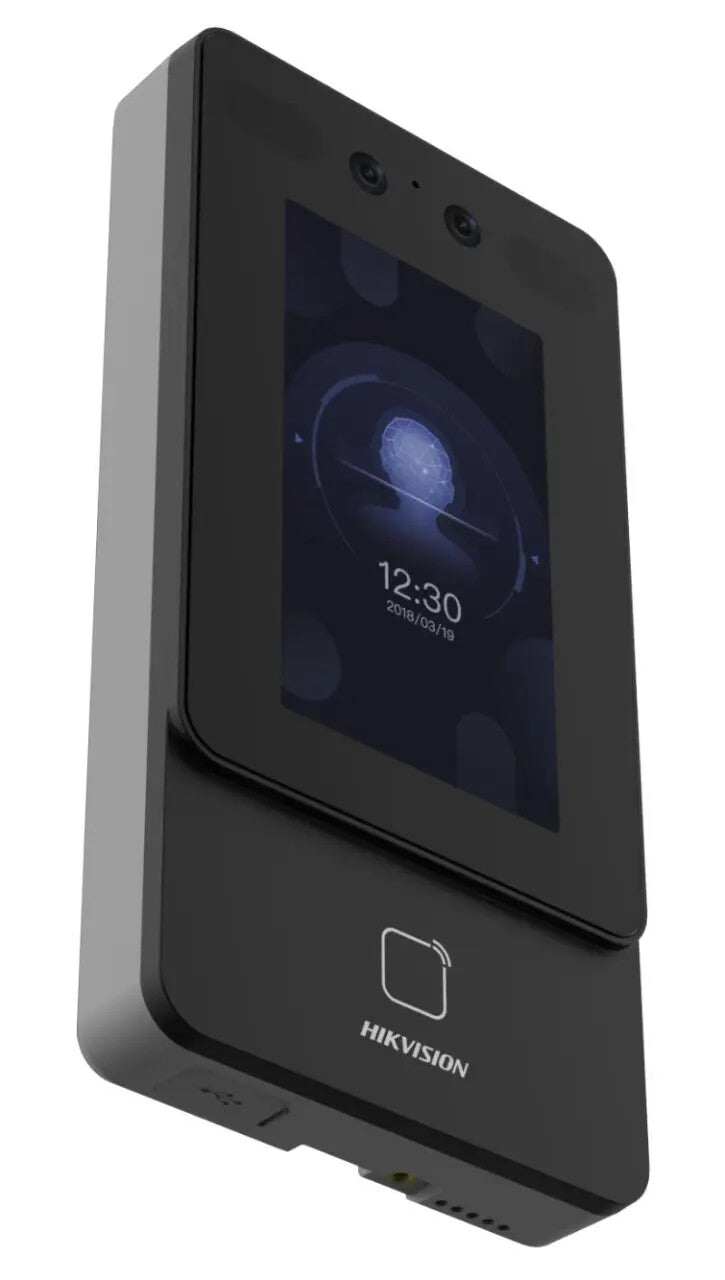

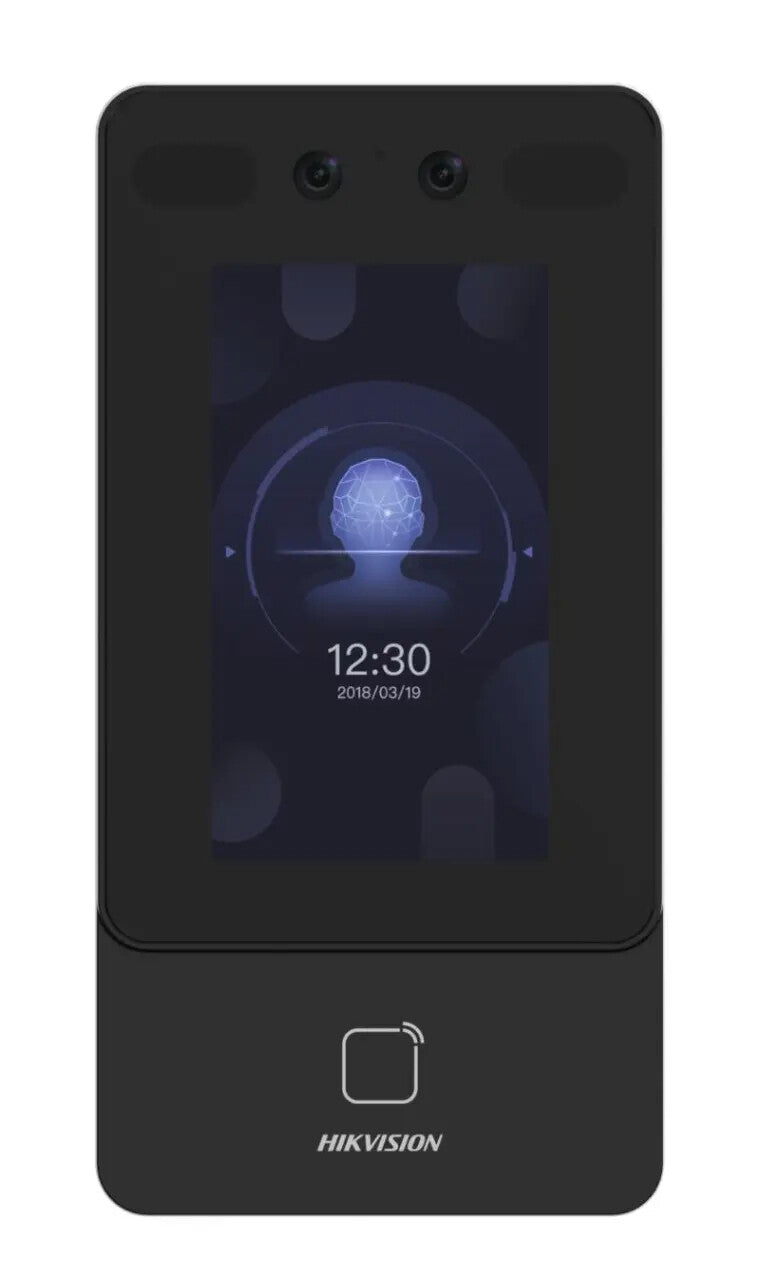

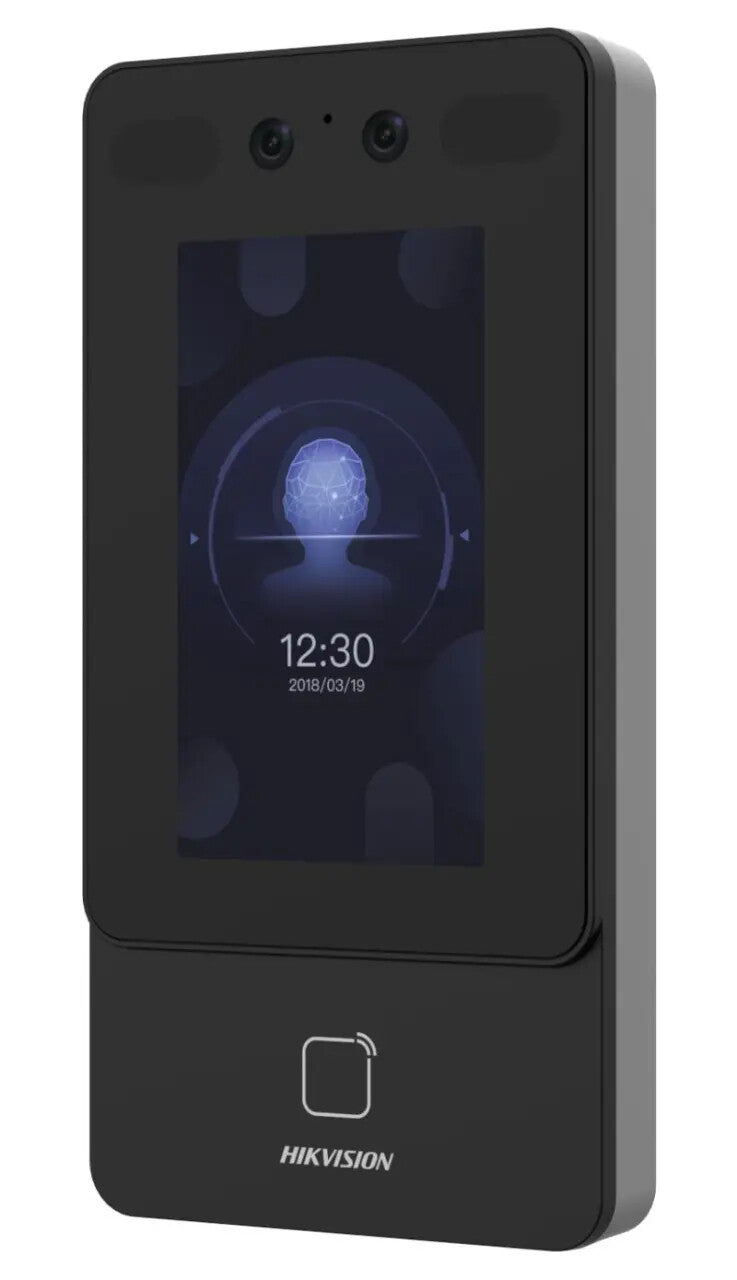

Face recognition terminal adopts deep learning algorithm, which helps to recognize the face faster with higher accuracy. It also supports multiple authentication modes: face/card authentication, etc. It can be applied in multiple scenarios, such as buildings, enterprises, financial industries, and other important areas.
| Display |
|---|
| Touchscreen |
Yes |
| Screen shape |
Flat |
| Touchscreen technology |
Capacitive |
| Display resolution |
272 x 480 pixels |
| Display diagonal |
10.9 cm (4.3") |
| Display technology |
LCD |
| Camera |
|---|
| Number of lenses |
2 |
| Number of cameras |
2 |
| Sensor type |
CMOS |
| Camera resolution (numeric) |
2 MP |
| Features |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
-30 - 60 °C |
| Cards capacity |
3000 cards |
| Languages support |
Multi |
| Time synchronization |
Yes |
| Built-in access controller |
Yes |
| Tamper |
Yes |
| Authentication card type |
M1 |
| Card reading frequency |
13.56 MHz |
| International Protection (IP) code |
IP65 |
| Analog signal format system |
NTSC, PAL |
| Lock control |
Yes |
| Audio prompt |
Yes |
| Exit button |
Yes |
| Supported network protocols |
ISAPI, ISUP 5.0 |
| Event capacity |
150000 |
| Face anti-spoofing |
Yes |
| Face recognition accuracy |
99% |
| Face recognition duration |
0.2 s |
| Face capacity |
1500 |
| Face recognition distance |
0.3 - 1.5 m |
| Housing colour |
Black |
| Ports & interfaces |
|---|
| Door contact input |
1 |
| Wiegand interface |
Yes |
| RS-485 ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB port |
Yes |
| Power |
|---|
| Input current |
1 A |
| Input voltage |
12 V |
| General |
|---|
| Product family |
Value Series |
| System requirements |
|---|
| Operating system installed |
Linux |
| Network |
|---|
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Packaging content |
|---|
| Power supply included |
Yes |
| Weight & dimensions |
|---|
| Package weight |
930 g |
| Weight |
360 g |
| Height |
181.3 mm |
| Depth |
24.5 mm |
| Width |
91.3 mm |
