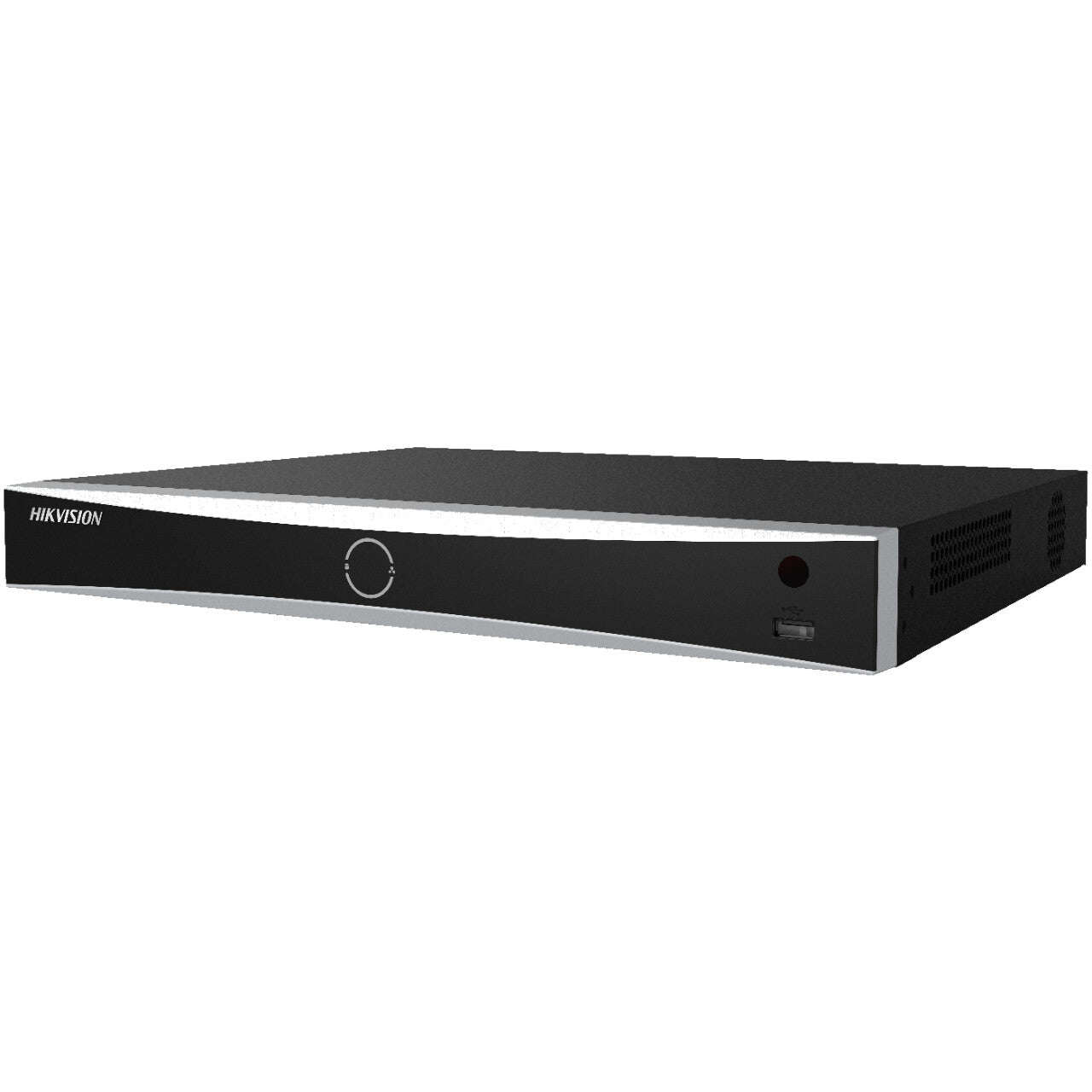

8-ch 1U K Series AcuSense 4K NVR, H.265+, HDMI, VGA, RCA, SATA, RJ-45, 12 VDC, 3.3 A
Smart Function
- All channels support Motion Detection 2.0
- 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture
- Smart search for the selected area in the video, and smart playback to improve the playback efficiency
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
HD Video Output
- Provide simultaneous HDMI and VGA outputs
- HDMI video output at up to 4K resolution
Storage and Playback
- Up to 2 SATA interface for HDD connection (up to 10 TB)
- 4-ch synchronous playback
Network & Ethernet Access
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect for easy network managemen
| Performance |
|---|
| Video input channels |
8 channels |
| Alarm input channels |
4 |
| Number of simultaneously playbacked channels |
8 channels |
| Alarm output channels |
1 |
| Supported resolutions |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Maximum resolution |
3840 x 2160 pixels |
| Audio formats supported |
AAC, G.711 A-law, G.711 μ-law, G.722, G.726 |
| Video formats supported |
H.264, H.264+, H.265, H.265+ |
| Output bandwidth |
160 Mbit/s |
| Input bandwidth |
80 Mbit/s |
| Maximum frame rate |
30 fps |
| Face detection |
Yes |
| Wireless LAN features |
|---|
| Wi-Fi |
No |
| Hard drive |
|---|
| HDD capacity |
10 TB |
| Number of HDDs supported |
2 |
| Maximum storage capacity |
20 TB |
| HDD interface |
SATA |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| HDMI output |
Yes |
| HDMI ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) output ports |
1 |
| Audio RCA inputs |
1 |
| Audio RCA outputs |
1 |
| Internal SATA ports quantity |
2 |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Supported network protocols |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Features |
|---|
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Product colour |
Black |
| Power |
|---|
| Power consumption (typical) |
15 W |
| Output voltage |
12 V |
| Output current |
3.3 A |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 55 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
| Weight & dimensions |
|---|
| Width |
385 mm |
| Depth |
315 mm |
| Height |
52 mm |
| Weight |
1 kg |
