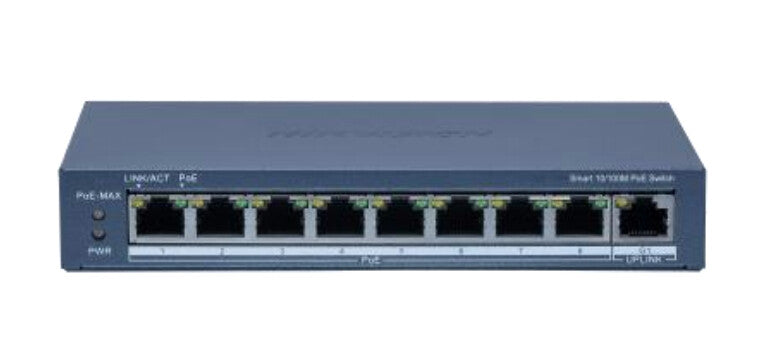

Hikvision DS-3E1309P-EI(B) network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE)
In stock
Overview
8 Port Fast Ethernet Smart PoE Switch
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Optical fiber | |
|---|---|
| Transmission distance (max) | 0.3 km |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 5.6 Gbit/s |
| Packet buffer memory | 4096 MB |
| Power | |
|---|---|
| Power source | PoE |
| DC input voltage | 54 V |
| Input current | 2.22 A |
| Power consumption (max) | 120 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 110 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 170 mm |
| Depth | 93.1 mm |
| Height | 27.6 mm |
| Weight | 350 g |
| Packaging data | |
|---|---|
| Package weight | 1.11 kg |
Specifications
| Brand | Hikvision Digital Technology |
|---|---|
| Type | Network Switches |
| SKU | DS-3E1309P-EI(B) |
| Barcode | 6942160495750 |
