Hikvision Digital Technology SKU DS-3E1318P-EI

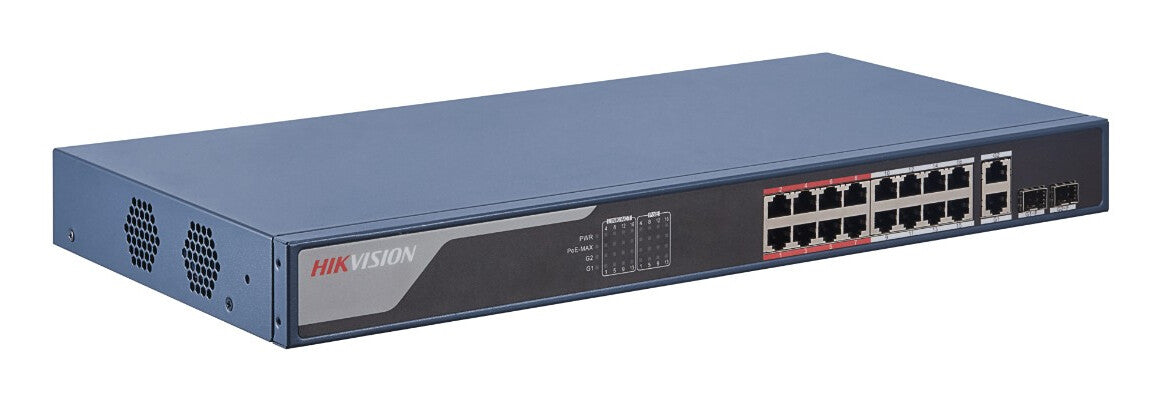

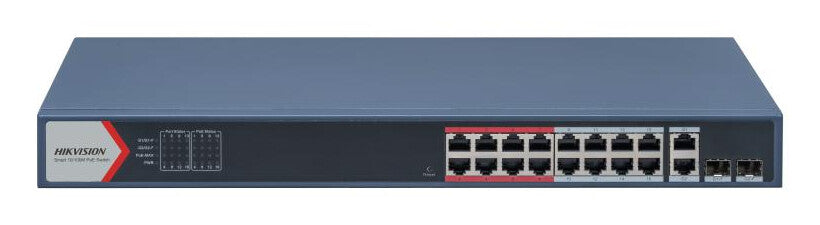

Hikvision DS-3E1318P-EI network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Blue

R 2,801.12Incl. VAT

In stock

Delivery Nationwide delivery. Cost and time shown at checkout.
Returns 7-day returns on unopened items. Refund policy

Overview

9.2 Gbps, 6.84 Mpps, 16x 100 Mbps RJ-45, PoE, 2x 1G combos, 440x44x220.8 mm
Management features
Switch type Managed
Quality of Service (QoS) support Yes
Web-based management Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Combo SFP ports quantity 2
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support No
Full duplex Yes
Link aggregation Yes
VLAN support Yes
Number of VLANs 4094
Data transmission
MAC address table 16000 entries
Switching capacity 9.2 Gbit/s
Forwarding rate 6.84 Mpps
Store-and-forward Yes
Packet buffer memory 4 MB
Security
Loop protection Yes
Design
Rack mounting Yes
Form factor 1U
Product colour Blue
Housing material Metal
Power
Power source AC
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Input current 4 A
Power consumption (max) 250 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 16
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 230 W
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 440 mm
Depth 220.8 mm
Height 44 mm
Weight 2.59 kg
Packaging data
Package weight 3.68 kg

Specifications

BrandHikvision Digital Technology
TypeNetwork Switches
SKUDS-3E1318P-EI
Barcode0842571135596,6941264052890,842571135596,6931847157159
