GIGABYTE X870E AORUS PRO X3D ICE Motherboard
Gigabyte SKU GA-X870E-AORUS-PRO-X-ICE

GIGABYTE X870E AORUS PRO X3D ICE Motherboard

R 10,060.20Incl. VAT

Only 4 left

Delivery Nationwide delivery. Cost and time shown at checkout.
Returns 7-day returns on unopened items. Refund policy

Overview

Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets Socket AM5
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Supported memory clock speeds 9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Supported memory clock speed (max) 9000 MHz
Maximum internal memory 256 GB
Unbuffered memory Yes
Maximum internal memory per slot 64 GB
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported 8
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
Maximum resolution 4096 x 2304 pixels
HDCP Yes
DirectX version 12.0
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2x2 connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 2
Number of chassis fan connectors 6
EPS power connector (8-pin) Yes
Number of EPS power connectors (8-pin) 2
Number of noise detection headers 1
Number of temperature sensor headers 2
Number of water pump connectors 3
TPM connector Yes
RGB LED pin header Yes
Number of RGB LED pin headers 4

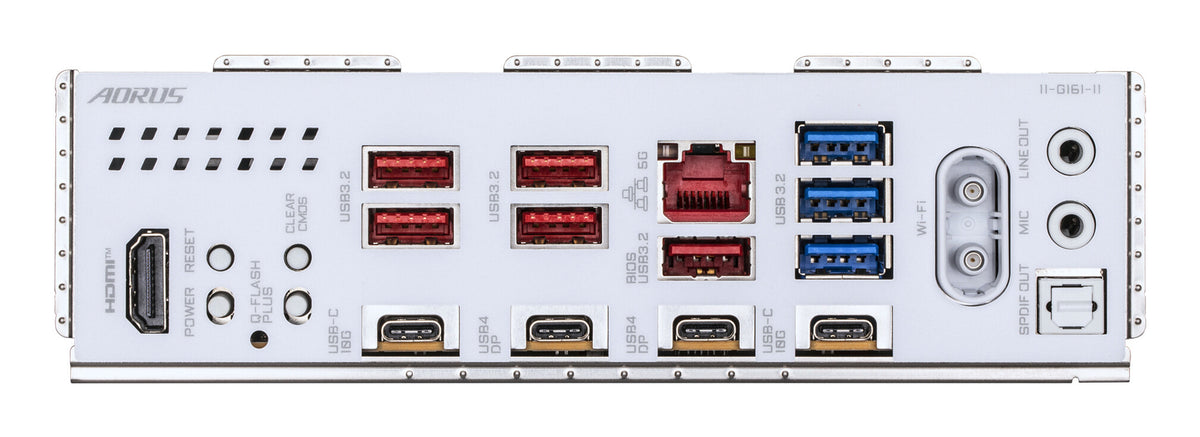

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
USB4 Gen 2x2 ports quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
DisplayPort version 1.4
Line-in Yes
Headphone outputs 1
S/PDIF out port Yes
Digital audio optical out 1
WiFi-AP antenna jack 2
Network
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
LAN controller Realtek RTL8126
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller model Qualcomm QCNCM865
Bluetooth Yes
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset AMD X870E
Audio chip Realtek ALC1220-VB
Audio output channels 7.1 channels
Product colour White
PC health monitoring CPU, Fan, Temperature, Voltage, Water cooling
Cooling type Passive
Power source type ATX
Windows operating systems supported Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 4
1st M.2 largest key size 25110
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 22110
2nd M.2 highest PCI Express generation 5.0
3rd M.2 largest key size 22110
3rd M.2 highest PCI Express generation 4.0
4th M.2 largest key size 22110
4th M.2 highest PCI Express generation 4.0
BIOS
BIOS type UEFI AMI
BIOS memory size 512 Mbit
ACPI version 5.0
Clear CMOS jumper Yes
Clear CMOS button Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Packaging data
Package width 340 mm
Package depth 310 mm
Package height 92 mm
Package weight 4.3 kg
Battery
Lithium weight per battery 0.07 g
Battery weight 3 g
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Logistics data
Products per shipping (inner) case 1 pc(s)
Country of origin Taiwan
Weight & dimensions
Width 305 mm
Depth 244 mm
Height 35 mm
Packaging content
Screws included Yes
Antenna included Yes
Batteries included Yes
Technical details
Warranty period 3 year(s)
Other features
Weight 3.74 kg

Specifications

BrandGigabyte
TypeMotherboards
SKUGA-X870E-AORUS-PRO-X-ICE
Barcode4719331876487
