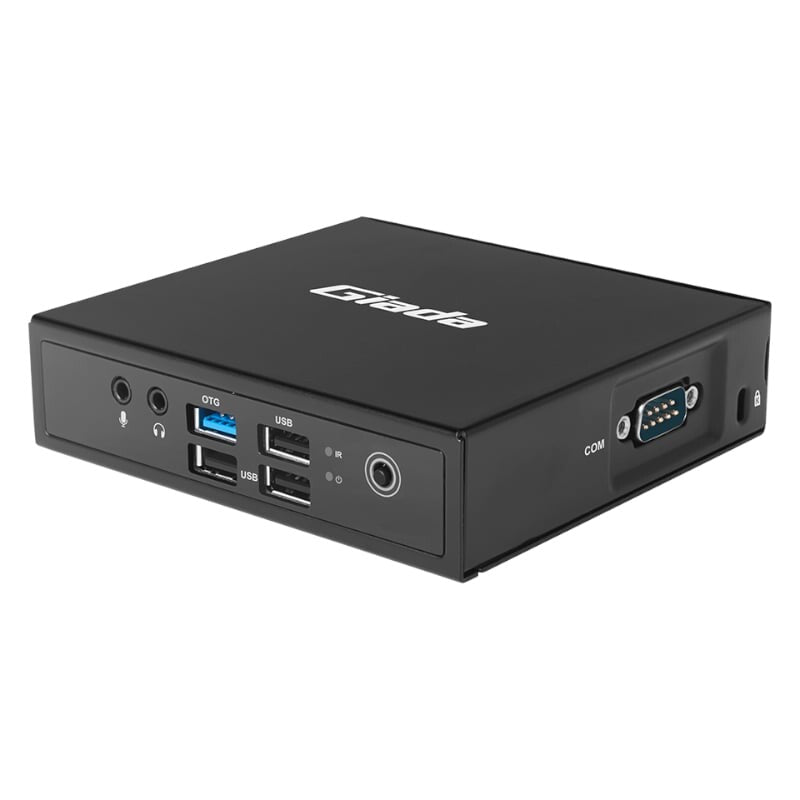

Giada DN74 RK3399 4GB DDR4 32GB EMMC

R 5,039.76

DN74-3399R42E5G-GIA V2

100 in stock
R 5,039.76
R 5,039.76
Shipping calculated at checkout.

Incl VAT

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

    The Giada DN74 ARM Fanless Android Signage Player utilises an RK3399 Dual-core ARM Cortex-A72 and a Quad-core ARM Cortex-A53 CPU. It has onboard memory and eMMC storage. Its dual HDMI outputs support two displays, with one reaching 4K resolutions and the other running at a resolution of 2K. Giada brings all of these components together with the Android 7.1 operation system, making it a suitable entry-level signage player for Android environments.


    Features:



    • Rockchip RK3399

    • Onboard 4GB LPDDR4 memory

    • Two HDMI ports, one supporting 4K and the other 2K

    • Onboard eMMC storage of 32GB

    • One USB3.0 port and three  USB2.0 ports

    •  RS232 Serial Port

    • RJ45 Network connection

    • Mini-PCIe slot for 3G/4G connectivity

    • SIM Card slot


    Specifications:



    • Processor

      • CPU: Rockchip RK3399

      • Frequency: Up to 1.8GHz

      • Processing Units: 2 Cores Cortex-A72 & 4 Cores Cortex-A53

      • TDP: 6W



    • Memory

      • Type: LPDDR4

      • Socket: Onboard

      • Size: 4GB



    • Graphics

      • GPU: Mali-T860MP4

      • Graphic Engine: OpenGL ES1.1/2.0/3.0/3.1, OpenCL, Support AFBC (ARM Frame Neck Scarfer Compression)

      • Video Decoding Capability: 4K VP9 decoders, 4K 10bits H.265 video decoders, 1080P VC-1, MPEG-1/2/4, VP8 video decoders



    • Display

      • HDMI: 1x HDMI (Max. 4K@60Hz) | 1x HDMI (Max. 2K@30Hz)



    • Network

      • Controller: 1 x Pef7071 PHY

      • Interface: 1x RJ45



    • I/O

      • USB: 1 x USB3.2 Gen1 (OTG), 3 x USB2.0

      • Serial Port: 2x RS232

      • Audio: 1x MIC-IN, 1x AUDIO-OUT

      • Mini-PCIe: 1x Full-size Mini-PCIe for 3G/4G

      • SIM: 1x SIM Slot

      • WiFi on Board: 1x WiFi Module Onboard (WIFI 5GHz, IEEE802.11 a/b/g/ac)



    • Storage

      • eMMC: 32GB



    • Power

      • Power Type: DC-IN

      • Power Adapter: 12V/2A



    • Environment

      • Operating Temperature: 0℃ ~ 40℃ at 0.7m/s Air Flow

      • Relative Humidity: 95%@40℃ (non-condensing)



    • Supported Operating Systems: Android 7.1

    • Mounting: Desk/Wall Mounting and VESA

    • Certification: CE, FCC

    • Dimensions: 11.66 x 10.74 x 3 cm


    What’s in The Box:



    • Giada DN74 ARM RK3399 Fanless Android Signage Player 32GB x1

    • AC Power Adapter x1

    • WiFi Antenna x1
