Equip 32"-55” Articulating TV Wall Mount Bracket
In stock
Overview

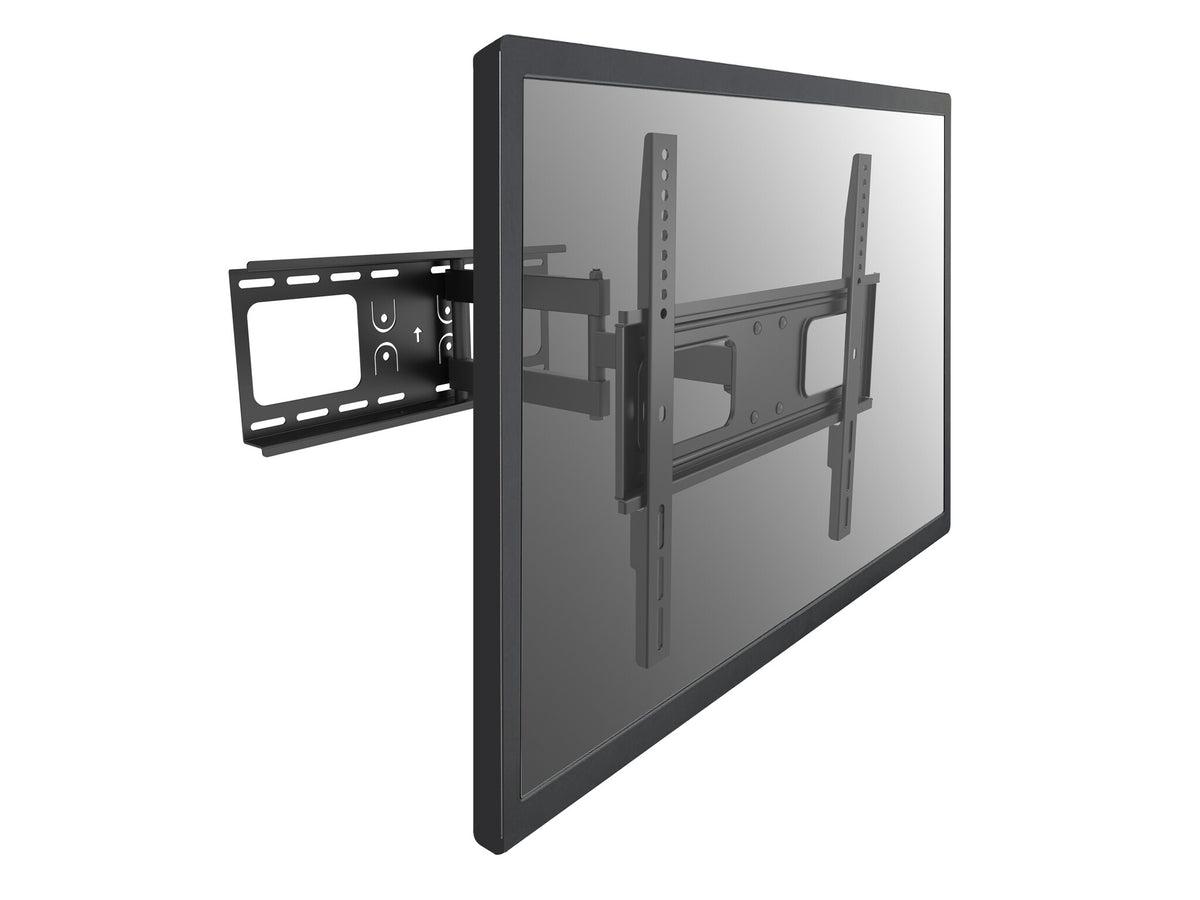

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.
| Mounting | |
|---|---|
| Maximum weight capacity | 50 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400 |
| Number of displays supported | 1 |
| Ergonomics | |
|---|---|

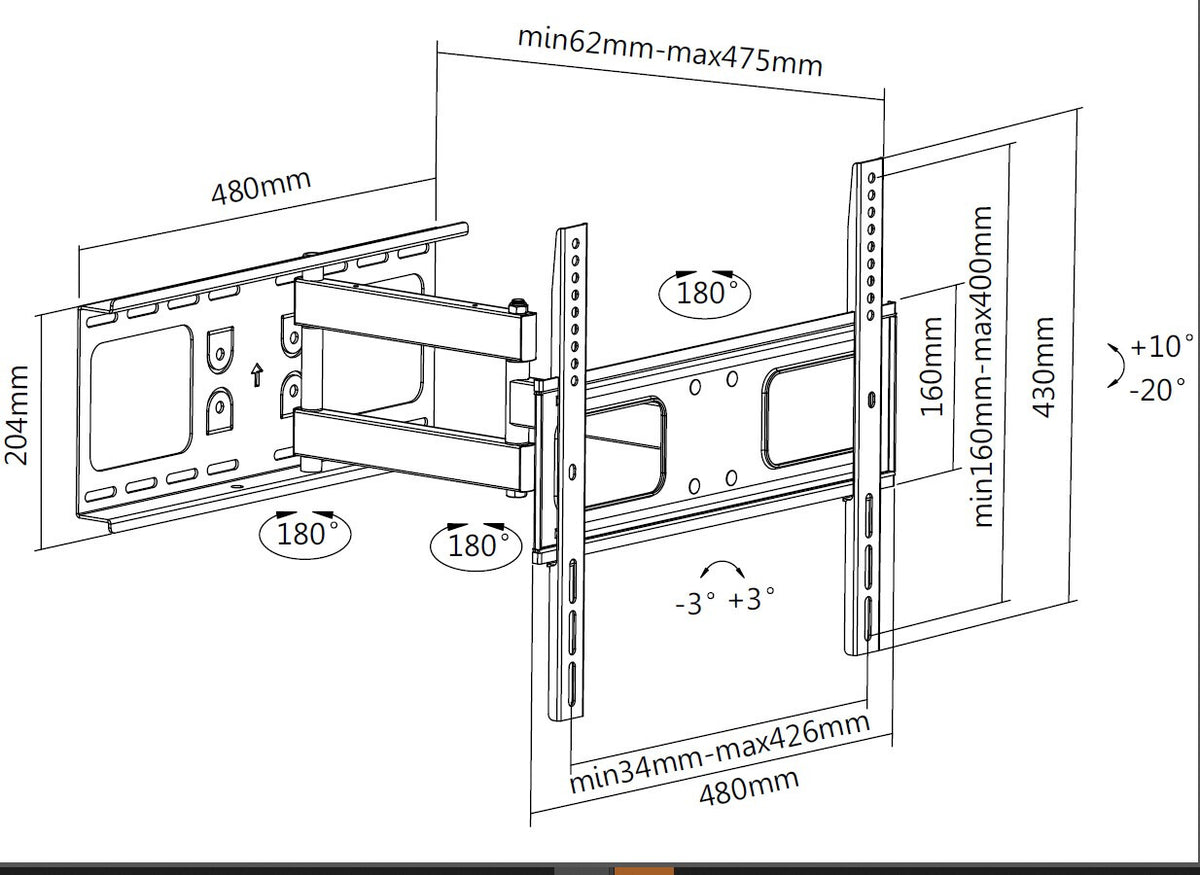

| Tilt angle range | -20 - 10° |
| Swivel angle range | -90 - 90° |
| Distance to the wall (min) | 6.2 cm |
| Distance to the wall (max) | 47.5 cm |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Certification | CE |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Quick installation guide | Yes |
| Weight & dimensions | |
|---|---|
| Width | 410 mm |
| Depth | 470 mm |
| Height | 480 mm |
| Weight | 4 kg |
| Packaging data | |
|---|---|
| Package width | 220 mm |
| Package depth | 70 mm |
| Package height | 520 mm |
| Package weight | 4.3 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
Specifications
| Brand | Equip |
|---|---|
| Type | TV Mounts |
| SKU | 650315 |
| Barcode | 4015867198926 |
