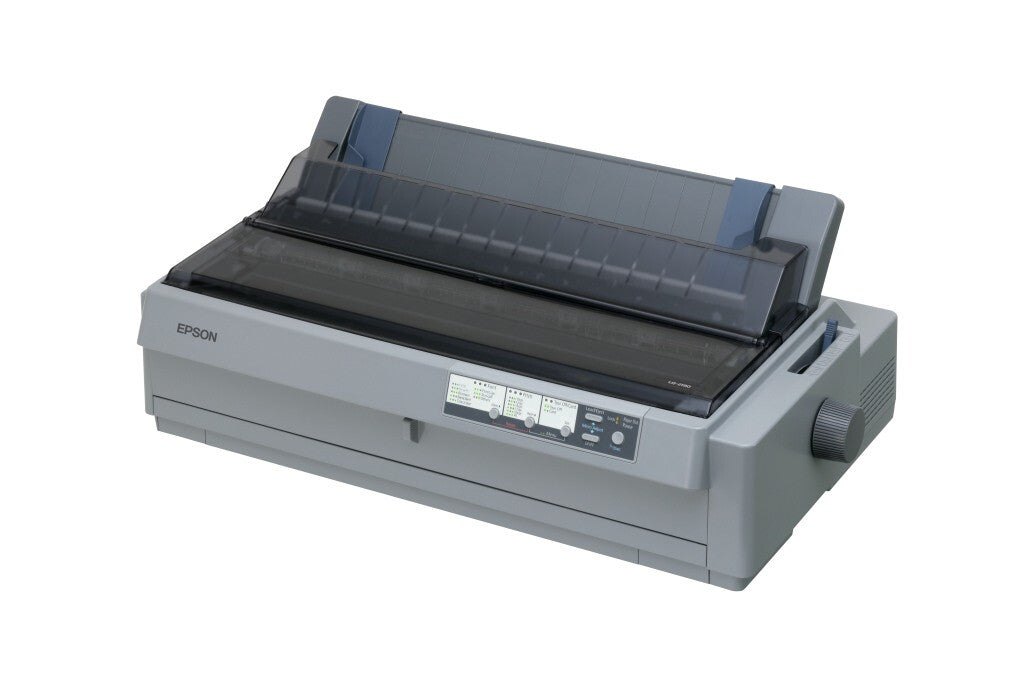

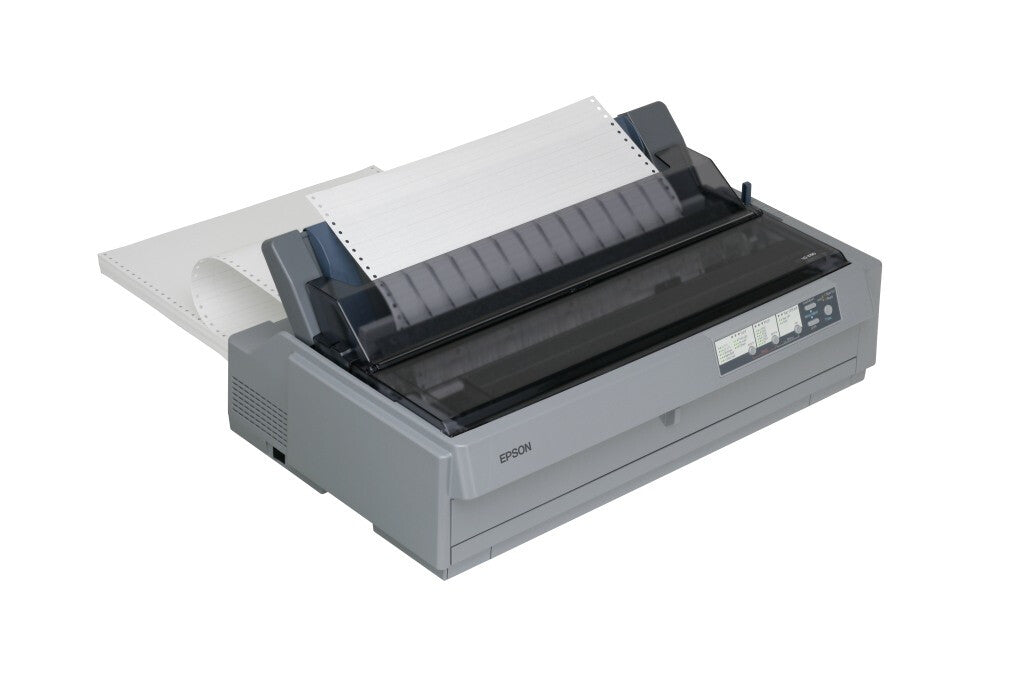

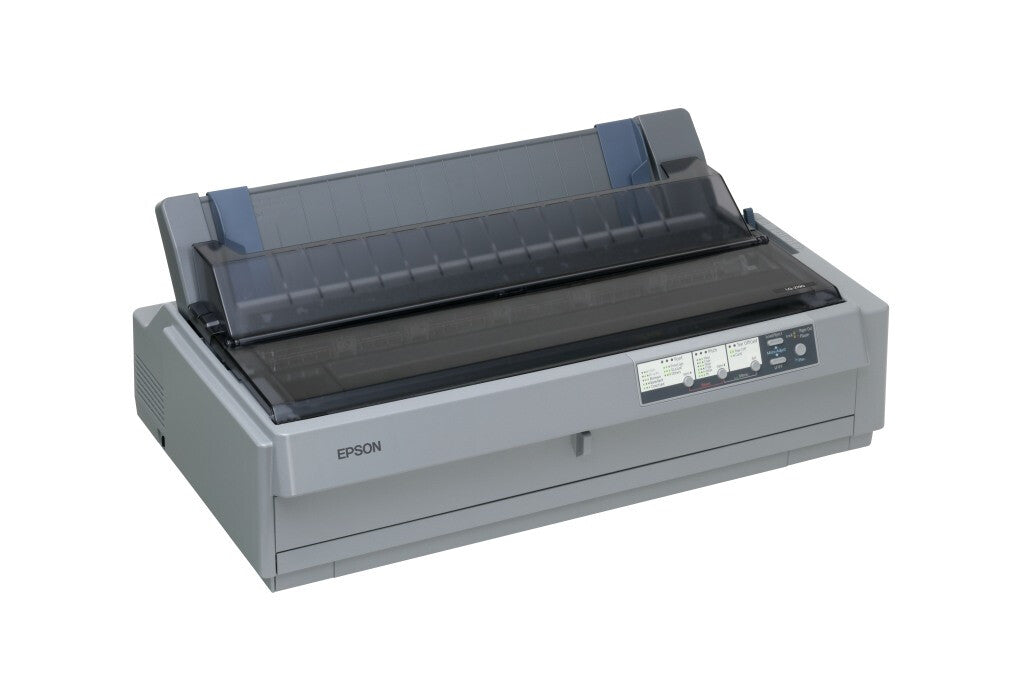

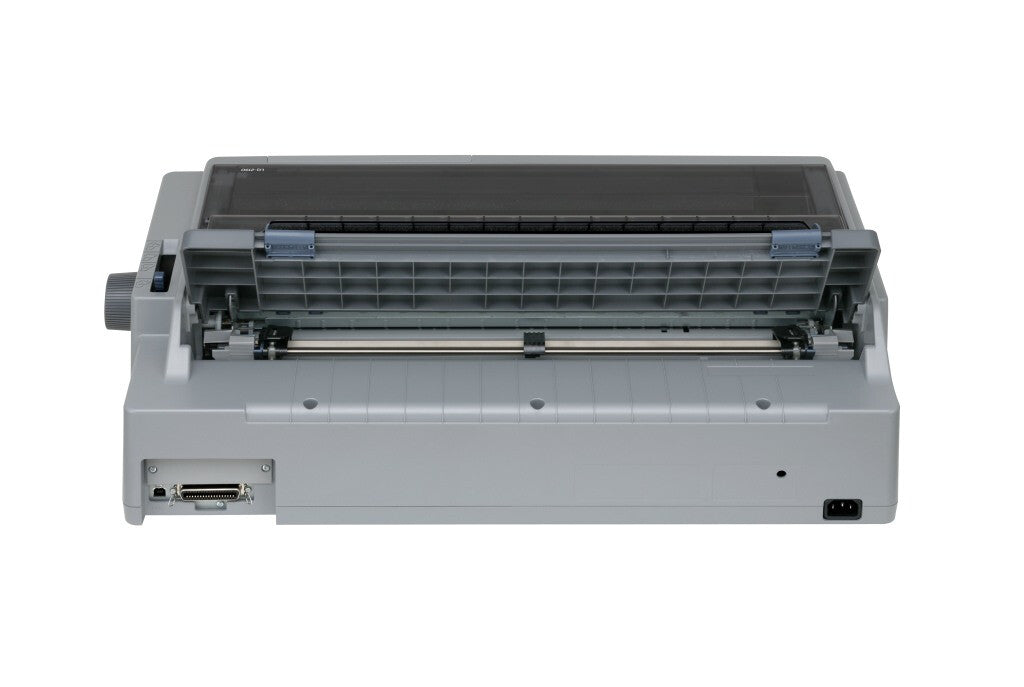

LQ-2190N, Print, Copy, 24 pins, 136 columns, 576 cps, 128 Kb, ESC/P2 & IBM PPDS, 54 dB, 46W, 13000g, Grey
HIGH VOLUME A3 24-PIN PRINTER
When you need to deal with high volume data processing this 24-pin 136 column printer does the job quickly and efficiently.
Fast and economical, the Epson LQ-2190 is a flexible and reliable printing solution that achieves a perfect balance between large print volumes and first-class quality. Cost effective and dependable, this is ideal for producing invoices, delivery notes, inventory listings and labels.
Reliability and speed
This 24-pin wide carriage printer takes care of big print jobs without a fuss. You can rely on high quality results on a wide range of paper types while the impressive 576 cps (at 12 cpi) print speed is perfect for large volume tasks. This robust device is very dependable and has a print head life of 400 million strokes per wire, plus a meant time between failure of 20,000 power-on hours.
Flexibility
Choice of front, top, bottom and rear paper paths gives you even more control over desk space management. And the addition of a USB interface means more flexibility in connectivity.
Longer ribbon life
With a ribbon life of around 15 million characters, the ribbon replacement cycles are longer, which brings down running costs and maintenance time.
FAST, RELIABLE PRINTING
Enjoy 24-pin quality up to A3 size and 576 cps.
MULTI-PART FLEXIBILITY
Print up to 6-part forms (1 original + 5 copies).
PAPER HANDLING
Choose from front, top, bottom, rear paper paths.
PRINT SPEED ENHANCER
For faster printing of bit images under Windows environment.
EASY CONNECTIVITY
Parallel and USB interfaces as standard.
| Printing |
|---|
| Colour |
No |
| Maximum resolution |
360 x 180 DPI |
| Maximum printing width (columns) |
136 |
| Maximum print speed |
576 cps |
| Maximum print speed (draft) |
432 cps |
| Maximum print speed (LQ) |
144 cps |
| Character pitch |
10,12 cpi |
| Maximum number of copies |
6 copies |
| Paper handling |
|---|
| Paper feed |
Manual, Pull tractor, Push tractor |
| Features |
|---|
| Buffer size |
128 KB |
| Sound pressure level (printing) |
54 dB |
| Page description languages |
Epson ESC/P2, PPDS |
| Country of origin |
Indonesia |
| Ports & interfaces |
|---|
| Standard interfaces |
Parallel, USB 2.0 |
| Endurance |
|---|
| Print head |
24-pin |
| Print direction |
Bidirectional |
| Print head life |
400 million characters |
| Ribbon life (black, draft) |
15 million characters |
| Mean time between failures (MTBF) |
20000 h |
| Power |
|---|
| Power consumption (standby) |
3 W |
| Power consumption (typical) |
46 W |
| System requirements |
|---|
| Windows operating systems supported |
Windows 2000, Windows 7, Windows 8, Windows XP |
| Weight & dimensions |
|---|
| Width |
639 mm |
| Depth |
402 mm |
| Height |
256 mm |
| Weight |
13 kg |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package width |
295 mm |
| Package depth |
750 mm |
| Package height |
520 mm |
| Package weight |
15.48 g |
| Other features |
|---|
| Print technology |
Dot matrix |
| Connectivity technology |
Wired |
| Needles |
24 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84433210 |
| Products per pallet |
2 pc(s) |
