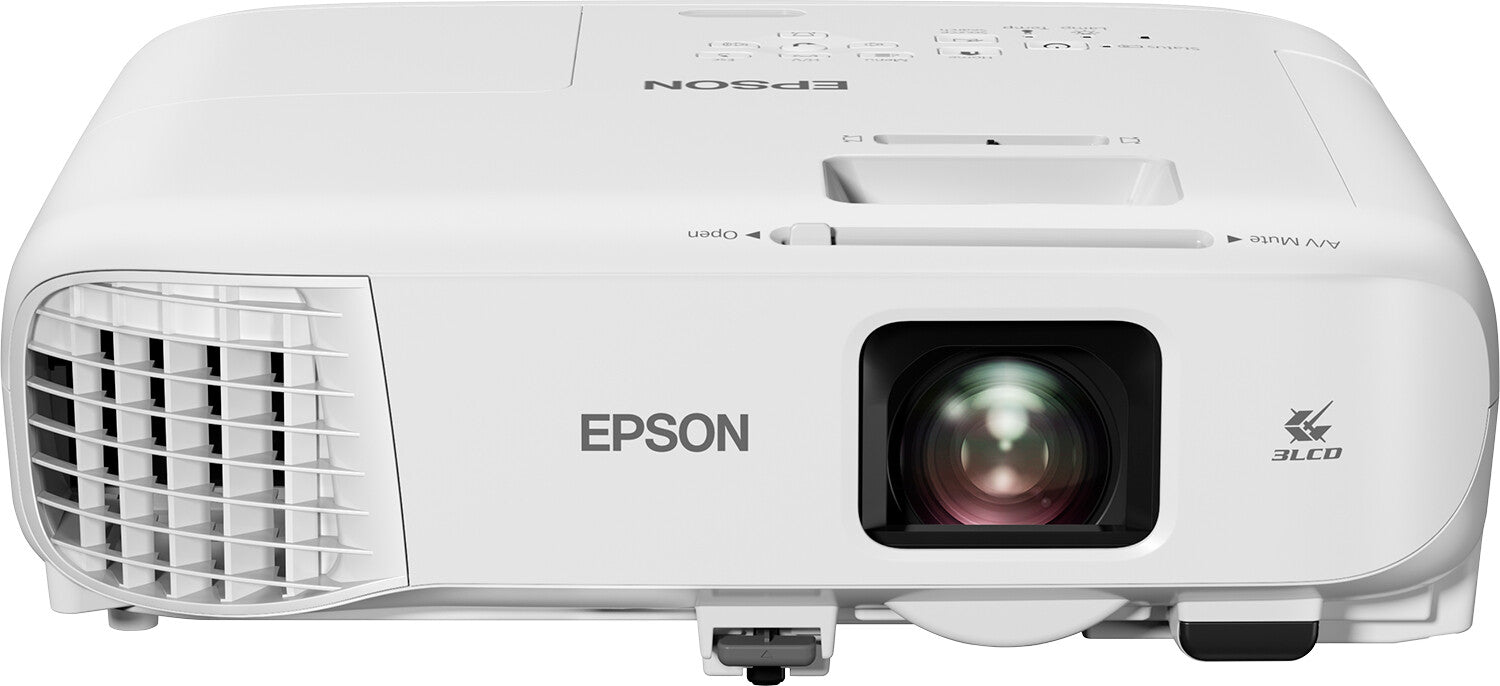

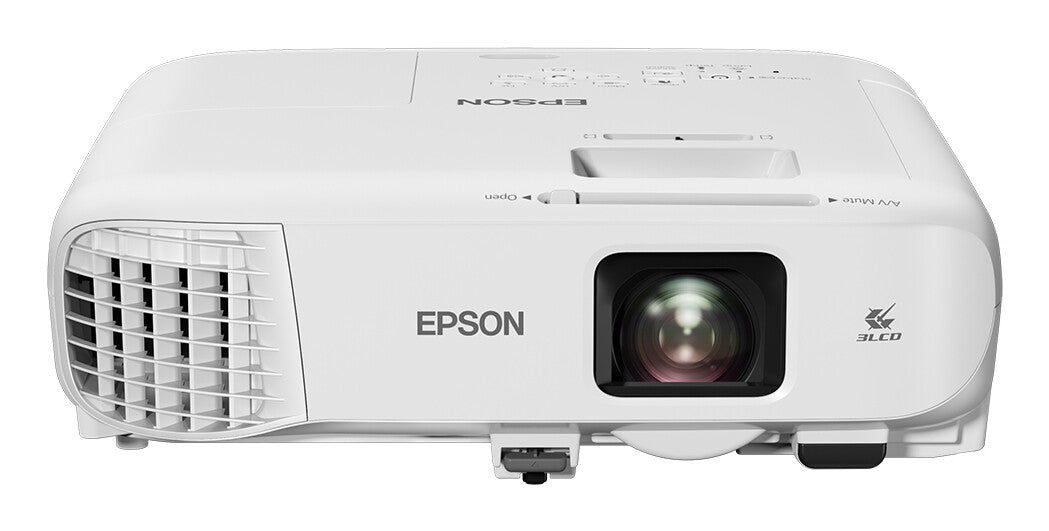

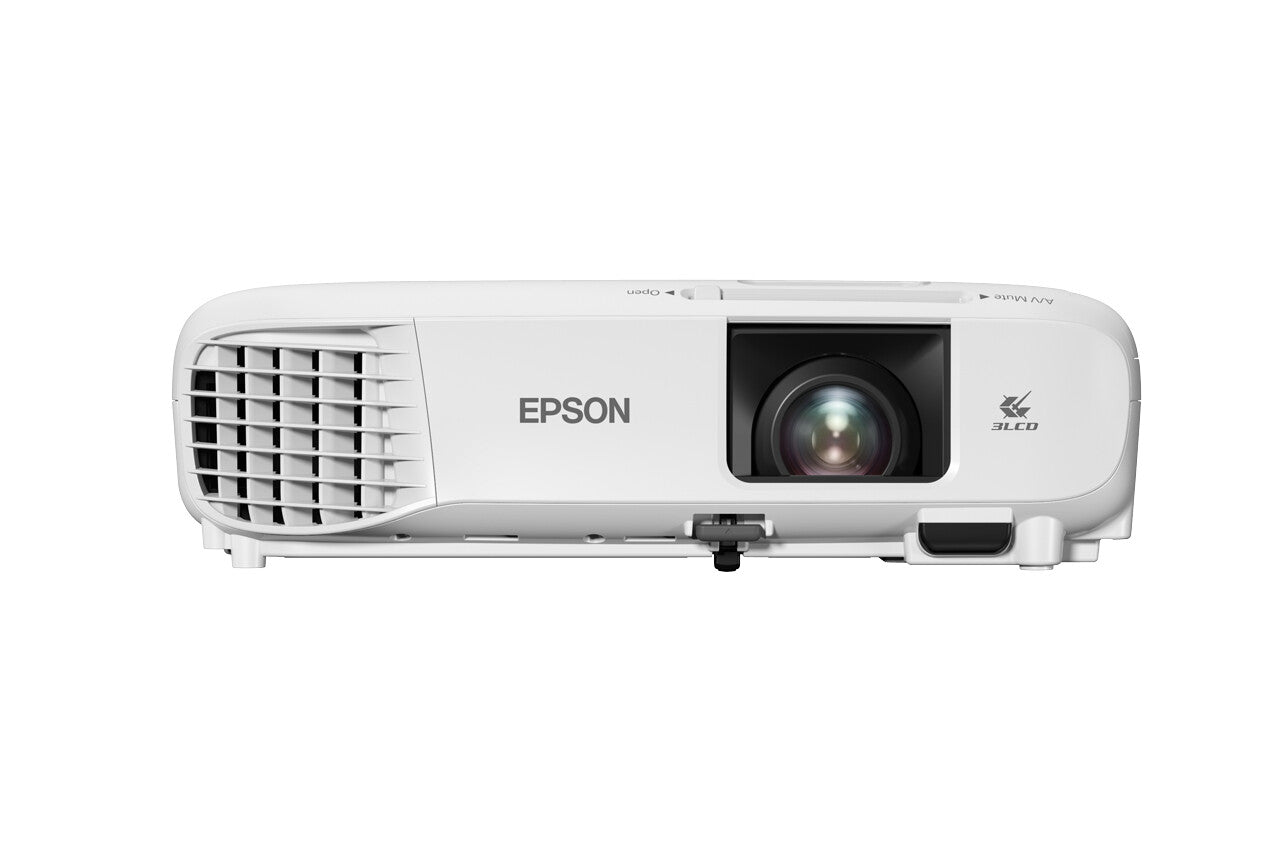

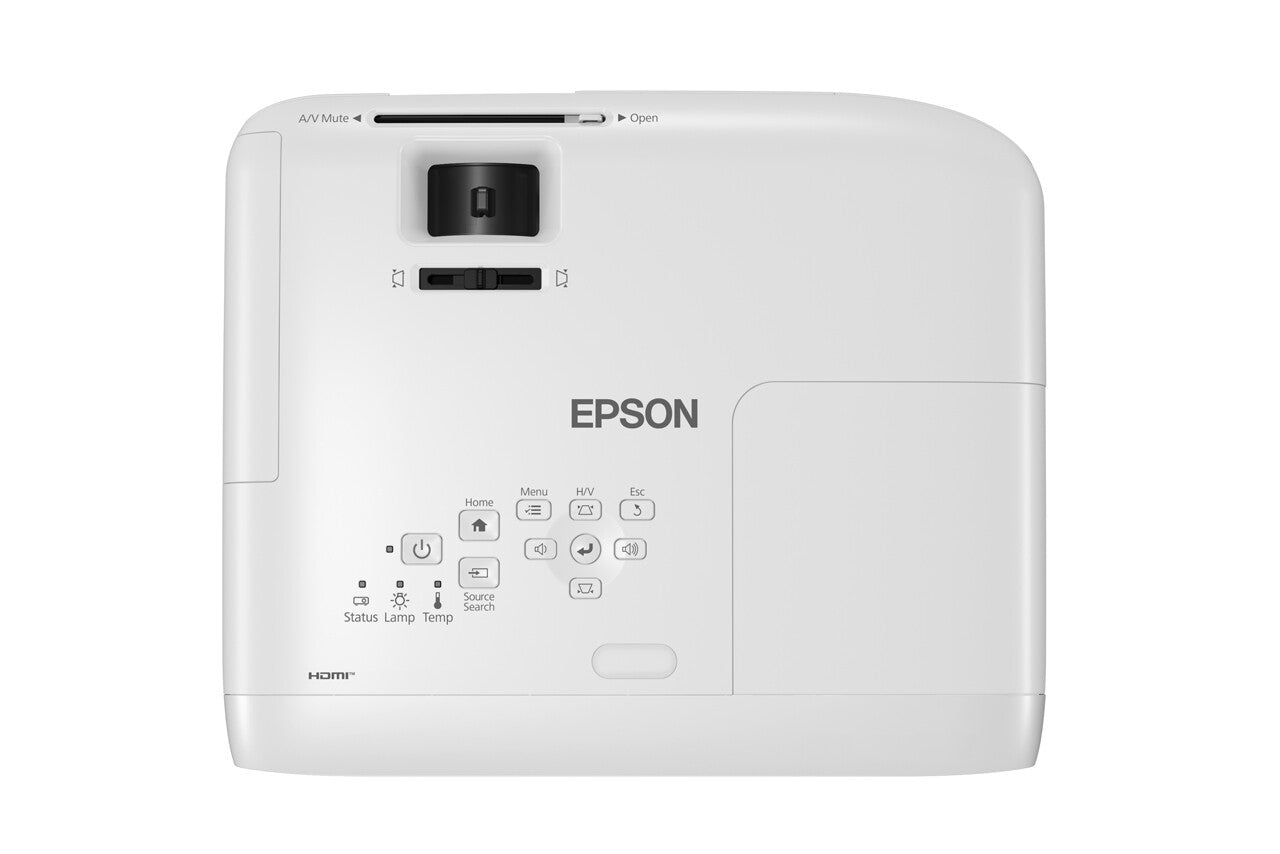

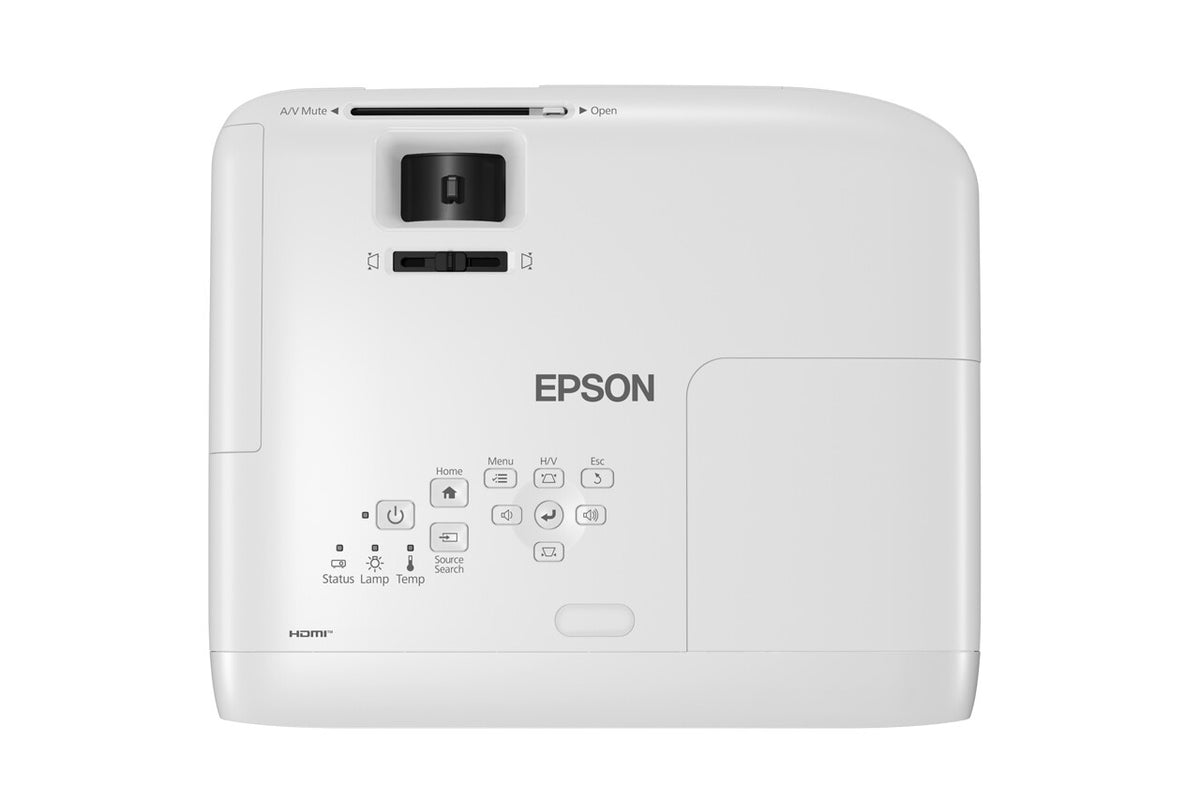

EB-X49
Compact display, optional wireless
Presentations become effortless, with the sharp, stylish EB-X49, which offers great performance in a remarkably versatile package. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.
Bright, vivid content on a large scalable screen
Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content, on screen sizes up to 300 inches. 3,600-lumen performance combines with a high contrast ratio of 16,000:1 to offer outstanding visual performance, even in well-lit rooms.
Years of uninterrupted meetings
With a lamp life of up to 12,000 hours in Eco mode.
Installation and placement flexibility
Automatic vertical and manual horizontal keystone correction provide greater flexibility as to where the projector can be placed in the room for distortion-free images and the wide optical zoom adds to the flexibility.
Network and wireless (optional)
Network capability (via RJ45) and optional wireless connectivity mean the EB-X49 can be added to a company network or upgraded for wireless device access at a later stage.
High-quality sound
This projector has a built-in 5W speaker to allow audio content to be heard clearly, without the need for additional external speakers.
| Projector |
|---|
| Projector brightness |
3600 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
XGA (1024x768) |
| Contrast ratio (typical) |
16000:1 |
| Native aspect ratio |
4:3 |
| Supported aspect ratios |
4:3 |
| Screen size compatibility |
762 - 7620 mm (30 - 300") |
| Number of colours |
1.07 billion colours |
| Projector brightness (economic mode) |
2400 ANSI lumens |
| Vertical scan range |
100 - 120 Hz |
| Matrix size |
1.4 cm (0.55") |
| Keystone correction, vertical |
-30 - 30° |
| Keystone correction, horizontal |
-30 - 30° |
| Light source |
|---|
| Light source type |
Lamp |
| Service life of light source |
6000 h |
| Service life of light source (economic mode) |
12000 h |
| Lamp type |
UHE |
| Lamp power |
210 W |
| Lens system |
|---|
| Focus |
Manual |
| Focal length range |
16.9 - 20.28 mm |
| Aperture range (F-F) |
1.49 - 1.72 |
| Zoom capability |
Yes |
| Zoom type |
Manual |
| Zoom ratio |
1.2:1 |
| Throw ratio |
1 - 1.2:1 |
| Video |
|---|
| Full HD |
No |
| 3D |
No |
| Video processing |
10 bit |
| Video colour modes |
Dynamic, Cinema, Presentation, sRGB, Blackboard |
| Ports & interfaces |
|---|
| VGA (D-Sub) ports quantity |
3 |
| HDMI ports quantity |
1 |
| HDMI connector type |
Full-size |
| Composite video in |
1 |
| DVI port |
No |
| USB 2.0 Type-B ports quantity |
1 |
| Serial interface type |
RS-232C |
| PC Audio in |
Yes |
| PC Audio out |
Yes |
| PC in (D-Sub) |
Yes |
| AC (power) in |
Yes |
| Network |
|---|
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Noise level |
37 dB |
| Noise level (economic mode) |
28 dB |
| Preset modes |
Blackboard, Dynamic, Presentation, Theatre, sRGB |
| On Screen Display (OSD) |
Yes |
| Country of origin |
Philippines |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
1 |
| RMS rated power |
5 W |
| Design |
|---|
| Market positioning |
Portable |
| Product colour |
White |
| Placement |
Ceiling, Desktop |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
327 W |
| Power consumption (economy mode) |
225 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Software |
|---|
| Software support |
via: AMX, Crestron (Network), Control4, Extron |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
2.7 kg |
| Width |
302 mm |
| Depth |
249 mm |
| Height |
87 mm |
| Package width |
355 mm |
| Package depth |
380 mm |
| Package height |
160 mm |
| Package weight |
4.12 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Batteries included |
Yes |
| WLAN adapter included |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC, HDMI |
| Bundled software |
EasyMP Multi PC Projection, Epson Projektor Management |
| Technical details |
|---|
| USB display function |
3 in 1: Image / Mouse / Sound |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Pallet weight (UK) |
0 g |
| Pallet gross weight |
0 g |
| Harmonized System (HS) code |
85286200 |
| Products per pallet (UK) |
78 pc(s) |
| Products per pallet |
78 pc(s) |
| Other features |
|---|
| Supported network protocols |
PJLink |
