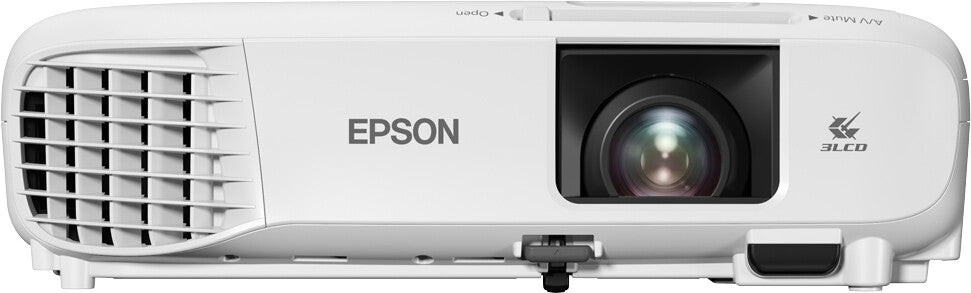

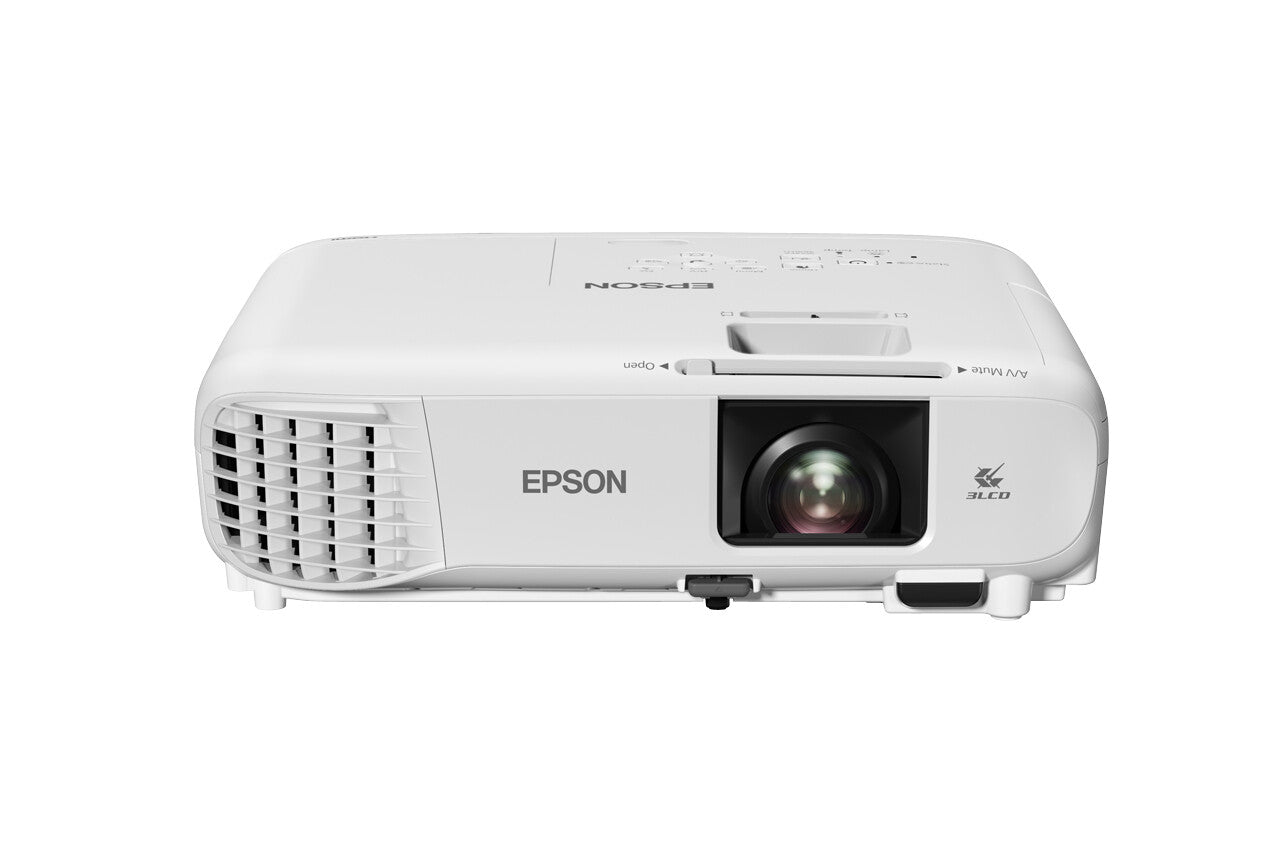

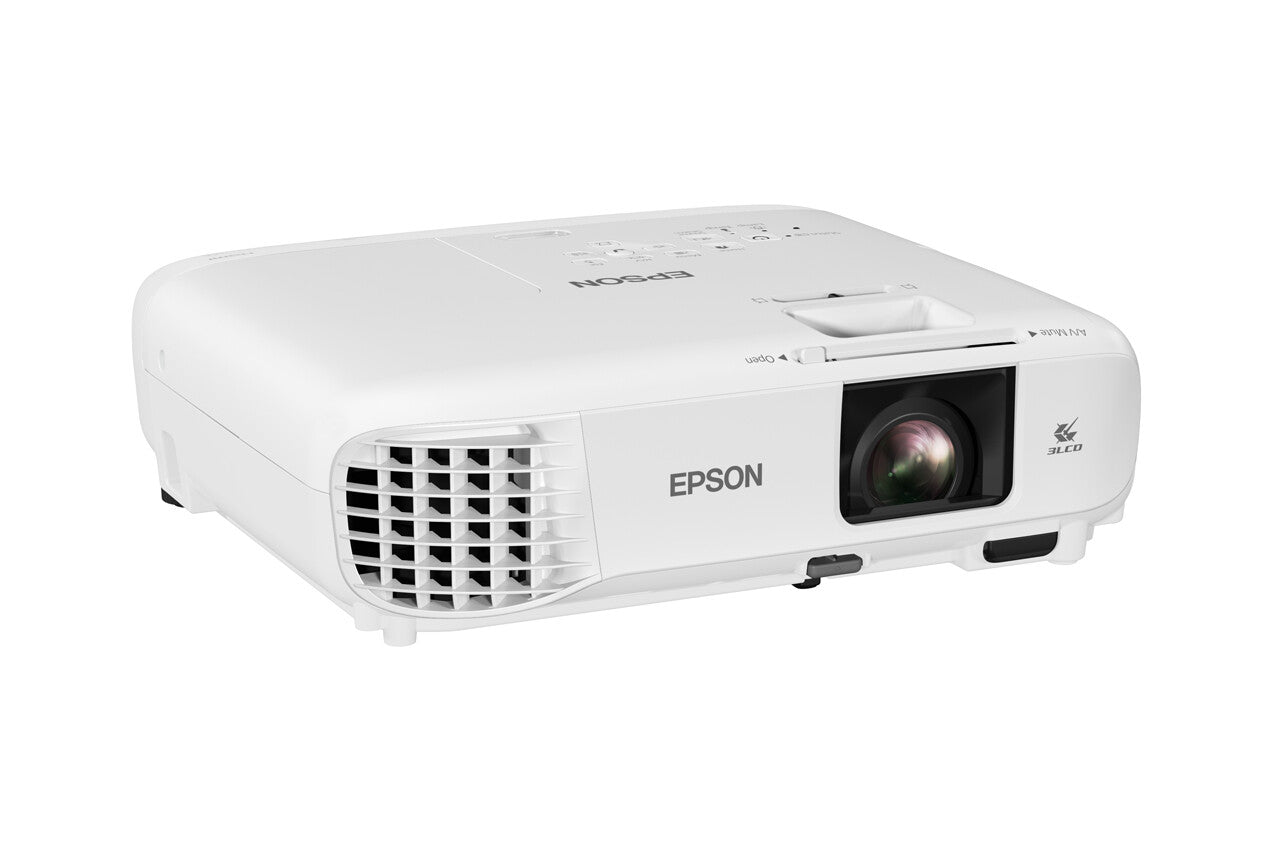

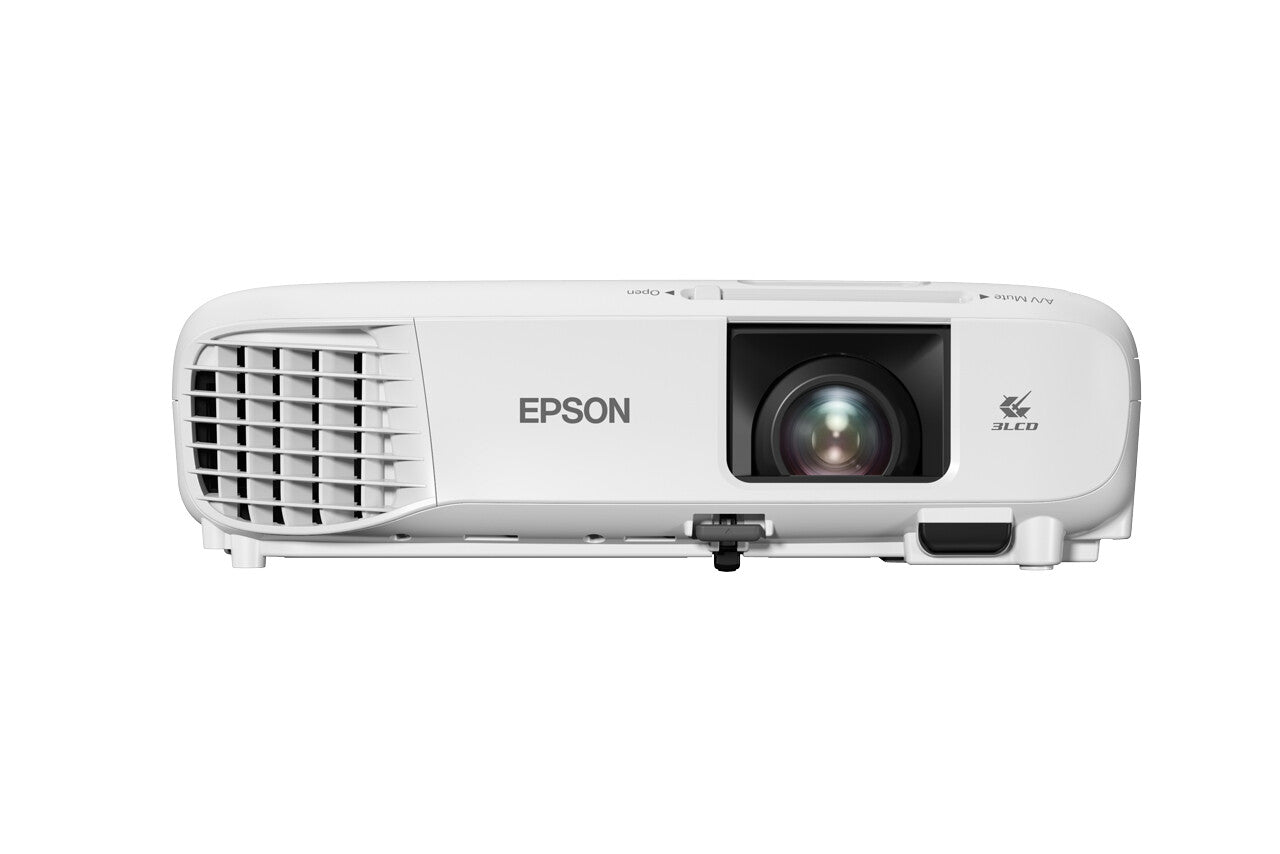

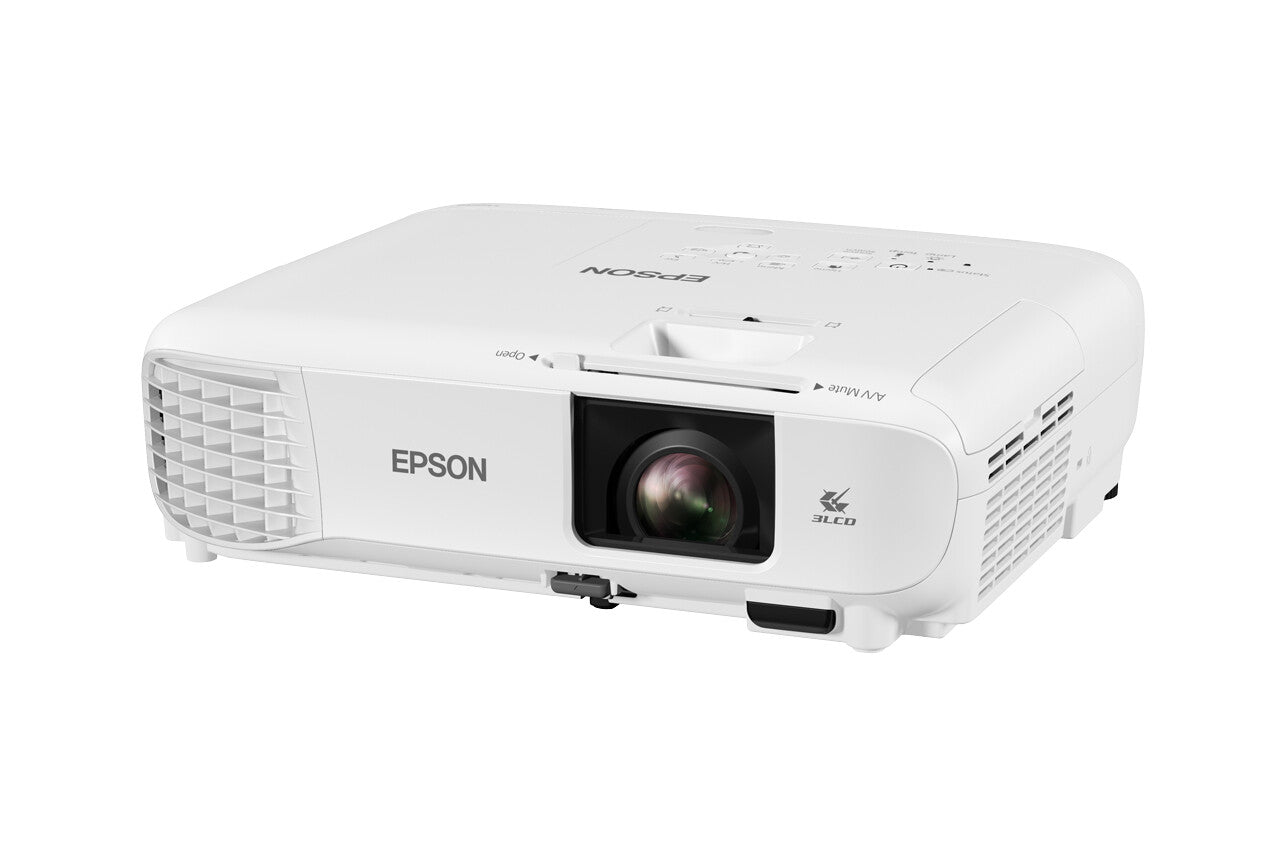

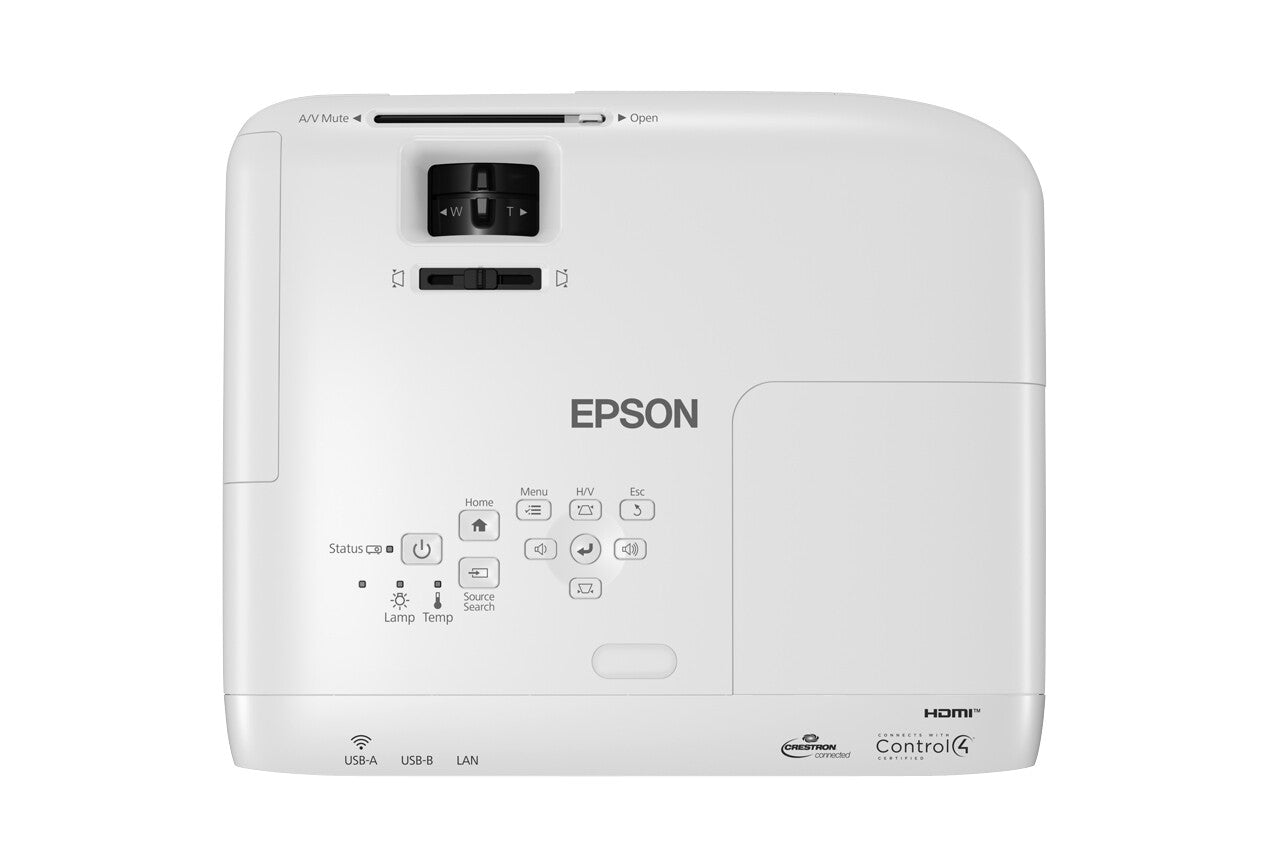

EB-W49
Flexible, HD-Ready WXGA display
The compact, stylish design of the EB-W49 makes it the ideal choice for sharp, legible presentations and vivid video content, especially in roles where portability is key. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.
| Projector |
|---|
| Projector brightness |
3800 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WXGA (1280x800) |
| Contrast ratio (typical) |
16000:1 |
| Native aspect ratio |
16:10 |
| Supported aspect ratios |
16:10 |
| Screen size compatibility |
838.2 - 8128 mm (33 - 320") |
| Number of colours |
1.07 billion colours |
| Projector brightness (economic mode) |
2600 ANSI lumens |
| Vertical scan range |
100 - 120 Hz |
| Matrix size |
1.5 cm (0.59") |
| Keystone correction, vertical |
-30 - 30° |
| Keystone correction, horizontal |
-30 - 30° |
| Light source |
|---|
| Light source type |
Lamp |
| Service life of light source |
8000 h |
| Service life of light source (economic mode) |
17000 h |
| Lamp type |
UHE |
| Lamp power |
210 W |
| Lamps quantity |
1 lamp(s) |
| Lens system |
|---|
| Focus |
Manual |
| Focal length range |
16.9 - 20.28 mm |
| Aperture range (F-F) |
1.49 - 1.72 |
| Zoom capability |
Yes |
| Zoom type |
Manual |
| Zoom ratio |
1.2:1 |
| Throw ratio |
1.30 - 1.56:1 |
| Video |
|---|
| Full HD |
No |
| 3D |
No |
| Video processing |
10 bit |
| Video colour modes |
Dynamic, Cinema, Presentation, sRGB, Blackboard |

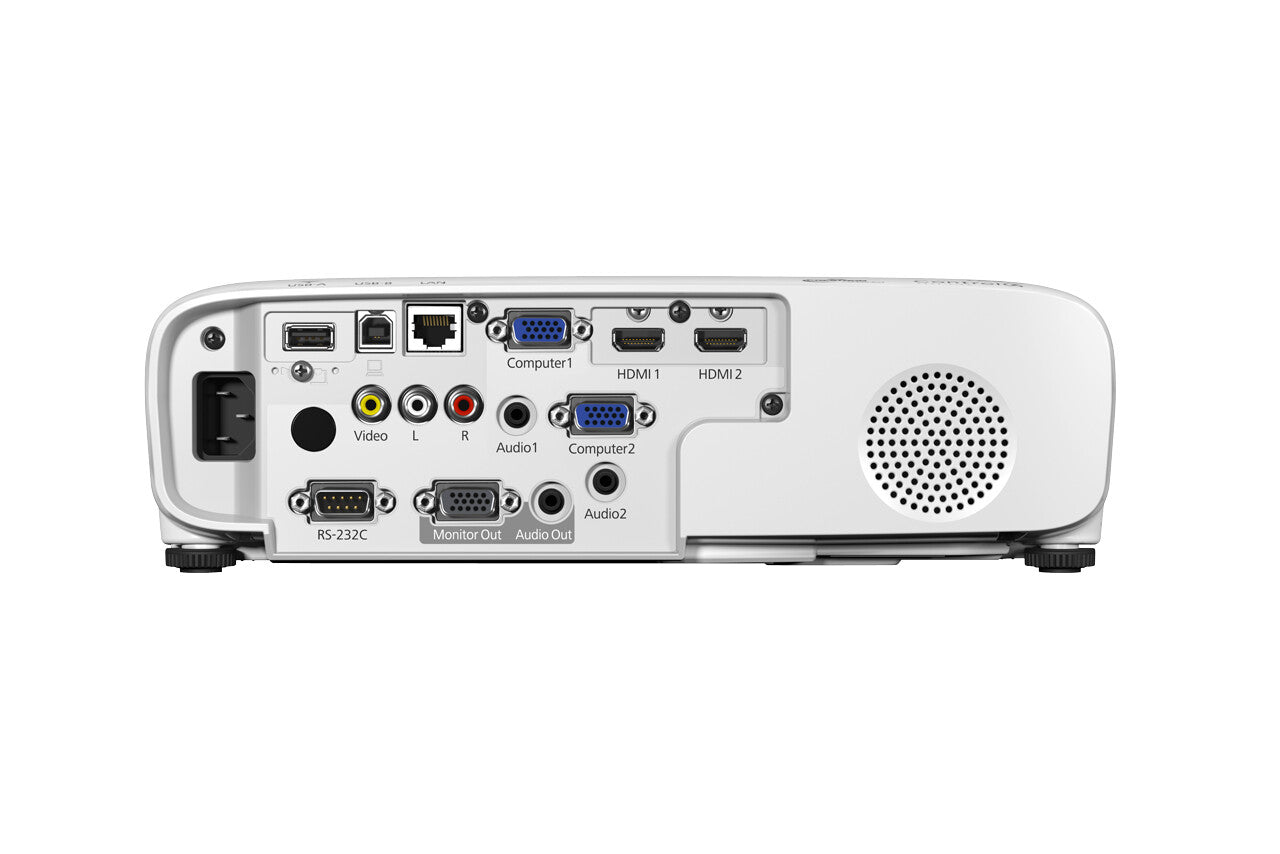

| Ports & interfaces |
|---|
| VGA (D-Sub) ports quantity |
3 |
| HDMI ports quantity |
2 |
| HDMI connector type |
Full-size |
| Composite video in |
1 |
| DVI port |
No |
| USB 2.0 ports quantity |
1 |
| USB 2.0 Type-B ports quantity |
1 |
| Serial interface type |
RS-232C |
| PC Audio in |
Yes |
| PC Audio out |
Yes |
| PC in (D-Sub) |
Yes |
| AC (power) in |
Yes |
| Network |
|---|
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Noise level |
37 dB |
| Noise level (economic mode) |
28 dB |
| Noise level (standby) |
28 dB |
| Preset modes |
Blackboard, Dynamic, Presentation, Theatre, sRGB |
| On Screen Display (OSD) |
Yes |
| Country of origin |
Philippines |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
1 |
| RMS rated power |
5 W |
| Design |
|---|
| Market positioning |
Portable |
| Product colour |
White |
| Placement |
Ceiling, Desktop |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
327 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (economy mode) |
225 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Software |
|---|
| Software support |
via: AMX, Crestron (Network), Control4, Extron |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
2.7 kg |
| Width |
302 mm |
| Depth |
249 mm |
| Height |
87 mm |
| Package width |
350 mm |
| Package depth |
380 mm |
| Package height |
160 mm |
| Package weight |
4.01 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Batteries included |
Yes |
| WLAN adapter included |
Yes |
| Cables included |
AC, HDMI |
| Bundled software |
EasyMP Network Projection, Epson Projektor Management |
| Technical details |
|---|
| USB display function |
3 in 1: Image / Mouse / Sound |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Pallet weight (UK) |
0 g |
| Pallet gross weight |
0 g |
| Harmonized System (HS) code |
85286200 |
| Products per pallet (UK) |
78 pc(s) |
| Products per pallet |
78 pc(s) |
| Other features |
|---|
| Supported network protocols |
PJLink |
