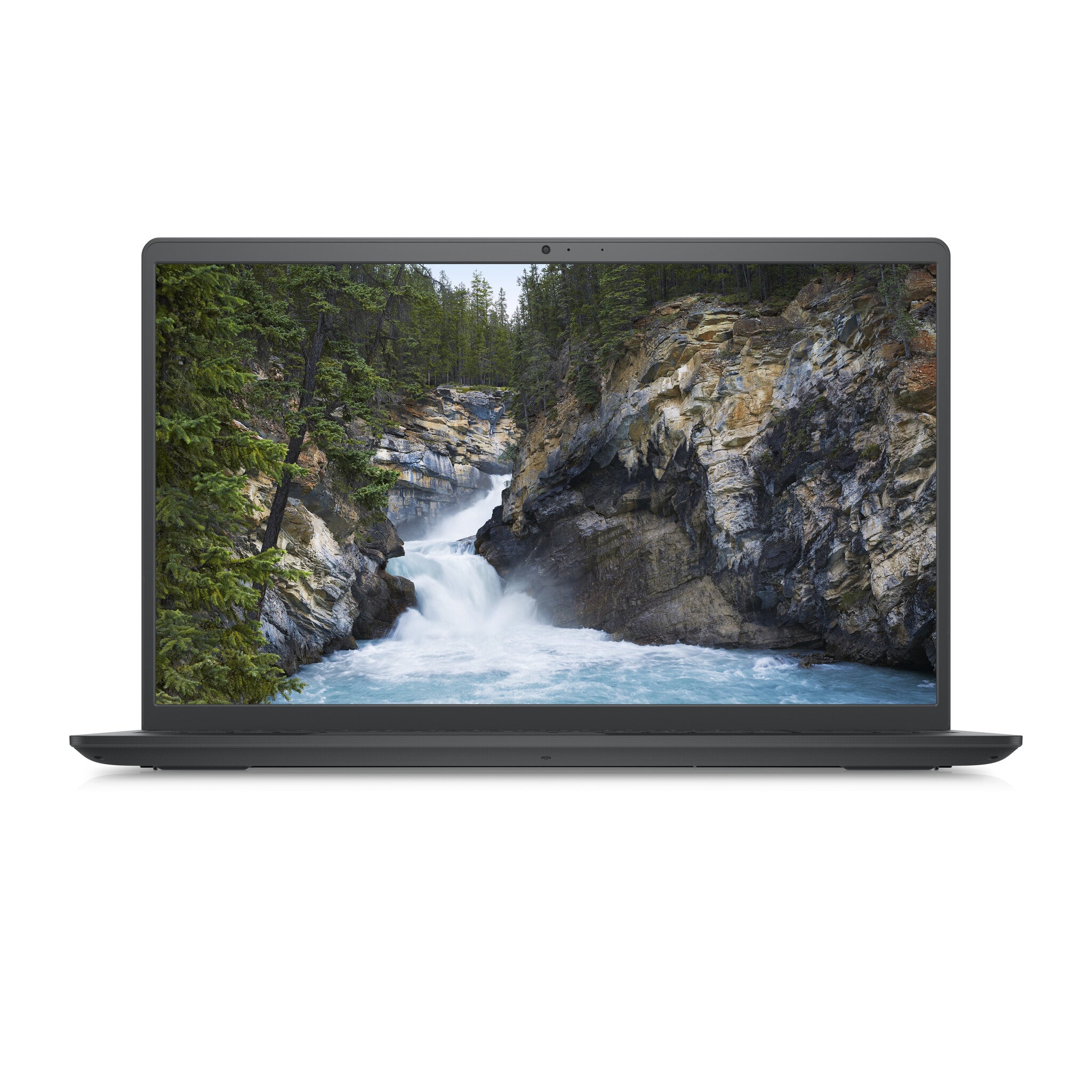

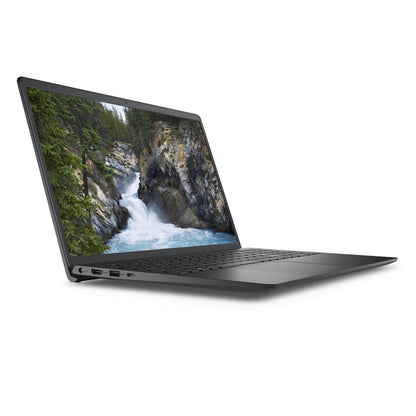

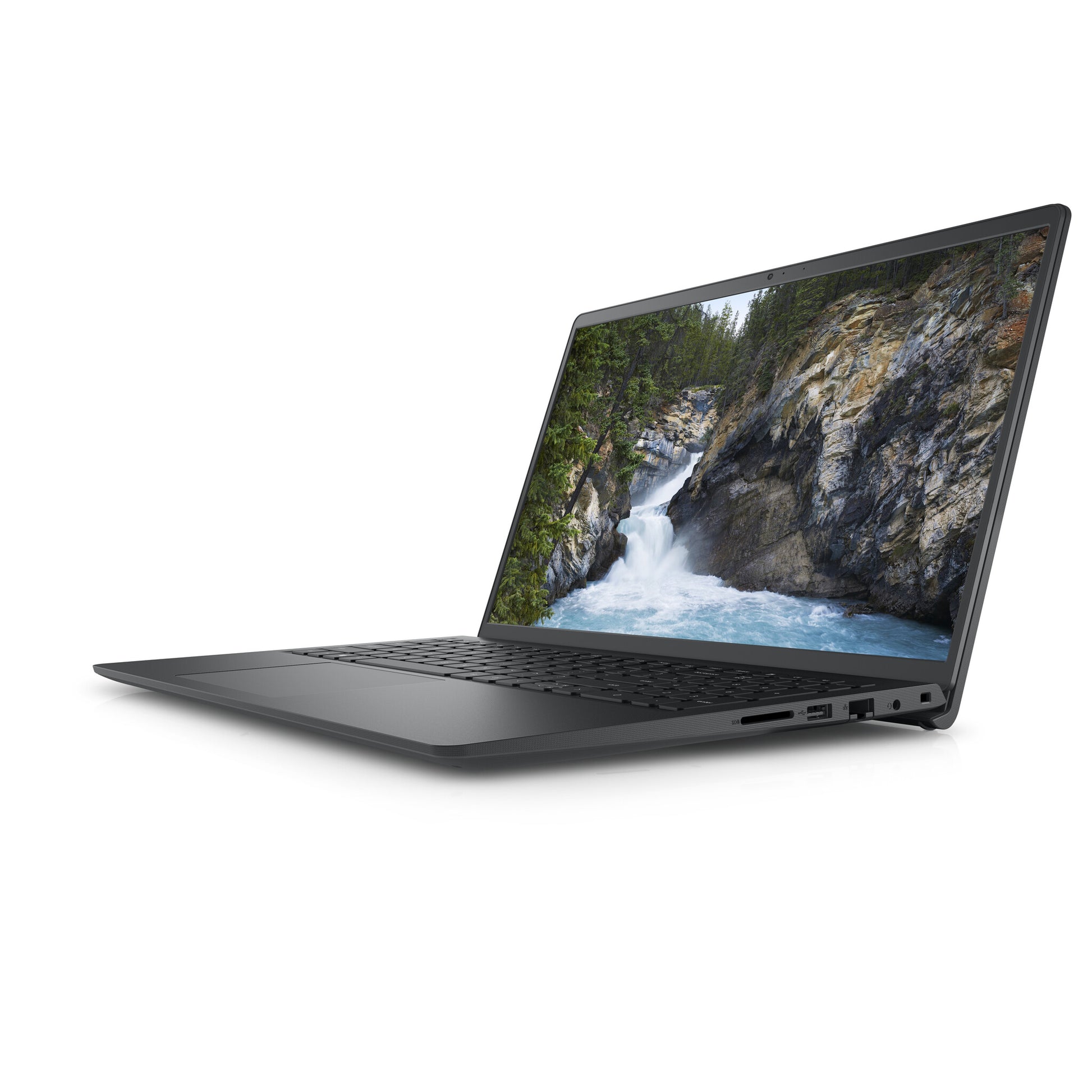

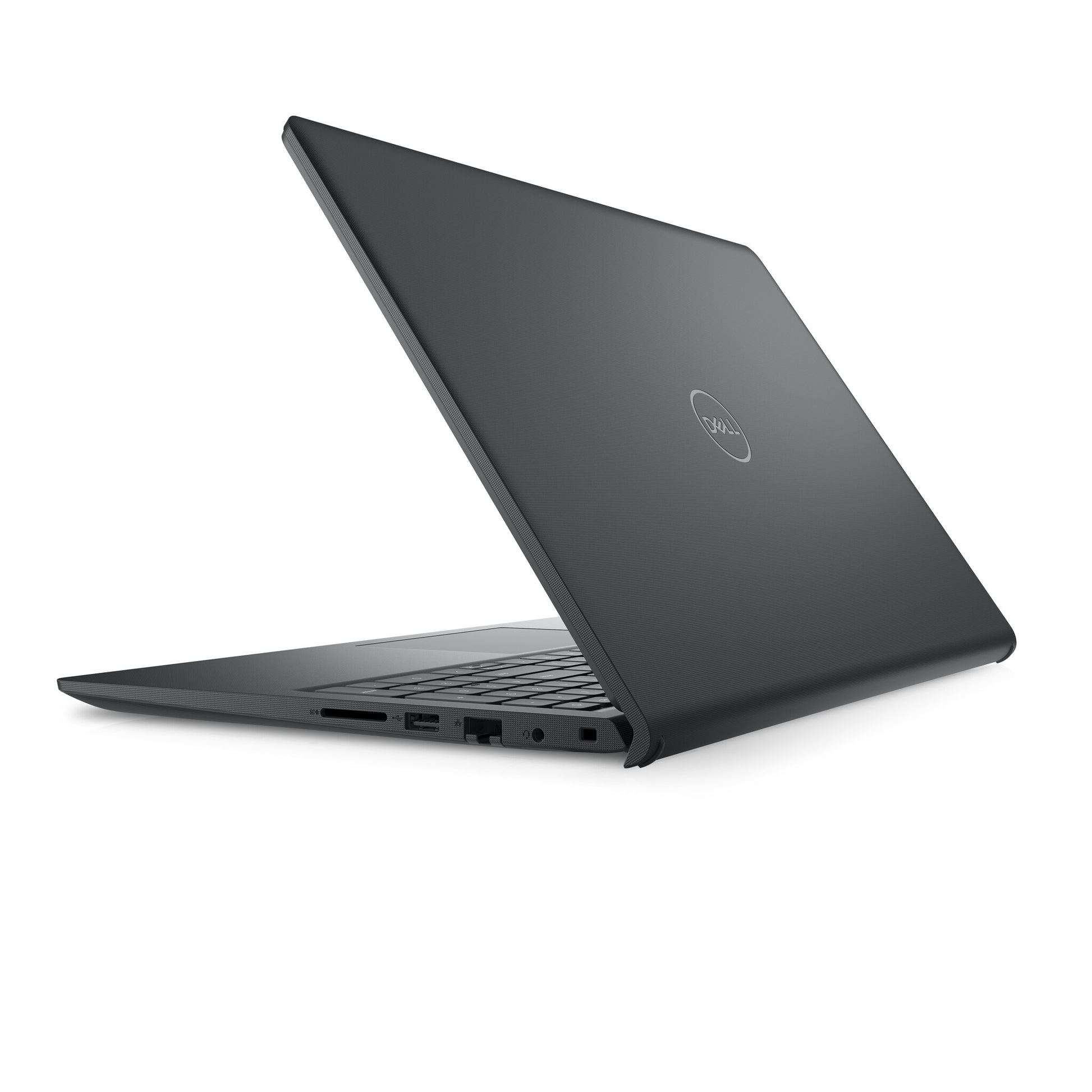

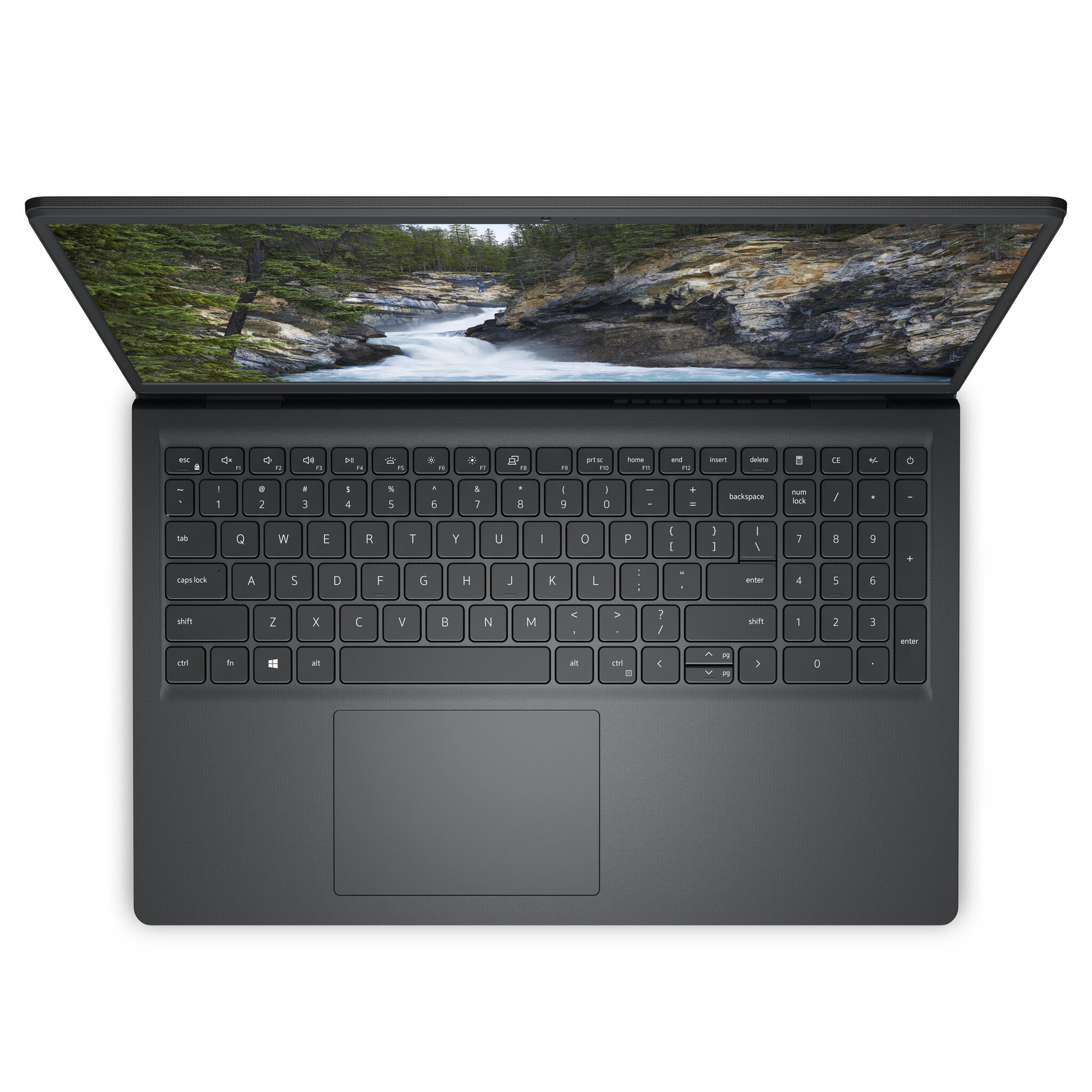

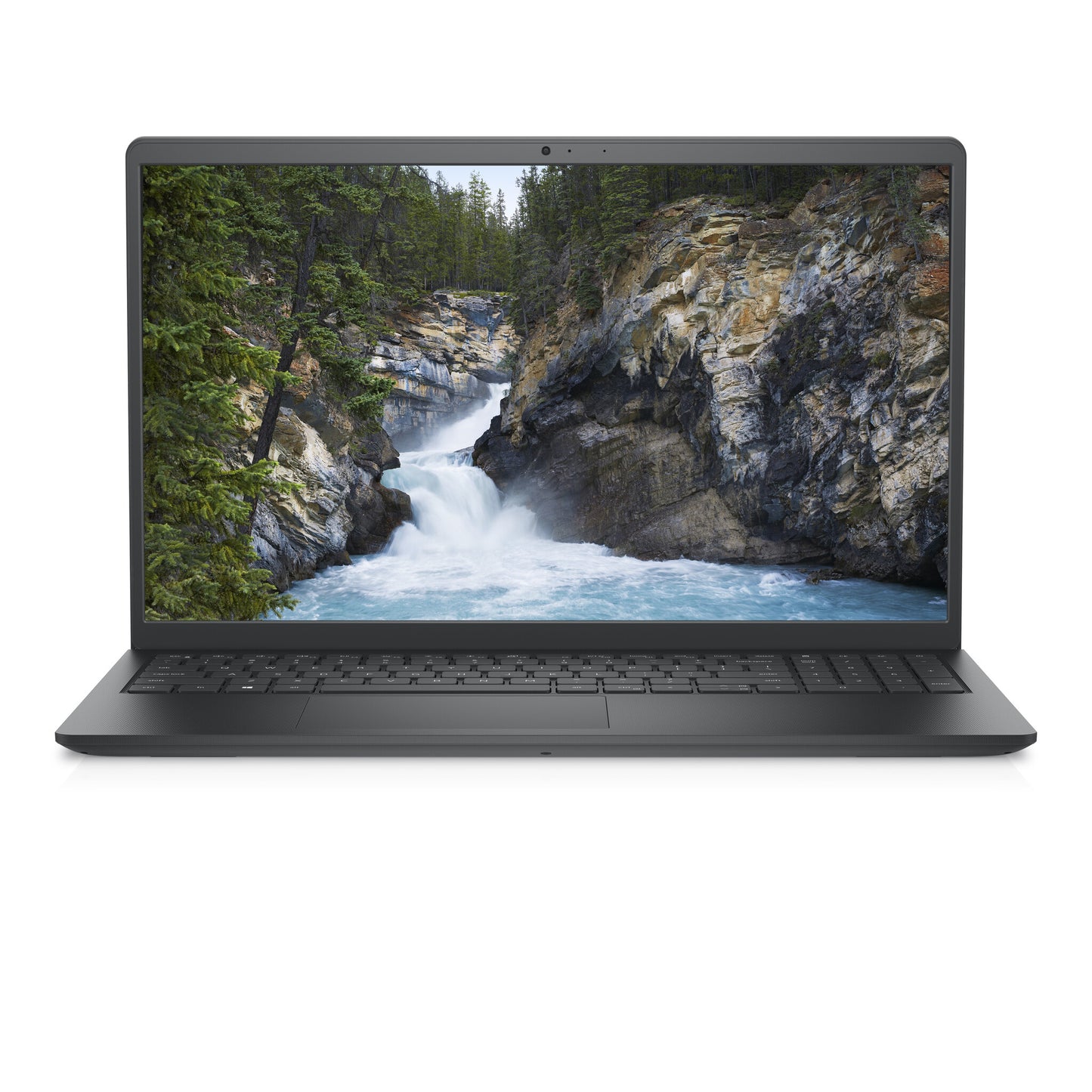

Vostro 3530/Core i5-1334U/8GB/512GB SSD/15.6” FHD 120Hz/Intel HD/FHD Cam/Mic/WLAN + BT/Kb/3 Cell/W11Pro/ 3Y ProSpt
| Design |
|---|
| Market positioning |
Business |
| Housing material |
Plastic |
| Form factor |
Clamshell |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
|---|
| Contrast ratio (typical) |
600:1 |
| Maximum refresh rate |
120 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Pixel density |
141 ppi |
| Display brightness |
250 cd/m² |
| Anti-glare screen |
Yes |
| LED backlight |
Yes |
| Native aspect ratio |
16:9 |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6") |
| Processor |
|---|
| Processor base power |
15 W |
| Maximum turbo power |
55 W |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Efficient-core Max Turbo Frequency |
3.4 GHz |
| Performance-core Max Turbo Frequency |
4.6 GHz |
| Efficient cores |
8 |
| Performance cores |
2 |
| Processor boost frequency |
4.6 GHz |
| Processor threads |
12 |
| Processor cores |
10 |
| Processor model |
i5-1334U |
| Processor generation |
13th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Memory channels |
Dual-channel |
| Maximum internal memory |
16 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 8 GB |
| Memory clock speed |
2666 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
|---|
| Compatible memory cards |
SD, SDHC, SDXC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
|---|
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
|---|
| Built-in microphone |
Yes |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Camera |
|---|
| Video capturing speed |
30 fps |
| Front camera resolution |
1280 x 720 pixels |
| Front camera HD type |
HD |
| Front camera resolution (numeric) |
0.92 MP |
| Front camera |
Yes |
| Network |
|---|
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller manufacturer |
Realtek |
| WLAN controller model |
Realtek RTL8821CE |
| Wi-Fi data rate (max) |
433 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Mobile network connection |
No |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| Keyboard |
|---|
| Numeric keypad |
Yes |
| Pointing device |
Touchpad |
| Software |
|---|
| Trial software |
McAfee 12 Months Business Security,Microsoft Office Trial |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Battery |
|---|
| Battery charge indicator |
Yes |
| Battery weight |
190 g |
| Fast charging |
Yes |
| Battery recharge time |
4 h |
| Battery capacity |
41 Wh |
| Battery voltage |
11.25 V |
| Number of battery cells |
3 |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
|---|
| DC-in jack |
Yes |
| AC adapter output voltage |
19.5 V |
| AC adapter output current |
3.34 A |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50 - 60 Hz |
| AC adapter power |
65 W |
| Security |
|---|
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Cable lock slot type |
Wedge |
| Cable lock slot |
Yes |
| Operational conditions |
|---|
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating shock |
160 G |
| Operating shock |
110 G |
| Non-operating altitude |
0 - 10668 m |
| Operating altitude |
0 - 3048 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
0 - 35 °C |
| Weight & dimensions |
|---|
| Height (rear) |
1.9 cm |
| Height (front) |
1.7 cm |
| Depth |
235.6 mm |
| Width |
358.5 mm |
| Weight |
1.66 kg |
| General |
|---|
| Product family |
Vostro |
| Product series |
3000 |
| Carbon footprint |
|---|
| Total carbon footprint |
296 |
| Total carbon emissions (Standard deviation) |
63 |
| Carbon emissions (Manufacturing) |
245.09 |
| Carbon emissions (Logistics) |
12.415 |
| Carbon emissions (Use) |
36.425 |
| Carbon emissions (End-of-Life) |
1.582 |
| PAIA version |
1.3.2, 2022 |
| Packaging content |
|---|
| Cables included |
AC |
