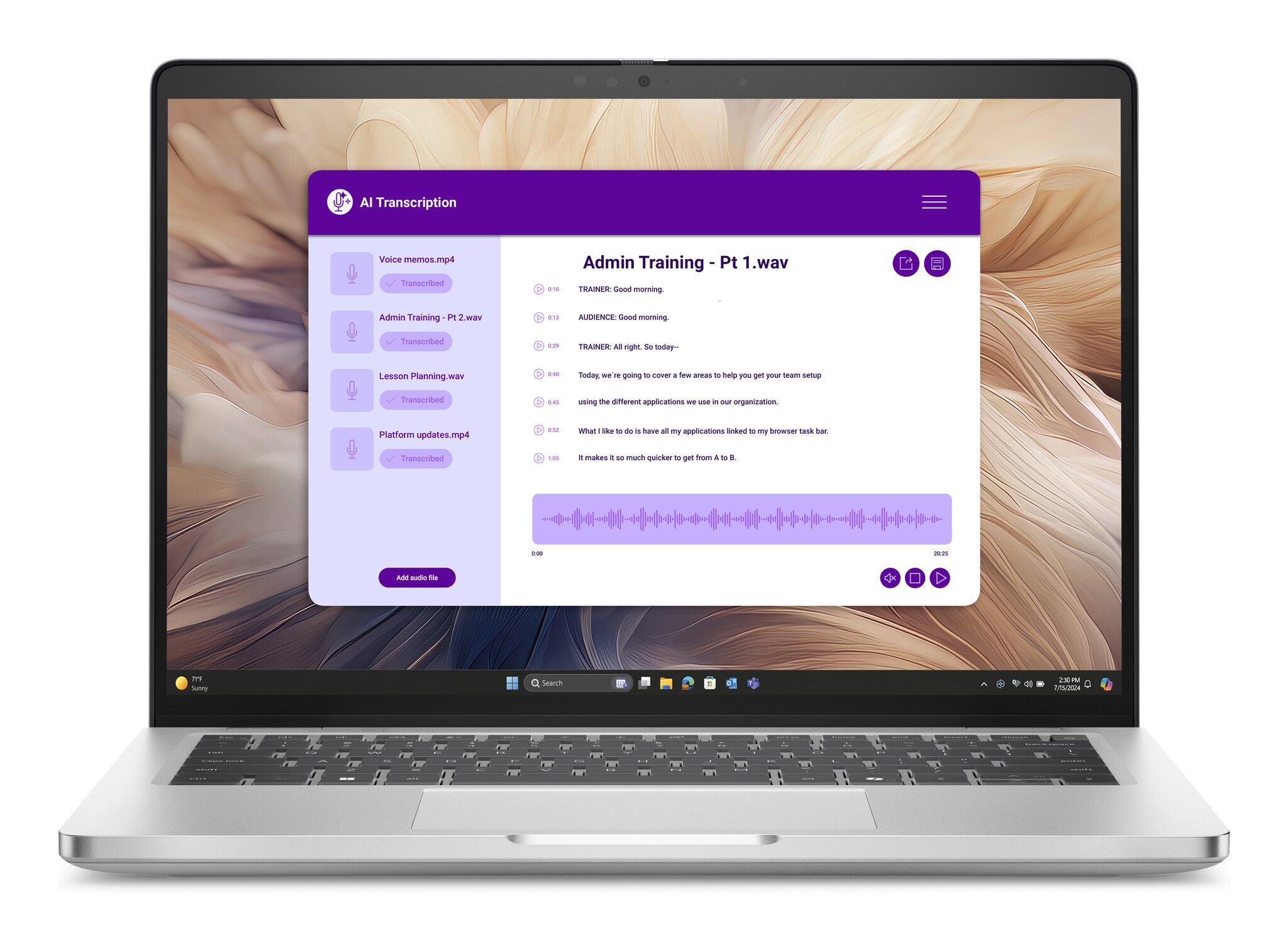

Dell Pro 14 Plus|U7-266V|16GB|512GB SSD|FgrPr|W11 Pro|IR Cam & Mic|WLAN + BT|14.0” FHD+|Backlit Kb|3 Cell ProSupport and Next Business Day Onsite Service 36 Months
| Design |
|---|
| Intel® vPro™ Platform Eligibility |
Yes |
| Housing material |
Aluminium |
| Form factor |
Clamshell |
| Product colour |
Aluminium |
| Product type |
Laptop |
| Display |
|---|
| Contrast ratio (typical) |
600:1 |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Pixel density |
162 ppi |
| Display brightness |
300 cd/m² |
| Anti-glare screen |
Yes |
| Panel type |
IPS |
| HD type |
Full HD+ |
| Touchscreen |
No |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
35.6 cm (14") |
| Processor |
|---|
| Processor base power |
17 W |
| Maximum turbo power |
37 W |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Low Power Efficient-core Base Frequency |
2200 MHz |
| Performance-core base frequency |
2.2 GHz |
| Low Power Efficient-core Max Turbo Frequency |
3.7 GHz |
| Performance-core Max Turbo Frequency |
5 GHz |
| Low Power Efficient-cores |
4 |
| Performance cores |
4 |
| Processor boost frequency |
5 GHz |
| Processor threads |
8 |
| Processor cores |
8 |
| Processor model |
266V |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| GPU performance up to |
66 TOPs |
| NPU performance up to |
48 TOPs |
| Total processor performance up to |
118 TOPs |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
|---|
| Memory data transfer rate |
8533 MT/s |
| Maximum internal memory |
16 GB |
| Memory form factor |
On-board |
| Internal memory type |
LPDDR5x-SDRAM |
| Internal memory |
16 GB |
| Storage |
|---|
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
|---|
| On-board graphics card model |
Intel Arc Graphics 140V |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
|---|
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio chip |
Cirrus Logic CS42L43 |
| Camera |
|---|
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Video capturing speed |
30 fps |
| Front camera resolution |
2560 x 1440 pixels |
| Front camera HD type |
Quad HD |
| Front camera resolution (numeric) |
5.2 MP |
| Front camera |
Yes |
| Network |
|---|
| Bluetooth |
Yes |
| WLAN controller manufacturer |
Intel |
| WLAN controller model |
Intel Wi-Fi 7 BE201 |
| Wi-Fi data rate (max) |
5760 Mbit/s |
| Antenna type |
2x2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Mobile network connection |
No |
| Ports & interfaces |
|---|
| Number of USB ports with PowerShare support |
1 |
| PowerShare |
Yes |
| USB Power Delivery |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Intel® Thunderbolt 4 |
Yes |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Keyboard |
|---|
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
Touchpad |
| Software |
|---|
| Copilot+ PC |
Yes |
| Trial software |
Activate Your Microsoft 365 For A 30 Day Trial,McAfee® Business Protection 1-year |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Brand-specific features |
|---|
| Brand specific technologies |
Control Vault 3+, Express Charge Boost capable, TNR |
| Battery |
|---|
| Battery charge indicator |
Yes |
| Fast charging |
Yes |
| Battery recharge time |
4 h |
| Battery capacity |
55 Wh |
| Number of battery cells |
3 |
| Power |
|---|
| USB charging voltage |
5,9,15,20 V |
| USB Type-C charging port |
Yes |
| Required charging power (min) |
27 W |
| Required charging power (max) |
65 W |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50 - 60 Hz |
| AC adapter power |
65 W |
| Security |
|---|
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Face recognition |
Yes |
| Fingerprint reader |
Yes |
| Smart card reader |
Yes |
| Cable lock slot type |
Wedge |
| Cable lock slot |
Yes |
| Operational conditions |
|---|
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating shock |
160 G |
| Operating shock |
110 G |
| Non-operating altitude |
-15.2 - 10668 m |
| Operating altitude |
-15.2 - 3048 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
0 - 35 °C |
| Weight & dimensions |
|---|
| Height (rear) |
2 cm |
| Height (front) |
1.95 cm |
| Height |
21.2 mm |
| Depth |
313.5 mm |
| Width |
224 mm |
| Weight |
1.53 kg |
| General |
|---|
| Product family |
Pro |
| Product series |
14 Plus |
| Carbon footprint |
|---|
| Total carbon footprint |
108 |
| Carbon emissions (Manufacturing) |
76.896 |
| Carbon emissions (Logistics) |
4.536 |
| Carbon emissions (Use) |
24.516 |
| Carbon emissions (End-of-Life) |
2.052 |
| PAIA version |
GaBi version 1, 2024 |
| Other features |
|---|
| AC adapter included |
Yes |
