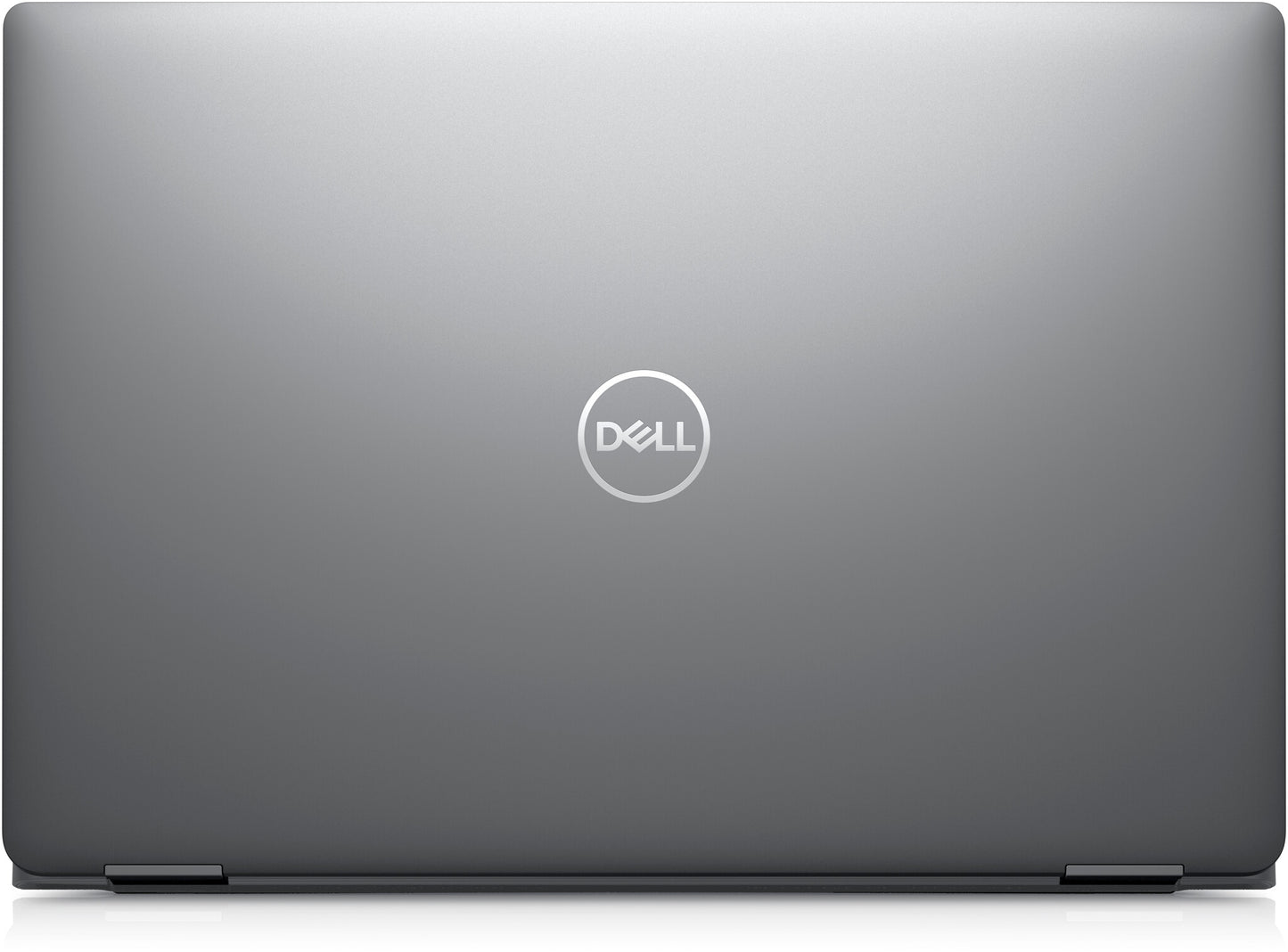

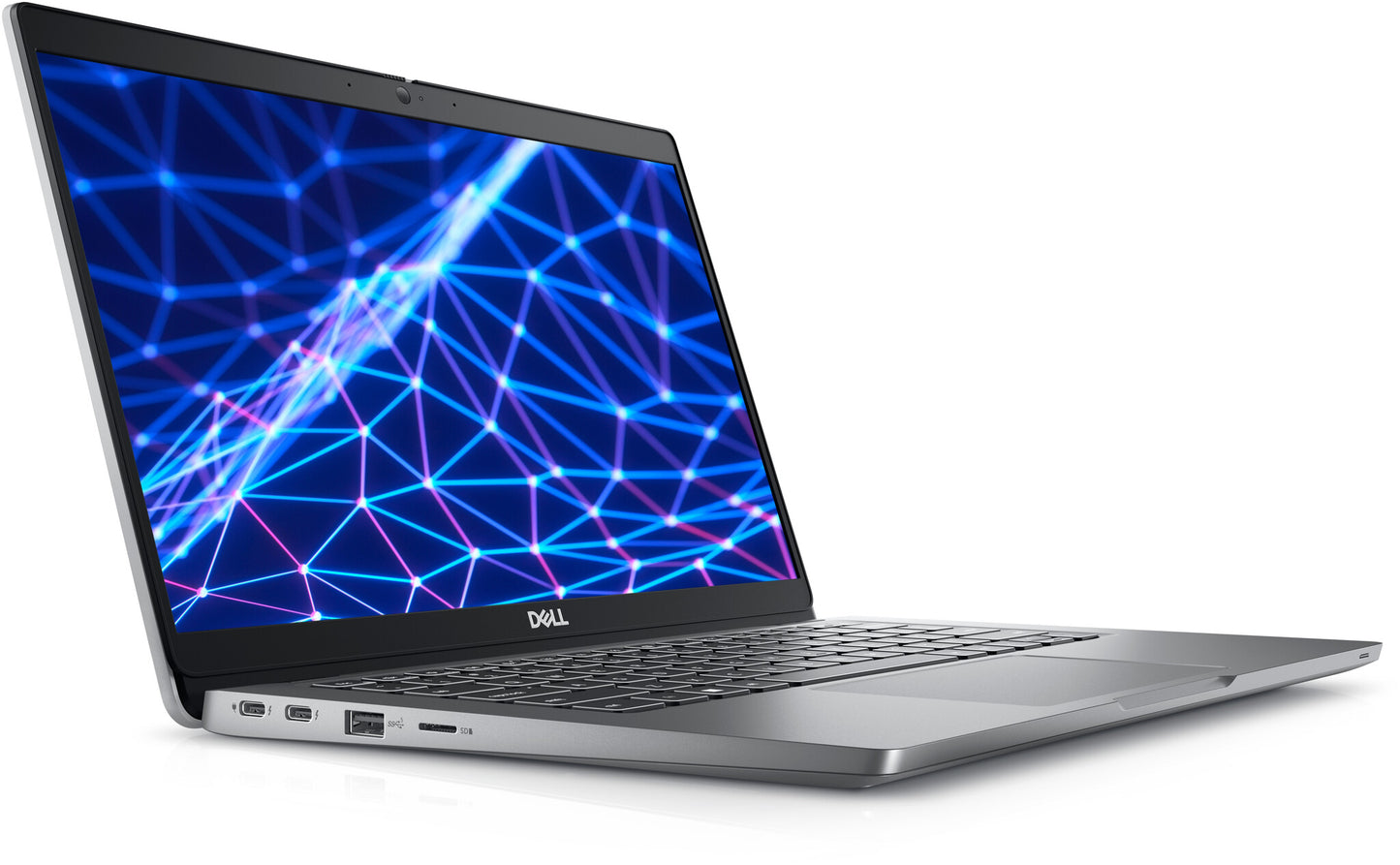

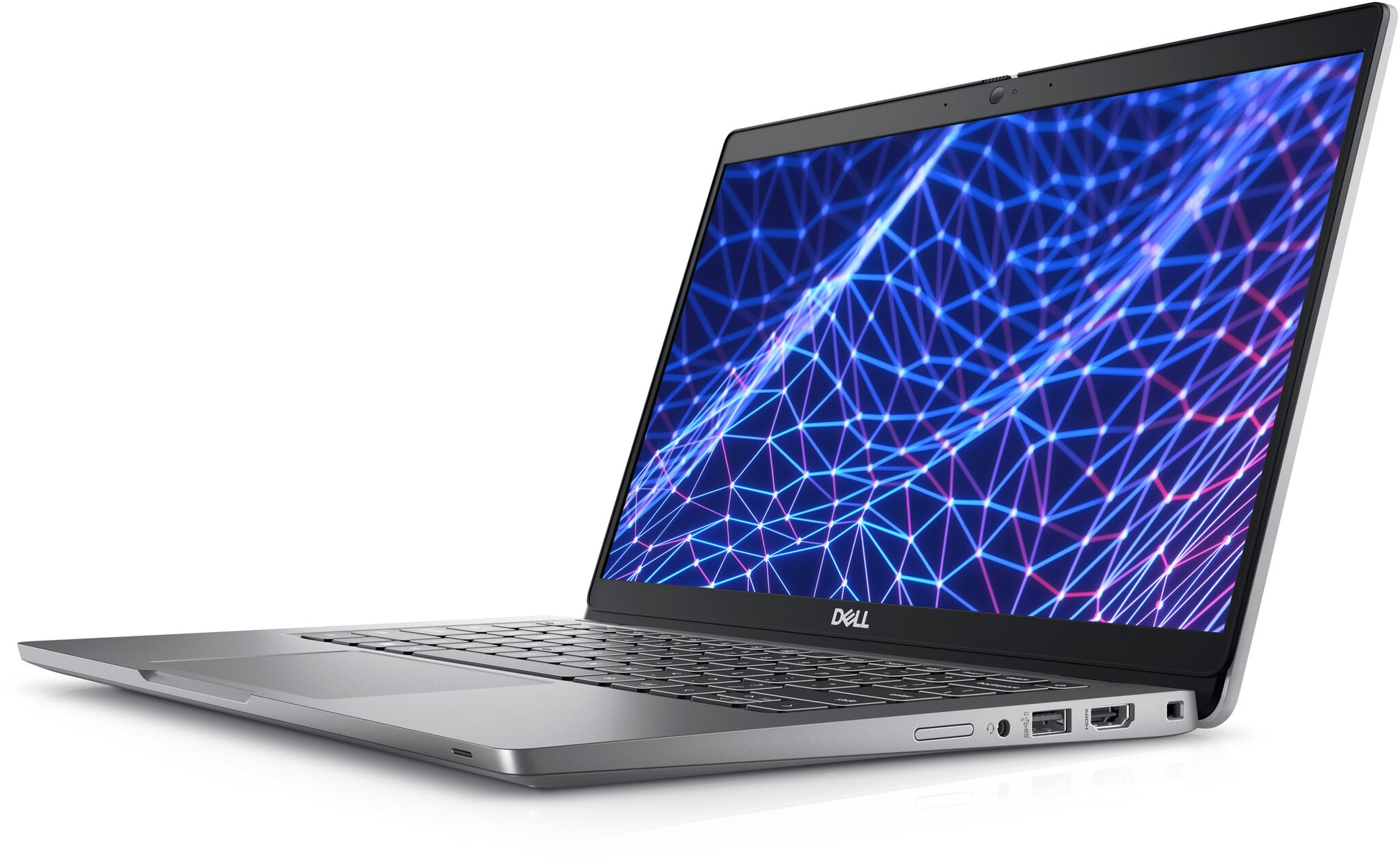

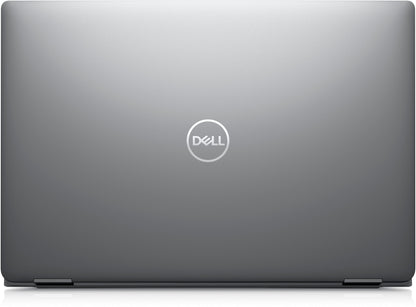

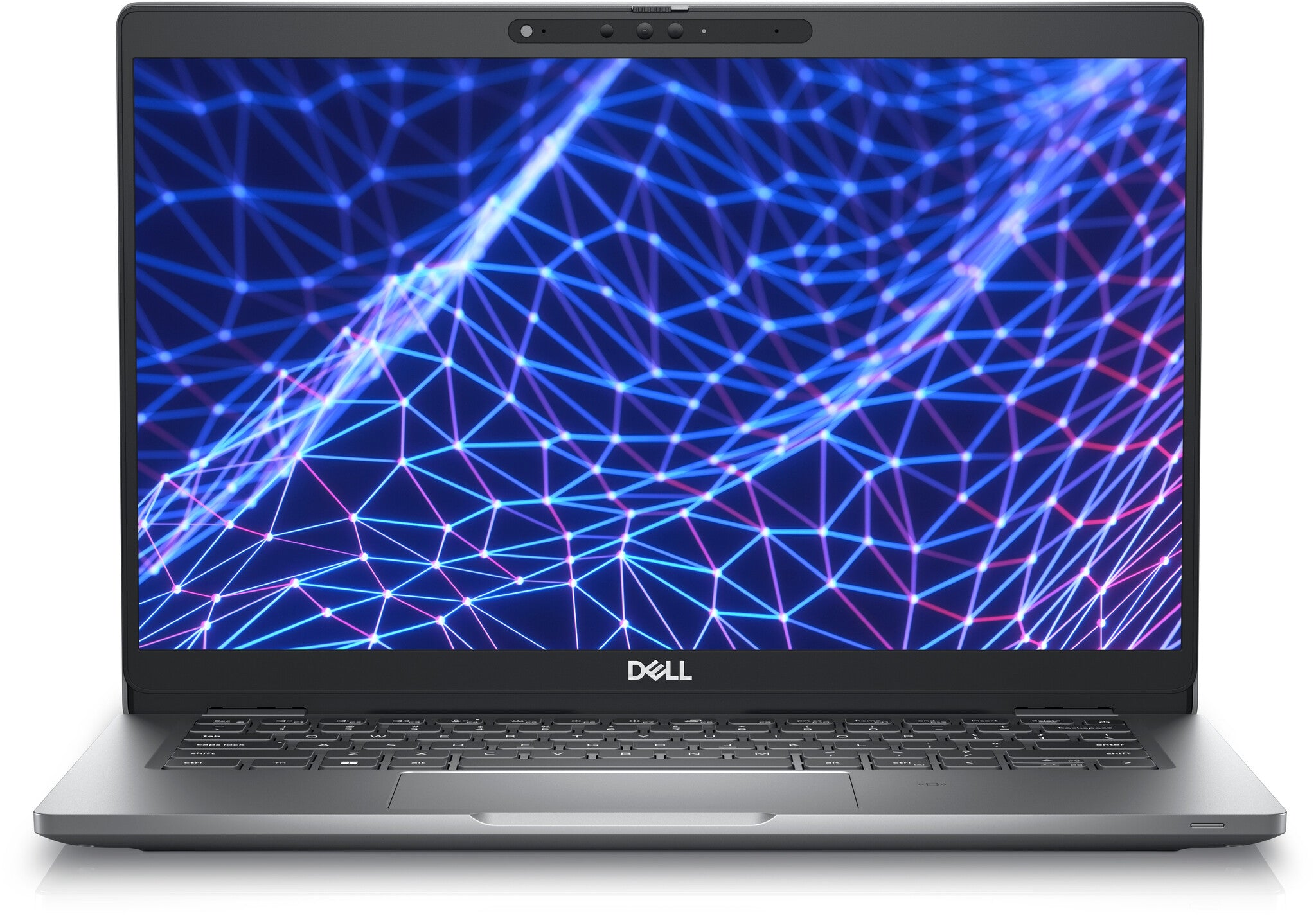

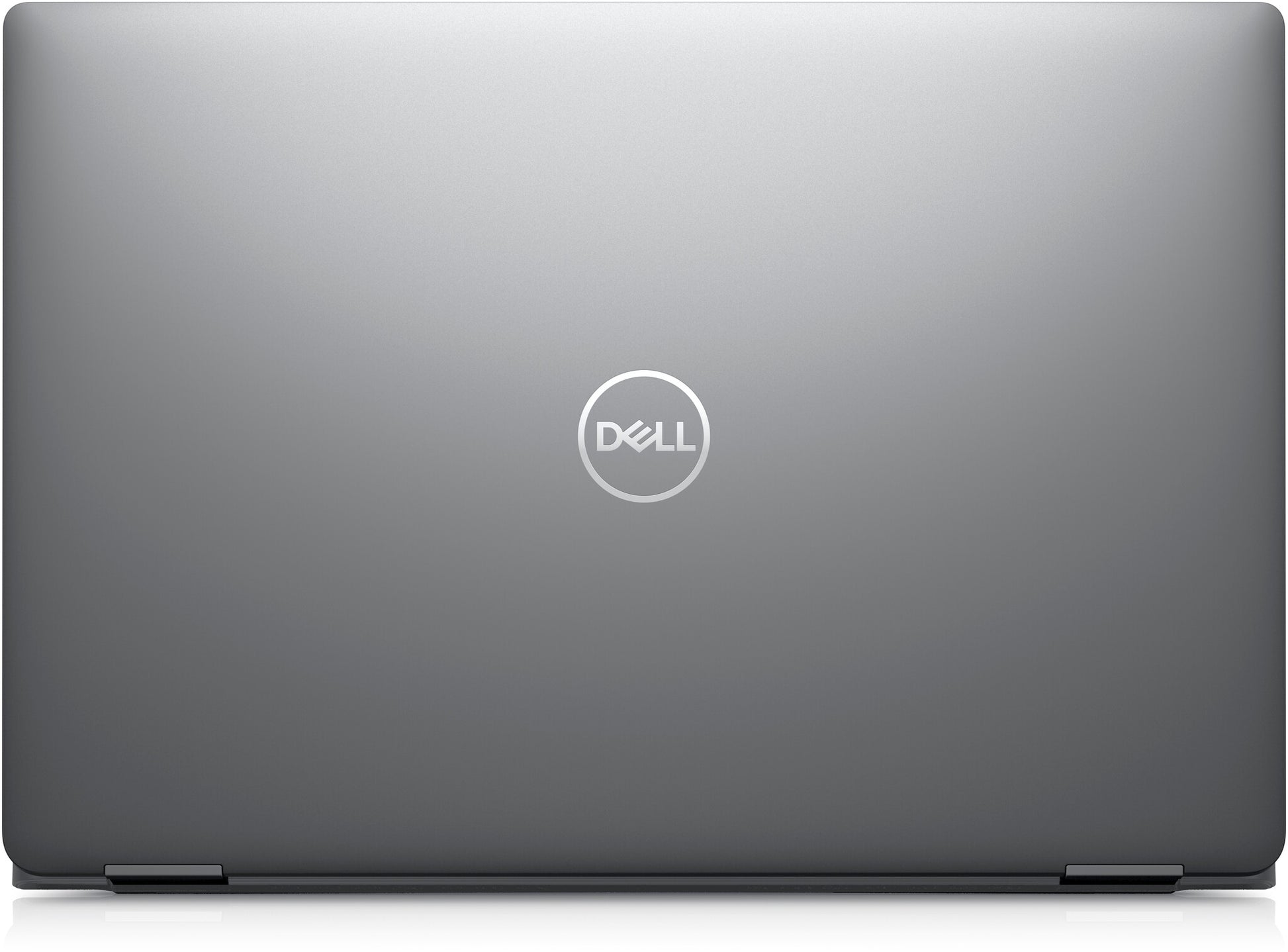

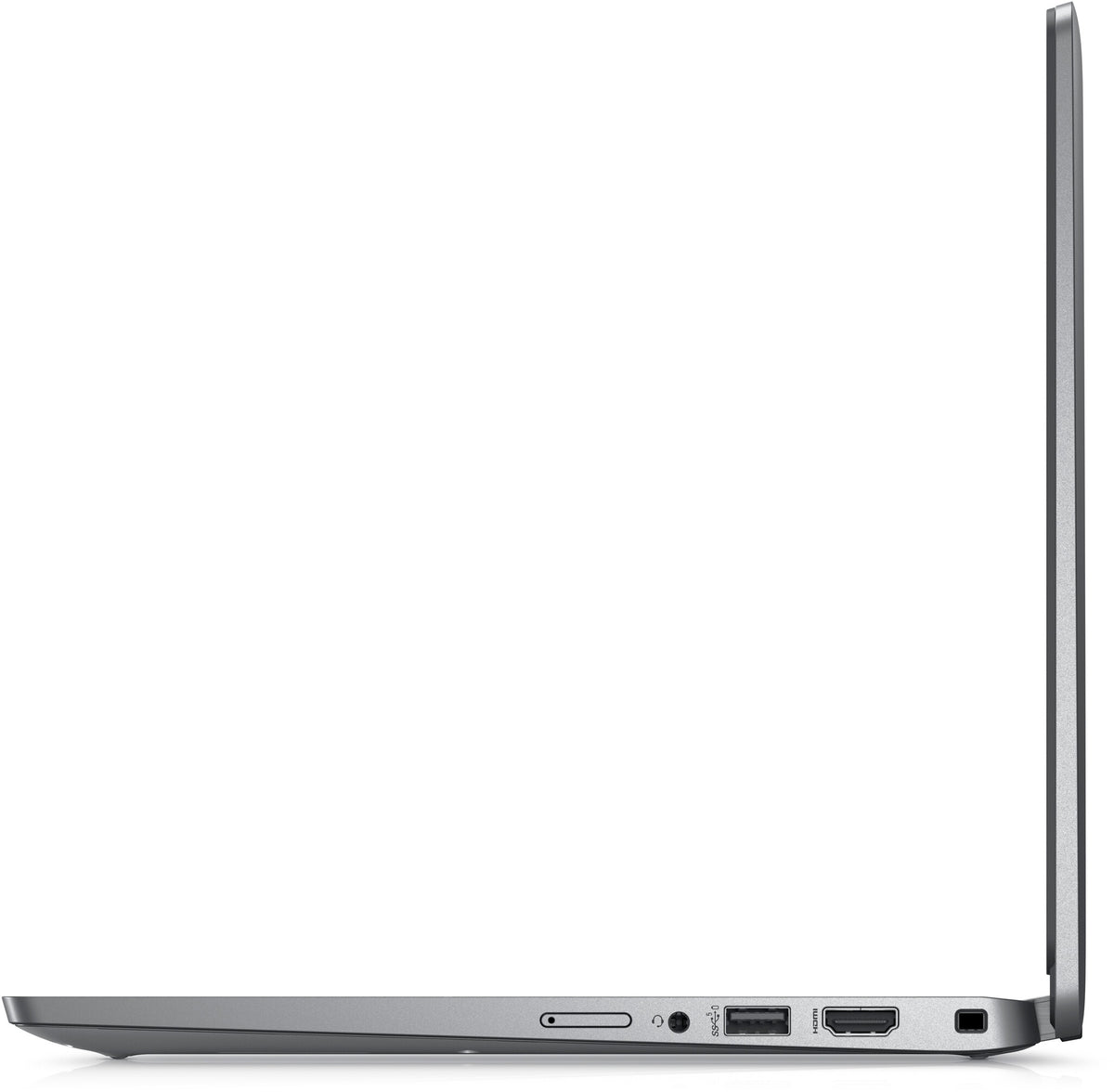

Dell Latitude 5330/Core i5 1235U/8GB/Cant Upg Mem/256GB SSD/13.3” FHD/Intel Iris Xe/ThBlt & FgrPr/Cam & Mic/WWAN + BT/Backlit Kb/4 Cell/W11Pro/ 3Y ProSpt
| Design |
|---|
| Introduction year |
2022 |
| Market positioning |
Business |
| Form factor |
Clamshell |
| Product colour |
Grey |
| Product type |
Laptop |
| Display |
|---|
| Contrast ratio (typical) |
800:1 |
| Display response rise/fall |
35 ms |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Pixel pitch |
0.153 x 0.153 mm |
| Pixel density |
166 ppi |
| Display brightness |
250 cd/m² |
| Anti-glare screen |
Yes |
| LED backlight |
Yes |
| Native aspect ratio |
16:9 |
| Panel type |
WVA |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
33.8 cm (13.3") |
| Processor |
|---|
| Configurable TDP-down |
12 W |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Processor boost frequency |
4.4 GHz |
| Processor cores |
10 |
| Processor model |
i5-1235U |
| Processor generation |
12th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Memory channels |
Dual-channel |
| Maximum internal memory |
8 GB |
| Memory clock speed |
3200 MHz |
| Memory form factor |
On-board |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
|---|
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Total storage capacity |
256 GB |
| Graphics |
|---|
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
|---|
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
MaxxAudio Pro |
| Audio chip |
Realtek ALC3204 |
| Network |
|---|
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| WLAN controller manufacturer |
Intel |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Wi-Fi data rate (max) |
2400 Mbit/s |
| Antenna type |
2x2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |

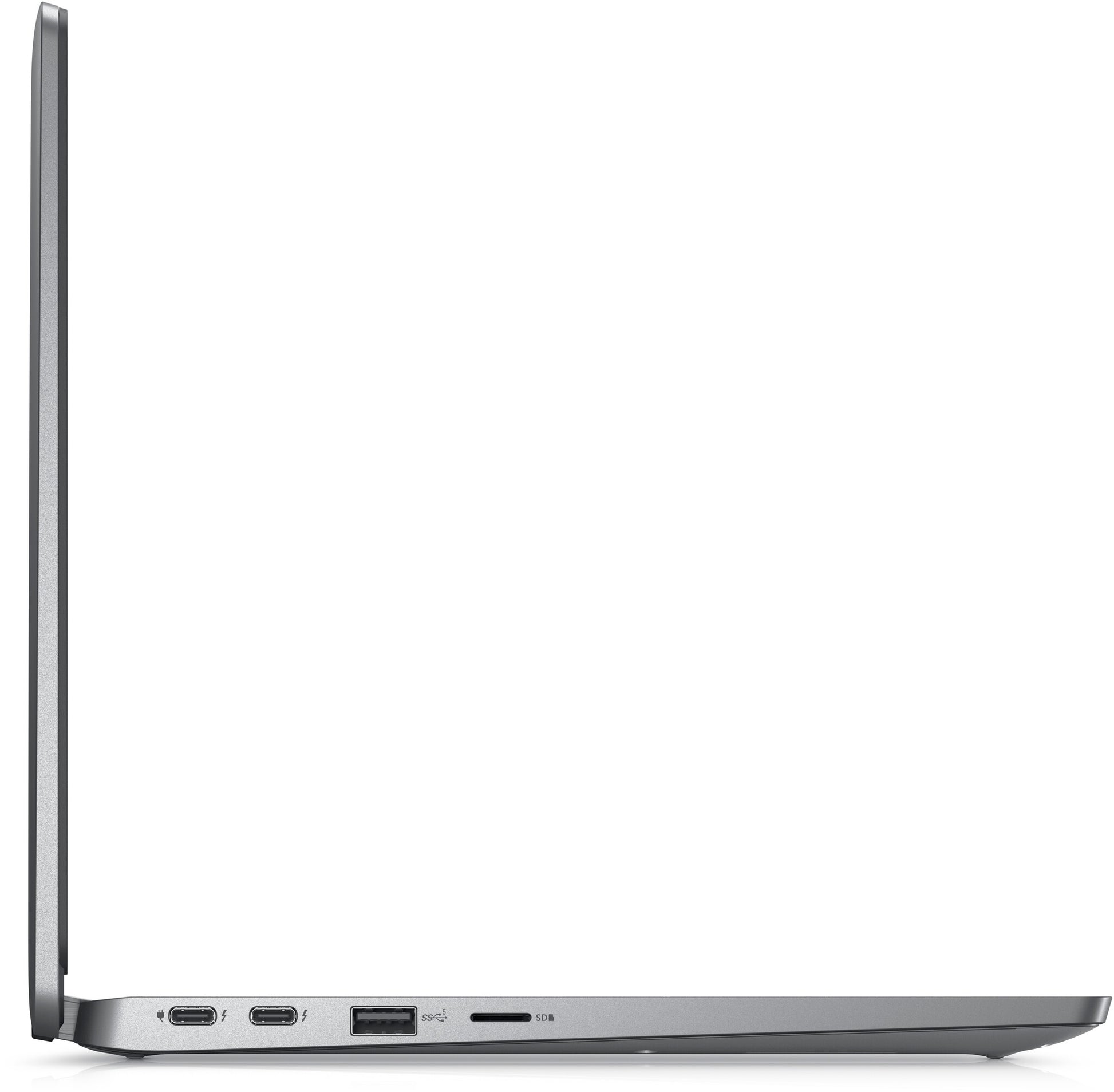

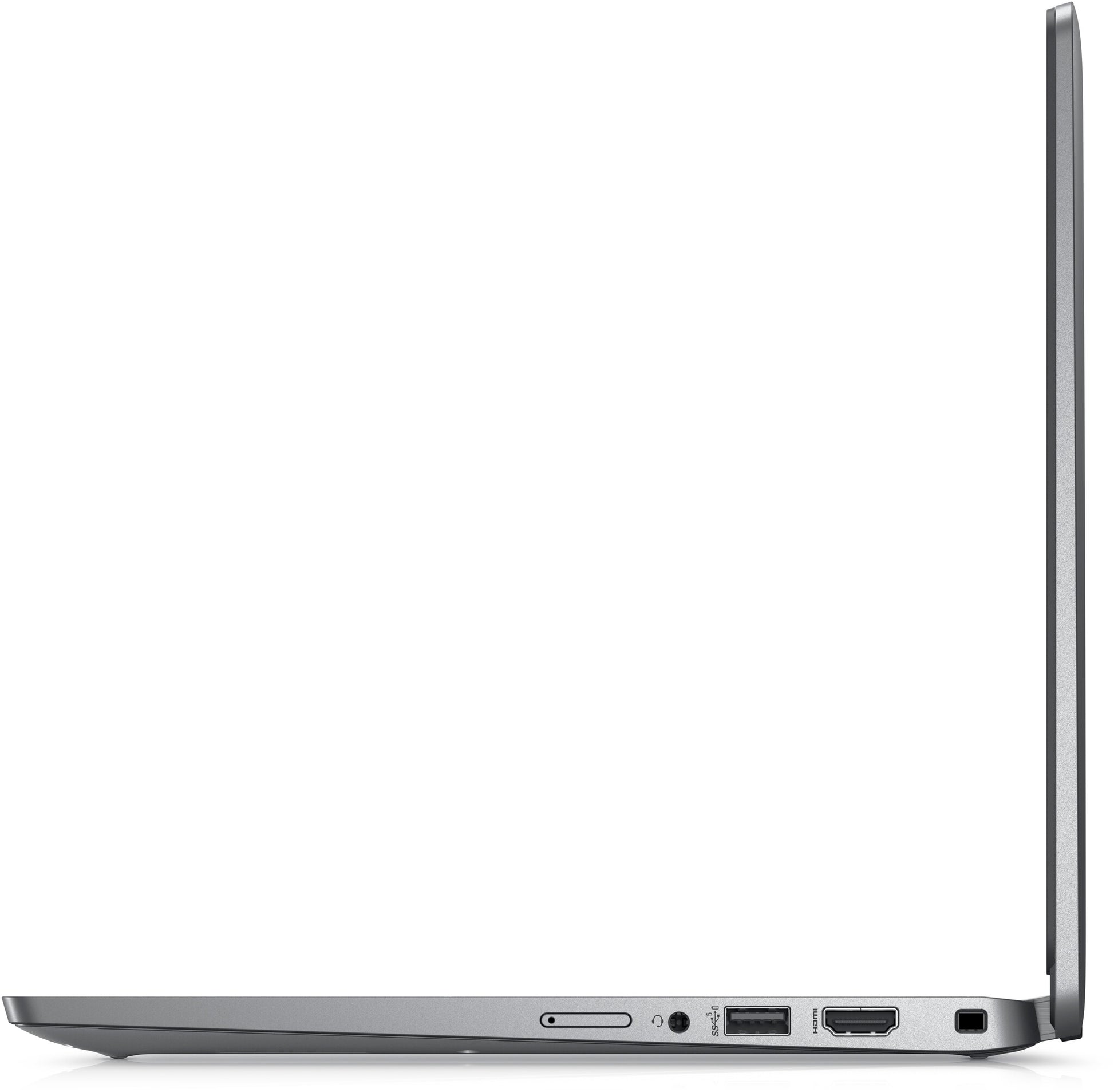

| Ports & interfaces |
|---|
| Number of USB ports with PowerShare support |
1 |
| PowerShare |
Yes |
| USB Power Delivery |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Intel® Thunderbolt 4 |
Yes |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Keyboard |
|---|
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
Clickpad |
| Software |
|---|
| Trial software |
Microsoft Office Trial |
| Operating system language |
Multilingual |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
|---|
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Battery |
|---|
| Battery weight |
230 g |
| Fast charging |
Yes |
| Battery recharge time |
4 h |
| Battery capacity |
58 Wh |
| Battery voltage |
7.6 V |
| Number of battery cells |
4 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
|---|
| USB charging current |
4.5 A |
| USB charging voltage |
5,9,15,20 V |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
90 W |
| Security |
|---|
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
Yes |
| Smart card reader |
Yes |
| Cable lock slot |
Yes |
| Operational conditions |
|---|
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating shock |
160 G |
| Operating shock |
110 G |
| Non-operating altitude |
-15.2 - 10668 m |
| Operating altitude |
-15.2 - 3048 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
0 - 35 °C |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Height (rear) |
1.84 cm |
| Height (front) |
1.69 cm |
| Depth |
207.5 mm |
| Width |
305.7 mm |
| Weight |
1.2 kg |
| General |
|---|
| Product family |
Latitude |
| Product series |
3000 |
| Packaging content |
|---|
| Cables included |
AC |
