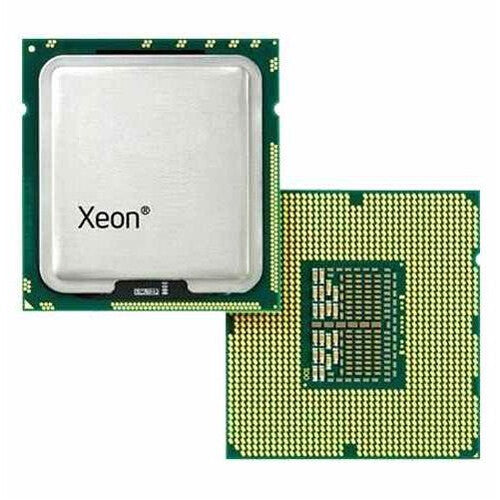

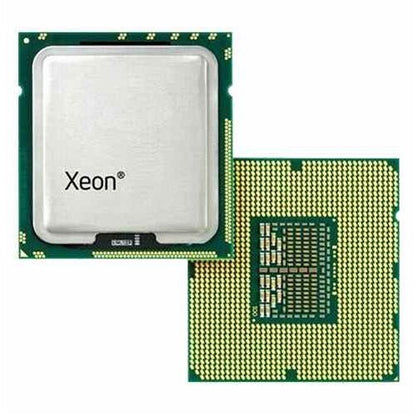

DELL Intel Xeon E5-2620 V4 processor 2.1 GHz 20 MB Smart Cache
Only 1 left
Overview
The Intel® E5-2620 v4 2.10 GHz Eight Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the E5-2620 v4 2.10 GHz Eight Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-2620V4 |
| Processor base frequency | 2.1 GHz |
| Processor cores | 8 |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 14 nm |
| Component for | Server/workstation |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor threads | 16 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 85 W |
| VID Voltage Range | 0 - 0 V |
| Stepping | R0 |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 68.3 GB/s |
| Memory | |
|---|---|
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Features | |
|---|---|
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| Graphics & IMC lithography | 14 nm |
| CPU configuration (max) | 2 |
| Embedded options available | Yes |
| Scalability | 2S |
| Processor special features | |
|---|---|
| Intel Flex Memory Access | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel Trusted Execution Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Conflict-Free processor | Yes |
| Intel® Secure Key | Yes |
| Intel Demand Based Switching | Yes |
| Intel® OS Guard | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Operational conditions | |
|---|---|
| Tcase | 74 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85423119 |
| Weight & dimensions | |
|---|---|
| Processor package size | 45 x 52.5 mm |
| Other features | |
|---|---|
| Compatibility | Intel® Server Board S2600CW2R Intel® Server Board S2600CW2SR Intel® Server Board S2600CWTR Intel® Server Board S2600CWTSR Intel® Server Board S2600KPR Intel® Server Board S2600KPFR Intel® Server Board S2600KPTR Intel® Server Board S2600TPR Intel® Server Board S2600TPFR Intel® Server Board S2600WTTR Intel® Server Board S2600WT2R Intel® Server Board S2600WTTS1R Intel® Compute Module HNS2600KPFR Intel® Compute Module HNS2600KPR Intel® Compute Module HNS2600TP24R Intel® Compute Module HNS2600TP24SR Intel® Compute Module HNS2600TPFR Intel® Compute Module HNS2600TPR Intel® Server System R1208WT2GSR Intel® Server System R1208WTTGSR Intel® Server System R1304WT2GSR Intel® Server System R1304WTTGSR Intel® Server System VRN2224THY2 Intel® Server System VRN2224THY4 Intel® Server System R2208WTTYSR Intel® Server System R2208WT2YSR Intel® Server System R2208WTTYC1R Intel® Server System R2308WTTYSR Intel® Server System R2312WTTYSR Intel® Server System R2224WTTYSR |
Specifications
| Brand | DELL |
|---|---|
| Type | Processors |
| SKU | 338-BJEU |
