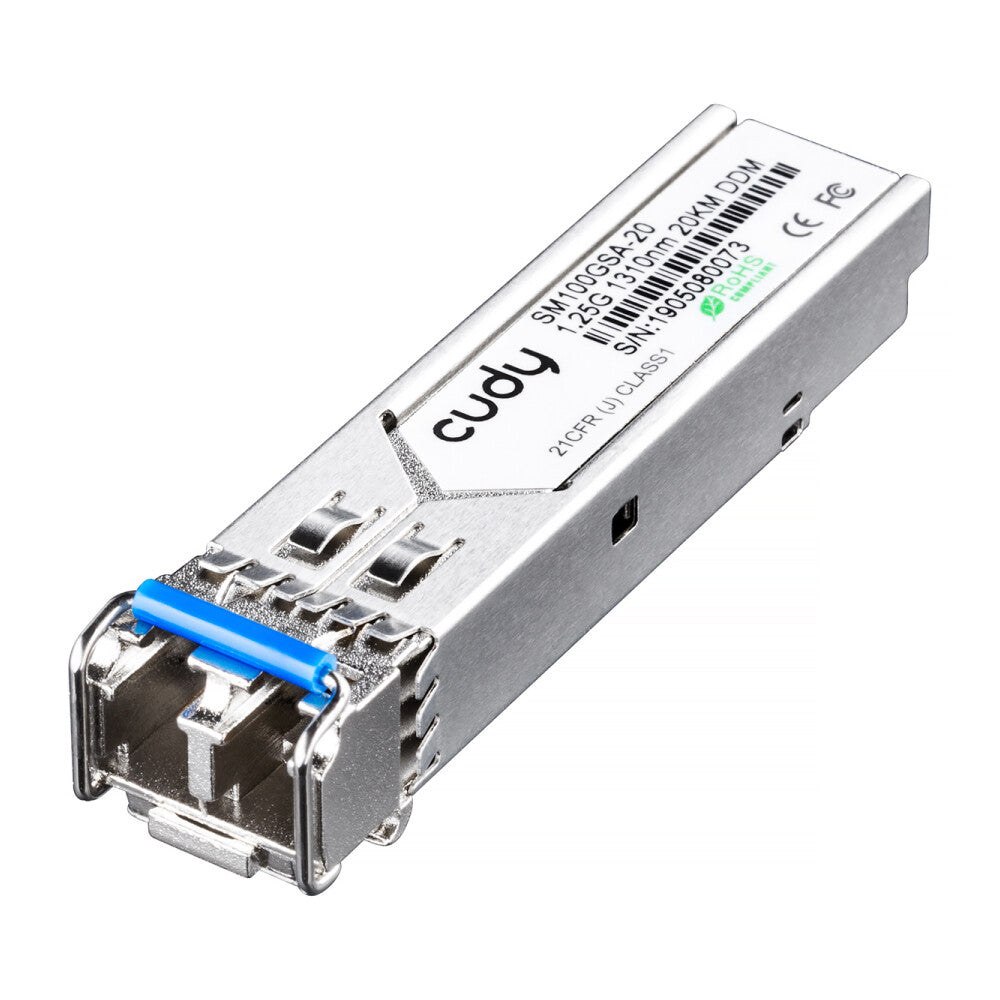

Cudy SM100GSA-20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm

R 97.98
R 97.98
R 97.98
Shipping calculated at checkout.

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
160 in stock
1.25Gb/s SFP, 1310nm FP, SM, 20km, 12.5dB

(SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standard as specified in IEEE Std 802.3. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features. The 1000BASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.

+3.3V Volt Electrical Power Interface
The SFP-1000BASE-T/SFP-1000BASE-T-SGMII has an input voltage range of 3.3 V +/- 5%. The 4V maximum voltage is not allowed for continuous operation.

Low-Speed Signals
MOD_DEF(1) (SCL) and MOD_DEF(2) (SDA), are open drain CMOS signals (see section VII, "Serial Communication Protocol"). Both MOD_DEF(1) and MOD_DEF(2) must be pulled up to host_Vcc.

Performance
Wavelength 1310 nm
Maximum transfer distance 20000 m
Fiber optic connector SFP
Interface type SFP
Maximum data transfer rate 1250 Mbit/s
SFP transceiver type Fiber optic
Features
Form factor SFP
Product colour Stainless steel
Power
Maximum voltage 4 V
Input voltage 3.3 V
Operational conditions
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -40 - 70 °C
Maximum operating temperature 70 °C
Minimum operating temperature -40 °C
Weight & dimensions
Height 13.8 mm
Depth 68 mm
Width 13.7 mm
Logistics data
Quantity per pack 1 pc(s)
