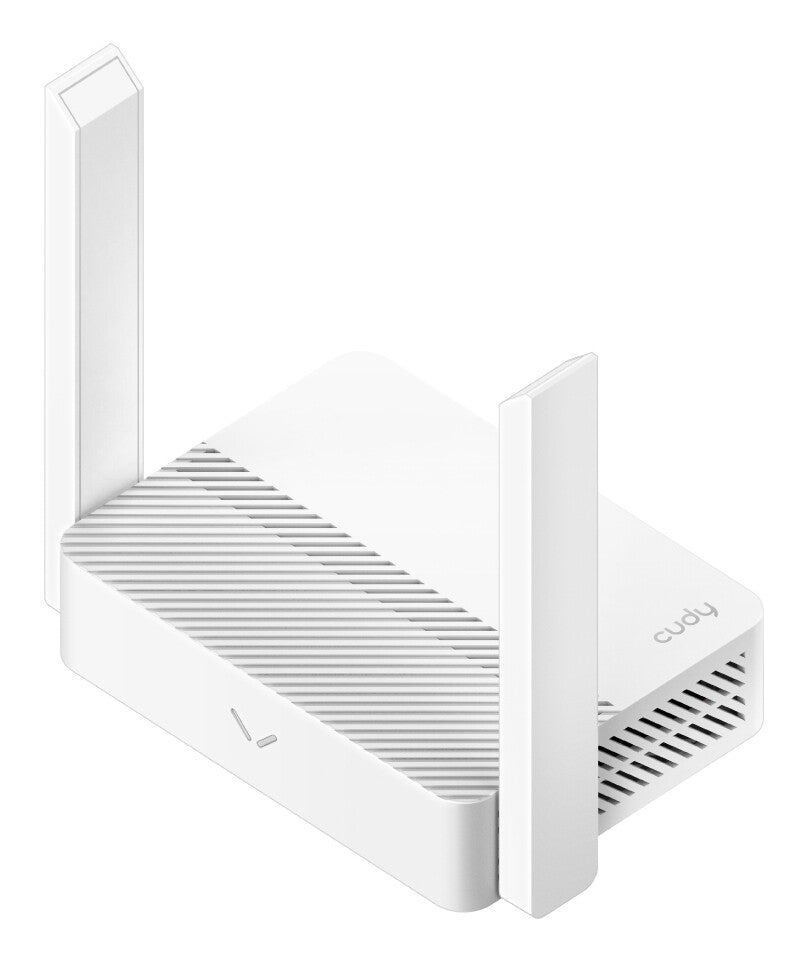

300Mbps, Wi-Fi Router, Model: WR300, White
Perfect for a 100 Mbps Broadband
Shares with Wired Devices Flawlessly

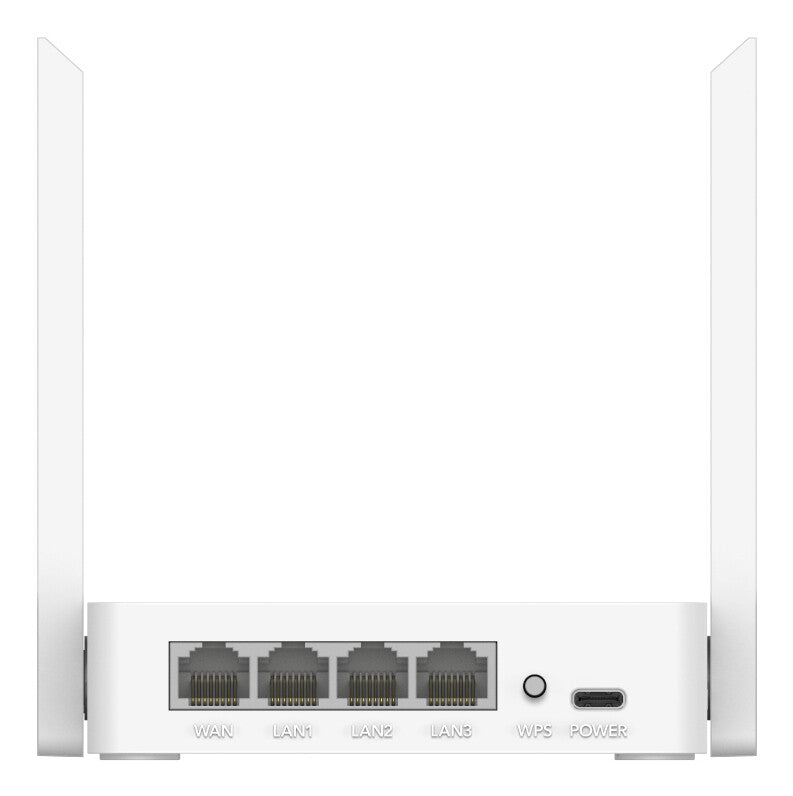

One WAN port plus three LAN ports let you connect multiple devices via stable Ethernet cable without needing another network switch.
Connects 30 Devices Wirelessly
Enjoy high-speed WiFi together when your friends come with ample WiFi capacity. 2×2 MIMO enables devices to use both antennas to improve the experience.
No matter whether you want to connect to a public network expand a trusted network, or even use it as a Wi-Fi adapter (client) for your wired devices. It adapts to multiple scenarios like a breeze.
Easy Setup and Versatile Management
Easy to Use
An intuitive setup wizard guides you to config your new network.
Wi-Fi Schedule
Set a bedtime and a domain blacklist to regulate your children's online behaviour.
WireGuard VPN Client
Allows you to connect multiple devices at once to your private or commercial VPN.
Cudy Mesh Satellite
Works as a Mesh node with other Cudy Mesh device to enable fast roaming when moving between Wi-Fi zones.
A WiFi router with four Fast Ethernet ports allows smooth video playback and a maximum of 100 Mbps internet access, featuring Cudy Mesh and local app control.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| WAN connection type |
RJ-45 |
| Wireless LAN features |
|---|
| Wi-Fi band |
Single-band (2.4 GHz) |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Port triggering |
Yes |
| Port forwarding |
Yes |
| Number of guest networks (5 GHz) |
1 |
| Number of guest networks (2.4 GHz) |
1 |
| VPN Passthrough |
Yes |
| Receiver sensitivity |
5GHz 11a 6Mbps : -96dBm, 11a 54Mbps: -79dBm 11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm, 11n HT20: -72dBm, 11n HT40: -71dBm；2.4GHz 11g 54M: -77dBm 11n HT20: -74dBm, 11n HT40: -72dBm |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
4 |
| USB port |
No |
| DC-in jack |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Reset button |
Yes |
| WPS push button |
Yes |
| MIMO |
Yes |
| MU-MIMO technology |
Yes |
| Remote management |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA2, WPA3 |
| Firewall |
Yes |
| Firewall security |
DoS, SPI Firewall；IP Address Filter/MAC Address Filter/Domain Filter；IP and MAC Address Binding |
| Guest access |
Yes |
| MAC address filtering |
Yes |
| IP address filtering |
Yes |
| URL filtering |
Yes |
| IGMP snooping |
Yes |
| DMZ support |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
White |
| Wall mountable |
Yes |
| LED indicators |
Activity, Power |
| On/off switch |
Yes |

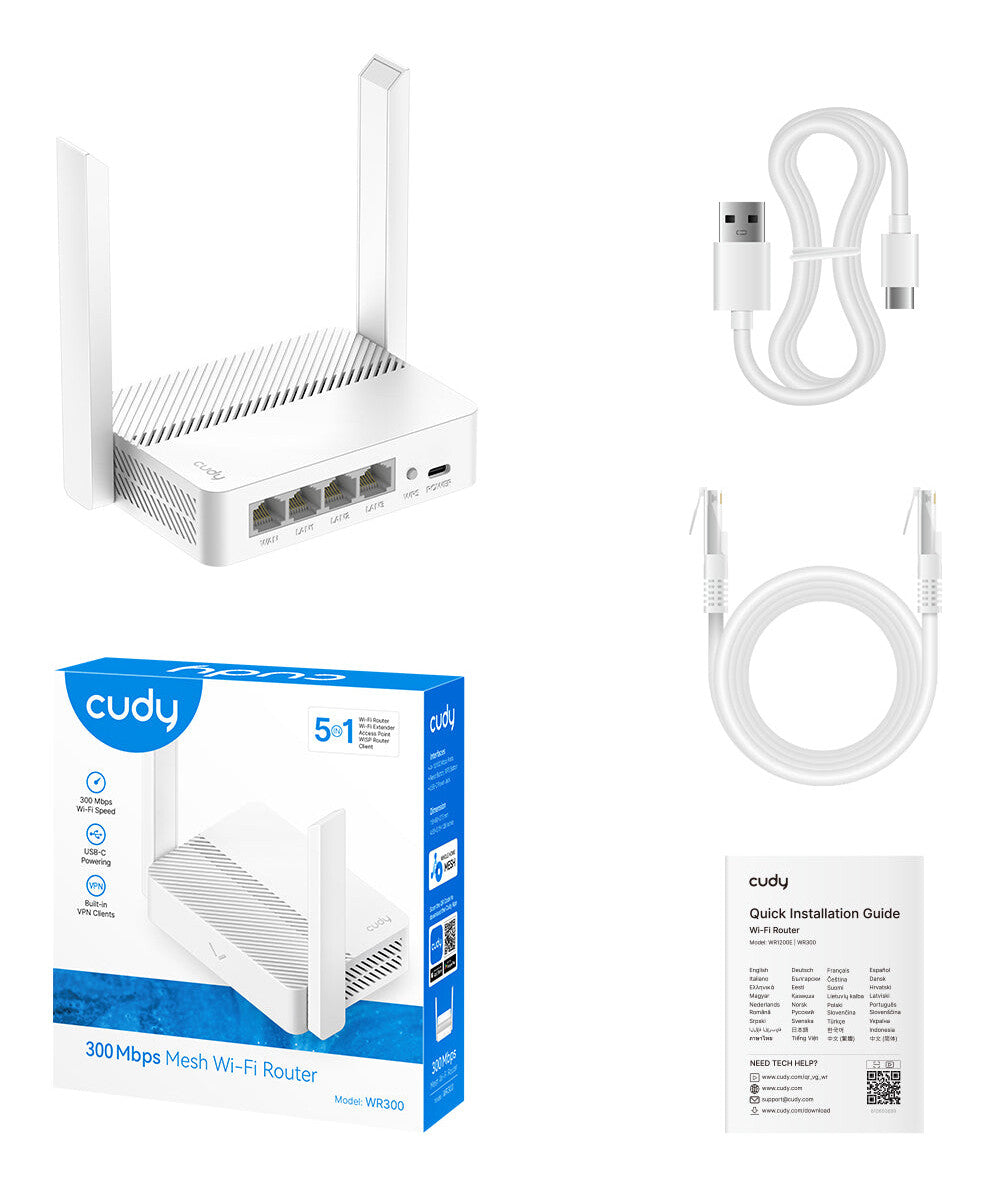

| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
2 |
| Power |
|---|
| Power source type |
DC |
| Output voltage |
5 V |
| Output current |
1 A |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
120 g |
| Height |
27.5 mm |
| Depth |
80 mm |
| Width |
118 mm |
| Packaging data |
|---|
| Package width |
176 mm |
| Package depth |
140.5 mm |
| Package height |
56 mm |
| Package weight |
336 g |
| Package type |
Box |
| Number of products included |
1 pc(s) |
| Other features |
|---|
| Supported protocols |
IPv4, IPv6 |
| Supported WAN type |
Dynamic IP/Static IP/PPPoE |
